P0524 on 2021 Jeep Gladiator: Cold Start Low Oil Pressure Causes & Fixes

What's Unique About the 2021-2021 Jeep GLADIATOR

For the 2021 Jeep Gladiator, this code is exceptionally well-documented by the manufacturer as a software calibration issue. The PCM's parameters for what constitutes 'normal' oil pressure during a cold start were likely too sensitive, leading to false alarms. This is why multiple TSBs point to a PCM software update as the primary solution, rather than a mechanical part replacement. 🎬 Watch: Two quick DIY methods to fix the P0524 code. This issue is noted for both the 3.0L Diesel and 3.6L Gas engines in various bulletins and is also seen in its direct platform mate, the Jeep Wrangler (JL).

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Check Engine Light illuminated
• Low oil pressure warning light on the dashboard, especially during a cold start, which may turn off after a few seconds or upon restarting the engine.
• In rare cases of actual low pressure, unusual engine noises like ticking, clattering, or knocking.
• With the 3.0L Diesel, this code may be accompanied by unstable idle at high altitudes or during remote start, as noted in TSB 18-049-21.

Most Likely Causes

1. Powertrain Control Module (PCM) Software Calibration Error 🔴 High Probability → Shop Engine Control Module (ECM) Multiple TSBs (#18-060-24, #18-002-22 REV. A, #18-030-21) confirm this is a known software sensitivity issue on this model year for both gas and diesel engines.
   How to confirm: A Jeep dealership can check for available PCM software updates by referencing your vehicle's VIN. Mentioning the specific TSBs can expedite the process.
   Typical fix: Reprogramming the PCM with the latest software version using the dealer's wiTECH scan tool.
   Est. part cost: $0-$250
2. Incorrect Oil Viscosity or Clogged/Low-Quality Oil Filter 🟡 Medium Probability → Shop Engine Oil Filter Adapter Using oil that is too thick for cold weather (e.g., not using the manufacturer-specified viscosity) can cause slow pressure build-up on cold starts. A low-quality oil filter with a faulty anti-drainback valve can also cause oil to drain from the galleries, leading to a temporary low pressure state on startup.
   How to confirm: Verify the oil type currently in the engine and the brand/quality of the oil filter. Check service records or ask your oil change provider. Ensure the filter is an OEM Mopar or high-quality equivalent.
   Typical fix: Perform an oil change using the correct OEM-specified oil viscosity and a high-quality OEM or equivalent oil filter.
   Est. part cost: $50-$120
3. Faulty Engine Oil Pressure Sensor ⚪ Low Probability While not exceptionally prone, sensor failure is a common cause for this code on many vehicles if software and oil issues are ruled out. A Reddit user with a 2021 Gladiator reported a similar issue that was resolved by replacing the sensor.
   How to confirm: If a PCM update and correct oil do not resolve the code, a technician must test the sensor. This involves comparing the sensor's electronic reading to a reading from a mechanical oil pressure gauge.
   Typical fix: Replace the engine oil pressure sensor.
   Est. part cost: $60-$150

Rare But Worth Checking

• Failing Oil Pump: → Shop Engine Oil Pump This is very unlikely on a 2021 vehicle but is a potential cause of true low oil pressure. It would typically be accompanied by engine noise and would not be limited to cold starts.
• Clogged Oil Pickup Tube Screen: Extremely rare on a newer vehicle unless there has been a significant internal engine failure that created debris in the oil pan.

Diagnosis Steps

1. Verify the engine oil level is correct and the oil is in good condition.
2. Check service history to confirm the correct oil viscosity is being used.
3. Contact a Jeep dealership or use a professional scan tool to check if the PCM has the latest software. Reference TSBs #18-060-24, #18-002-22 REV. A, and #18-030-21.
4. If software is not the cause, have a technician connect a mechanical oil pressure gauge to verify the actual oil pressure during a cold start.
5. If actual pressure is confirmed to be low, investigate mechanical causes like the oil filter, oil viscosity, or, rarely, the oil pump.
6. If actual pressure is normal but the code persists after a software update, the oil pressure sensor is the likely culprit and should be tested and/or replaced.

Parts You'll Likely Need

• Engine Oil Pressure Sensor (3.6L Gas) (OEM #68334877AA) — If a software update and correct oil don't fix the issue, the sensor itself may be faulty, sending incorrect readings to the PCM.
  Trusted brands: Mopar, Standard Motor Products, Dorman
  OEM price range: $65-$95
  Aftermarket price range: $35-$60
• Engine Oil Pressure Sensor (3.0L Diesel) (OEM #68645517AA) — If a software update and correct oil don't fix the issue on the EcoDiesel engine, the sensor itself may be faulty.
  Trusted brands: Mopar
  OEM price range: $70-$100
  Aftermarket price range: $50-$80
• Engine Oil and Filter — Using the wrong oil viscosity or a poor-quality filter can directly cause temporary low pressure on cold starts.
  Trusted brands: Pennzoil, Mobil 1, Mopar
  OEM price range: $80-$120
  Aftermarket price range: $50-$90

Related Codes That Often Appear With This One

• P0088 — Listed in the same TSBs (#18-060-24, #18-002-22 REV. A) as being resolved by a PCM software update.
• P0404 — Listed in the same TSBs (#18-060-24, #18-002-22 REV. A) as being resolved by a PCM software update.
• P20C6 — Listed in the same TSBs (#18-060-24, #18-002-22 REV. A) as being resolved by a PCM software update.
• P249C-00 — Listed in the same TSBs (#18-060-24, #18-002-22 REV. A, #18-030-21) as being resolved by a PCM software update.

Technical Service Bulletins (TSBs) & Recalls

• 18-060-24: Lists P0524 - Low oil pressure (during start up in cold ambient temps) as a code addressed by a PCM update.
• 18-002-22 REV. A: Specifically for the 3.0L Diesel, this bulletin involves a PCM flash to address P0524 among many other codes, and was released as a Rapid Service Update (RSU).
• 18-030-21: For gasoline models, this TSB also lists P0524 as a code that can be set and is addressed by a software update.
• 18-049-21: While for the 2020 Wrangler 3.0L Diesel, it shows a pattern of software updates fixing cold-start issues like unstable idle, which are sometimes seen with P0524.

Platform-Specific Known Issues

• The 2021 Jeep Gladiator is subject to several TSBs indicating that a PCM software update is required to fix a list of erroneous trouble codes, including P0524 for low oil pressure at cold start-up.
• Some owners on JeepGladiatorForum.com have reported intermittent low oil pressure warnings even when the engine is warm or not on an incline, which are resolved by restarting the vehicle, suggesting the sensor or software can trigger the fault outside of the typical cold-start scenario.

Mechanic-Grade Diagnostic Values

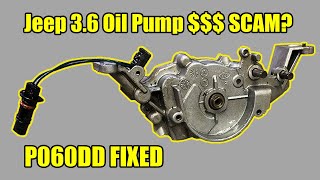

• 3.6L Gas Engine Oil Pressure (Warmed Up) — expected: Approx. 28-30 PSI at idle; increases above 3,000 RPM.. Failure: Pressure significantly below 28 PSI at idle, or not increasing with RPM (may indicate a P06DD code).
• 3.0L Diesel Engine Oil Pressure (Warmed Up) — expected: Approx. 20-25 PSI at idle; 30-40+ PSI while driving.. Failure: Pressure significantly below 20 PSI at idle or failure to rise when driving.
• Oil Pressure Sensor Signal Voltage (General) — expected: The PCM sends a reference voltage (typically 5V) to the sensor, which returns a variable voltage signal based on pressure.. Failure: No return voltage, or a fixed voltage that doesn't change with engine RPM, would indicate a faulty sensor or wiring issue.

Wiring & Ground Locations

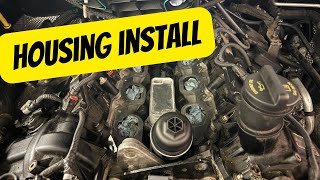

• Oil Pressure Sensor Connector — On the 3.6L V6, the sensor is located deep in the engine valley, underneath the upper and lower intake manifolds, as part of the oil cooler/filter housing assembly.. The connector is a 3-wire plug. Damage to the connector or wiring harness during other engine service (like replacing the oil filter housing) can cause intermittent or false readings, triggering P0524. The three pins are typically for a 5V reference, signal return, and ground.
• Engine Bay Ground Points — Multiple ground studs are located in the engine bay next to the battery, on a 'ground bridge' against the top of the fender.. A poor ground connection for the PCM or the sensor's circuit can introduce electrical noise or incorrect voltage readings, potentially causing a false P0524 code. Ensuring these grounds are clean and tight is a key diagnostic step for any electronic fault.
• Frame Ground Points — Ground points are located on the frame behind the front passenger wheel and two points are located on the frame above the spare tire (spare must be removed to access).. While less likely to be the primary cause for a sensor code, these main chassis grounds are critical for the overall electrical system health. A compromised main ground could lead to a variety of seemingly unrelated electrical issues.

Real Owner Repair Stories

• Reddit r/JeepGladiator (2022 Jeep Gladiator EcoDiesel) — Randomly recurring 'Low oil pressure fault' on the dash, which clears on its own after restarting the vehicle.
  ❌ Tried (didn't work) Oil and filter were recently changed, oil level was correct, and no leaks were found.
  ✅ What actually fixed it The user did not post a final resolution, but other commenters suggested the issue was likely a faulty oil pressure sensor sending incorrect readings, as the pressure and oil level were confirmed to be normal.

OEM Part Supersession History

• 68002994AA, 68002994AB → 68645517AA — Part revision or manufacturer change for the 3.0L Diesel oil pressure sensor/switch.
