P0524 on 2021 Jeep Wrangler: Engine Oil Pressure Too Low Causes and Fixes

What's Unique About the 2021-2021 Jeep WRANGLER

On the 2021 Wrangler with the 3.0L EcoDiesel (Gen 3) engine, the P0524 code is uniquely tied to factory software calibrations and extreme sensitivity to the oil change procedure. Jeep issued multiple Technical Service Bulletins (TSBs) that group P0524 with other, seemingly unrelated, diesel emissions and engine performance codes, indicating the issue is often a software sensitivity that can be resolved with a PCM reflash. Furthermore, TSB 09-005-20 explicitly states 🎬 Watch: Step-by-step 3.0L EcoDiesel oil change and filter guide that P0524 can be set if the oil filter cap is not tightened to the precise specification of 25 N·m (18 ft-lbs). Forum discussions among owners of Wranglers and platform-mate Gladiators confirm that improper O-ring lubrication, using non-OEM filters, or incorrect torque on the filter cap are very common causes for this code after a routine oil change.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Check Engine Light (MIL) is illuminated
• Low oil pressure warning light on the dashboard
• Oil pressure gauge reading low or zero
• Engine may produce ticking, whining, or knocking noises, especially on startup
• In some cases, the gauge may appear normal but the light and code are still triggered intermittently.

Most Likely Causes

1. PCM Software Requires Update 🔴 High Probability Multiple TSBs (including #1800122, #18-029-21, and #18-049-21) were issued by the manufacturer for the 3.0L EcoDiesel engine to correct software sensitivity that could falsely trigger P0524 along with other codes, particularly during cold starts.
   How to confirm: A Jeep dealership can check for and apply the latest PCM software updates using their wiTECH diagnostic tool by referencing your vehicle's VIN.
   Typical fix: Reprogramming the Powertrain Control Module (PCM) with the updated software. This is a dealer-only procedure.
   Est. part cost: $0 (if under warranty)
2. Incorrect Engine Oil or Filter Installation 🔴 High Probability The Gen 3 3.0L EcoDiesel is extremely sensitive to the oil filter installation. TSB 09-005-20 explicitly warns that P0524 can be triggered if the oil filter cap is not torqued to exactly 25 N·m (18 ft-lbs). Forum users corroborate this, reporting that failing to lubricate the new O-rings or using non-OEM filters can also cause pressure drops and trigger the code.
   How to confirm: Verify the oil viscosity matches the manufacturer's specification (5W-40 synthetic meeting FCA MS-12991). Check the part number of the installed oil filter (OEM is Mopar 68507598AA). Using a torque wrench, verify the oil filter cap is tightened to 25 N·m (18 ft-lbs) as printed on the cap.
   Typical fix: Perform an oil and filter change using the correct OEM-specified 5W-40 oil and a genuine Mopar filter (68507598AA). Carefully lubricate the new O-rings with fresh oil and torque the filter cap to 25 N·m.
   Est. part cost: $80-$150
3. Low Engine Oil Level 🟡 Medium Probability
   How to confirm: Check the engine oil level using the dipstick when the engine is cold and on a level surface. A low level is a primary cause of low pressure.
   Typical fix: Top off the oil to the correct level and investigate the cause of the oil loss (e.g., leaks, oil consumption). The 3.0L EcoDiesel has a 9.0-quart capacity for the Wrangler.
   Est. part cost: $15-$25
4. Faulty Engine Oil Pressure Sensor 🟡 Medium Probability Like any electronic component, the sensor can fail, sending inaccurate readings to the ECM. On some Jeep engines, the wiring to the sensor can also be damaged by heat or oil contamination.
   How to confirm: After verifying the oil level and pressure with a mechanical gauge, test the sensor's output voltage. If the mechanical gauge shows good pressure but the scan tool shows low pressure, the sensor or its circuit is likely faulty. The sensor is located just above the oil filter housing.
   Typical fix: Replace the engine oil pressure sensor and inspect the wiring harness for damage. The OEM part number is Mopar 68627447AA.
   Est. part cost: $40-$90

Rare But Worth Checking

• Failing Oil Pump: → Shop Engine Oil Pump While not common on a newer vehicle, a worn or failing oil pump can cause genuine low oil pressure. This is a major mechanical repair and should be considered only after all other causes are ruled out.
• Clogged Oil Pickup Tube: Sludge or debris in the oil pan can clog the oil pump's pickup tube screen, restricting oil flow. This is more common on engines with poor maintenance history or after a major component failure.
• Incorrect Oil Filter Adapter O-Ring: → Shop Engine Oil Filter Adapter A Customer Satisfaction Notification (Z63) for some 2022 Ram 1500s with the same engine noted an incorrect anti-drain valve O-ring in the oil filter adapter could restrict oil flow and cause P0524. While not specific to the 2021 Wrangler, it highlights a potential factory defect in the oil filter housing assembly that could lead to this code.

Diagnosis Steps

1. Check the engine oil level and condition. The 3.0L EcoDiesel in the Wrangler requires 9.0 quarts of 5W-40 synthetic oil meeting FCA spec MS-12991. If low, top off and re-test.
2. Scan the ECM for any other trouble codes. Note if other diesel-related codes (like P208B, P249C-00) are present, as this strongly points towards the TSB software fix.
3. Check with a Jeep dealer if TSB #1800122, #18-029-21, or #18-049-21 apply to your vehicle's VIN and if the PCM software is up to date.
4. If the code appeared after an oil change, immediately re-inspect the oil filter. Ensure it is the correct OEM part (Mopar 68507598AA). Remove the filter, lubricate the O-rings with fresh oil, and reinstall the cap, tightening to exactly 25 N·m (18 ft-lbs) with a torque wrench.
5. If software is current and the filter installation is correct, connect a mechanical oil pressure gauge to verify the actual engine oil pressure. This is a critical step to differentiate between a real pressure problem and a sensor/electrical issue.
6. If the mechanical gauge shows normal pressure (typically 20-25 PSI at hot idle), inspect the oil pressure sensor's wiring for damage and test the sensor itself. Replace if faulty (Mopar 68627447AA).
7. If the mechanical gauge confirms low oil pressure, more in-depth mechanical diagnosis is needed, including inspection of the oil filter housing, oil pump, and oil pickup tube for blockages or damage.

Parts You'll Likely Need

• Engine Oil and Filter (OEM #68507598AA) — Using the manufacturer-specified 5W-40 oil and a high-quality OEM filter torqued correctly is a common and critical fix for the sensitive 3.0L EcoDiesel engine.
  Trusted brands: Mopar, Pennzoil Platinum Euro
  OEM price range: $100-$150
  Aftermarket price range: $80-$120

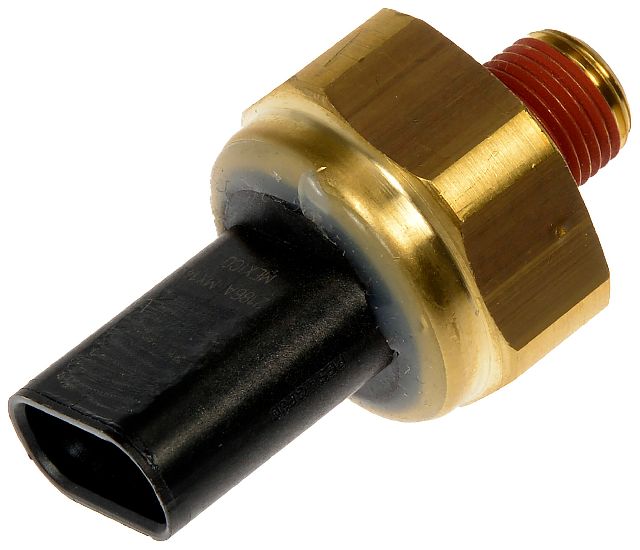

• Engine Oil Pressure Sensor (OEM #68627447AA) — If actual oil pressure is confirmed to be good with a mechanical gauge, the sensor is the next logical point of failure.
  Trusted brands: Mopar, Bosch
  OEM price range: $60-$90
  Aftermarket price range: $40-$70

Related Codes That Often Appear With This One

• P208B — This and other diesel-specific codes are listed together with P0524 in TSBs for the 3.0L EcoDiesel, indicating a software calibration issue. [Bulletin #1800122]
• P249C-00 — Listed alongside P0524 in TSBs #1800122 and #18-029-21 for the EcoDiesel, pointing to a required PCM software update.
• P02E8-00 — Also grouped with P0524 in the same EcoDiesel TSBs, suggesting a common software-related fix. [Bulletin #1800122, #18-029-21]

Technical Service Bulletins (TSBs) & Recalls

• 1800122: Addresses P0524 among other codes on 2021 models, related to back over prevention systems but containing PCM updates.
• 18-029-21: Also lists P0524 on 2021 models as a code that can be resolved with a software update.
• 18-049-21: A comprehensive PCM update TSB for the 2020 Wrangler 3.0L EcoDiesel that includes P0524 as a covered code, indicating the issue persists across similar software.
• 09-005-20: Outlines the critical importance of oil filter service procedure for the Gen 3 EcoDiesel, explicitly stating that failure to tighten the filter cap to 25 N·m can cause code P0524.

Platform-Specific Known Issues

• TSB for PCM Update (3.0L EcoDiesel): TSBs #1800122, #18-029-21, and #18-049-21 address an issue where the MIL illuminates for P0524 (specifically during cold starts) along with a host of other codes. The prescribed fix is to reprogram the PCM with updated software.
• Oil Filter Sensitivity (3.0L EcoDiesel): TSB 09-005-20 specifically calls out that P0524 can be set if the oil filter cap is not tightened to 25 N·m (18

Mechanic-Grade Diagnostic Values

• Engine Oil Pressure (Hot Idle) — expected: 17-23 PSI. Failure: Consistently below 17 PSI, or momentary dips that trigger the warning light.
• Engine Oil Pressure (Driving/Highway Speed) — expected: 30-40 PSI. Failure: Pressure not rising with RPM or staying unexpectedly low.
• Engine Oil Pressure (Cold Start) — expected: Can be as high as 60-85 PSI. Failure: Pressure is significantly lower than expected on cold start, triggering the P0524 code as noted in TSBs.
• Oil Pressure Sensor Voltage (Live Data) — expected: 0.5–1.5 V at idle, rising with RPM. Failure: A static low voltage reading that does not correspond to RPM changes.

Scan Tool Commands That Help

• wiTECH (Dealer Tool): Flash PCM with updated software — This is the specific fix called for in TSBs #1800122 and #18-029-21 when P0524 appears, especially with other diesel-related codes, to correct software sensitivity.
• High-End OBD-II Scanner (e.g., iCarsoft CR MAX): View Live Data for Engine Oil Pressure — To monitor the oil pressure reading being sent to the ECM in real-time. This helps differentiate between a sensor providing a false low reading and an actual pressure drop.

Wiring & Ground Locations

• Engine Oil Pressure Sensor Connector — On the engine block, just above the oil filter housing assembly.. This is a 3-pin female connector (Part #68334877AA) that connects to the oil pressure sensor. The wiring harness in this area can be susceptible to oil contamination or heat damage, leading to a faulty signal and triggering P0524. Inspecting the pins for corrosion and wires for damage is a key diagnostic step.

Real Owner Repair Stories

• JeepGladiatorForum.com user 'Pilot425' (2021 EcoDiesel) — After a self-performed oil change with correct OEM parts and oil, the low oil pressure light and red gauge appeared after about 60 miles. The gauge reading appeared normal (never below 19 PSI) but then dipped to 6 PSI for a second at idle.
  ❌ Tried (didn't work) Shutting down and restarting the engine sometimes made the light go away temporarily.
  ✅ What actually fixed it The owner took it to the dealer. The tech was able to duplicate the issue and found a low oil pressure code stored. The dealer performed a PCM/ECU flash as per a recall/TSB, which resolved the problem.
• JLwranglerforums.com user (3.0L EcoDiesel) — Low oil pressure warning light comes on only during a cold start. After the engine warms up for a couple of minutes, turning it off and restarting it makes the light disappear.
  ❌ Tried (didn't work) Ensuring the oil level was correct (9 quarts).
  ✅ What actually fixed it The user found that adding an extra half to a full quart of oil (totaling 9.5-10 quarts) made the cold start low pressure warning stop. This is not a recommended fix, but indicates the system's sensitivity to the oil level when cold. The user suspected a faulty oil pressure sensor as the underlying cause.

When the Usual Fixes Don't Work

• While many sources point to a faulty sensor or software, some owners have found that the issue is purely mechanical and related to oil level sensitivity. One owner on a forum reported that their 3.0L EcoDiesel would consistently show a low oil pressure warning on cold starts with the specified 9 quarts of oil. The issue would only resolve after adding an extra half to a full quart, suggesting the sensor's calibration threshold is extremely close to the minimum required pressure when the oil is cold and has settled.

OEM Part Supersession History

• 68450920AA → 68627447AA — Standard part update/revision.
  Heads up: The new part number (68627447AA) is the correct replacement for the original. While listed for the 6.7L Cummins in many parts catalogs, it is also the sensor specified for the 3.0L EcoDiesel in the Wrangler.
