P0601 on 2004-2008 Chrysler Pacifica: Internal PCM Failure Causes and Fixes

What's Unique About the 2004-2008 Chrysler Pacifica

On Chrysler products from this era, including the Pacifica, the P0601 code is a very common and straightforward indicator of PCM failure. The controllers are known to be susceptible to internal faults from heat, vibration, and age. Unlike some codes that have numerous potential causes, P0601 on these vehicles almost always points directly to the computer itself. The 2004 model year was also subject to a recall for engine stalling related to the ECM software, so it's important to verify that has been addressed before assuming a hardware failure.

Symptoms You May Notice

• Check Engine Light is on
• Engine stalls intermittently or completely fails to start
• Engine cranks but does not fire up
• Rough idling or engine stuttering
• Reduced engine power or vehicle entering 'limp mode'
• Erratic or harsh transmission shifting
• Decline in fuel economy
• In some cases, no noticeable symptoms other than the Check Engine Light

Most Likely Causes

1. Powertrain Control Module (PCM) Internal Failure 🔴 High Probability → Shop Engine Control Module (ECM) On Chrysler vehicles of this vintage, P0601 is historically a very common code pointing to the PCM failing due to age, heat cycles, vibration, or internal short circuits. The failure can be due to corrupted flash memory, cracked solder joints on the circuit board, or other physical damage inside the module.
   How to confirm: After verifying the battery is healthy (12.6V+ engine off, 13.5-14.5V running) and all power and ground connections to the PCM are clean and tight, a persistent P0601 code that cannot be cleared confirms internal PCM failure. Sometimes a burnt smell may be noticeable near the computer.
   Typical fix: Replace the Powertrain Control Module (PCM). The new module must be programmed by a dealer or a qualified shop with the vehicle's VIN. Some online vendors offer pre-programmed PCMs that require you to send in your old unit for data transfer. 🎬 Watch: How to swap a Chrysler PCM without programming
   Est. part cost: $250-$900
2. Low Battery Voltage or Charging System Issue ⚪ Low Probability → Shop Vehicle Battery
   How to confirm: Test the battery voltage with a multimeter. It should be above 12.4 volts with the engine off and between 13.5 and 14.5 volts with the engine running. Check battery terminals for corrosion or looseness. Poor connections are a known cause of voltage spikes that can damage the PCM over time.
   Typical fix: Charge or replace the battery. Clean or replace corroded battery terminals and cable ends. If the alternator is faulty, it will need to be replaced.
   Est. part cost: $150-$400

Rare But Worth Checking

• Poor PCM Power or Ground Connections: While less common than outright PCM failure, corroded or loose connections can cause voltage irregularities that may trigger a P0601 code. A Chrysler engineer noted that static electricity from bad connections is a key reason these PCMs fail, 🎬 See how to find and fix a common Pacifica ground issue making this a crucial check before replacement.
• Botched Aftermarket Tune or Re-flash: Using non-OEM performance tunes or an unauthorized software re-flash can sometimes corrupt the PCM's memory and trigger this code.
• Wiring Harness Issues: In some Chrysler vehicles, a fried or shorted injector wiring harness has been known to cause a P0601 code. While not the most common cause, it's worth a visual inspection of the harness for damage.

Diagnosis Steps

1. Scan for any other diagnostic trouble codes. Address other codes first if they are not communication-related (U-codes).
2. Check the battery and charging system. Ensure the battery has a full charge (12.6V+) and the alternator is functioning correctly (13.5-14.5V). Pay close attention to the battery terminals and cable ends for any corrosion or looseness, as this is a known stressor for Chrysler PCMs.
3. Inspect the PCM connectors and wiring harness. Look for any signs of corrosion, moisture, bent pins, or loose connections. Check for any blown fuses related to the PCM/ECM.
4. Attempt to clear the P0601 code. If the code immediately returns, it confirms a 'hard fault' within the PCM.
5. Verify power and ground supplies to the PCM using a multimeter and a vehicle-specific wiring diagram. This is the final confirmation step before condemning the module.
6. If all external factors check out, the PCM is faulty. The next step is replacement and programming.
7. Check if the vehicle is covered under the Federal Emissions Warranty (8 years/80,000 miles), which covers the PCM. This could result in a free replacement at the dealership.

Parts You'll Likely Need

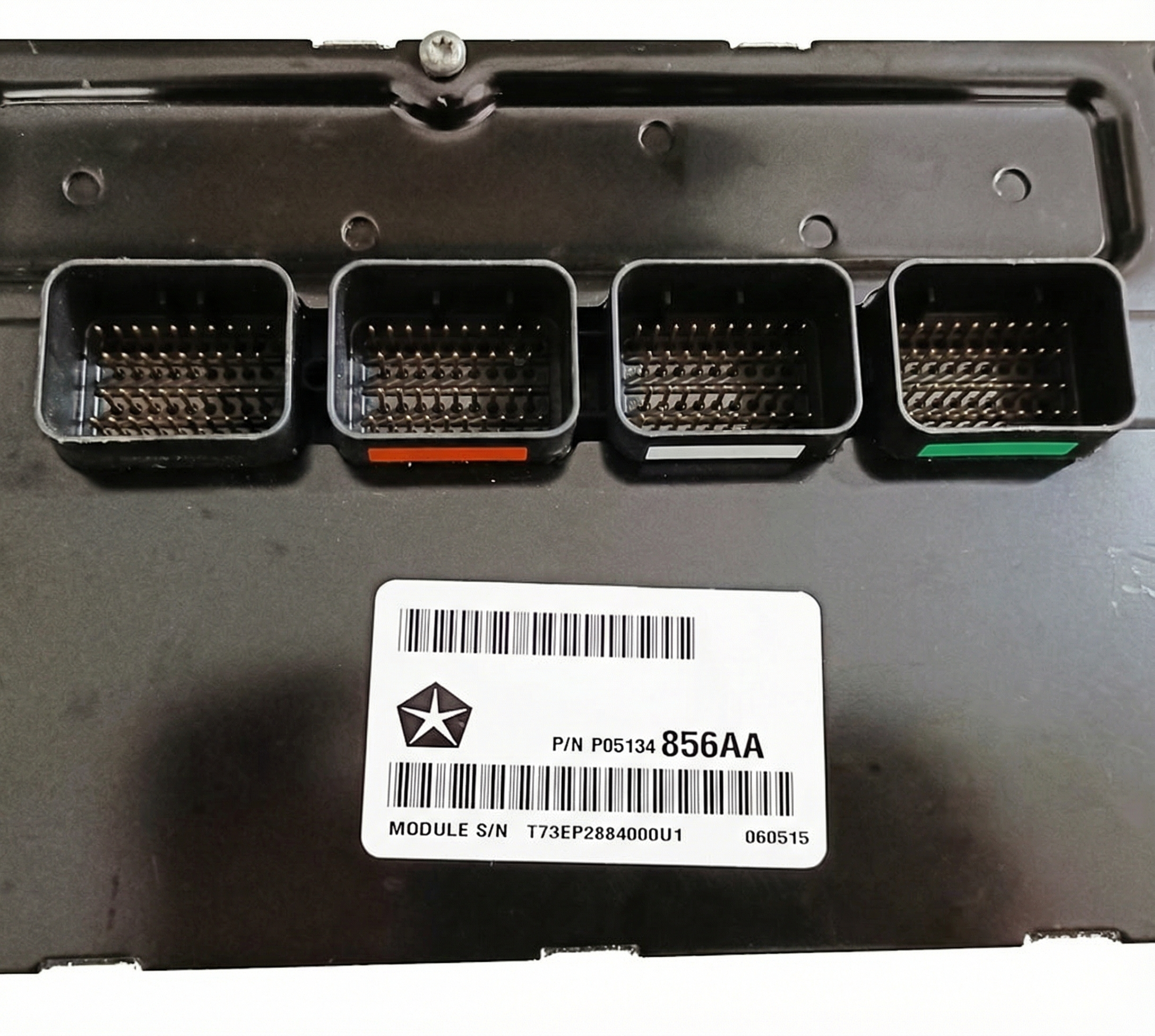

• Powertrain Control Module (PCM) (OEM #Part numbers are VIN-specific. Example part numbers for a 2007 Pacifica 3.8L include 05150469AB, 05150310AA, 05150310AB. For a 2006 Town & Country 3.8L (platform mate) an example is 05187758AC.) — This code indicates a fatal internal memory error within the PCM itself. In over 80% of cases for Chrysler vehicles, replacing the module is the only solution.
  Trusted brands: Mopar (OEM), Cardone (Remanufactured), Standard Motor Products (SMP), Flagship One (FS1), Solo PCMs
  OEM price range: $500-$900
  Aftermarket price range: $250-$600

Related Codes That Often Appear With This One

• U0100 — This code means 'Lost Communication With ECM/PCM' and often appears with P0601 because other modules on the vehicle's network cannot communicate with the failed PCM.

Technical Service Bulletins (TSBs) & Recalls

• TSB #18-006-04A: Provides dealers with the official procedure for programming a replacement ECM, indicating this is a recognized service event for the vehicle.
• TSB #18-031-05: While not for P0601 directly, this TSB for other Chrysler products shows that PCM software updates were used to fix issues like transmission shifting and O2 sensor codes, highlighting the importance of having the latest software on a replacement module.

Platform-Specific Known Issues

• A recall was issued for some 2004 Pacifica models due to an ECM software issue that could cause the engine to stall at low speeds. It is critical to verify this recall (NHTSA 04V113000) has been performed before replacing the PCM for a stalling symptom.

Mechanic-Grade Diagnostic Values

• PCM Power and Ground Circuits — expected: Using a 12-volt test light, the light should be illuminated and bright when testing both power and ground circuits. For grounds, connect the test light clip to battery positive and probe the ground pin. For powers, connect the clip to battery negative and probe the power pin. The brightness should be comparable to connecting the test light directly across the battery.. Failure: A dim or non-illuminated test light indicates high resistance or an open circuit in the wire being tested.
• Voltage Drop on PCM Power/Ground Circuits — expected: Using a DVOM, the voltage drop on any power or ground circuit should be no more than 0.05 volts (50 millivolts).. Failure: A reading higher than 50 millivolts indicates excessive resistance in the circuit that needs to be traced and repaired.

Scan Tool Commands That Help

• Chrysler wiTECH / wiTECH 2.0: PCM Replacement / Restore Vehicle Configuration — This is the official dealer procedure used after installing a new PCM. It writes the VIN, configures vehicle options, programs security keys (SKIM), and sets the odometer. The 'Restore Vehicle Configuration' function is used to verify all settings are correct after programming.
• Chrysler wiTECH / wiTECH 2.0: Misc Functions -> Learn ETC — After a new PCM is programmed, this function must be run to calibrate the Electronic Throttle Control (throttle body).
• Chrysler Legacy J2534 Application: ECU Reprogramming (with temp file modification) — This is an advanced, unofficial technique for flashing a used PCM that has the wrong calibration file. It involves modifying a temporary lookup file to force the application to flash the correct software onto an otherwise incompatible (but hardware-matching) used module. This is used when the original PCM is missing or unreadable.
• DRB III Emulator (within wiTECH): Check VIN / Check PCM Odometer — For early models in this range, the DRB III emulator is used to write the VIN and update the mileage in the replacement PCM after flashing.

Wiring & Ground Locations

• G103 — At the left front of the engine compartment, on the driver's side frame rail.. This is a critical ground point. Corrosion or looseness here is a well-documented cause of widespread, intermittent electrical failure, including loss of dash lights, accessories, and communication, which can stress or damage the PCM and trigger a P0601.
• G104 — At the left front of the engine compartment, near G103.. Shares a critical location with G103. A breakout for this ground (S116) is also in the left front of the engine compartment, providing multiple points of potential failure from corrosion.
• G101 — At the rear of the engine (2004 models) or lower left side of the engine (2006 models). A ground strap from a transmission stud to the engine block is also referred to as G101.. A poor engine-to-chassis ground can cause unstable sensor readings and electrical noise, which can lead to PCM damage over time. A frayed strap near the motor mount is a known issue.
• G102 — At the left side of the engine compartment.. Provides ground for the Powertrain Control Module, radiator fan relays, and other essential engine components. A failure here directly impacts the PCM's power stability.
• PCM Connectors — The PCM is located in the engine compartment, typically on the driver's side firewall or inner fender.. The service manual explicitly warns against probing the front of the PCM harness connectors, as this can damage the terminals and cause poor connections, leading to faults. A special tool (Miller #8815) or back-probing is required for testing.

Real Owner Repair Stories

• Chrysler Forum user (2005 Chrysler Pacifica) — While driving, suddenly lost headlights, wipers, heat/AC, radio, and windows. Dash lit up and tachometer was erratic. Car ran but was stuck in Park after shutting off.
  ❌ Tried (didn't work) Initially found and replaced a broken negative battery terminal clamp, which fixed the issue temporarily. The problem returned the next day.
  ✅ What actually fixed it The actual cause was a bad ground at G103 (a Black/Yellow wire) on the driver's side frame rail. The wire was corroded and had lost connection. The owner had to remove the battery and tray to locate and repair the ground connection.
• 2CarPros Forum user (2004 Chrysler Pacifica 3.5L AWD) — All dash lights come on, radio and A/C shut off, windows won't work, and fog lights blink rapidly. Symptoms pointed to a major electrical ground issue.
  ❌ Tried (didn't work) Running a new negative cable from the battery to the transmission did not solve the problem.
  ✅ What actually fixed it The issue was a frayed G101 ground strap that connects the transmission stud to the engine block, likely damaged by a bad motor mount. The final fix was to add a new, redundant 10-gauge ground wire from the engine block to the body/chassis to ensure a solid ground path.
• NHTSA ODI #10143368 — An owner of a Chrysler platform mate reported increased battery and starting problems leading up to a P0601 diagnosis. The dealership confirmed the need for a new PCM board after the code was entered into the parts database.

Documented NHTSA Reports

• NHTSA ODI #10872620: A Chrysler owner reported that the check engine light came on with code P0601; the vehicle initially started backing into traffic and then just quit. A mechanic confirmed the vehicle needed a new computer.
• NHTSA ODI #10627525: An owner of a low-mileage Chrysler vehicle reported a P0601 trouble code, which was identified as an internal fault in the Powertrain Control Module (PCM).
• NHTSA ODI #10312485: A report describes a vehicle with code P0601 where the engine light remained on despite the car being mechanically sound and running well.

OEM Part Supersession History

• rl150469ab (Remanufactured part number) → 05150469AB (New OEM part number) — Standard part number progression from remanufactured to new.
  Heads up: This part number is for a 2010 Sebring/Avenger but illustrates the numbering scheme.
• N/A → N/A — N/A
  Heads up: For used Chrysler PCMs, compatibility is generally determined by the first eight digits of the part number. The final two letters indicate the software/hardware revision level. A used PCM with matching eight digits can often be reprogrammed to the latest calibration for the vehicle, even if the letters don't match the original part.

Model Year Variations Within This Range

• 2007-2008: The 2007 model year introduced an optional 4.0L V6 engine and a new 6-speed transmission. These vehicles use a different PCM than the 3.5L and 3.8L engines used from 2004-2008. Part numbers like 68022303AB and 68022304AE are specific to the 4.0L engine.
• 2004-2006 (approx.): Earlier models in the range are more likely to be serviced using the DRB III scan tool (or its emulator within wiTECH). Programming a replacement module may follow the DRB III procedure.
• 2007-2008 (approx.): Later models are serviced primarily with the wiTECH 2.0 application, which has a different workflow for flashing and configuring modules.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• Engine Cradle (Subframe) Corrosion 🔴 High — Very common on 2004-2008 models, especially in salt-belt states. Can become structurally unsound, with reports of engines shifting or nearly falling out. (Ref: Chrysler extended the warranty for this issue but many vehicles have aged out of the coverage. A class-action lawsuit was filed regarding the problem.)
• Premature Engine Mount Failure 🟠 Medium — Common across all model years. The lower torque strut ('dogbone') mount is often the first to fail, causing clunking noises on acceleration and excessive vibration at idle.
• 41TE Automatic Transmission Problems 🟠 Medium → Shop Transmission Assembly — The 4-speed 41TE transmission used in many Pacificas can develop issues like hard shifting, slipping, or delayed engagement. These can sometimes be caused by internal seal failure or solenoid pack issues.

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: A used PCM from a salvage yard is a cost-effective option if you have access to a technician with the proper tools (Chrysler wiTECH or legacy J2534 application) and knowledge to reprogram it. It is not a 'plug-and-play' part. The VIN, mileage, and security key information must be programmed for the vehicle to start and run correctly.

Donor-vehicle mileage cap: roughly under 150000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• Match the first eight digits of the OEM part number on the PCM case. The last two letters are less critical as the module can often be flashed with the correct software.
• Source the part from a vehicle that was not in a flood or fire.
• Check for any physical damage, corrosion, or burnt smells on the donor PCM and its connectors.
• Obtain the VIN of the donor vehicle if possible, as it can sometimes help with programming.

Aftermarket brands forum-validated for this vehicle:

• Cardone (Remanufactured): A long-established brand in the remanufactured electronics space.
• Standard Motor Products (SMP): A reputable aftermarket manufacturer of electronic components.

Brands owners have reported issues with on this vehicle:

• Flagship One (FS1): While they are a major online vendor with many positive customer service reviews, numerous reports on technical forums and Reddit cite extremely long delays, receiving non-functional or incorrectly programmed units, and difficulty with warranty claims. Purchase with caution.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• U0001 — Communication-related code (U-code) that should be addressed or ruled out before condemning the PCM for a P0601 internal memory fault.
• P0600 — Related serial communication link failure often associated with internal PCM malfunctions or power supply issues.
• P0700 — Often accompanies PCM/ECM issues on Chrysler vehicles when the module can no longer communicate effectively with the transmission controller, leading to harsh shifting or limp mode.
• P0420 — Mentioned in TSB #18-031-05 as an example of a code that could be addressed via PCM software updates, highlighting the importance of current flash levels.
