P0601 on 2018-2025 GMC Terrain: Internal Control Module Failure Causes and Fixes

What's Unique About the 2018-2025 Gmc TERRAIN

For the second-generation GMC Terrain (2018-2025) and its platform-mate, the Chevrolet Equinox, a P0601 code is a serious fault that frequently points to the Transmission Control Module (TCM). GM has issued technical service bulletin #PIP4653E for a vast range of vehicles, including the Terrain, specifically noting that DTCs like P0601 can be stored in the TCM. The bulletin stresses the importance of using a professional scan tool to determine exactly which module—the ECM or the TCM—is setting the code before replacing any parts, as both are potential culprits.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle. 👇

Symptoms You May Notice

• Check Engine Light is on
• Vehicle may not start or is hard to start
• Engine may stall intermittently or while driving
• Harsh or erratic transmission shifting
• Vehicle enters 'limp mode' with reduced engine power
• ABS and Traction Control lights may illuminate
• Transmission may get stuck in one gear

Most Likely Causes

1. Failed Engine Control Module (ECM) or Powertrain Control Module (PCM) 🔴 High Probability → Shop Engine Control Module (ECM) Control modules can fail over time due to heat, vibration, or internal component degradation. P0601 is often called the 'kiss of death' for an ECM because it almost always indicates a non-recoverable internal memory fault. 🎬 See this breakdown of common causes and fixes for the P0601 code.
   How to confirm: After verifying all power and ground connections to the module are stable (load test the circuits) and the code returns immediately after clearing, the ECM is condemned. A professional scan tool is needed to confirm the code originates from the ECM.
   Typical fix: Replace the Engine Control Module and have the new unit professionally programmed to the vehicle's VIN using GM's Service Programming System (SPS).
   Est. part cost: $400-$800
2. Failed Transmission Control Module (TCM) 🟡 Medium Probability → Shop Transmission Assembly GM has a history of TCM-related issues that can set a P0601 code, as noted in TSB #PIP4653E. On platforms like the Terrain and Equinox, the TCM is a known failure point that can manifest as a P0601, often accompanied by a P0700 code.
   How to confirm: Use a professional scan tool (like a Tech 2 or GDS2) to check which module is storing the P0601 code. If it is stored in the TCM, and especially if accompanied by shifting problems, the TCM is the likely cause.
   Typical fix: Replace the Transmission Control Module. This often involves accessing it through the transmission side cover and requires professional programming.
   Est. part cost: $300-$600
3. Low Battery Voltage or Poor Connections ⚪ Low Probability → Shop Vehicle Battery Voltage irregularities from a weak battery, failing alternator, or corroded ground wires can sometimes corrupt a module's self-test during startup, triggering a false P0601. While less likely to be the final cause for a persistent code, it's a critical first check.
   How to confirm: Test the battery to ensure it holds a charge (at least 12.4V engine off). With the engine running, check alternator output (typically 13.5-14.5V). Inspect and clean all battery terminals and major chassis/engine ground connections.
   Typical fix: Charge or replace the battery, repair ground connections, or replace the alternator if its output is incorrect.
   Est. part cost: $20-$250

Rare But Worth Checking

• Aftermarket Tuning or Programming: Improperly installed performance tunes or non-OEM software can corrupt the module's memory and trigger a P0601 code. If the vehicle was recently programmed, this could be the cause.
• Wiring Harness or Connector Fault: In some cases, a P0601 can be triggered by an external wiring issue, not an internal module fault. A video for a platform-mate Chevy Equinox showed a P0601 was ultimately caused by a damaged wiring plug with bent pins at the TCM, not the TCM itself. A thorough visual inspection of the module connector is crucial 🎬 Watch: This Equinox video shows how a damaged plug mimics module failure. before replacement.

Diagnosis Steps

1. Connect a professional OBD-II scanner to confirm P0601 is present and determine which module (ECM, TCM, etc.) has set the code.
2. Check for any other stored trouble codes that could provide more context, such as P0700 (TCM fault) or other P06xx codes.
3. Inspect the battery terminals for corrosion and ensure they are clean and tight. Test the battery's state of charge and health (should be >12.4V engine off).
4. With the engine running, use a multimeter to test the alternator's output voltage to rule out charging system problems (should be 13.5-14.5V).
5. Visually inspect the main wiring harness connections to the identified control module. Look for any signs of damage, corrosion, bent pins, or looseness.
6. Inspect the primary engine and chassis ground straps to ensure they are clean, tight, and free of corrosion. A voltage drop test on the power and ground circuits at the module connector is the most thorough method.
7. If all power and ground inputs are good and the code returns immediately after being cleared, the control module itself has an internal fault and must be replaced.

Parts You'll Likely Need

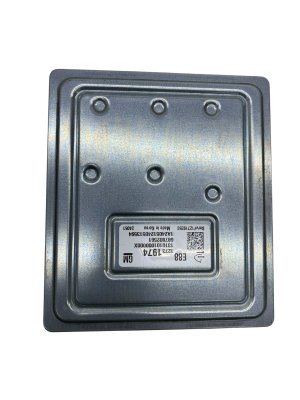

• Engine Control Module (ECM) (OEM #12669908 (Example for 2018-2019 1.5L/2.0L models, always verify with VIN)) — This is a very common cause of P0601. The internal memory fails, making replacement the only option.
  Trusted brands: ACDelco
  OEM price range: $500-$800
  Aftermarket price range: $350-$600
• Transmission Control Module (TCM) — A known failure point on many GM vehicles that can set P0601, often accompanied by shifting issues and a P0700 code.
  Trusted brands: ACDelco
  OEM price range: $400-$600
  Aftermarket price range: $300-$500

Related Codes That Often Appear With This One

• P0700 — P0700 is a generic code indicating the Transmission Control Module (TCM) has requested the check engine light. It often appears with P0601 when the TCM is the module that has failed its internal checksum test.
• P0603 — This code indicates a Keep Alive Memory (KAM) error. It can appear alongside P0601 if there are power supply issues to the control module, as noted in TSB #PIP4653E.

Technical Service Bulletins (TSBs) & Recalls

• PIP4653E: DTCs P0601, P0603, P0604, P062F or P1621 (Stored In The TCM)
• 05-06-04-060A: Information on Control Module DTCs P0601, P0602, P0603, P0604, P0606, P062F, P06F3, P1621
• 25-NA-002: DTC P0601 Missing from Vehicle, Setting DTC P2101 Instead (for 2025 models)

Platform-Specific Known Issues

• GM has issued TSB #PIP4653E for a wide range of vehicles, including the GMC Terrain, noting that DTCs like P0601 can be stored in the Transmission Control Module (TCM). It stresses the importance of identifying which module set the code before starting repairs and suggests reprogramming the TCM as a first step if the code is stored there.
• TSB #05-06-04-060A also communicates that P0601 is a control module diagnostic code that can be shared across multiple modules, reinforcing the need for precise diagnosis.
• The platform-mate Chevrolet Equinox is known to suffer from the same P0601 issue, with forum members reporting the combination of P0601 and P0700, pointing towards a TCM failure.

Mechanic-Grade Diagnostic Values

• Battery Voltage (Key Off, Engine Off) — expected: 12.4 - 12.6 Volts or higher. Failure: Voltage below 12.4V indicates a weak or discharged battery that can cause false module codes.
• Charging System Voltage (Engine Running) — expected: 13.5 - 14.5 Volts. Failure: Voltage outside this range indicates a faulty alternator or voltage regulator, which can cause electrical spikes or low voltage, corrupting module memory.

Scan Tool Commands That Help

• GM SPS2 (Service Programming System 2) / Techline Connect: Replace and Program Control Module — This function is required after physically replacing the ECM or TCM. It downloads the correct VIN-specific software and calibrations to the new module.
• GM SPS2 (Service Programming System 2) / Techline Connect: Reprogram Control Module — Used to update an existing module with the latest factory software. This is sometimes attempted as a first step if TSB #PIP4653E applies and the P0601 is in the TCM, but it rarely fixes a persistent internal checksum error.
• Professional Scan Tool (GDS2, etc.): Clear DTCs — Used after programming is complete to erase all stored trouble codes. If P0601 returns immediately, it confirms a hard hardware fault in the module.

Wiring & Ground Locations

• G101 / G106 — Located at the front of the engine on the lower block, and on the front center of the frame cross rail under the crank pulley.. This is a primary ground point for both the Engine Control Module (ECM) and the Transmission Control Module (TCM). A poor connection here can cause voltage irregularities and communication errors, potentially triggering a P0601 in either module.
• TCM Connector — The TCM is located on the front of the transmission, under a black plastic side cover. The main connector plugs into this module.. Damage to the connector pins (bent, corroded) or the wiring harness leading to it can mimic an internal TCM failure, causing a P0601. A thorough inspection is critical before replacing the TCM.
• Underhood Fuse Block — Located in the engine compartment, next to the brake fluid reservoir on the driver's side.. This fuse block contains the primary fuses and relays that supply power to the ECM/PCM. A video for a similar generation Terrain identifies fuses 20, 42, 52, 53 and relay 66 as being critical for the engine computer.

Real Owner Repair Stories

• YouTube channel 'Codemans auto' (Chevrolet Equinox (platform-mate)) — P0601 code was present. The code would set about five minutes after starting the engine, even without driving.
  ❌ Tried (didn't work) The initial diagnosis pointed to a bad Transmission Control Module (TCM) because the code would set after the module completed its self-check.
  ✅ What actually fixed it The actual cause was a damaged wiring plug at the TCM with bent pins. Repairing the connector and ensuring the pins were straight resolved the P0601 code without replacing the module.
• Chevrolet Forum user 'xxthe_yellow_dartxx' (2012 Chevy Equinox (similar platform)) — Sporadic slow acceleration, Check Engine Light on, flashing gear indicator (P, N, D), and hard shifting. Codes P0700 and P0601 were stored.
  ❌ Tried (didn't work) The user was seeking advice before attempting repairs.
  ✅ What actually fixed it The user reported that after reseating the electrical connectors on the computer that sits on top of the battery, the check engine light cleared after a few starts. This suggests a poor connection was the root cause.

OEM Part Supersession History

• Various (e.g., 12672537, 12669318) → Various (e.g., 12673676, 12704475) — GM frequently updates part numbers for ECMs (like the E92 used in some of these vehicles) due to hardware revisions or software updates.
  Heads up: When replacing an ECM, even with a used part, it must be 'virginized' or cloned from the original. A used ECM that is already programmed to another vehicle cannot be reprogrammed with GM's standard SPS2 software.

Model Year Variations Within This Range

• 2022-2025: The GMC Terrain received a significant refresh for the 2022 model year, including new front-end styling, redesigned LED lighting, and updated interior tech like a new head-up display and standard wireless Apple CarPlay/Android Auto. While the core 1.5L powertrain remained, these electrical system changes could introduce variations in wiring or module behavior compared to 2018-2021 models.
• 2025: TSB #25-NA-002 notes a specific issue for 2025 models where a concern that should set P0601 might instead set DTC P2101 (Throttle Actuator Control Module Performance). This indicates a change in the diagnostic strategy for the newest model year.
