P0601 on 2007-2018 Jeep Wrangler: Causes and Fixes for Internal PCM Failure

What's Unique About the 2007-2018 Jeep Wrangler

For the JK Wrangler, this code is a straightforward but serious issue. The PCM is located in a hot, high-vibration engine bay, and heat is a known contributor to electronic failure. While the code applies to both the 3.8L (2007-2011) and 3.6L (2012-2018) engines, a specific FCA recall (U87 / NHTSA 18V-524) was issued for some 2017-2018 models due to a faulty voltage regulator chip inside the PCM that could cause stalling or a no-start condition, directly leading to internal failure. This recall also affected 15 other FCA vehicle families, highlighting a supplier-level component defect. Checking for this open recall is a critical first step for later model years.

Generation note: This covers the entire Jeep Wrangler JK generation (2007-2018). The primary difference is the engine and its specific PCM. The 2007-2011 models use the 3.8L V6, while the 2012-2018 models use the 3.6L V6 Pentastar. Diagnostic principles are the same, but the PCM part numbers and specific recall information will differ. For example, the 3.6L PCM also controls the automatic transmission, making it a true 'Powertrain' Control Module, whereas earlier models sometimes had a separate Transmission Control Module (TCM).

Symptoms You May Notice

• Check Engine Light is on (code P0601 is stored)
• Engine will crank but not start
• Engine stalls intermittently, often without warning, including at highway speeds
• Vehicle enters 'limp mode' with severely reduced power
• Noticeable loss of power and poor acceleration
• Erratic or harsh automatic transmission shifting
• Multiple other unrelated trouble codes may appear simultaneously (e.g., communication codes, sensor codes)
• The cooling fans may run constantly with the key on

Most Likely Causes

1. Failed Powertrain Control Module (PCM) 🔴 High Probability → Shop Engine Control Module (ECM) PCMs can fail from age, vibration, and heat cycles in the engine bay. Some 2017-2018 models were subject to a recall for defective internal voltage regulators. The P0601 code is specifically designed to indicate this internal, non-repairable hardware failure.
   How to confirm: After confirming the battery, charging system, and all PCM power/ground wires are in perfect condition (no voltage drop), the P0601 code 🎬 Watch: How to test your Jeep Wrangler PCM before replacing it. itself condemns the PCM. There is no further test for the internal checksum error.
   Typical fix: Replace the Powertrain Control Module (PCM) and program the new unit to the vehicle's VIN.
   Est. part cost: $400-$1000
2. Low or Unstable Battery Voltage 🟡 Medium Probability → Shop Vehicle Battery A weak or failing battery, or a faulty alternator, can provide unstable voltage to the PCM, especially during startup. This can corrupt the module's memory write/read cycles and trigger a false P0601. Wranglers often have aftermarket accessories (winches, lights) that can strain the electrical system.
   How to confirm: Test the battery voltage with the engine off (should be >12.5V). Test the charging system voltage with the engine running (should be ~13.5-14.5V). Perform a battery load test to check its health. Check for parasitic draw.
   Typical fix: Replace the weak battery or faulty alternator.
   Est. part cost: $150-$500
3. Poor PCM Power or Ground Connections ⚪ Low Probability Wranglers are often used in harsh environments (water, mud, salt), leading to potential corrosion on wiring harnesses and ground points. The main chassis ground points can become corroded, creating electrical interference and voltage irregularities that can disrupt PCM operation.
   How to confirm: Visually inspect the PCM connectors for corrosion or bent pins. Perform a voltage drop test on the main power and ground wires to the PCM to ensure there is less than 0.1V of drop under load. Check and clean the main battery-to-chassis and engine-to-chassis ground straps.
   Typical fix: Clean the corroded terminals with a contact cleaner, repair the damaged wiring, or replace the faulty connector. Add a supplemental ground wire if necessary.
   Est. part cost: $10-$100

Rare But Worth Checking

• Corrupted Software from Aftermarket Tuner: If a performance tune was recently installed or improperly removed, it may have corrupted the PCM's software, potentially leading to a P0601 code. For 2015 and newer Wranglers, the PCM must be physically unlocked before it can be tuned, adding a layer of complexity. Re-flashing the stock tune or having the PCM professionally reset may be necessary before condemning the hardware.

Diagnosis Steps

1. Check for Recalls: For 2017-2018 models, check if NHTSA recall 18V-524 (FCA campaign U87) is open for your VIN. If so, a dealer will replace the PCM for free.
2. Scan for Additional Codes: Note any other codes present, but understand that a failing PCM can generate false codes in other systems. P0601 is the primary fault.
3. Test Battery and Charging System: This is a critical first step. Ensure the battery has a static charge above 12.5 volts and that the alternator charges between 13.5 and 14.5 volts when running. A weak power supply is a known cause. Perform a load test on the battery.
4. Inspect PCM Connections: Disconnect the battery. Unplug the PCM connectors (typically 3 or 4 large connectors) and inspect for any signs of corrosion, moisture, or bent/damaged pins. Clean with electrical contact cleaner and apply dielectric grease upon reassembly if needed.
5. Verify Power and Ground at the PCM: Using a wiring diagram for your specific year and engine, identify the PCM's main power and ground pins. Perform a voltage drop test on these circuits. A drop of more than 0.1-0.2 volts indicates a wiring or connection problem that must be fixed before replacing the PCM.
6. Condemn the PCM: If all power and ground circuits are verified to be in good condition and the battery/alternator are healthy, the P0601 code confirms the PCM has failed internally and must be replaced. There is no other fix.

Parts You'll Likely Need

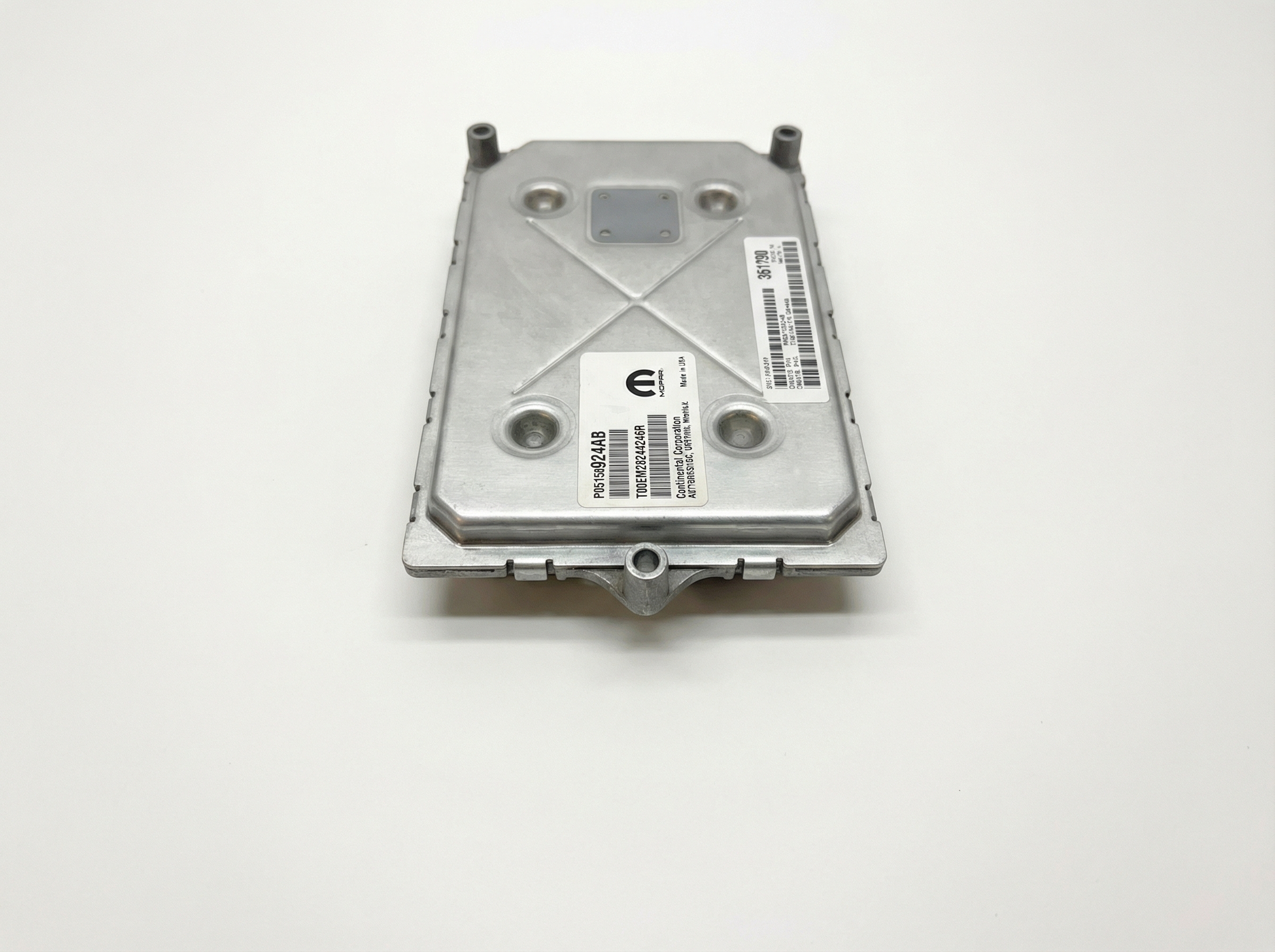

• Powertrain Control Module (PCM) (OEM #05150466AA (Example for 2009 3.8L), 68192934AH (Example for 2014 3.6L)) — This code indicates a non-repairable internal failure of the PCM itself in the vast majority of cases, once power and grounds are confirmed good.
  Trusted brands: Mopar (OEM), Flagship One (Remanufactured), FS1 (Remanufactured)
  OEM price range: $600-$1200
  Aftermarket price range: $400-$800 (Remanufactured, often pre-programmed)
🎬 Watch this 2012-2017 JK PCM installation walkthrough.

Related Codes That Often Appear With This One

• P0606 — This code indicates a general 'PCM Processor Fault.' It often appears with P0601 as both point to a severe internal failure of the engine computer.
• U0100 — This code means 'Lost Communication With ECM/PCM.' If the PCM is failing internally, it may stop communicating with other modules on the vehicle's CAN bus network, triggering this code.

Technical Service Bulletins (TSBs) & Recalls

• NHTSA 18V-524 / FCA U87: Recall for Powertrain Control Module failure on 2017-2018 models.

Platform-Specific Known Issues

• NHTSA Recall 18V-524 (FCA Campaign U87): Affects some 2017-2018 Jeep Wranglers (and many other FCA models). The PCM may have a defective voltage regulator chip, causing stalling or a no-start condition. The remedy is a free PCM replacement at a dealership.

Mechanic-Grade Diagnostic Values

• PCM Power & Ground Voltage Drop — expected: Less than 0.1V (100mV) on power and ground circuits under load (key on, engine running). Some sources allow up to 0.2V.. Failure: A voltage drop greater than 0.1V-0.2V indicates excessive resistance in the wiring or connections, which can starve the PCM of voltage and trigger false codes.
• PCM Power Pins (3.6L / GPEC PCM, Connector C1) — expected: Battery voltage at Pin 87 (Fused B+) with key on.. Failure: No voltage or low voltage indicates a problem with the TIPM or the wiring from the TIPM.
• PCM Ground Pins (3.6L / GPEC PCM, Connector C1) — expected: Near zero ohms resistance to a known good ground at Pins 82, 83, and 84.. Failure: High resistance (more than 1-2 ohms) indicates a poor ground connection, which can cause erratic PCM behavior.
• PCM Power Pins (3.8L / NGC PCM, Black Connector C1) — expected: Battery voltage at Pin 22 (Fused B+) and Pin 2 (Fused Ignition Switch Output) with key on.. Failure: Missing voltage at either pin will prevent the PCM from powering on correctly.
• PCM Ground Pin (3.8L / NGC PCM, Black Connector C1) — expected: Continuity to ground (less than 5 ohms) at Pin 32.. Failure: High resistance indicates a bad ground connection for the PCM.

Scan Tool Commands That Help

• wiTECH (or wiTECH 2.0): Restore Vehicle Configuration — This function is used after installing a new PCM. It copies the vehicle's original configuration (VIN, options, etc.) from the Chrysler cloud servers into the new module, making it operational.
• wiTECH (or wiTECH 2.0): PCM Replaced — This is a guided function that walks a technician through the entire process of replacing the PCM, including flashing the correct software and transferring the secret key for the immobilizer system.
• Autel IM508/IM608 (or similar advanced key programmer): Read PIN / IMMO Data Read — If the 4-digit SKIM PIN code is not available from the dealer, this function can sometimes extract it from the original PCM or instrument cluster. This PIN is required to program the keys to the new PCM.

Wiring & Ground Locations

• PCM Location — In the engine bay, on the passenger side firewall, behind the battery and washer fluid reservoir.. This is the component that sets the code. Its location in a high-heat, high-vibration area contributes to its failure rate.
• G100 — A primary engine bay ground point located on the passenger side of the engine block, often near the starter.. A poor connection at this main ground can cause a host of electrical issues, including voltage irregularities that can affect the PCM.
• G102 — Located on the passenger side inner fender, near the power steering reservoir and headlight assembly.. This is a critical chassis ground point. The PCM and other modules rely on clean chassis grounds. Corrosion here is common and can cause intermittent electrical faults that mimic PCM failure.
• PCM Ground Strap — A dedicated ground wire that attaches directly from the wiring harness to one of the PCM mounting bolts.. This is a direct ground for the PCM case and internal shielding. It is critically important that this is clean, tight, and reinstalled correctly when the PCM is replaced.

Real Owner Repair Stories

• WranglerForum.com user (2013 Jeep Wrangler Unlimited (JKU)) — P0601 code present.
  ❌ Tried (didn't work) Considering going to the dealership for a new PCM.
  ✅ What actually fixed it Owner ordered a pre-programmed PCM from an online vendor. The swap took 20 minutes in a parking lot, and the vehicle started right up, saving hundreds of dollars compared to the dealership quote.
• JK-Forum.com user (2012 Jeep Wrangler (JK)) — No-start condition, P0601 code stored.
  ❌ Tried (didn't work) Initial diagnosis and troubleshooting.
  ✅ What actually fixed it The final fix was a replacement PCM from the dealership, which cost over $900. The forum consensus confirmed that P0601 is almost always a fatal PCM error.

Model Year Variations Within This Range

• 2007-2011 (3.8L V6): These models use a Next Generation Controller (NGC) PCM, which has three large connectors. The transmission control was handled by a separate TCM or integrated differently than later models. Pinouts for diagnostics are unique to this PCM type.
• 2012-2018 (3.6L V6): These models use a Global Powertrain Engine Controller (GPEC or GPEC2) which has two or four connectors depending on the specific version and year. This module integrates the engine and automatic transmission control functions. Pinouts are completely different from the earlier NGC PCM.
• 2015-2018: Chrysler introduced a locked PCM starting in 2015. These PCMs cannot be tuned or re-flashed via the OBD-II port without first being physically unlocked or by swapping in a pre-unlocked PCM from an aftermarket supplier like DiabloSport or Superchips. This adds a significant step and potential cost for users who want performance tunes.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• Death Wobble 🔴 High — Can occur at any mileage, stock or lifted. Caused by worn front-end components like the track bar, ball joints, or tie rod ends creating a violent oscillation after hitting a bump at speed (typically 45-65 mph).
• Totally Integrated Power Module (TIPM) Failure 🔴 High — Very common on 2007-2014 models. Causes a wide array of bizarre electrical problems: fuel pump stays on/won't turn on, engine won't start, horn honks randomly, wipers activate on their own. (Ref: Limited recalls were issued (e.g., for 2007 Wrangler fuel pump circuit), but most failures are not covered. A class-action lawsuit addressed some models.)
• 3.8L V6 Excessive Oil Consumption 🟠 Medium — Common on 2007-2011 models, especially early ones. Many engines consume 1 quart of oil every 1,000-2,000 miles. Caused by piston ring issues from the factory. (Ref: TSB 09-008-07 addresses a potential oil seepage from timing cover porosity, but the main consumption issue is internal.)
• 3.6L V6 Oil Cooler/Filter Housing Leak 🟠 Medium — Common on 2012-2018 models. The plastic housing, located in the engine valley, cracks from heat cycles, causing significant oil or coolant leaks. Often fails between 60k-100k miles.
• Cracked Exhaust Manifolds (3.8L V6) 🟡 Low — The cast iron exhaust manifolds on the 2007-2011 3.8L engine are prone to cracking from heat cycles, causing an exhaust leak and a ticking noise, especially when cold.
• Extended Crank / Cylinder Head (3.6L V6) 🔴 High — Primarily affected 2012 and some 2013 models. A batch of left-side cylinder heads had defective valve guides, leading to a P0300-series misfire code, ticking noise, and eventual engine failure. Chrysler extended the warranty on these heads. (Ref: Warranty Extension X45 (later X56) covered the left cylinder head for 10 years/150,000 miles.)

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: A 'used' part in this context typically means a remanufactured and pre-programmed unit from a specialty vendor, not a raw part from a junkyard. This is a very smart choice as it is often half the cost of a new OEM part and comes ready to install. A junkyard PCM is almost never a good idea for a DIYer, as it will not start the vehicle due to the immobilizer system and requires dealer-level tools for programming.

Donor-vehicle mileage cap: roughly under 150000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• For a remanufactured unit, verify the vendor offers a warranty.
• Ensure the vendor programs the PCM to your specific VIN and mileage before shipping.
• Check forum reviews for the vendor's reputation (e.g., Flagship One, FS1, Circuit Board Medics).
• If inspecting a junkyard core, look for zero corrosion on pins, no cracks in the casing, and ensure the connectors are intact.

Aftermarket brands forum-validated for this vehicle:

• Mopar (New or Remanufactured OEM)
• Flagship One (FS1)
• Circuit Board Medics
• DiabloSport (for unlocked/tunable PCMs)
• Superchips (for unlocked/tunable PCMs)

Brands owners have reported issues with on this vehicle:

• Unknown eBay or Amazon sellers with no warranty or programming service.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• U0100 — Communication code that may appear simultaneously when the PCM has internal hardware failures or power/ground issues.
• P0600 — Serial communication link failure; often appears alongside P0601 when the PCM cannot communicate properly with other modules.
• P0562 — System Voltage Low; related because unstable or low battery voltage is a known cause for triggering false PCM internal memory codes like P0601.
• P0300 — Random or Multiple Cylinder Misfire; can be triggered as a 'false code' by a failing PCM internal processor even if the ignition system is functional.
