P0601 on 2007-2010 Saturn OUTLOOK: Internal Module Failure Causes and Fixes

What's Unique About the 2007-2010 Saturn OUTLOOK

The Saturn Outlook is part of the GM Lambda platform, sharing its architecture with the GMC Acadia, Buick Enclave, and Chevrolet Traverse. While P0601 is a generic code for module failure, on this specific platform, it has a well-documented history of pointing to the Transmission Control Module (TCM), also known as the TEHCM (Transmission Electro-Hydraulic Control Module). GM issued Technical Service Bulletin #PIP4653E which specifically warns technicians that codes like P0601 may be stored in the TCM, leading to significant transmission performance issues. This is a crucial distinction because the TCM is located inside the transmission's side cover, submerged in hot transmission fluid, making it prone to failure from heat and vibration but also more labor-intensive to replace.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Check Engine Light is on.
• Transmission may shift harshly, with jolts or bangs between gears.
• Vehicle may get stuck in one gear (limp mode).
• Engine may stall, hesitate, or be difficult to start.
• Vehicle may not start at all.
• Dashboard messages like "Service StabiliTrak" or "Service Traction Control" may appear.
• Reduced fuel economy.
• Erratic speedometer or other gauge behavior.

Most Likely Causes

1. Internal Transmission Control Module (TCM/TEHCM) Failure 🔴 High Probability → Shop Transmission Assembly As documented in GM TSB #PIP4653E, the TCM is a known failure point for this code on the Outlook and its platform mates. The module is located inside the transmission's side cover, where constant exposure to heat and vibration from the transmission fluid leads to the degradation of internal electronics and solder joints. This design flaw is the primary reason P0601 on this platform often points to the transmission.
   How to confirm: A professional scan tool (like a Tech 2 or GDS2) must be used to confirm the P0601 code is stored in the TCM, not the ECM. If attempts to reflash the module fail or the code returns immediately after clearing, the TCM is condemned.
   Typical fix: Replace the Transmission Electro-Hydraulic Control Module (TEHCM) and program the new unit to the vehicle's VIN. This requires removing the transmission side cover. 🎬 See a mechanic's guide to TEHCM and TCM replacements
   Est. part cost: $300-$600

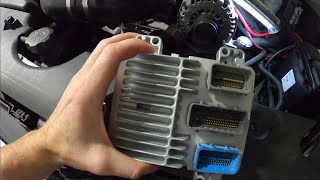

2. Internal Engine Control Module (ECM/PCM) Failure 🟡 Medium Probability → Shop Engine Control Module (ECM) Like any electronic component, the ECM can fail from age, heat cycles, and vibration. While less common than TCM failure for this specific code on this platform, it is still a primary cause for P0601 in general.
   How to confirm: If a scan tool confirms the P0601 code is stored in the ECM and not the TCM, and all power/ground circuits to the ECM are verified as good, the ECM is faulty. An attempt to reflash the software may be made, but failure or immediate return of the code points to a hardware fault.
   Typical fix: Replace the Engine Control Module and program it with the vehicle's VIN and specific calibration files.
   Est. part cost: $250-$500 for a remanufactured unit
3. Low Battery Voltage or Charging System Fault ⚪ Low Probability → Shop Vehicle Battery
   How to confirm: Test the battery's state of charge and health (should be >12.4V engine off). With the engine running, check the alternator output, which should typically be between 13.5 and 14.5 volts. Unstable voltage can sometimes corrupt a module's self-test during startup, triggering a false code.
   Typical fix: Charge or replace the battery. Replace the alternator if its output is incorrect. This is a crucial first step before condemning an expensive module.
   Est. part cost: $150-$400

Rare But Worth Checking

• Poor Power or Ground Connections: Corroded or loose main ground straps or power feeds to the ECM/TCM can cause voltage drops that mimic an internal module fault. TSB #05-06-04-060A is an informational bulletin covering multiple module DTCs, underscoring the importance of checking shared electrical paths. A visual inspection of the main harnesses and ground points (such as G112 on the rear of the engine) is a necessary step before condemning an expensive module.
• Corrupted Aftermarket Tune: If the vehicle has been modified with an aftermarket engine or transmission tune, an error during the flashing process or a bug in the software itself can corrupt the module's memory and trigger a P0601 code.

Diagnosis Steps

1. Check and confirm battery voltage is stable and above 12.4 volts. Test the charging system to ensure it's operating correctly (13.5-14.5V).
2. Use a professional-grade scan tool to read the codes and, crucially, identify which module has stored the P0601 code (ECM or TCM).
3. If the code is in the TCM, follow diagnostics related to the transmission. If in the ECM, focus there.
4. Inspect all power and ground connections to the identified module. Check main chassis and engine grounds (e.g., G112) for corrosion or looseness.
5. Check for any available software updates for the module. A dealership or qualified shop can attempt to reflash the module with the latest GM software.
6. If the code returns immediately after being cleared, or if the reflash attempt fails, the module hardware is faulty.
7. Replace the faulty control module (ECM or TCM).
8. Program the new module to the vehicle using the VIN and specific calibration data. This step is mandatory and requires specialized equipment like GM MDI2 or a J2534 pass-thru tool.

Parts You'll Likely Need

• Transmission Control Module (TEHCM) (OEM #24256523 (verify by VIN)) — This is the most common point of failure for a P0601 code on the 2007-2010 Saturn Outlook, as documented by GM TSB #PIP4653E. It is a complete unit including the valve body, solenoids, and computer. 🎬 Watch: Overview of the 6T75 valve body and TEHCM assembly
  Trusted brands: ACDelco, Street Smart Transmission
  OEM price range: $400-$700
  Aftermarket price range: $300-$500 (remanufactured)
• Engine Control Module (ECM) (OEM #12633238, 12612384, 12597121) — If diagnosis confirms the fault is not in the TCM, the ECM is the next most likely cause. These modules manage all engine functions and can fail internally.
  Trusted brands: ACDelco
  OEM price range: $400-$600
  Aftermarket price range: $250-$450 (remanufactured)

Related Codes That Often Appear With This One

• P0700 — Transmission Control System (MIL Request). This is a generic code indicating the TCM has detected a fault and has requested the Check Engine Light to be turned on. It is very common to see this alongside a specific TCM code like P0601.
• P0603 — Internal Control Module Keep Alive Memory (KAM) Error. Often appears with P0601 as it also indicates an internal memory problem. It is also listed in TSB PIP4653E.
• P0604 — Internal Control Module Random Access Memory (RAM) Error. Another internal memory fault code that points to a failing module, also mentioned in TSB PIP4653E.
• P062F — Internal Control Module EEPROM Error. This is another memory-related internal fault code mentioned alongside P0601 in GM TSBs.
• P1621 — Control Module Long Term Memory Performance. This GM-specific code is also listed in TSB #PIP4653E as being related to TCM failure on this platform.

Technical Service Bulletins (TSBs) & Recalls

• PIP4653E: Diagnostic aid for vehicles with a Malfunction Indicator Lamp on and DTCs P0601, P0603, P0604, P062F or P1621 stored in the Transmission Control Module (TCM). It instructs technicians to verify the code is in the TCM before proceeding with diagnostics and notes that a reflash may be attempted before replacement.
• 05-06-04-060A: An informational bulletin for technicians regarding various control module DTCs (including P0601) th

Platform-Specific Known Issues

• The GM Lambda platform, which includes the Saturn Outlook, is known for issues with the 6T70/6T75 transmission's Transmission Electro-Hydraulic Control Module (TEHCM). GM TSB #PIP4653E directly addresses DTCs P0601, P0603, P0604, P062F, or P1621 being stored in the TCM, causing a check engine light and shifting concerns. The bulletin emphasizes using a scan tool to confirm which module set the code before replacing parts.
• Another TSB, #05-06-04-060A, is a broader informational bulletin about various control module DTCs (including P0601) that can be shared across multiple modules, emphasizing the need for careful diagnosis to pinpoint the correct faulty component.

Mechanic-Grade Diagnostic Values

• Shift Solenoid Resistance (within TEHCM) — expected: 20-40 ohms for on/off type solenoids in the 6T70/6T75 transmission.. Failure: An open circuit (infinite resistance) or a short circuit (near zero ohms) indicates a failed solenoid within the TEHCM assembly.
• Alternator Output Voltage — expected: 13.5 - 14.5 volts with the engine running.. Failure: Voltage below or above this range indicates a charging system fault that can cause module communication errors.
• Battery Voltage (Engine Off) — expected: Greater than 12.4 volts.. Failure: A reading below 12.4V indicates a weak battery that may not provide stable voltage during module startup, potentially triggering a false P0601.
• Ground Circuit Resistance — expected: Less than 0.1 Ω.. Failure: Higher resistance indicates a poor ground connection, which can cause voltage drops and module errors.

Scan Tool Commands That Help

• GM GDS2/Tech 2: Service Programming System (SPS) — This function is mandatory when replacing the TEHCM or ECM. It downloads the correct software and calibration files from GM's servers (via ACDelco TIS2Web) and flashes them to the new module, programming it to the vehicle's VIN.
• GM GDS2/Tech 2: Service Fast Learn Adapts — After a new TEHCM is installed and programmed, this procedure must be performed. It allows the new module to learn the hydraulic characteristics and clutch volume indexes of the specific transmission, ensuring proper shift quality.
• GM GDS2/Tech 2: Module ID — During initial diagnosis, using the scan tool to check which specific module (ECM or TCM) has logged the P0601 code is the most critical first step to avoid misdiagnosis, as highlighted by TSB PIP4653E.

Wiring & Ground Locations

• G112 — On the rear of the engine, mounted to the rear cylinder head.. This is a primary engine and control module ground. Corrosion or looseness at this point can cause intermittent voltage drops to the ECM and TCM, potentially mimicking an internal module failure.
• G102 — On the right side of the engine compartment, on the inner fender panel.. This is a major chassis ground point. A poor connection here can affect multiple electronic systems, including the power supply stability for control modules.
• J153 — A splice pack located in the engine harness, near the Transmission Control Module connector.. Harness splices are common points of failure due to moisture and vibration. A corroded splice at J153 could interrupt power or data signals to the TCM, causing communication errors.
• TEHCM Connector (X115) — The main 20-pin electrical connector on the side of the transmission case that connects the vehicle harness to the internal TEHCM.. This is the primary interface for all power, ground, and data signals going to the TCM. It should be inspected for corrosion, bent pins, or a loose connection before condemning the internal module.

Real Owner Repair Stories

• Car Talk Community Forum (2009 Saturn Outlook, 180k miles) — Multiple dashboard warnings including "Service Stabilitrak", "Service Traction Control", "Engine Power Reduced". The car would lose power and slow to a stop.
  ❌ Tried (didn't work) The user was debating a dealership diagnosis of a failed timing chain.
  ✅ What actually fixed it While the original post was about a timing chain diagnosis, a contributing expert noted that the array of electronic warnings (Stabilitrak, reduced power) often points to a failing control module computer (like the ABS or ECM) sending bad data, rather than a purely mechanical issue like a timing chain. This aligns with the known failure patterns where a module fault on the Lambda platform triggers a cascade of seemingly unrelated warning lights. The ultimate fix for P0601 in this context is module replacement.

OEM Part Supersession History

• 24256523 → 24287421, 24256797 — Part number updates and revisions by the manufacturer. These often include improvements to address known failure points.
  Heads up: The TEHCM for the 6T70/75 transmission has Generation 1 (black solenoids) and Generation 2 versions. While the part numbers may seem interchangeable from some vendors, it is critical to match the generation. A mismatch can lead to communication failures or improper transmission function. For part number 24256523, it is often associated with Gen 1 units.

Model Year Variations Within This Range

• 2007-2008 vs 2009-2010: The engine was updated for the 2009 model year. 2007-2008 models used the port-injected 3.6L LY7 V6 (270-275 hp). For 2009, this was replaced by the direct-injected 3.6L LLT V6 (281-288 hp). While the P0601 code is more commonly associated with the shared 6T75 transmission's TEHCM across all years, a fault in the ECM would involve a different part number and software between the LY7 and LLT engine-equipped vehicles.
