P0601 on 2005-2007 Toyota Corolla: Internal Memory Error Causes and Fixes

What's Unique About the 2005-2007 Toyota Corolla

The 2005-2007 Toyota Corolla with the 1ZZ-FE engine has a well-documented history of ECM failures that specifically trigger the P0601 code. Toyota issued a Technical Service Bulletin (TSB EG042-07) acknowledging this exact problem, which can also cause a no-start condition or harsh shifting. Unlike on other vehicles where this code might be triggered by various electrical faults, on this specific Corolla, the ECM itself is the most common point of failure. The TSB notes this issue applies to vehicles built before specific VINs and that the repair is covered under the Federal Emissions Warranty (96 months/80,000 miles). A voluntary safety recall was also issued in 2010 for 2005-2008 models for cracks developing in the ECM's solder joints, which could lead to stalling.

Symptoms You May Notice

• Check Engine Light is on
• Engine will not start (cranks but no-fire)

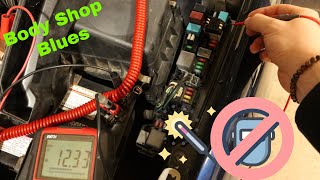

🎬 Watch: Troubleshooting a 2007 Corolla that cranks but won't start.
• Engine stalls intermittently while driving
• Reduced engine power or sluggish acceleration
• Vehicle enters 'limp mode' with limited RPM
• Harsh or incorrect automatic transmission shifting

Most Likely Causes

1. Engine Control Module (ECM) Failure 🔴 High Probability → Shop Engine Control Module (ECM) This is a known issue for this specific model and year range, as confirmed by Toyota TSB EG042-07. The internal processors or memory chips within the ECM are known to fail, possibly due to cracks developing on the circuit board at solder points, which also prompted a safety recall.
   How to confirm: After ruling out external electrical issues (battery, grounds, fuses), the diagnosis is confirmed by the persistent presence of code P0601, often alongside P0606 or P0607. The ultimate confirmation is replacing the ECM and seeing the code resolve. The TSB was issued for vehicles produced before specific VINs, indicating a manufacturing defect.

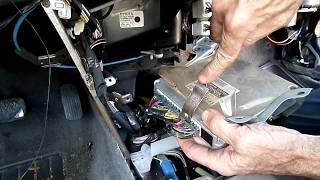

   Typical fix: Replace the Engine Control Module (ECM) with a new or remanufactured unit and program it to the vehicle. The ECM is located behind the glove compartment. 🎬 See this walkthrough on how to remove the Corolla computer.
   Est. part cost: $150-$550
2. Low Battery Voltage or Charging System Fault ⚪ Low Probability → Shop Vehicle Battery
   How to confirm: Test the battery with a multimeter; it should read ~12.6V with the engine off and 13.5V-14.5V with the engine running. Check battery terminals for corrosion and ensure they are tight. Voltage spikes or drops can sometimes corrupt module memory.
   Typical fix: Charge or replace the battery. Clean battery terminals. Repair or replace the alternator if it is not charging correctly.
   Est. part cost: $100-$300
3. Wiring Harness Issues (Power or Ground) ⚪ Low Probability
   How to confirm: Visually inspect the wiring harness going to the ECM for any signs of damage, corrosion, or loose connections. Check for a solid ground connection from the ECM to the chassis. TSB EG042-07 specifically advises checking sensor 5V reference circuits (VC, IGF, THA, THW, etc.) before condemning the ECM.
   Typical fix: Repair the damaged section of the wiring harness or clean and tighten the ground connection.
   Est. part cost: $10-$100

Rare But Worth Checking

• Aftermarket Tuning or Botched Reflash: If the ECM software was modified with non-factory programming, it can corrupt the memory and trigger a P0601 code.
• Faulty Trailer Towing Wire Harness: TSB EG042-07 specifically advises checking for improper installation of trailer towing wire harnesses, as this can cause electrical feedback that damages the ECM. The bulletin also recommends checking tail and stop light bulb operation and their connectors.

Diagnosis Steps

1. Verify Battery Health: Ensure the battery is fully charged (12.6V+) and the charging system is working correctly (13.5-14.5V). Clean any corrosion from the terminals. A weak or failing battery can cause spurious electronic codes.
2. Scan for Other Codes: Check for other codes that may be present, especially P0606 and P0607, which point more definitively to ECM failure on this vehicle.
3. Inspect ECM Wiring and Grounds: Visually inspect the ECM connectors (located behind the glove box) and nearby wiring for any signs of corrosion, damage, or looseness. Ensure the ground straps for the ECM are clean and tight.
4. Check TSB-Cited Components: Per TSB EG042-07, check for any improperly installed trailer wiring harnesses. 🎬 Watch: Essential checks to perform before installing a new PCM. Also inspect the tail and stop light bulbs and their connectors (R9 and R11) for secure connections and proper operation.
5. Condemn the ECM: If all external factors check out and the P0601 code persists (especially after a power cycle), the ECM's internal memory is corrupt, and the unit is faulty. This is the most likely outcome for this specific vehicle.
6. Replace and Program ECM: Install a new or remanufactured ECM. The new module must be programmed with the vehicle's VIN to function correctly. Note that 2005-2007 models use a Serial Information Line (SIL) communication protocol, which is incompatible with the Controller Area Network (CAN) protocol used in 2008 models. You must use the correct part number for the model year, transmission, and VSC options.

Parts You'll Likely Need

• Engine Control Module (ECM) (OEM #89661-02K21) — This is the root cause of the P0601 code in the vast majority of cases for this specific vehicle, as documented by Toyota's own service bulletins. T-SB-0378-08 lists multiple valid part numbers depending on year, transmission, and VSC; 89661-02K21 is the current number for a 2007 Corolla with automatic transmission and without VSC.
  Trusted brands: Denso, Delco
  OEM price range: $400-$550
  Aftermarket price range: $150-$350 (Used or Remanufactured)

Related Codes That Often Appear With This One

• P0606 — P0606 (ECM/PCM Processor Fault) is another internal computer error. Toyota's TSB EG042-07 lists P0601, P0606, and P0607 together as symptoms of the same ECM failure.
• P0607 — P0607 (Control Module Performance) is also an internal computer error. It is frequently seen with P0601 for the same ECM failure reason, as noted in TSB EG042-07.

Technical Service Bulletins (TSBs) & Recalls

• EG042-07: M.I.L. 'ON' DTC P0601, P0606, AND/OR P0607 OR ENGINE 'NO START' CONDITION
• T-SB-0378-08: 1ZZ-FE Engine Control Module (ECM) Parts Information

Platform-Specific Known Issues

• Toyota TSB EG042-07 documents a known issue with the ECM on 2005-2007 Corolla and Matrix models with the 1ZZ-FE engine, leading to codes P0601, P0606, and/or P0607. The repair is covered under the Federal Emissions Warranty for 96 months or 80,000 miles.
• Toyota TSB T-SB-0378-08 provides a detailed list of correct ECM part numbers by year and configuration, and warns that 2005-2007 ECMs are not compatible with 2008 models due to different communication protocols (SIL vs. CAN).
• Owner forums confirm this is a very common failure. One owner on CarTalk Community noted their 2007 Corolla stalled and would only run for a few days after resetting the fuel injection fuses before the ECM was diagnosed as the cause.

Mechanic-Grade Diagnostic Values

• ECM Power Source (+B) to Ground (E1) — expected: 8V to 14V with Ignition ON. Failure: Voltage below 8V or absent indicates a power supply issue to the ECM.
• ECM Battery Feed (BATT) to Ground (E1) — expected: 8V to 14V at all times. Failure: Voltage below 8V indicates a problem with the constant power supply for ECM memory.
• ECM Ground Strap Integrity — expected: < 0.1 Ω resistance between the ground point and the negative battery terminal. Failure: Resistance higher than 0.1 Ω indicates a poor ground connection, which can cause voltage irregularities.
• Ignition Confirmation Signal (IGF) to Ground (E1) — expected: 4.5V to 5.5V with Ignition ON, pulses during idling. Failure: Incorrect voltage or lack of pulsing can indicate an issue, though TSB EG042-07 advises checking this before condemning the ECM.

Scan Tool Commands That Help

• Toyota Techstream: Health Check — To scan all modules for any related trouble codes, especially P0606 and P0607, which are often stored with P0601 in this specific failure scenario.
• Toyota Techstream: VIN Programming / Immobilizer Reset — This is a mandatory step after installing a new or used ECM. It writes the car's VIN to the module and synchronizes it with the vehicle's immobilizer system to allow the engine to start.

Wiring & Ground Locations

• ECM Location — Under the right side of the dashboard, below/behind the glove compartment.. This is the location of the failing component and its connectors, which must be inspected for damage or corrosion.
• Ground Point EB — On the front side of the left (driver's side) fender in the engine compartment.. This is a primary engine compartment ground point. Corrosion or a loose connection here can affect various electronic systems, including the ECM.
• Ground Point on Transmission — A ground wire runs from the negative battery terminal directly to a bolt on the top of the transmission.. This is a critical powertrain ground. A poor connection here can cause a wide range of electrical issues, including no-start conditions and erratic module behavior.
• Ground Point on Cylinder Head — A ground from the wiring harness connects to the cylinder head, near the VVT-i solenoid.. Ensures the engine block and its sensors are properly grounded. This is often overlooked during engine work and can cause runnability problems.

OEM Part Supersession History

• 89661-02K20 → 89661-02K21, 89661-02K23, and others — Part revision and update by the manufacturer, likely to address the known failure points.
  Heads up: It is critical to match the part number exactly or use a verified cross-reference from a reliable source like a dealer or a reputable remanufacturer. TSB T-SB-0378-08 lists valid part numbers based on model year, transmission, and VSC options. Using an incorrect part number, even if it fits, can lead to functional issues.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• Excessive Oil Consumption 🔴 High — Common in pre-2005 1ZZ-FE engines due to piston ring design, but can still occur in 2005+ models. Onset can be as early as 50,000-60,000 miles. Can lead to engine damage if oil level is not monitored. (Ref: TSB EG009-03 (Pre-2005 models), TSB-0134-08 (Updated dipstick/oil capacity for 2003-05 models).)
• Power Steering System Leaks / Failure 🟠 Medium — Leaks from power steering return lines or a failing pump can occur, leading to stiff or difficult steering, especially at low speeds. This is a common age-related issue.
• Timing Chain Tensioner Oil Leak 🟡 Low — The O-ring or gasket for the timing chain tensioner can fail, causing a persistent oil leak on the passenger side of the engine. It is a relatively minor but messy leak to fix.
• Water Pump Seepage/Failure 🟠 Medium — The water pump may develop a slow coolant leak or 'seepage' over time, identifiable by crystallized coolant residue. While not always an immediate failure, it requires monitoring and eventual replacement.
• Automatic Transmission Harsh Shifting 🟠 Medium → Shop Transmission Assembly — At higher mileages (over 125,000), some owners report harsh shifting, which can sometimes be related to a failing solenoid or, in some cases, the early stages of the P0601 ECM failure. (Ref: TSB TC011-06 (for P2716))

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: A used or remanufactured ECM is a very common and sensible repair for this vehicle, as a new OEM unit can be prohibitively expensive. Given that the failure is a known manufacturing defect, a remanufactured unit that has had the common failure points repaired and tested is often a more reliable choice than a standard used part from a junkyard.

Donor-vehicle mileage cap: roughly under 150000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• Match the OEM part number on the sticker EXACTLY with your original ECM.
• Ensure the donor vehicle has the same engine (1ZZ-FE) and transmission (Automatic/Manual) as yours.
• Inspect the connectors for any bent, corroded, or damaged pins.
• Ask if the seller offers a warranty, even a short one, as it shows confidence in the part's condition.

Aftermarket brands forum-validated for this vehicle:

• Flagship One (FS1)
• AutoECMs
• Module Mechanics

Brands owners have reported issues with on this vehicle:

• Unbranded, no-name sellers on marketplaces without a warranty or a clear programming/VIN-matching service.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P0606 — Often appears alongside P0601 as a companion code indicating internal ECM/PCM processor failure on this specific vehicle range.
• P0607 — Cited in TSB EG042-07 as a related code for ECM performance issues that frequently occur with P0601 in 2005-2007 models.
• P2716 — An electrical pressure control solenoid code mentioned in TSB TC011-06 that can be associated with the harsh shifting symptoms seen in these model years.
• P0602 — A related control module programming error code mentioned by owners as a potential diagnostic finding alongside P0601.
