P0601 on 2003-2008 Toyota Matrix: Internal ECM Memory Error Causes and Fixes

What's Unique About the 2003-2008 Toyota Matrix

For the 2005-2007 model years of the Toyota Matrix and its platform-mate, the Corolla, with the 1ZZ-FE engine, this issue was common enough for Toyota to issue a Technical Service Bulletin (TSB EG042-07). The TSB directly addresses code P0601 (and related codes P0606/P0607) and confirms the cause is a faulty ECM requiring replacement. Furthermore, Toyota issued recall NHTSA 10V384000 for 2005-2008 models due to improperly manufactured ECMs where cracks could develop on the circuit board, leading to stalling or a no-start condition. This isn't just a generic code; it's a well-documented, widespread failure on this specific platform.

Symptoms You May Notice

• Check Engine Light is on
• Engine cranks but will not start.
🎬 Watch: Troubleshooting a crank but no start condition.
• Engine starts for a second and then immediately stalls.
🎬 See how to fix an engine that starts then dies.
• Intermittent stalling while driving.
• Reduced engine power or sluggish acceleration.
• Vehicle may enter 'limp mode' with limited RPM.
• Potential issues with automatic transmission shifting, such as harsh or jerky shifts.
• No spark or no injector pulse during cranking.

Most Likely Causes

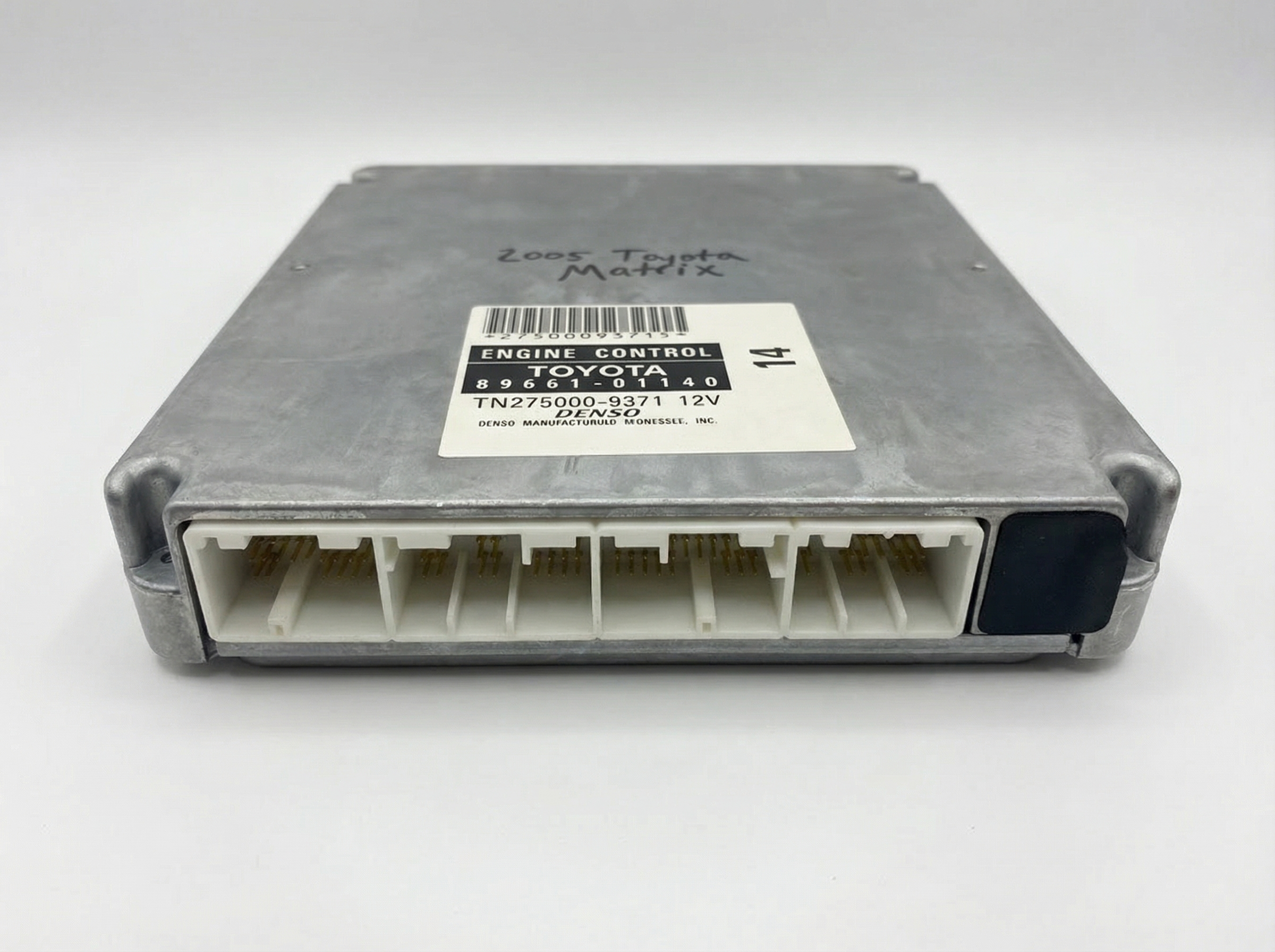

1. Failed Engine Control Module (ECM) 🔴 High Probability → Shop Engine Control Module (ECM) A known issue for 2005-2007 models, as documented in Toyota TSB EG042-07, points to a higher-than-normal failure rate for the ECM in these vehicles. A wider recall (NHTSA 10V384000) for 2005-2008 models confirms that cracks could develop on the ECM's internal circuit board.
   How to confirm: After verifying stable battery voltage (12.4V+), clean terminals, and checking ECM power/ground connections, the presence of P0601 is a definitive diagnosis of internal ECM failure. 🎬 Watch this guide on repairing the P0601 internal memory error. In many cases, a scan tool may fail to communicate with the ECM at all.
   Typical fix: Replace the Engine Control Module (ECM) and program the new unit to the vehicle. This can be done with a new OEM unit, a remanufactured unit, or by sending the original unit for repair to a specialized service.
   Est. part cost: $600-$1200

Rare But Worth Checking

• Low Battery Voltage or Charging System Fault: → Shop Vehicle Battery While a weak battery or failing alternator can cause a wide range of electrical issues and trigger memory-related codes, it's an unlikely root cause for a persistent P0601, which points to a permanent memory fault. However, it's a simple and important first check to ensure voltage is stable (above 12.4V) before condemning an expensive ECM.
• Improperly Installed Trailer Wiring: Toyota TSB EG042-07 specifically mentions that improper trailer towing wire harness installation should be checked as a potential, though rare, cause of ECM issues before replacement. A short in the towing harness can back-feed voltage and damage the ECM.
• Poor ECM Power/Ground Connections: Corroded or loose power and ground connections at the ECM connector can cause voltage drops or electrical interference, mimicking an internal fault. A visual inspection of the ECM connectors for water intrusion or corrosion is a key diagnostic step.

Diagnosis Steps

1. Read the code using an OBD-II scanner to confirm P0601 is present. Note any other codes.
2. Check the battery. Ensure it is fully charged (above 12.4V) and passes a load test. Check the alternator output is stable (typically 13.5-14.5V when running).
3. Inspect the battery terminals and main chassis grounds for looseness or corrosion. Ensure connections are clean and tight.
4. Visually inspect the ECM (located behind the glove box) and its connectors for any signs of corrosion, water intrusion, or physical damage.
5. Before replacing, check for any aftermarket accessories (like remote starters or alarms) or trailer wiring that may be improperly installed, as noted in TSB EG042-07.
6. If external power, grounds, and connections are good, the ECM is faulty. This code is an internal self-diagnosis by the module itself, and in over 90% of cases, indicates the module must be replaced.
7. Note that the Federal Emissions Warranty may cover the ECM for 8 years or 80,000 miles, whichever comes first. It is worth checking with a dealer even if the vehicle is older.

Parts You'll Likely Need

• Engine Control Module (ECM) (OEM #Varies by year/transmission. Examples: 89661-01132 (2004-2006 AT), 89661-02K21 (2007 AT), 89661-0Z043 (2005). Always match the number on the original unit.) — This is the direct cause of the P0601 code, as confirmed by Toyota's own service bulletin and recall for this vehicle. The module's internal memory has failed.
  Trusted brands: Toyota (OEM), Denso (OEM supplier), ACR (Remanufactured), Flagship One (Remanufactured)
  OEM price range: $800-$1300
  Aftermarket price range: $200-$600 (Remanufactured/Programmed)

Related Codes That Often Appear With This One

• P0606 — This code for 'ECM/PCM Processor Fault' is also an internal computer error. Toyota groups it with P0601 in its service bulletin as they point to the same root cause: a failed ECM.
• P0607 — This code for 'Control Module Performance' is another related internal fault. It is also included in TSB EG042-07 as a code indicating ECM failure.

Technical Service Bulletins (TSBs) & Recalls

• EG042-07 - 'M.I.L. ON DTC P0601, P0606, AND/OR P0607 OR ENGINE NO START CONDITION' for 2005-2007 Corolla & Matrix (1ZZ-FE).
• T-SB-0378-08 - '1ZZ-FE Engine Control Module (ECM) Parts Information', provides extensive part number lists and notes communication protocol differences between 2005-2007 (SIL) and 2008 (CAN) models.
• EG018-05 - An earlier TSB for the 2005 model year 'no start' condition, later superseded by EG042-07.

Platform-Specific Known Issues

• Toyota TSB EG042-07 was released for 2005-2007 Matrix and Corolla models with the 1ZZ-FE engine specifically for P0601 (and related codes) or a no-start condition caused by ECM failure.
• NHTSA Recall 10V384000 (August 2010) was issued for 2005-2008 Corolla and Matrix models for improperly manufactured ECMs that could have cracks on the circuit board, leading to stalling.

Mechanic-Grade Diagnostic Values

• ECM Power Supply Voltage — expected: 9 - 14 V. Failure: Voltage below 9V or 0V indicates a problem with the power supply circuit, not necessarily the ECM itself.
• ECM Ground Circuit Resistance — expected: Below 1 Ω. Failure: Resistance higher than 1 Ω indicates a poor ground connection, which can cause various ECM issues.
• Alternator Charging Voltage — expected: 13.5 V - 14.5 V. Failure: Voltage outside this range with the engine running indicates a charging system fault that could stress the ECM.

Scan Tool Commands That Help

• Toyota Techstream: VIN Registration / Immobilizer Reset — This function is required after installing a new or non-programmed used ECM. It pairs the ECM to the vehicle's VIN and security system, allowing the engine to start.
• Jumper Wire (DIY Method): Immobilizer Relearn Procedure — After installing a pre-programmed ECM, this procedure may be required to sync the new ECM with the car's immobilizer. It involves jumping specific pins on the OBD-II port and waiting for a 30-minute 'learn' period.

Wiring & Ground Locations

• ECM Location — Behind the glove box, under the dashboard.. This is the physical location for inspection, testing, and replacement of the failed component.
• Ground Point IE — Behind the combination meter (instrument cluster).. This is a key ground point for the instrument panel harness, which includes wiring to the ECM. A loose or corroded connection here can cause intermittent power issues to the module.
• Ground Point IG — On the right kick panel.. Another critical ground point in the main cabin harness that provides a ground path for the ECM and related components.
• Ground Points Ec / Ed — On the cylinder head or rear of the engine (1ZZ-FE).. These are the main engine harness ground points. A poor connection here can cause a host of sensor and module communication errors, although P0601 is more likely an internal fault.
• OBD-II Pins 4 & 13 — At the Data Link Connector (DLC) under the driver's side dashboard.. Pin 4 (Chassis Ground) and Pin 13 (TC/Programming Pin) are used in the DIY immobilizer relearn procedure after swapping an ECM.

Real Owner Repair Stories

• Reddit user post in r/Toyota_Matrix (2000s Toyota Matrix with over 250,000 miles) — Engine would start for one second and then immediately stall.
  ❌ Tried (didn't work) A general mechanic diagnosed it as a complex issue (fuel pump, wiring) and suggested the car was 'totaled'., A mobile locksmith confirmed the key transponder was not being recognized correctly by the car's computer and could not reprogram it, also suggesting the computer was faulty.
  ✅ What actually fixed it The owner purchased a pre-programmed, remanufactured ECM from Flagship One online for approximately $200. After physically swapping the module, they performed a 30-minute immobilizer relearn procedure by jumping pins 4 and 13 on the OBD-II port with the key on. This successfully resolved the issue.

Model Year Variations Within This Range

• 2003-2007 vs 2008: The communication protocol for the ECM changed. 2003-2007 models primarily use the ISO 9141-2 (K-Line) protocol for diagnostics. The 2008 model year transitioned to the CAN (Controller Area Network) bus protocol. This is critical when sourcing a replacement ECM, as a CAN-based ECM will not communicate in a K-Line vehicle and vice-versa. TSB T-SB-0378-08 also highlights this change.
• 2005-2008 (2WD only): These specific model years and drivetrain were subject to NHTSA recall 10V384000 for the defective ECM. While other years can fail, these were identified as having a widespread manufacturing defect from the supplier (Delco/Delphi). AWD models were not included in the recall.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• Excessive Oil Consumption 🔴 High — Very common on 1ZZ-FE engines built before July 2005. Caused by piston rings getting clogged with carbon, leading to oil burning at a rate of 1qt per 1,000 miles or worse. (Ref: Toyota addressed this with redesigned pistons in later models but no formal recall was issued for early models.)
• Leaking Intake Manifold Gasket 🟡 Low — The gasket can degrade over time, causing a vacuum leak. This often results in a rough idle and a P0171 (System Too Lean) check engine light.
• Failing Drive Belt Tensioner 🟡 Low — The original tensioner is prone to failure, causing a rattling or squealing noise from the engine bay. An updated part is available.
• Faulty Mass Airflow (MAF) Sensor 🟠 Medium — A failing MAF sensor can cause lack of power, rough running, and shifting problems, often triggering a P0171 code. Cleaning the sensor sometimes helps, but replacement is often necessary.
• Loose Window Bolts 🟡 Low — Common on 2003-2004 models, the bolts holding the window glass to the regulator can loosen, causing the window to become unseated or fall into the door. (Ref: Toyota used defective bolts in early production. The fix is to re-secure the bolts with thread locker.)

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: For the P0601 code on this vehicle, a 'used' part in the form of a professionally remanufactured and pre-programmed ECM is the most common and cost-effective repair. Buying a random used ECM from a junkyard is not recommended unless you have access to Toyota Techstream to perform the VIN and immobilizer programming yourself.

Donor-vehicle mileage cap: roughly under 150000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• MUST match the OEM part number on your original ECM exactly.
• Seller must offer VIN-programming service before shipping. This makes the part 'plug-and-play'.
• Look for a lifetime warranty, as the quality of remanufactured electronics can vary.
• Check reviews for the seller (e.g., Flagship One, Cardone) as customer experiences can be mixed.

OEM-only on this vehicle (don't cheap out):

• For this specific repair, a new OEM part is a reliable but very expensive option. A quality remanufactured unit is a viable alternative.

Aftermarket brands forum-validated for this vehicle:

• Flagship One (FS1) - Widely mentioned in forums and reviews, though experiences can be mixed. They often have stock when others don't.
• Cardone (A1 Cardone) - A long-standing remanufacturer of automotive electronics, available through retailers like RockAuto.

Brands owners have reported issues with on this vehicle:

• Unbranded sellers on platforms like eBay or Amazon without a clear warranty or programming service should be avoided due to the complexity of the immobilizer system.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P0606 — Identified in TSB EG042-07 as a companion code to P0601, indicating an internal ECM/PCM processor fault.
• P0607 — Listed in TSB EG042-07 as a related control module performance code that often triggers alongside P0601 in 2005-2007 models.
• P0171 — A 'System Too Lean' code often caused by a leaking intake manifold gasket or a faulty Mass Airflow (MAF) sensor, both common issues on the 1ZZ-FE engine.
