P0602 on 2007-2014 Chevrolet Suburban: Control Module Programming Error Causes and Fixes

What's Unique About the 2007-2014 Chevrolet SUBURBAN

For the GMT900 platform Suburban (2007-2014), the P0602 code is often a direct result of a failed or incomplete programming event. This can happen when replacing the ECM, attempting to apply an aftermarket tune, or even if battery voltage drops during a dealership software update. GM issued a technical service bulletin (TSB #05-06-04-060A) acknowledging that this and other related codes (P0601, P0603, etc.) can be set across multiple modules, indicating it's a known software-related issue rather than a random hardware failure. The bulletin clarifies this is an informational code directing technicians to verify module programming before replacement.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Check Engine Light is on
• Vehicle will not start, or has a hard start condition
• Engine stalls or idles roughly
• Reduced engine power and poor acceleration ('Limp Mode')
• Harsh or erratic automatic transmission shifting
• Decrease in fuel economy
• Other warning lights may appear if communication is lost to other modules

Most Likely Causes

1. Failed or Incomplete Module Programming 🔴 High Probability This is the most frequent cause. It occurs after replacing a module (ECM, TCM) and not programming it correctly with the vehicle's VIN, or after a failed aftermarket tuning attempt where the flash process is interrupted or the file is corrupt. You cannot simply swap a used computer from another vehicle without flashing it.
   How to confirm: Confirm if any modules have been recently replaced or if any performance tuning was attempted. The primary diagnostic step is to attempt reprogramming with OEM tools (GM SPS). A scan tool can also check the VIN stored in the module to see if it matches the vehicle.
   Typical fix: Reprogramming the affected control module with the correct GM factory software for the vehicle's VIN.
   Est. part cost: $0 (Service cost applies)
2. Low Battery Voltage During Programming or Normal Operation 🟡 Medium Probability → Shop Vehicle Battery Programming requires a stable voltage (above 12.4V). If the battery is weak or a stable power supply isn't used, the data transfer can be interrupted and corrupt the module's software. Even a simple battery change or jump-start can sometimes cause voltage spikes that corrupt module memory.
   How to confirm: Test the battery and charging system. If voltage is low (below 12.4V), this is a likely contributor, especially if the code appeared after a service event or battery replacement.
   Typical fix: Charge or replace the battery, then have the module professionally reprogrammed. Ensure a battery maintainer is used during any future programming events.
   Est. part cost: $150-$350
3. Faulty Engine Control Module (ECM) ⚪ Low Probability → Shop Engine Control Module (ECM) While less common than a software issue, the ECM's internal memory (EEPROM) or processing circuits can fail, making it unable to store or read its programming correctly. This is a diagnosis of exclusion.
   How to confirm: This is diagnosed by exclusion. If reprogramming fails multiple times with known good equipment and stable voltage, and all wiring/grounds are confirmed good, the module itself is condemned.
   Typical fix: Replace the ECM and program the new unit to the vehicle's VIN.
   Est. part cost: $250-$600

Rare But Worth Checking

• Wiring Issues in the CAN Bus Harness: A damaged, corroded, or shorted wire in the communication network (CAN bus) or in the ECM's power/ground circuit can interrupt programming or cause communication errors that trigger a P0602 code. This is rare but should be checked if reprogramming fails and the module is suspected to be good. A known chafe point on these trucks is the engine harness contacting the ECM/TCM bracket, the upper control arm, or the shock tower.

Diagnosis Steps

1. Verify Battery Health: Ensure the battery is fully charged (above 12.4V) and the charging system is working correctly. Use a battery maintainer during diagnosis and programming. Low voltage is a common cause of programming errors.
2. Scan for All Codes: Use a professional scan tool to check for all codes in all modules. Pay close attention to U-series (communication) codes, which can point to a larger network issue.
3. Inquire About Vehicle History: Ask if the ECM/PCM has been recently replaced, if the vehicle has been tuned with aftermarket software, or if the battery went dead or was recently replaced. This context is critical.
4. Attempt Reprogramming: This is the primary fix. Using GM-approved equipment (like a GM MDI 2) and the Service Programming System 🎬 Watch this step-by-step walkthrough for reprogramming GM vehicle modules. (SPS), attempt to re-flash the module with the latest factory calibration for the vehicle's VIN.
5. Inspect Wiring and Connectors: If reprogramming fails, visually inspect the ECM connectors and relevant wiring harness for any signs of corrosion, damage, or loose pins. Check main power and ground connections to the module. Pay special attention to known harness chafe points near the ECM bracket, upper control arm, and shock tower.
6. Replace the Control Module: If reprogramming repeatedly fails and all wiring is confirmed to be good, the control module itself is likely defective and needs to be replaced. The new module will also require programming.

Parts You'll Likely Need

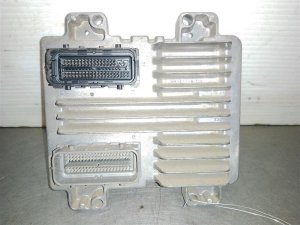

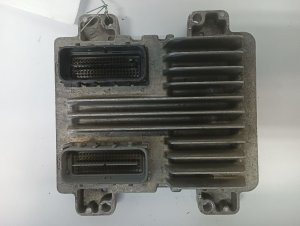

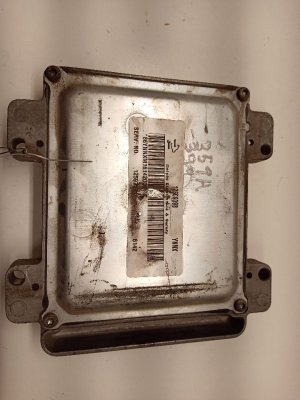

• Engine Control Module (ECM/PCM) (OEM #12622138, 12612384, 12617174, 12617568, 12622141, 12624488, 12629001) — This is only needed if the original module is physically damaged and cannot be reprogrammed. The P0602 code is a software error, but if reprogramming fails, the hardware is the next logical point of failure.
  Trusted brands: ACDelco (OEM), Cardone, Flagship One
  OEM price range: $350-$600
  Aftermarket price range: $250-$450

Related Codes That Often Appear With This One

• U-codes (e.g., U0100) — U-codes indicate a loss of communication between modules. A P0602 error can prevent a module from communicating correctly on the vehicle's network, leading to these codes.
• P0601, P0603, P0604, P0606 — These are all internal control module error codes. The provided TSB specifically groups them with P0602, indicating they relate to similar faults within the vehicle's computers.
• P069E — This code indicates a MIL request from the Fuel Pump Control Module (FPCM). A programming error in the ECM (P0602) can disrupt communication with the FPCM, causing the FPCM to request the Check Engine Light.

Technical Service Bulletins (TSBs) & Recalls

• 05-06-04-060A: Informational bulletin on various control module DTCs including P0602, shared across multiple modules. It advises technicians that these are internal failure codes and to follow service information for diagnosis, which often leads to module replacement if reprogramming doesn't work.

Platform-Specific Known Issues

• GM Technical Service Bulletin #05-06-04-060A notes that P0602 is one of several informational codes that can be set in various control modules, directing technicians to investigate programming and software status before replacing parts.
• On GMT900 trucks, a failed aftermarket tune (e.g., from a handheld tuner) is a very common trigger for P0602 if the process is interrupted or the original stock file is not properly saved/restored.
• A dead battery or even a standard battery replacement can sometimes trigger this code if voltage is unstable during the power-down or power-up sequence, corrupting the module's memory.

Mechanic-Grade Diagnostic Values

• ECM Ground Circuit Voltage Drop — expected: < 0.1 Volts. Failure: A reading greater than 0.3V indicates unacceptable resistance from corrosion or a faulty wire, requiring circuit cleaning or repair.
• CAN Bus Network Resistance — expected: ~60 Ohms. Failure: A reading of 120 Ohms indicates an open circuit on one of the terminating resistors (often in the ECM or another module). A reading near 0 Ohms indicates a short between the CAN High and CAN Low wires.
• CAN High Voltage (Pin 6 at DLC) — expected: ~2.5 - 2.6 Volts DC (Key On). Failure: Significant deviation from this voltage suggests a network wiring fault or a module pulling the bus voltage down.
• CAN Low Voltage (Pin 14 at DLC) — expected: ~2.2 - 2.4 Volts DC (Key On). Failure: Significant deviation from this voltage suggests a network wiring fault or a module pulling the bus voltage up.
• ECM Power Supply at Connector — expected: 12.5V+ (Battery Voltage). Failure: A significant voltage drop at the ECM connector pins (e.g., Pin 19 or 20 on some models) compared to battery voltage indicates a wiring or fuse block issue that can cause programming failures.

Scan Tool Commands That Help

• GM Tech 2 / GDS2: Service Programming System (SPS) — This is the primary function used to re-flash the ECM with the correct factory software to resolve a P0602 error.
• GM Tech 2 / GDS2: Security Relearn — This procedure is mandatory after replacing or reprogramming the ECM to allow the vehicle's anti-theft system (VATS) to recognize the new or updated module, preventing a no-start condition.
• GM Tech 2 / High-End Aftermarket Scanner: CASE Relearn (Crankshaft Position System Variation Learn) — Required after ECM replacement or reprogramming to calibrate the new module to the specific variations of the crankshaft position sensor, preventing false misfire detection.

Wiring & Ground Locations

• G103 — On the front of the passenger side cylinder head.. This is a primary engine ground point. Poor contact here can cause unstable voltage and communication errors for various engine-related modules, including the ECM.
• G104 — On the left (driver's side) rear corner of the engine, mounted to the left cylinder head.. Another critical engine ground. A compromised connection can lead to intermittent and hard-to-diagnose electrical issues that could mimic an internal module fault.
• ECM Ground Pins — Within the ECM's main harness connectors. These are typically black wires.. The ECM relies on these dedicated ground pins, not its case, for a stable ground reference. If reprogramming fails, a voltage drop test on these specific pins is the definitive way to rule out a bad ground.
• Engine Harness Chafe Points — Common contact points are: 1) the sharp edge of the black ECM/TCM mounting bracket, 2) the driver's side upper control arm, and 3) the shock tower bolt/stud.. Vibrations can cause the harness to rub through at these points, shorting CAN bus or power/ground wires. This can directly cause communication failures and trigger a P0602, especially if it happens intermittently or during programming.

Real Owner Repair Stories

• Diablosport Forums (2001 Mustang GT (Note: Not a Suburban, but illustrates a relevant tuning-related P0602 cause)) — P0602 and other codes appeared after returning the car to its stock tune from an aftermarket programmer.
  ❌ Tried (didn't work) Flashing the original backup 'stock' tune., Clearing codes with the programmer.
  ✅ What actually fixed it The owner installed a *modified* stock tune that had adjustments for idle and gear ratio to match other vehicle modifications. This custom-tailored 'stock' file resolved the P0602 code, suggesting the generic stock file was incompatible with the car's current hardware state.

OEM Part Supersession History

• E38 ECM (e.g., 12612384) → E38 ECM (e.g., 12625455) — Internal hardware and software updates for new model years.
  Heads up: E38 ECMs from different model years are generally NOT cross-compatible, even if they look identical. For example, a 2009+ E38 uses a different throttle body calibration and CAN bus torque model than a 2007-2008 unit. Attempting to flash an older OS onto a newer ECM (or vice-versa) will fail and can permanently damage the module. The Service Number on the replacement ECM must be correct for the vehicle's model year and intended OS.

Model Year Variations Within This Range

• 2007: 2007 was a transition year. The 'New Body Style' (GMT900) Suburban uses the Gen IV engine with an E38 Engine Control Module (ECM) and a separate Transmission Control Module (TCM). This is distinct from the 'Classic' body style's single Powertrain Control Module (PCM).
• 2009-2014: Starting in 2009, and again in 2010, the internal operating system and hardware of the E38 ECM were changed. These later ECMs are not backward-compatible with software from 2007-2008 models due to differences in how they process variable data and communicate on the CAN bus.
