P0602 on 2005-2018 Chrysler 300: Control Module Programming Error Explained

What's Unique About the 2005-2018 Chrysler 300

On Chrysler products like the 300, P0602 can sometimes appear as a harmless side effect of using an aftermarket performance tuner (e.g., from Diablosport or HP Tuners) which intentionally modifies the factory programming. However, if the vehicle is stock, the code is more serious and often points to either an underlying voltage issue from a failing battery or a genuine PCM software glitch that requires a dealer-level re-flash using the wiTECH diagnostic tool. Chrysler has also issued several recalls and service bulletins (like Safety Recall U60 / NHTSA 18V-332) that involve reprogramming the PCM, and an interruption during this process can trigger a P0602 code.

Generation note: This guide covers both the first generation (LX, 2005-2010) and second generation (LD, 2011-2018) Chrysler 300. While the underlying cause is the same, the specific PCM hardware and software differ. The second generation has a more complex electrical system, making it particularly sensitive to battery voltage stability. A recall for alternator failure on 2011-2014 models underscores this sensitivity.

Symptoms You May Notice

• Check Engine Light is on
• Vehicle will not start or has a hard start condition
• Engine stalls intermittently or runs rough at idle
• Reduced engine performance or "limp mode"
• Harsh or incorrect transmission shifting
• Drop in fuel economy
• Battery light may be illuminated

Most Likely Causes

1. Weak or Failing Battery / Poor Electrical Connection 🔴 High Probability → Shop Vehicle Battery Modern Chrysler electronics are highly sensitive to voltage. A weak battery, failing alternator, or corroded terminals can cause voltage drops during PCM self-checks or re-flash procedures, corrupting the software. The 2011-2014 models were subject to a recall for alternator failure which could cause stalling and electrical issues.
   How to confirm: Load test the battery (a voltage reading above 12.4V at rest is a good start, but a load test is definitive). Check battery terminals and main ground straps for corrosion or looseness. Perform a voltage drop test on the PCM power and ground circuits. In some forum discussions, owners report a no-start with a clicking sound, which points directly to a battery or starter circuit issue even with a P0602 present.
   Typical fix: Clean all battery terminals and ground connections. Replace the battery if it fails a load test. For vehicles that sit for long periods, using a battery maintainer like a Battery Tender is recommended by owners to prevent voltage drop.
   Est. part cost: $150 - $300 for a quality AGM battery
2. PCM Software Corruption / Needs Re-flash 🟡 Medium Probability Software glitches can occur, or an update may have been interrupted. Chrysler has issued numerous campaigns requiring PCM updates, such as Safety Recall U60 (NHTSA 18V-332) for cruise control issues on 2014-2018 models. An interruption during this dealer-performed flash is a known cause of P0602.
   How to confirm: This can only be confirmed by a dealer or qualified shop using a factory-level scan tool (like a wiTECH) to check the software calibration version and attempt a re-flash. The tool must be connected to a stable power supply during the procedure to avoid corruption.
   Typical fix: Reprogramming (re-flashing) the PCM with the latest manufacturer software. This must be done by a professional with a wiTECH tool. The cost for this service is typically between $150 and $300.
   Est. part cost: $0 (software only)
3. Aftermarket Performance Tune 🟡 Medium Probability Using a handheld tuner (like DiabloSport) to alter engine parameters is common on the LX platform. Sometimes, the tuner will intentionally set P0602 to indicate that the factory programming has been altered. This is often considered a harmless 'ghost code' by the tuning community.
   How to confirm: Check if the vehicle has been modified with an aftermarket tuner. The code will typically appear after the tune is loaded and may not cause any adverse symptoms.
   Typical fix: Restore the stock factory tune using the same device. The code should clear. If it's considered a harmless side effect by the tuner manufacturer, it can sometimes be ignored. If the flash process was interrupted, it may require a dealer visit for a full PCM recovery.
   Est. part cost: $0

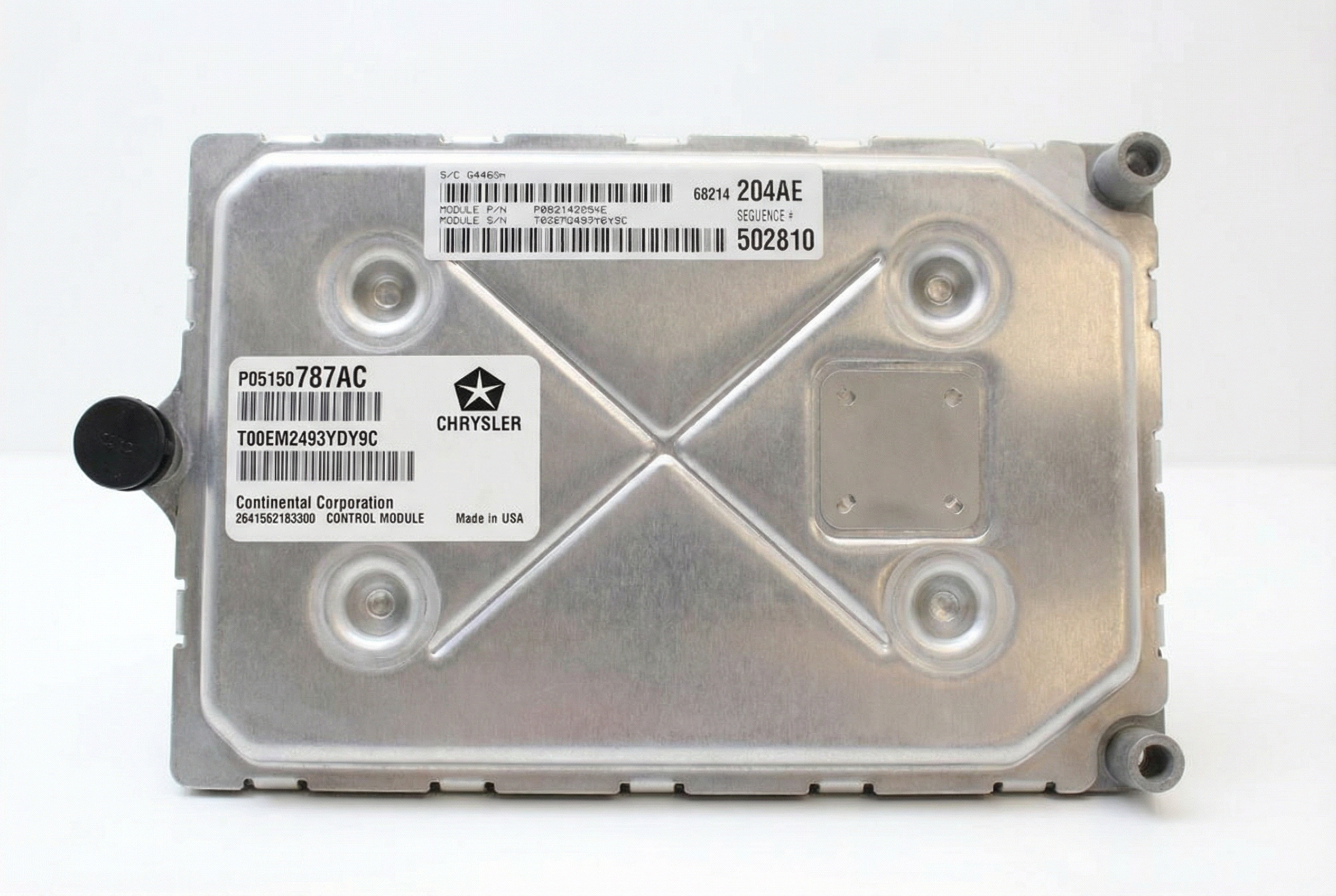

4. Faulty Powertrain Control Module (PCM) ⚪ Low Probability → Shop Engine Control Module (ECM) While less common, the internal memory (EEPROM) of the PCM can fail due to heat, vibration, or age.
   How to confirm: This is a diagnosis of exclusion. If the battery, wiring, and grounds are perfect, and the PCM fails to accept a re-flash or the code returns immediately after a successful re-flash, the PCM itself is likely defective. This is often seen with companion code P0601.
   Typical fix: Replace the PCM. The new unit must be programmed to the vehicle's specific VIN and configuration. This service must be performed by a dealer or a specialized shop.
   Est. part cost: $300 - $800 for a remanufactured or new PCM, plus programming costs.

Rare But Worth Checking

• Damaged Wiring Harness: Physical damage to the wiring going to the PCM can cause intermittent power loss or data corruption. Check for chafing, corrosion, or rodent damage, especially around the PCM connectors and main power/ground distribution points.
• Faulty PCM Power Relay: A failing power relay for the PCM can cause intermittent voltage supply, leading to memory corruption and triggering a P0602 code.

Diagnosis Steps

1. Check Battery Health: Start by fully charging and load-testing the battery. A healthy battery should have over 12.6 volts at rest and maintain voltage under load. Clean any corrosion from the battery terminals and cable ends. This is the most critical first step.
2. Inspect Grounds: Check the main engine-to-chassis and battery-to-chassis ground straps. Ensure they are clean, tight, and free of corrosion. A poor ground can cause voltage instability.
3. Scan for Other Codes: Use a quality OBD-II scanner to check for any other codes that may be present, especially voltage-related (P0562) or communication (U-series) codes, which can provide valuable diagnostic context.
4. Check for Aftermarket Tuners: Determine if the vehicle has an aftermarket performance tune installed. If so, contact the tuner manufacturer for support or try returning the vehicle to its stock program.
5. Attempt PCM Re-flash: This step requires a professional. Take the vehicle to a dealer or a qualified independent shop to have them attempt to reprogram the PCM with the latest factory software using a wiTECH tool. This is the most common professional fix.
6. Verify PCM Power and Ground: If the re-flash fails or the code returns, have a technician perform a voltage drop test on the PCM's power and ground circuits to rule out wiring issues or a faulty PCM relay.
7. Replace PCM: If all previous steps fail, the PCM is likely faulty and needs to be replaced. The replacement unit must be programmed for the vehicle's VIN and options.

Parts You'll Likely Need

• Powertrain Control Module (PCM) (OEM #Example for 2014 5.7L: 68239721AA (Varies greatly by year/engine/options)) — If reprogramming fails and all electrical inputs are good, the PCM's internal hardware has likely failed. This is the final step in the diagnostic process.
  Trusted brands: Mopar (OEM), Cardone (Remanufactured), Standard Motor Products (Remanufactured)
  OEM price range: $500-$1000+
  Aftermarket price range: $200-$600
• AGM Battery — A weak or failing battery is the most common trigger for P0602 due to voltage instability. Replacing an old battery is often the first and only necessary fix.
  Trusted brands: Mopar (OEM), Odyssey, Optima, Duralast

Related Codes That Often Appear With This One

• P0601 — This code means "Internal Control Module Memory Check Sum Error," which is a very similar and often related internal PCM fault that usually confirms the PCM needs replacement.
• U0100 — This code means "Lost Communication With ECM/PCM." If the PCM's software is corrupt, it may be unable to communicate with other modules on the vehicle's network (CAN bus), triggering this code.
• P0562 — This code indicates "System Voltage Low," which directly supports the theory that a weak battery or failing alternator is the root cause of the PCM programming error.

Technical Service Bulletins (TSBs) & Recalls

• CSN V51 / TSB 18-031-14: Reprogram Powertrain Control Module for system enhancements.
• Safety Recall U60 / NHTSA 18V-332: Reprogram PCM for Cruise Control safety issue.
• NHTSA 14V-634: Alternator may suddenly fail.

Platform-Specific Known Issues

• Safety Recall U60 (NHTSA 18V-332): Affects 2014-2018 models. A PCM re-flash was required to fix a cruise control software flaw that could result in the vehicle maintaining speed or accelerating unexpectedly if a specific CAN bus short occurred. An interruption during this dealer service could cause a P0602 code.
• Alternator Recall (NHTSA 14V-634): Affects 2011-2014 models with the 3.6L engine and 160 amp alternator. The alternator could suddenly fail, causing the vehicle to stall and creating voltage instability that could trigger P0602.
• Customer Satisfaction Notification V51: A broad campaign by Chrysler that included the 2010-2014 Chrysler 300 for a PCM re-flash to improve vehicle quality and satisfaction. This is sometimes referenced as TSB 18-031-14.

Mechanic-Grade Diagnostic Values

• Battery Voltage (Resting, Engine Off) — expected: >12.4 V. Failure: A reading below 12.4V indicates a discharged or failing battery that can cause PCM software corruption.
• Alternator Output (Engine Running) — expected: 13.2 V - 14.5 V. Failure: Voltage outside this range indicates a faulty alternator or voltage regulator, which can cause the electrical instability that triggers P0602.
• PCM Ground Circuit Voltage Drop — expected: < 0.1 V (100 mV). Failure: A reading above 0.1 volts indicates a poor ground connection, which can cause intermittent PCM resets and software errors.
• CAN Bus Voltage (Idle) — expected: ~2.5 V. Failure: Significant deviation from 2.5V on the CAN bus lines can indicate a wiring short or a module failure, disrupting communication needed for programming.

Scan Tool Commands That Help

• wiTECH 2.0: Restore Vehicle Configuration — This function is used after installing a new or used PCM. It pulls the vehicle's original configuration (VIN, options, security keys) from Chrysler's servers and writes it to the replacement module, which is essential for it to function.
• wiTECH 2.0: Check PCM VIN — A miscellaneous function used to verify if the VIN stored in the PCM is valid or needs to be manually written. A blank or invalid VIN is a direct cause of P0602 after a module swap.
• wiTECH 2.0: Learn ETC (Electronic Throttle Control) — This procedure calibrates the throttle position sensors after a PCM has been programmed or replaced. It is a necessary step to ensure proper engine operation.
• wiTECH 2.0: WIN Replaced — If the Wireless Ignition Node (WIN) and PCM are replaced simultaneously, the PCM must be programmed first, followed by this function to initialize the new WIN and program the keys.

Wiring & Ground Locations

• Main Engine/Chassis Ground Straps — Key ground straps are located from the engine block to the chassis and from the battery negative terminal to the chassis/body.. A loose or corroded main ground strap is a very common cause of unstable voltage supply to the PCM, which is a primary trigger for code P0602.
• PCM Ground Wires — The PCM has dedicated ground wires in its main connectors (C1, C2, etc.). These are typically grounded to specific points on the inner fender or firewall near the PCM itself.. High resistance on these specific ground pins can cause the PCM to malfunction and report internal errors. A voltage drop test should be performed directly at these pins.
• PCM Connectors (C1, C2, C3, C4) — Located directly on the Powertrain Control Module (PCM), which is typically found in the engine bay against the firewall or on an inner fender.. Corrosion, moisture, or bent pins within these main connectors can interrupt the power, ground, or data lines essential for the PCM's operation and programming, leading to a P0602 code.

Real Owner Repair Stories

• Diablosport Forums (2001 Ford Mustang GT (Note: While not a Chrysler 300, the principle of tuner-related codes is identical and relevant)) — P0602 code present after using a Diablosport Predator tuner. The code would not clear after returning the car to the stock tune.
  ❌ Tried (didn't work) Returning the vehicle to the original stock tune using the programmer., Attempting to clear the code with the programmer.
  ✅ What actually fixed it The owner installed a modified stock tune with adjustments for idle and gear ratio. After flashing this modified stock tune, the P0602 code cleared and the car ran properly. This suggests the base stock tune was incompatible with other vehicle modifications, causing a conflict the PCM registered as an error.
• YouTube - XLR8 AUTO (2006 Chrysler Sebring (Note: Demonstrates a common Chrysler PCM swap issue)) — Needed to replace a faulty PCM.
  ❌ Tried (didn't work) Attempting to install a used (junkyard) PCM from a 2005 model into a 2006 model. The VIN could not be rewritten into the used PCM.
  ✅ What actually fixed it The attempt failed because the hardware part numbers on the two PCMs did not match, even though they were from similar vehicles. The final resolution was to source a PCM with the exact matching part number, highlighting that compatibility is based on part number, not just vehicle model or year.

Model Year Variations Within This Range

• 2005-2010 (LX Platform): These earlier models often used a different PCM hardware architecture (e.g., NGC controllers). When swapping used PCMs, it is sometimes possible to also swap the Wireless Ignition Node (WIN) and the original key from the donor car as a set to avoid reprogramming, though this is a complex workaround.
• 2011-2018 (LD Platform): These models feature a more complex and integrated electrical system, including a more sophisticated TIPM. They are generally more sensitive to voltage fluctuations and require online connectivity with Chrysler's servers via wiTECH 2.0 for successful PCM programming and configuration.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• HEMI Lifter Failure ('HEMI Tick') 🔴 High — Common on 5.7L and 6.4L HEMI engines, particularly 2009+ models with MDS (Multi-Displacement System). Often presents as a ticking noise at hot idle that can lead to a misfire (P0300) and catastrophic engine damage if ignored. (Ref: No official recall, but widely acknowledged. Chrysler issued internal STAR case reports about the issue.)
• Alternator Failure 🔴 High → Shop Alternator — Very common on 2011-2014 models, especially those with the 3.6L V6 and 160-amp alternator. Failure can be sudden, causing stalling and significant electrical problems. (Ref: NHTSA Recall 14V-634)
• Electronic Shifter Problems (2nd Gen) 🟠 Medium — The electronic rotary dial shifter (2015+) and previous monostable electronic shifter can be confusing to operate and were subject to recalls for rollaway risk. Owners report issues with the module failing, preventing the car from being shifted out of Park. (Ref: Multiple recalls, including NHTSA 16V-240 for rollaway risk.)
• Suspension Component Wear 🟠 Medium — Front suspension components like tension struts, control arm bushings, and tie rod ends tend to wear out prematurely, often before 80,000 miles, leading to clunking noises over bumps and poor alignment.
• Infotainment System (Uconnect) Glitches 🟡 Low — Owners frequently report issues with the Uconnect touchscreen system, including freezing, unresponsiveness, Bluetooth connectivity problems, and random reboots. (Ref: Various software updates have been released to address these issues.)

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: A used PCM from a junkyard is a viable, cost-effective option ONLY IF the hardware part number on the donor PCM is an exact match to the original. Even a slight variation or a PCM from a different model year will likely fail to program. This is a high-risk, high-reward strategy for experienced DIYers or independent shops.

Donor-vehicle mileage cap: roughly under 150000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• Verify the part number on the sticker of the donor PCM matches your original PCM exactly.
• Inspect the connectors for any signs of corrosion, bent pins, or heat damage.
• If possible, get the VIN of the donor vehicle to check its history for major electrical issues or floods.
• Some wrecking yards offer a short warranty; opt for this if available.

OEM-only on this vehicle (don't cheap out):

• Powertrain Control Module (PCM) - While used OEM is an option, brand new aftermarket PCMs are generally not recommended due to high failure rates and programming difficulties. A remanufactured OEM unit from a reputable source (like Cardone) or a new Mopar unit are the most reliable choices.

Aftermarket brands forum-validated for this vehicle:

• Cardone (Remanufactured)
• Standard Motor Products (Remanufactured)

Brands owners have reported issues with on this vehicle:

• Unbranded or no-name PCMs from online marketplaces often arrive unprogrammed or are incompatible, despite claims to the contrary.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P0601 — Internal Control Module Memory Check Sum Error; often appears alongside P0602 when the PCM hardware is physically defective.
• P0562 — System Voltage Low; low voltage is a primary trigger for P0602 during PCM self-checks or re-flash procedures.
• U0001 — CAN C Bus communication code; related to the electrical architecture issues that can occur during failed PCM updates or alternator failures.
