P0602 on 2005-2018 Chrysler Pacifica: Control Module Programming Error Causes and Fixes

What's Unique About the 2005-2018 Chrysler Pacifica

For Chrysler vehicles, including the Pacifica, code P0602 is a straightforward but serious internal PCM fault. Unlike some brands where this code might point to other modules, on a Chrysler, it almost always refers directly to the PCM itself. It's important to note that installing an aftermarket performance tuner can sometimes intentionally set this code. Also, be aware that the 2005-2018 year range covers two completely different vehicles: the 2005-2008 crossover (CS) and the 2017-2018 minivan (RU). While the code's meaning is the same, the physical PCM, its location, and common related failures (e.g., engine cradle rust on the CS vs. dual-battery issues on the RU) will differ significantly. The 2011-2013 models are known for having a faulty Totally Integrated Power Module (TIPM) which can cause this code.

Generation note: The 2005-2018 year range covers two distinct generations of the Chrysler Pacifica: - First Generation (CS): 2005-2008 (Crossover SUV). Prone to structural rust on the engine cradle and subframe. A common source of electrical issues is a corroded ground wire behind the left front headlight on the chassis. - Second Generation (RU): 2017-2018 (Minivan). Features a more complex electrical system with a dual-battery setup for the Engine Stop-Start (ESS) system, which is a common source of voltage-related codes. These models can also suffer from CAN bus communication issues due to poor pin retention in the star connector under the glove box. 🎬 Watch: Troubleshooting Pacifica CAN bus communication issues The meaning of P0602 is the same for both, but diagnostic procedures and the location of the PCM and related wiring will be different. Always use a service manual specific to your vehicle's year.

Symptoms You May Notice

• Check Engine Light is on
• Vehicle may not start or has a no-crank condition
• Engine may stall or idle roughly
• Harsh or erratic automatic transmission shifting
• Reduced engine performance and poor acceleration (Limp Mode)
• Decreased fuel economy
• Immobilizer or security light may be illuminated

Most Likely Causes

1. PCM Software Corruption / Needs Re-flash 🔴 High Probability Voltage fluctuations from a weak battery, jump-starting, or an interrupted previous flash attempt can corrupt the PCM's software. Chrysler has issued TSBs for other models specifically to re-flash the PCM/TCM to resolve P0602.
   How to confirm: This is typically a diagnosis of exclusion. If the battery, grounds, and wiring are all confirmed to be good, a software issue is the most likely culprit. A professional scan tool is needed to check the software version and attempt a re-flash.
   Typical fix: Reprogramming (re-flashing) the PCM with the latest manufacturer software using a J2534 Pass-Thru device or the dealer's wiTECH tool. A stable power supply (13.2-13.5V) is critical during this process.
   Est. part cost: $0 (software only)
2. Weak or Failing Battery 🟡 Medium Probability → Shop Vehicle Battery Modern vehicles are highly sensitive to voltage. A battery that provides low or unstable voltage during startup can cause memory and programming errors. For 2017+ models, this is amplified by the dual-battery system; failure of either the main or smaller auxiliary battery can cause widespread electrical issues 🎬 See this step-by-step auxiliary battery replacement guide, including module errors.
   How to confirm: Use a digital multimeter to test battery voltage (~12.6V engine off). More importantly, use a professional battery load tester to check its health under load. Both main and auxiliary batteries (on 2017+ models) must be tested. Many auto parts stores test batteries for free.
   Typical fix: Replace the vehicle's battery (or the specific faulty battery in a dual-battery system).
   Est. part cost: $150-$400
3. Poor Ground Connections or Wiring Issues 🟡 Medium Probability Corrosion on ground straps or main power feeds to the PCM can create unstable voltage. On the 2005 Pacifica (CS), key ground points are under the fuse box (three screws) and on the engine manifold. A critical ground is located on the chassis behind the left headlight, which is known to corrode and cause widespread electrical failure.
   How to confirm: Visually inspect the main battery terminals, chassis grounds, and the PCM connector for corrosion, looseness, or damage. Perform a voltage drop test on the PCM's power and ground circuits to ensure there is no excessive resistance.
   Typical fix: Clean or replace corroded terminals, ground straps, or repair damaged sections of the wiring harness. On a 2005 Pacifica, this includes cleaning the three ground screws under the fuse box, the engine-to-manifold grounds, and the chassis ground behind the driver-side headlight.
   Est. part cost: $10-$100
4. Faulty Powertrain Control Module (PCM) ⚪ Low Probability → Shop Engine Control Module (ECM)
   How to confirm: This is the last resort after all other possibilities (software, power, grounds) have been exhaustively ruled out. A PCM is condemned only when it fails to communicate or cannot be reprogrammed by a valid scan tool, assuming the tool and power supply are good.
   Typical fix: Replace the PCM. The new unit must be programmed to the vehicle's specific VIN and immobilizer configuration.
   Est. part cost: $500-$1200

Rare But Worth Checking

• Aftermarket Performance Tuner: If you have installed an aftermarket performance chip or tuner, it may have altered the PCM's programming, causing this code. On many Dodge/Chrysler products, this is an expected and intentional side effect of the tuning process. Try returning the vehicle to the stock tune to see if the code clears.
• Incorrect PCM Installed: If the PCM was recently replaced with a used or improperly programmed unit, it will not have the correct VIN or configuration data, triggering a P0602 code.

Diagnosis Steps

1. Scan the vehicle for any other stored trouble codes. Address any voltage (P-codes), communication (U-codes), or other PCM internal fault codes (P0601, P0604, etc.) first.
2. Thoroughly inspect the battery system. For all models, perform a load test. For 2017+ models, test BOTH the main and auxiliary batteries. A simple voltage check is insufficient.
3. Inspect battery terminals and main chassis/engine ground straps for cleanliness and tightness. On a 2005 model, specifically check the grounds under the fuse box, on the manifold, and the main chassis ground behind the left headlight. Clean any corrosion with a wire brush.
4. Using a factory wiring diagram, locate the power and ground wires for the PCM. Perform a voltage drop test on these circuits to ensure the PCM is receiving stable voltage and has a solid ground.
5. Check all fuses related to the PCM and engine controls in the main fuse box (TIPM).
6. If a recently installed aftermarket tuner is present, remove it and return the PCM to its stock programming.
7. If all power and ground circuits are confirmed to be good, the next step is to attempt to re-flash the PCM with the latest software from Chrysler. This requires a professional scan tool (like wiTECH) and a stable battery voltage of 13.2-13.5V during the procedure.
8. If the PCM cannot be reprogrammed or if the code returns immediately after a successful re-flash, the PCM itself is likely faulty and needs to be replaced. The replacement must be programmed with the vehicle's VIN.

Parts You'll Likely Need

• Powertrain Control Module (PCM) Reprogramming — This is the most common solution when the cause is corrupted software. It updates the module's operating instructions without replacing hardware.
  OEM price range: $150-$300
  Aftermarket price range: N/A

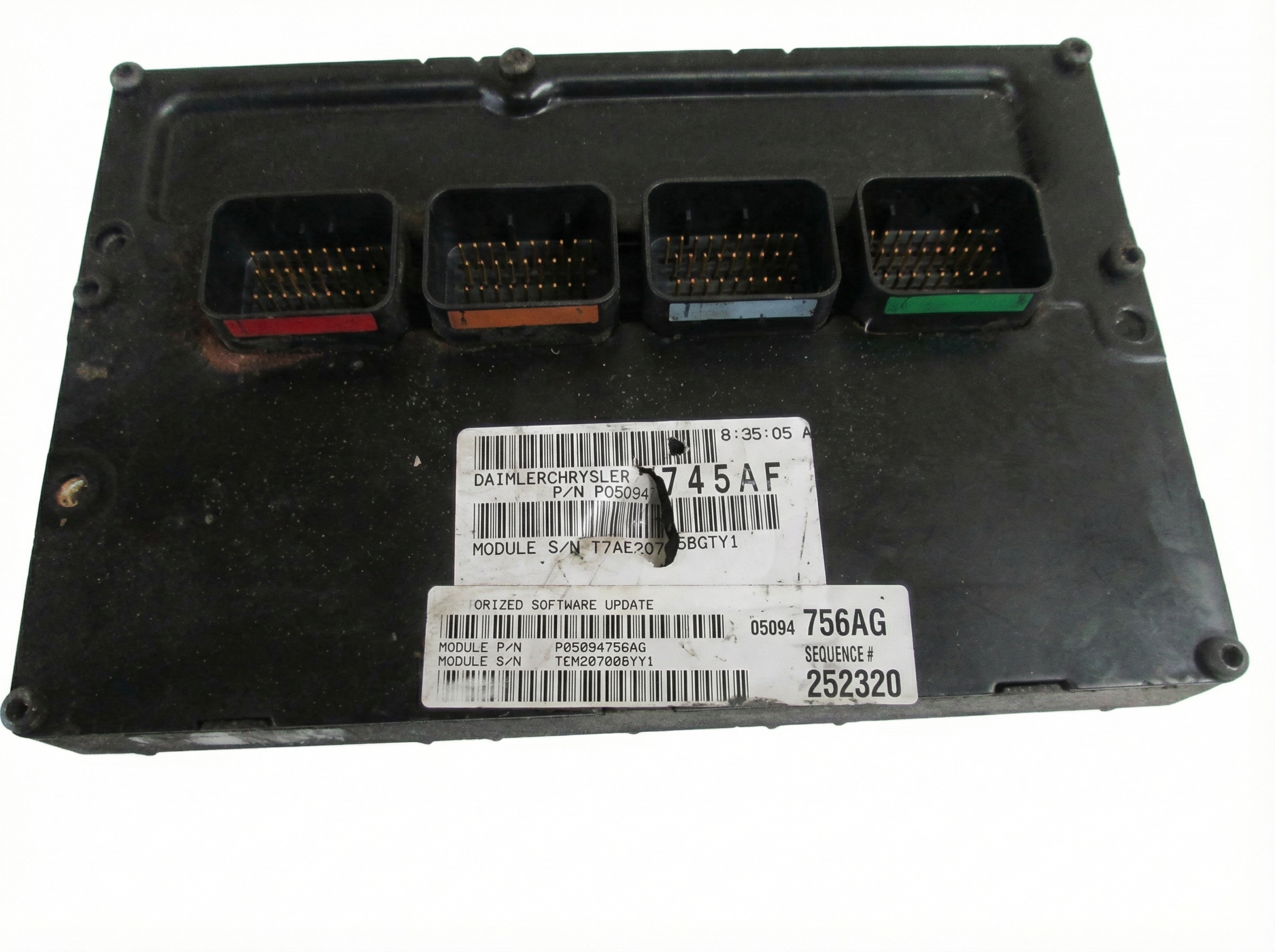

• Powertrain Control Module (PCM) (OEM #Varies by VIN (e.g., Mopar RL051359AC)) — If reprogramming fails or the module has an internal hardware failure, it must be replaced. Part numbers are highly specific to the year, model, and engine.
  Trusted brands: Mopar
  OEM price range: $700-$1200
  Aftermarket price range: $400-$800
• Battery (OEM #Varies by model year (e.g., 2017+ Main: H7/Group 94R, Aux: BTX4L-BS)) — A weak battery is a common cause of voltage-related module errors and should always be checked first.

Related Codes That Often Appear With This One

• P0601 — This code means 'Internal Control Module Memory Check Sum Error' and is also a critical internal PCM fault. Seeing them together strongly points to a failed PCM that needs replacement. P0601 indicates a hardware failure, while P0602 is often a software issue, but their combination is a bad sign.
• U-series codes (e.g., U0100) — U-codes indicate communication errors between modules. If the PCM is malfunctioning due to a P0602 error, it may not be able to communicate properly with other modules on the vehicle's CAN bus network.
• P0604 / P0605 — These codes also indicate internal PCM errors (RAM Error / ROM Error). Like P0601, their presence alongside P0602 reinforces the diagnosis of an internal PCM failure.

Technical Service Bulletins (TSBs) & Recalls

• Chrysler TSB 18-019-06 (June 7, 2006): While for the 2007 Dodge Caliber, this TSB is highly relevant as it explicitly addresses DTC P0602 (along with P167A or P161B) and instructs technicians to reprogram both the TCM and PCM with new software. This confirms Chrysler's official procedure for fixing software-induced P0602 codes via a re-flash.

Platform-Specific Known Issues

• 2017+ Pacifica (RU) Dual Battery System: The Engine Stop-Start (ESS) system uses a small, secondary auxiliary battery. When this battery fails, it can cause a host of electrical problems and trigger various module-related fault codes, including performance codes that may be related to P0602. Owners on forums like chryslerpacificaforum.com frequently discuss replacing the auxiliary battery to solve mysterious electrical issues and 'Service Stop/Start System' warnings.
• 2005-2008 Pacifica (CS) Grounding Points: A YouTube video by 'Michael... a DIY Guy' specifically points out common failure points for grounds on the 2005 Pacifica. He highlights the main ground from the fuse box, three ground screws under the fuse box, and grounds on the engine manifold as areas that corrode and cause electrical issues, which could lead to a P0602 code.

Mechanic-Grade Diagnostic Values

• Battery Voltage During PCM Flashing — expected: Maintain a steady 13.2 Volts to 13.5 Volts.. Failure: Dropping below 13.2V or climbing above 13.5V can interrupt or corrupt the flash process, potentially bricking the PCM.
• CAN Bus Signal (2017+ RU Pacifica) — expected: Using an oscilloscope on pins 6 (CAN High) and 14 (CAN Low) of the OBD-II port, you should see a clean, mirrored square wave pattern. CAN High should toggle between ~2.5V and ~3.5V, and CAN Low between ~2.5V and ~1.5V.. Failure: A flat line, distorted signal, or voltages that don't mirror each other indicate a communication breakdown. Wiggling the star connector harness under the glove box may reproduce the fault on the oscilloscope if pin retention is the issue.

Scan Tool Commands That Help

• wiTECH 2.0: PCM Replaced — This guided function is used after physically installing a new or used PCM. It initiates the process to write the VIN, configure the vehicle options, and learn the security key (SKIM).
• wiTECH 2.0: Restore Vehicle Configuration — This function is used to copy the vehicle's original configuration (mileage, options, etc.) from the old PCM or a cloud backup and write it to the new PCM. This is a critical step to ensure all features work correctly.
• wiTECH 2.0 / AlfaOBD: Write VIN — When installing a used or new blank PCM, the vehicle's VIN must be written to the module. If this is not done, the vehicle will not start and will set security and communication codes. This function is part of the 'PCM Replaced' procedure.
• wiTECH 2.0: Network Test (Bus Diagnostics) — If U-series communication codes are present with P0602, this function tests the communication status of all modules on the CAN bus to help isolate which module is offline or causing network interference.

Wiring & Ground Locations

• Main Chassis Ground (2005-2008 CS) — Behind the left (driver's side) front headlight, attached directly to the chassis frame.. This ground point is notorious for corrosion. A poor connection here can cause a wide range of bizarre electrical issues, including intermittent power to modules, which can lead to a P0602 code.
• Fuse Box Grounds (2005-2008 CS) — Three screws located under the main under-hood fuse box (TIPM) that provide a ground path.. These grounds are crucial for the proper operation of the TIPM, which supplies power to the PCM. Corrosion here can cause unstable voltage to the PCM.
• G300 / G301 (2005-2008 CS) — G300 is at the base of the left 'B' pillar, and G301 is at the base of the right 'B' pillar.. These are major interior body ground points. While less likely to directly cause a PCM programming error, a fault here can contribute to overall electrical instability and communication issues between modules.
• Star Connector / CAN Bus Junction (2017+ RU) — Located under the passenger side of the dashboard, near the glove box. It's a central hub where multiple CAN bus wire pairs connect.. Poor pin retention in the female connectors of this junction is a known issue. It causes intermittent CAN bus communication failures, which can corrupt data and potentially lead to a P0602 error or, more commonly, a host of U-codes.

Real Owner Repair Stories

• YouTube user comment (2005 Chrysler Pacifica) — Car stuck in park, power windows inoperative, gauges flickering, headlights and radio not working, wipers dead. The car would still run.
  ❌ Tried (didn't work) Initial diagnosis was confusing due to the sheer number of unrelated systems failing simultaneously.
  ✅ What actually fixed it The problem was a single corroded ground wire located behind the left front headlight on the chassis. The wire looked intact but fell apart when pulled. Cleaning the connection point and creating a new end for the ground wire resolved all electrical issues.
• YouTube diagnostic video (2017 Chrysler Pacifica) — Check engine light, instrument panel chiming, tachometer jumping erratically, electronic shifter going into neutral, loss of power steering. Multiple communication (U-series) codes stored.
  ❌ Tried (didn't work) A dealership had thrown multiple parts at the vehicle without success., Using a multimeter to check CAN bus voltages was ineffective as it only shows an average, hiding the real issue.
  ✅ What actually fixed it Using an oscilloscope, the technician found corrupt CAN bus signals. The fault was traced to poor pin retention in the female terminals of the 'star connector' (CAN bus junction) located under the glove box. Wiggling the harness reproduced the fault. Replacing the faulty female pin connectors (a very cheap part) provided a secure connection and permanently fixed the communication errors.

OEM Part Supersession History

• Varies (e.g., 05150301AE) → Varies (e.g., 68054123AC) — Software/hardware updates.
  Heads up: On many Chrysler PCMs, the primary part number on the main sticker is the 'Hardware Part Number'. However, if the module has received a software update, there will be a smaller sticker labeled 'Authorized Software Update' with a new 'Module P/N'. This software part number is the one that must be used for sourcing a replacement. Using the original hardware number may result in an incompatible module.

Model Year Variations Within This Range

• 2005-2008 (CS): These models are highly susceptible to electrical issues from corroded grounds, particularly the main chassis ground behind the driver's headlight and the grounds under the TIPM/fuse box.
• 2017-2018 (RU): These models feature a dual-battery system and a complex CAN bus network with a central 'star connector' under the dash. P0602 is often preceded or accompanied by communication codes (U-series) caused by poor pin retention in this connector.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• Engine Cradle / Subframe Rust and Corrosion (CS) 🔴 High — Very common on 2004-2008 models, especially in salt-belt regions. Can become structurally unsafe, potentially allowing the engine to shift or drop. (Ref: No official recall, but a widely documented problem leading to costly repairs.)
• Harsh Shifting or Transmission Failure (RU) 🔴 High → Shop Transmission Assembly — Frequently reported on 2017-2018 models with the 9-speed automatic transmission. Symptoms include jerking, lurching, stalling, and complete failure. (Ref: Multiple software updates have been issued, but some owners have required full transmission replacements.)
• Engine Ticking Noise / Rocker Arm Failure (CS) 🟠 Medium — A ticking noise from the engine, often caused by a broken rocker arm shaft retaining pin, is a known issue on the 3.5L/3.8L/4.0L engines, typically appearing after 100,000 miles.
• Unexpected Battery Drain / Electrical Gremlins (RU) 🟠 Medium → Shop Vehicle Battery — Common on 2017+ models, often related to the dual-battery system. Owners report dead batteries, non-functioning stop-start systems, and other random electrical faults. (Ref: TSB #9003799 links some electrical codes like P0607 to battery state-of-charge issues.)
• Uconnect Infotainment System Malfunctions (RU) 🟡 Low — Owners of 2017-2018 models report issues like the screen freezing, becoming unresponsive, or blacking out. (Ref: Software updates may address some issues, but hardware problems can occur.)
• Cruise Control May Not Disengage (RU) 🔴 High — A major recall was issued for 2017-2018 models where a short circuit could prevent the cruise control from being cancelled, creating a safety risk. (Ref: Recall #18V332000)

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: A used PCM from a junkyard is a viable, cost-effective option ONLY IF you can get the matching Sentry Key Immobilizer Module (SKIM) and the original ignition key from the exact same donor vehicle. Swapping all three components (PCM, SKIM, Key) can bypass the need for dealer programming. Otherwise, a used PCM is only useful if you have access to advanced tools like wiTECH 2.0 or AlfaOBD to write your vehicle's VIN and perform the security relearn procedure.

Donor-vehicle mileage cap: roughly under 150000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• Verify the part number on the PCM sticker EXACTLY matches yours. Pay attention to the 'Authorized Software Update' sticker, as that number supersedes the main hardware number.
• Ensure the donor vehicle is the same year, model, engine, and transmission type.
• Inspect the PCM connectors for any signs of corrosion, bent pins, or heat damage.
• If possible, get the VIN of the donor vehicle to cross-reference its original equipment.
• Ask the recycler if they can provide the matching SKIM module and key from the steering column.

OEM-only on this vehicle (don't cheap out):

• Powertrain Control Module (PCM) - While aftermarket/reman units exist, using a Mopar (OEM) PCM, or a professionally programmed unit from a reputable rebuilder (like FS1, Cardone) is highly recommended. A junkyard PCM without proper programming is a paperweight.

Aftermarket brands forum-validated for this vehicle:

• Cardone (for remanufactured PCMs, but ensure it's programmed for your VIN)
• FS1 Inc. / Flagship One (Offers pre-programmed PCMs)

Brands owners have reported issues with on this vehicle:

• Unbranded, 'as-is' used PCMs from eBay or unknown sellers without a clear programming service and warranty. The risk of incompatibility or an existing fault is too high.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P0601 — An internal PCM memory fault code that often appears alongside or should be addressed before P0602.
• P0604 — An internal PCM RAM error code; like P0602, it indicates a control module hardware or software malfunction.
• P167A — A Chrysler-specific code mentioned in TSB 18-019-06 that frequently accompanies P0602 and requires a PCM/TCM re-flash.
• P161B — A code related to the TCM/PCM software state that is explicitly linked to P0602 in Chrysler technical service bulletins.
• U-CODES — General communication codes that should be diagnosed first, as they may indicate the wiring or voltage issues causing the P0602 software error.

Frequently Asked Questions
