P0602 on 2009-2020 Dodge Journey: Control Module Programming Error Causes and Fixes

What's Unique About the 2009-2020 Dodge Journey

The Dodge Journey, spanning a single generation from 2009-2020, is susceptible to widespread electrical issues that can trigger a P0602 code. While the code itself is a generic software error, on the Journey it is frequently linked to underlying power supply problems. Voltage instability from a failing battery or a simple blown PCM fuse are common culprits that can mimic a catastrophic computer failure. Additionally, some model years were subject to recalls for poor ground connections and faulty ignition modules, highlighting the platform's sensitivity to electrical integrity. Problems with the Totally Integrated Power Module (TIPM), which acts as the fuse box and an electrical control center, are also known to cause similar symptoms across many Chrysler products of this era.

Symptoms You May Notice

• Check Engine Light is on
• Vehicle will not start (no-crank or cranks but won't fire)
• Engine stalling or rough idling
• Reduced engine performance or entering 'limp mode'
• Harsh or erratic automatic transmission shifting
• Poor fuel economy
• Multiple other warning lights on the dashboard due to communication errors

Most Likely Causes

1. Weak Battery or Failing Alternator 🔴 High Probability → Shop Alternator Modern vehicles are highly sensitive to voltage. The Dodge Journey is known for electrical problems, and low voltage during startup can corrupt the PCM's temporary memory, causing it to fail its self-check and log a P0602.
   How to confirm: Test the battery with a multimeter; it should read above 12.4 volts when the engine is off. With the engine running, the voltage should be between 13.7 and 14.7 volts, indicating a healthy alternator. A load test at an auto parts store is the most definitive test for the battery.
   Typical fix: Replace the weak battery or faulty alternator. Ensure battery terminals are clean and tight.
   Est. part cost: $150-$400
2. Blown PCM Fuse 🟡 Medium Probability There is a specific fuse for the PCM in the under-hood fuse box (TIPM) that can blow, cutting power and triggering this code. This is a well-documented failure point leading to a no-start condition.
   How to confirm: Locate the fuse box in the engine compartment. Check the fuse labeled for the PCM, which is fuse F150, a 25A fuse. 🎬 See: How to locate the PCM fuse and relay Visually inspect if the metal strip inside is broken or test for continuity with a multimeter.
   Typical fix: Replace the blown fuse. If it blows again, there is an underlying short circuit in the PCM power supply wiring that needs to be diagnosed.
   Est. part cost: $1-$5
3. PCM Software Corruption / Needs Update 🟡 Medium Probability Dodge has issued software updates (re-flashes) for the PCM on some Journeys to fix bugs related to performance and other DTCs. An interrupted previous update attempt or random data corruption can also cause a P0602.
   How to confirm: This must be confirmed by a dealership or a qualified shop using a J2534 Pass-Thru device (like wiTECH) to check the current software version against the latest available from Dodge.
   Typical fix: Reprogram (re-flash) the PCM with the latest manufacturer software. This is not a DIY repair and requires a stable power supply during the process.
   Est. part cost: $0 (parts), $150-$300 (labor)
4. Faulty Powertrain Control Module (PCM) ⚪ Low Probability → Shop Engine Control Module (ECM) While less common, the internal hardware of the PCM can fail, making it unable to store or process its programming correctly. This is often a diagnosis of exclusion after all other causes are ruled out.
   How to confirm: This is diagnosed by exclusion. If the battery, alternator, fuses, wiring, and grounds are all confirmed to be good, and a software re-flash fails, does not hold, or is not possible, the PCM itself is condemned.
   Typical fix: Replace the PCM. The new module must be programmed with the vehicle's VIN and specific configuration by a dealer or specialist.
   Est. part cost: $400-$900

Rare But Worth Checking

• Poor PCM Ground Connection: The Journey platform is noted for having weak factory grounding points. A corroded or loose ground wire, particularly the main ground stud on the driver's side strut tower or engine-to-chassis straps, can create high resistance and starve the module of stable power, leading to programming errors.
• Aftermarket Performance Tuner: If an aftermarket performance chip or tuner has been installed, it intentionally alters the PCM's programming. This can sometimes set a P0602 as a 'nuisance code' indicating the programming is not factory stock. Returning the vehicle to the stock tune will often clear the code.

Diagnosis Steps

1. Scan for all codes. Note any other codes, especially communication (U-codes) or other PCM internal faults (P060x). Document and clear them to see which ones return immediately.
2. Check the Battery and Charging System: This is the most critical first step. Verify battery voltage is above 12.4V (engine off) and that the alternator is charging correctly (13.7-14.7V engine on). A professional load test is recommended.
3. Inspect the PCM Fuse: Open the under-hood fuse box (TIPM) 🎬 Watch: Where to find the fuse box and locate fuse F150 (25A). This fuse directly powers the PCM. Remove and inspect it. Replace if blown. If it blows repeatedly, a short circuit exists in the power feed to the PCM.
4. Inspect PCM Wiring and Grounds: Visually inspect the wiring harness going to the PCM for any signs of damage, chafing, or corrosion. Check the main body and engine ground straps to ensure they are clean, tight, and free of corrosion. Pay special attention to grounds on the strut towers.
5. Attempt PCM Reprogramming: If all power and ground inputs are good, the next step is to have a professional attempt to re-flash the PCM with the latest software from Dodge using a tool like wiTECH. A stable battery charger must be connected during this process.
6. Diagnose PCM Failure: If the re-flash is unsuccessful, if the code returns immediately, or if a code like P0601 is present, the PCM is likely faulty and requires replacement. The new PCM will also need to be programmed to the vehicle.

Parts You'll Likely Need

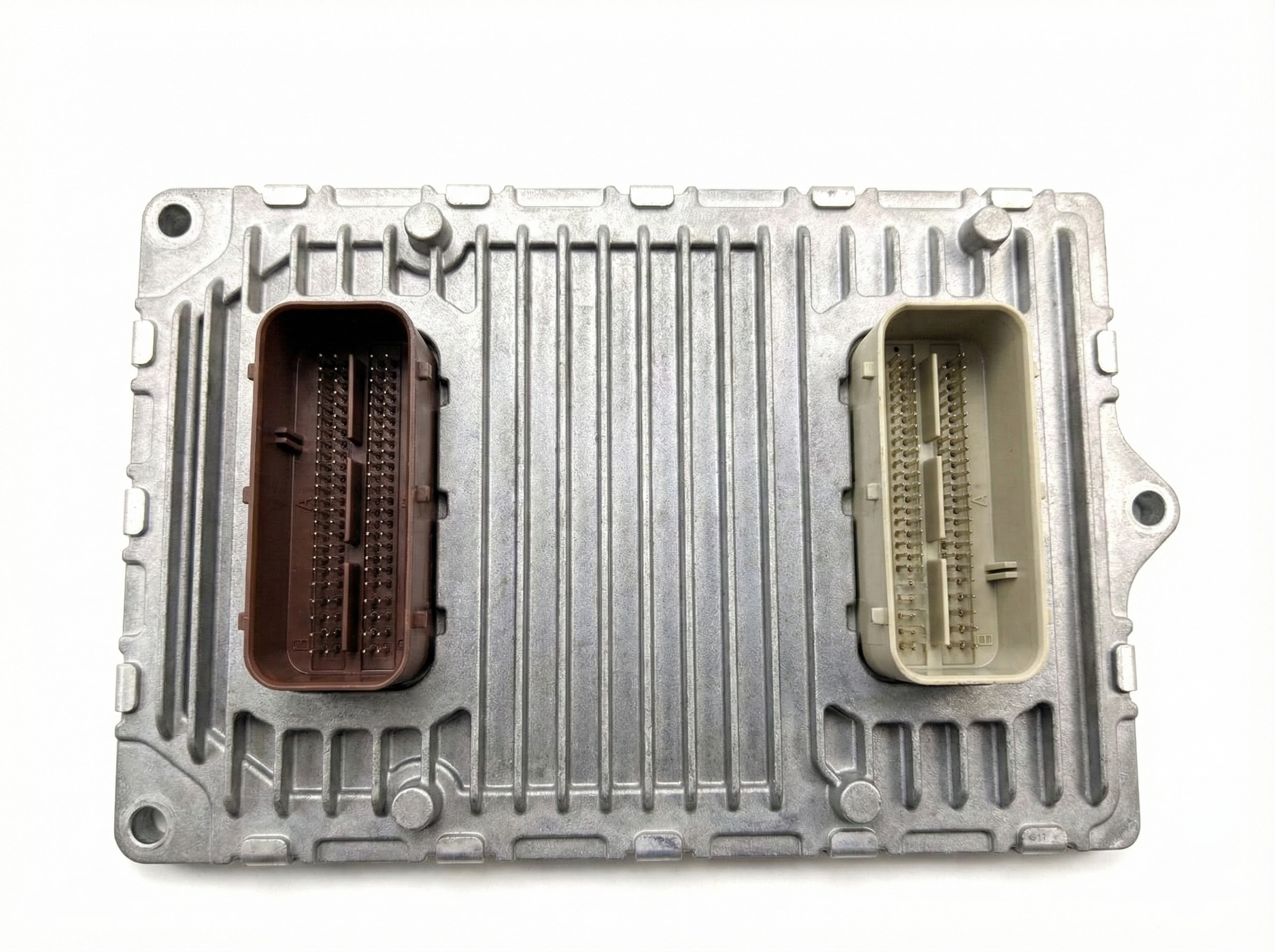

• Powertrain Control Module (PCM) — This is the required fix if the module has failed internally and cannot be fixed by a software re-flash.
  Trusted brands: Mopar, Cardone (remanufactured), Standard Motor Products
  OEM price range: $600-$900
  Aftermarket price range: $350-$600
• Automotive Battery — A weak or failing battery is a primary cause of voltage instability that can corrupt PCM memory and trigger a P0602 code.
  Trusted brands: Mopar, Interstate, DieHard, Duralast
  OEM price range: $200-$300
  Aftermarket price range: $150-$250
• Mini Fuse (25 Amp) — The dedicated PCM fuse (F150) can blow, causing a loss of power to the module and setting this code.
  Trusted brands: Bussmann, Littlefuse
  OEM price range: $1-$5
  Aftermarket price range: $1-$5

Related Codes That Often Appear With This One

• U0100 — This code means 'Lost Communication With ECM/PCM'. It often appears with P0602 because if the PCM has an internal error, it may not be able to communicate properly on the vehicle's data network (CAN bus).
• P0601 — 'Internal Control Module Memory Check Sum Error'. This is a more severe code indicating a fatal hardware memory error inside the PCM. While P0602 can sometimes be fixed with a re-flash, P0601 almost always requires PCM replacement.
• P0604 — 'Internal Control Module Random Access Memory (RAM) Error'. This is another internal PCM fault code. A TSB was released for some Dodge vehicles to fix this with a software update, indicating it can be related to software bugs.

Technical Service Bulletins (TSBs) & Recalls

• V51 - Reprogram Powertrain Control Module (Customer Satisfaction Notification)
• R61 - Antilock Brake System Control Module (Safety Recall)

Platform-Specific Known Issues

• Customer Satisfaction Notification V51: Some 2011-2015 models were eligible for a PCM software update to address other issues, which indicates that re-flashing the PCM is a standard procedure for this platform.
• Safety Recall R61: Affecting 2012-2015 models, this recall was for a poor ground design on the shock tower that could cause water to enter the wiring

Mechanic-Grade Diagnostic Values

• Battery Voltage (Engine Off) — expected: >12.4 Volts. Failure: A reading below 12.4V indicates a discharged or failing battery, a primary cause of electrical module errors.
• Alternator Charging Voltage (Engine On) — expected: 13.7V - 14.7V. Failure: Voltage below 13.7V or above 14.7V indicates a faulty alternator or voltage regulator, which can cause PCM data corruption.

Scan Tool Commands That Help

• wiTECH 2.0: Restore Vehicle Configuration — This routine is essential after installing a new or used PCM. It downloads the vehicle's original configuration from FCA's servers to ensure all options and security features (like SKIM) are correctly programmed into the replacement module.
• wiTECH 2.0: PCM Replaced — This is the specific service function that must be executed when a PCM has been physically swapped. It initiates the necessary learning and synchronization procedures between the new PCM and other modules in the vehicle.
• wiTECH 2.0 / J2534 Device: ECU Flash / Reprogramming — Used to update the existing PCM's software to the latest version from the manufacturer. This can fix software bugs that may be causing the P0602 code and should be attempted before condemning the PCM.

Wiring & Ground Locations

• PCM Power Relay (K144) — Located in the under-hood fuse box (Totally Integrated Power Module - TIPM). It is often labeled as relay #144.. This relay supplies the main power to the PCM. A faulty or intermittent relay can cut power to the module, causing it to lose its memory or fail its self-test, which can trigger a P0602 code or a no-start condition.
• Engine Block to Chassis Ground — A key ground strap connects the engine block to the chassis. One common failure point is a ground bolt on the side of the engine block, near the front.. A corroded or loose engine ground can create unstable voltage for the entire powertrain system. The PCM relies on a stable ground reference; without it, it can experience internal logic errors and set programming-related codes like P0602.
• Strut Tower Grounds — Located on the top of both the driver's and passenger's side strut towers in the engine bay.. These are major grounding points for many vehicle systems. Corrosion here is common and can cause a wide range of seemingly unrelated electrical issues, including intermittent power to the PCM that can lead to a P0602 code.
• PCM Connectors — The PCM is located in the engine compartment, and its large multi-pin connectors are a critical interface.. Corrosion, moisture intrusion, or bent pins in these main connectors can disrupt power, ground, or data signals to the PCM, directly causing internal faults and communication errors.

Real Owner Repair Stories

• Dodge Journey Forum user 'DirtyJourney' (2009 Dodge Journey) — Check engine light, low oil pressure light, and O2 heater circuit codes. The vehicle was not explicitly reported as a no-start, but had multiple PCM-related faults.
  ❌ Tried (didn't work) Checking wiring harnesses and ground connections.
  ✅ What actually fixed it The owner sourced a used PCM from another Dodge Journey. A dealership technician was able to successfully program the used PCM to the vehicle in about two hours, resolving the issues. The user noted that some dealers might refuse to program a used part.

OEM Part Supersession History

• Multiple, e.g., 05150656 series → Multiple, e.g., 68092683, 68092684 series for 2012 3.6L models. — Hardware revisions and software updates to address bugs and improve reliability.
  Heads up: PCMs are specific to engine size (2.4L, 3.5L, 3.6L) and model year ranges. A PCM from a 2.4L will not work in a 3.6L. While some hardware may be shared across different Chrysler/Dodge models, the programming is vehicle-specific. Using a part from a different model (e.g., a Chrysler 300 PCM in a Journey) is not recommended and may fail programming.
• RL150656AA (Remanufactured part) → Newer OEM part numbers — Mopar often provides remanufactured parts which are later replaced by newer production runs.
  Heads up: When ordering a replacement, always provide the VIN to ensure the correct hardware and base software is supplied.

Model Year Variations Within This Range

• 2009-2010: Early models offered a 3.5L V6 engine alongside the 2.4L I4. The PCMs for these engines are distinct from the later 3.6L Pentastar V6 introduced in 2011. Part numbers and software are not interchangeable.
• 2011-2020: The 3.6L Pentastar V6 became the primary V6 option. The PCM for these models (GPEC2) is different from the earlier 3.5L units. Additionally, features like the 8.4-inch Uconnect system (on Crossroad, GT trims) introduced after the 2011 facelift mean that PCM programming is more complex and tied to more vehicle options.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• Premature Brake Wear 🔴 High — Extremely common on 2009-2012 models, with owners reporting replacement needed as early as 12,000 miles. Less frequent on later models after a caliper redesign. (Ref: TSBs were issued extending the warranty for brakes on 2009-2010 models to 3yr/36k miles. A recall (U86) was issued for some 2018 models for a different brake caliper piston issue.)
• 3.6L Pentastar Oil Filter Housing/Cooler Leak 🔴 High — Very common on all 3.6L V6 models, typically occurring after 80,000 miles. The original plastic housing cracks/warps from heat cycles.
• Faulty Throttle Body (2.4L Engine) 🟠 Medium — A known failure point on the 2.4L 'World Engine', causing stalling, limp mode, and codes like P2110, P2111, and P2112.
• Uconnect 8.4" Screen Delamination & Ghost Touch 🟠 Medium — Widespread on models equipped with the 8.4-inch screen (typically 2017+), where heat causes the screen layers to separate, leading to bubbling and phantom touch inputs. (Ref: A TSB exists instructing dealers to replace the entire radio unit if this occurs under warranty.)
• General Electrical Problems (TIPM) 🔴 High — Common across all years, especially earlier models (2009-2012). Symptoms include dead batteries, faulty power accessories, and no-start conditions often traced back to the Totally Integrated Power Module (TIPM). (Ref: Multiple recalls for specific electrical components like the ignition node (R03) were issued.)

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: A used PCM from a junkyard can be a cost-effective option, but ONLY if you have confirmed access to a professional shop or dealership with the proper tools (like wiTECH) and willingness to program a customer-supplied used module. A forum user confirmed a dealer successfully programmed a used PCM.

Donor-vehicle mileage cap: roughly under 150000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• Match the part number exactly if possible, or at a minimum, ensure the donor vehicle has the same year, engine, and transmission.
• Inspect the connectors for any signs of corrosion, bent pins, or physical damage to the casing.
• Purchase from a reputable salvage yard that offers a short-term warranty or guarantee against the part being dead-on-arrival.

OEM-only on this vehicle (don't cheap out):

• Powertrain Control Module (PCM) - While used OEM is an option, brand-new OEM Mopar parts are the most reliable choice to avoid compatibility and programming headaches. Remanufactured units can be a gamble.

Aftermarket brands forum-validated for this vehicle:

• Cardone (A1 Cardone) is a widely available remanufactured option, though owner experiences can be mixed. Success often depends on the quality of the specific rebuild.
• Standard Motor Products is another established aftermarket brand for electronic components.

Brands owners have reported issues with on this vehicle:

• Some online retailers like 'Car Computer Exchange' have received negative reviews in forums for sending faulty units or having poor customer service, though this can be subjective and change over time. It is generally advised to be cautious of sellers with no track record or overwhelmingly negative reviews.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P0601 — An internal PCM memory checksum error often diagnosed alongside P0602 when the module hardware is failing.
• P060X — A series of PCM internal fault codes that may appear with P0602 during a self-check failure.
• U-CODES — Network communication codes that frequently trigger alongside P0602 due to TIPM issues or poor grounding on the strut towers.

Frequently Asked Questions
