P0602 on 2007-2014 Ford Edge: Control Module Programming Error Causes and Fixes

What's Unique About the 2007-2014 Ford Edge

For the first-generation Ford Edge (2007-2014), the P0602 code is often a serious issue pointing directly to the PCM itself. A common and well-documented failure pattern on the 3.5L V6 engine involves a failing ignition coil sending a voltage spike back to the PCM, damaging the internal driver circuit for that cylinder 🎬 Watch how a failing spark plug destroys the Ford Edge PCM and corrupting its memory, which can trigger this code. Therefore, when this code appears, it's crucial to inspect the ignition coils as a potential root cause, not just a symptom. Forum discussions confirm this is a known design flaw.

Symptoms You May Notice

• Check Engine Light is on
• Vehicle will not start or has a crank-no-start condition
• Engine stalls intermittently or while driving
• Rough or erratic idling
• Harsh or erratic automatic transmission shifting
• Reduced engine performance and poor acceleration
• Decrease in fuel economy
• Multiple other seemingly unrelated trouble codes may be present, especially communication (U-prefix) codes and ignition coil codes (P035x)

Most Likely Causes

1. Defective Powertrain Control Module (PCM) 🔴 High Probability → Shop Engine Control Module (ECM) A known issue on this platform is ignition coil failure damaging the PCM's internal circuits, leading to memory corruption. Forum users report this failure pattern, where a bad coil "kills the driver for that cylinder" inside the PCM. Age and heat cycles can also cause internal memory cells to fail.
   How to confirm: After confirming stable power and ground connections to the PCM, a technician will use a diagnostic scan tool to attempt communication. If the PCM is unresponsive, fails a memory integrity test, or if P035x codes are present that cannot be resolved by replacing the coil, the PCM is condemned.

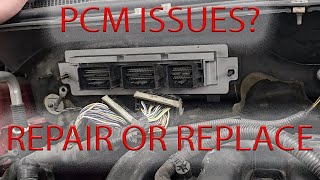

   Typical fix: The PCM must be replaced with a new or remanufactured unit 🎬 See how to remove and repair a Ford Edge PCM, which then needs to be programmed to the vehicle's specific VIN and configuration using Ford-specific tools. It is critical to replace all ignition coils and spark plugs at the same time to prevent repeat failure.
   Est. part cost: $400-$900
2. Corrupted or Missing PCM Software 🟡 Medium Probability This can occur if a previous software update (reflash) was interrupted, for example, by a weak battery or a disconnected tool. It also happens if a used PCM was installed without being properly programmed for the new vehicle, or if an aftermarket tuner was improperly used.
   How to confirm: A professional scan tool can check the software and calibration information on the PCM. If the VIN is missing or the software version is incorrect, it needs programming. A user on Reddit reported triggering P0602 after using FORScan to change vehicle settings, which was resolved by restoring the factory 'As Built' data.
   Typical fix: A technician will use a Ford-specific tool (like IDS) or a J2534 pass-thru device to reflash the PCM with the correct factory software and vehicle configuration data.
   Est. part cost: $0 (if software is the only issue, cost is labor, typically $150-$400)
3. Unstable Battery Voltage or Poor Grounds ⚪ Low Probability → Shop Vehicle Battery Low battery voltage during startup or a programming event can cause a write error, corrupting the PCM's memory. Corroded or loose ground straps for the PCM can also cause erratic behavior, mimicking a failed module.
   How to confirm: Test the battery voltage (should be >12.4V). Load test the battery. Inspect and voltage-drop test the main PCM power and ground circuits. Check alternator output to ensure it's stable and not over-charging.
   Typical fix: Replace a weak battery. Clean or tighten all PCM-related ground connections and power feeds from the fuse box.
   Est. part cost: $150-$250 for a new battery

Rare But Worth Checking

• Failed Ignition Coil(s): → Shop Ignition Coil While the coil itself doesn't directly cause P0602, its failure is a known root cause of PCM damage on this platform. A shorted coil can send a voltage spike that fries the PCM's internal driver circuit, leading to the programming error. It is critical to replace all ignition coils and spark plugs when replacing a PCM that failed due to this issue to prevent immediate damage to the new unit.

Diagnosis Steps

1. Scan for all DTCs. Note any other codes, especially communication (U-codes) or ignition coil codes (P035x).
2. Check Battery Health: Test the battery voltage and perform a load test. Ensure it is above 12.4 volts and stable. Check for corroded terminals.
3. Inspect PCM Power and Grounds: Visually inspect the PCM connectors for corrosion or damage. Using a multimeter, verify that the PCM has proper battery voltage and solid ground connections at its harness connector.
4. Attempt Communication: Use a professional scan tool to try to communicate with the PCM. Check the ECU Information screen to see if a VIN is present. A missing VIN indicates a programming issue.
5. Attempt Reprogramming: If communication is possible but the software is suspect, attempt to reflash the PCM with the latest Ford calibration. This requires a specialized tool (Ford IDS or J2534) and a subscription to the Ford service portal.
6. Check for Ignition Coil Faults: If P035x codes are present, diagnose the corresponding ignition coils. A failed coil is a likely cause of the PCM damage. The recommended procedure is to replace all coils and plugs if the PCM is being replaced.
7. Replace PCM: If the PCM will not communicate, if reprogramming fails, or if it has physical damage from a failed coil driver, it must be replaced. The new PCM must be programmed to the vehicle.

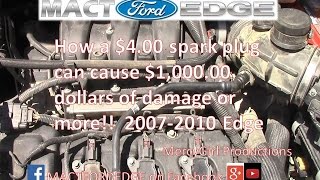

🎬 Watch this step-by-step PCM replacement and programming walkthrough

Parts You'll Likely Need

• Powertrain Control Module (PCM) (OEM #BT4A-12A650-ARB (2011 3.5L example), DT4Z-12A650-BMA (2013 3.5L example). Part numbers are highly specific to year, engine, and calibration. Always verify with VIN.) — This is the part that stores the programming and is the source of the error. It often fails internally on this vehicle, requiring replacement.
  Trusted brands: Motorcraft, Cardone (Remanufactured), FS1 Inc (Remanufactured)
  OEM price range: $600-$900
  Aftermarket price range: $300-$600
• Ignition Coil Set — Because failing ignition coils are a primary cause of PCM failure on the Edge, it is highly recommended to replace all six coils and spark plugs whenever replacing the PCM to prevent a repeat failure.
  Trusted brands: Motorcraft, Denso, NGK
  OEM price range: $250-$400 (set of 6)
  Aftermarket price range: $150-$250 (set of 6)

Related Codes That Often Appear With This One

• P1639 — Stands for 'Vehicle ID Block Corrupted or Not Programmed'. This code often appears with P0602, specifically after a PCM has been replaced but not correctly programmed with the vehicle's VIN and other data.
• U0100 — Means 'Lost Communication With ECM/PCM'. If the PCM has an internal software crash due to P0602, other modules on the vehicle can no longer communicate with it, logging this code.
• P0351-P0356 — These codes indicate a fault in the ignition coil primary/secondary circuit for cylinders 1 through 6. On a Ford Edge, these codes are a strong warning sign that a failing coil is damaging the PCM, which can ultimately lead to a P0602 error. A forum thread explicitly details this progression.

Platform-Specific Known Issues

• source — A user on FordEdgeForum.com reported a cylinder #1 coil failure. After replacing the coil did not fix the issue, they discovered that the PCM has no protection from a bad coil, which 'kills the driver for that cylinder'. The dealer quoted nearly $2500 for a new PCM, coils, and keys. Another user in the same thread reported a $2,958 bill for the same repair, noting their mechanic said it could be a fire risk.

Mechanic-Grade Diagnostic Values

• PCM Power Supply Pins Voltage (Key On, Engine Off) — expected: Battery Voltage (approx. 12.6V). Failure: Voltage significantly below battery voltage indicates a wiring or fuse box issue.
• PCM Ground Pins Voltage Drop (Key On, Engine Running) — expected: < 0.1V (100mV). Failure: Voltage higher than 0.1V indicates a poor ground connection, which can cause erratic PCM behavior.
• Ignition Coil Driver Signal (at PCM connector) — expected: A square wave pattern visible on an oscilloscope when the engine is cranking or running.. Failure: A flat line or no signal when back-probing the specific cylinder's coil control wire indicates a failed driver inside the PCM.

Scan Tool Commands That Help

• Ford IDS / FORScan: Parameter Reset — This is a mandatory step when installing a used or new PCM. It tells the vehicle's security module (PATS) to accept the replacement PCM, allowing the keys to be programmed and the engine to start.
• Ford IDS: Programmable Module Installation (PMI) — This is the preferred method when the original PCM can still communicate. It copies the configuration data, VIN, and other parameters from the old module to the new one, simplifying the setup process.
• Ford IDS / FORScan: Ignition Key Erase / Ignition Key Programming — After a Parameter Reset, all existing keys are wiped from the system's memory. This function must be used to program at least two keys to the new PCM/PATS pairing for the vehicle to start.
• Ford IDS: Module Reprogramming — Used to update the existing PCM's software to the latest calibration from Ford. This can fix software glitches that may cause a P0602 code, and is often attempted before condemning the PCM.

Wiring & Ground Locations

• C175B — The main, large electrical connector on the Powertrain Control Module (PCM) itself, located in the engine bay near the firewall.. This is the central connection point for all PCM inputs and outputs. Testing for power, ground, and coil driver signals is done here. For a 2007 model, pins 47, 48, 49, and 50 are all grounds.
• G100 / G102 / G103 — Located on the left (driver's) side of the engine compartment, typically bolted to the frame rail or inner fender structure.. These are primary engine bay ground points. Corrosion or looseness here can cause unstable voltage to the PCM and other engine components, potentially mimicking a PCM failure or causing programming errors.
• G101 — Located on the right rear of the engine block.. This is a critical engine-to-chassis ground. A poor connection here can cause a variety of electrical issues, including problems with the PCM.

Real Owner Repair Stories

• YouTube video by 'FordTechMakuloco' (paraphrased) (2012 Ford Edge 3.5L) — Obvious engine misfire with code P0352 (Ignition Coil B Circuit Fault).
  ❌ Tried (didn't work) The vehicle came from another shop that had already replaced all six ignition coils without success.
  ✅ What actually fixed it The technician used an oscilloscope to confirm there was no driver signal coming from the PCM for cylinder #2. The PCM was sent to a remanufacturing company to have the single failed transistor for that cylinder's driver replaced. This repaired the PCM and resolved the misfire. The tech stressed the importance of replacing the faulty coil to prevent it from damaging the repaired computer.
• YouTube video by 'Dumpster Broz' (2008 Ford Edge) — Engine misfire with multiple codes including P0351, P0352, P0353, P0354, P0300, and P0301.
  ❌ Tried (didn't work) Initial diagnosis pointed directly to the common PCM failure pattern.
  ✅ What actually fixed it The owner diagnosed a bad PCM driver based on a TSB. The final repair involved replacing all six ignition coils and spark plugs, and sending the original PCM out for repair. This avoided the need for key reprogramming or a tow to the dealer. The total cost for the owner was around $725-$936.

OEM Part Supersession History

• BT4A-12A650-ARB → N/A — No direct supersession history found in public sources. However, the Ford parts catalog is complex, and part numbers are extremely specific to the vehicle's VIN, year, engine, and emissions calibration.
  Heads up: Using a PCM from another vehicle, even if the part number is identical, will not work without being programmed to the new vehicle's VIN and PATS security system. Some remanufacturers list multiple part numbers as interchangeable, but programming remains mandatory.

Model Year Variations Within This Range

• 2007-2010 vs 2011-2014: The 2011 model year received a major facelift which included significant changes to wiring harnesses and module communication. Wiring diagrams and ground locations are different between pre-facelift (e.g., 2008) and post-facelift (e.g., 2011) models. Always use a diagram specific to the exact model year.
• e.g., 2010: Within a single model year, Ford sometimes used different components for 'early production' vs 'late production' vehicles. For example, a 2010 Edge wiring diagram lists different ground points (G104 for early, G103 for late) in the same general location.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• AWD Power Transfer Unit (PTU) Failure 🔴 High — Common, can fail as early as 40,000-50,000 miles. Often caused by fluid overheating and breakdown, as Ford claimed it was a 'lifetime fluid' with no drain plug. (Ref: No recall, but a widely known issue. Repair costs are high, often around $1600-$2300.)
• Faulty Brake Booster 🔴 High — Affects 2007-2015 models. A tear in the diaphragm can cause a hard pedal or hissing noise. Ford issued Customer Satisfaction Program 13N02, extending the warranty to 10 years/150,000 miles for this part. (Ref: Customer Satisfaction Program 13N02)
• Water Leak at A-Pillar 🟠 Medium — Some models experience water leaking into the cabin through a poorly sealed sheet metal joint at the A-pillar, leading to wet carpets and potential mold. (Ref: Customer Satisfaction Program 15B21 for 2015 models, but the issue is reported on earlier years as well.)
• Door Ajar Sensor Failure 🟡 Low — Very common issue where the sensor in the door latch fails, causing the 'door ajar' light to stay on, draining the battery, and preventing doors from locking automatically.

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: A used PCM from a junkyard (e.g., via car-parts.com) can be a cost-effective option ONLY if you or your mechanic have access to a professional scan tool like Ford IDS or an advanced version of FORScan. The used PCM is useless without performing a 'Parameter Reset' to marry it to your vehicle's anti-theft system.

Donor-vehicle mileage cap: roughly under 120000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• Verify the part number on the donor PCM matches your original EXACTLY.
• Inspect the donor vehicle for signs of flood damage or major electrical fires.
• If possible, get the VIN of the donor car to cross-reference its original configuration.
• Ask about the reason the vehicle was salvaged; avoid donors from front-end collisions that could have damaged the PCM or wiring.

OEM-only on this vehicle (don't cheap out):

• Ignition Coils: Due to the sensitivity of the PCM, using OEM Motorcraft ignition coils (e.g., DG520) is strongly recommended by specialists to prevent repeat PCM failure. Aftermarket coils have a reputation for short lifespans that can damage the new or repaired PCM.

Aftermarket brands forum-validated for this vehicle:

• Circuit Board Medics (Repair Service): Praised for repairing the original unit, which avoids the need for key reprogramming.
• FS1 Inc. / Flagship One (Remanufactured): Generally positive reviews, noted for having stock of rare part numbers, but shipping can be slow.
• UpFix (Repair Service): Offers a repair-and-return service that makes the unit plug-and-play upon return, with no additional programming needed.

Brands owners have reported issues with on this vehicle:

• Cardone (Remanufactured): Forum and Reddit discussions show very mixed results. Some mechanics report success, while others have experienced receiving multiple defective-on-arrival units, causing significant diagnostic headaches.

Real Owner Stories
