P0602 on 2012-2018 Ford Focus: Control Module Programming Error Causes and Fixes

What's Unique About the 2012-2018 Ford Focus

The 2012-2018 Ford Focus is highly susceptible to electrical issues due to notoriously poor factory ground connections, especially on models with the DPS6 automatic transmission. The chassis paint was often not removed before ground straps were attached, leading to weak or intermittent connections. The most critical ground points are located under the airbox and battery tray on the driver's side frame rail and on the transmission case itself. This unstable voltage and poor grounding is a primary trigger for PCM software corruption, making the P0602 code a common consequence of a simple grounding problem rather than an actual PCM failure. This platform's issues are so well-known that checking grounds is the first, most critical step.

Symptoms You May Notice

• Check Engine Light is on
• Vehicle will not start (cranks but no fire, or no crank at all)
• Engine stalling intermittently or while driving
• Reduced engine power or 'limp mode'
• Erratic or harsh shifting (on automatic transmission models)
• Multiple other warning lights may appear, such as for the transmission, ABS, or a 'Transmission Fault' message on the dash
• Loss of communication with the OBD-II port scanner

Most Likely Causes

1. Poor or Corroded Ground Connections 🔴 High Probability This is a well-documented issue on the Mk3 Focus. The factory often failed to clear paint from under the main ground points beneath the battery and airbox, leading to poor conductivity over time. This causes voltage fluctuations that can corrupt module memory.
   How to confirm: Visually inspect the main ground straps from the battery negative terminal and on the transmission case. Look for paint, rust, or corrosion. A voltage drop test across the ground circuit from the battery negative post to the engine block will confirm a bad connection (should be < 0.2V).
   Typical fix: Remove the airbox and battery to access the ground points. Unbolt the ground straps, use a wire brush or Dremel to grind the paint/corrosion off the chassis and the strap terminal to expose bare metal, then re-secure the connection tightly. 🎬 Watch: Step-by-step Ford Focus ground cleaning procedure Applying dielectric grease can prevent future corrosion.
   Est. part cost: $0 - $20
2. Failing Battery or Alternator 🟡 Medium Probability → Shop Alternator Modern control modules are highly sensitive to voltage. An old battery or a failing alternator can provide unstable voltage, especially during engine cranking, which can corrupt the PCM's memory during startup or shutdown.
   How to confirm: Test the battery with a digital battery tester. Check the alternator output with a multimeter; it should be between 13.5V and 14.8V when the engine is running. Many auto parts stores will test these for free. One owner noted that after cleaning grounds, his voltage reading normalized from a low 13.4-13.8V to a healthy 14.2-14.4V.
   Typical fix: Replace the weak battery or faulty alternator.
   Est. part cost: $150 - $600
3. Corrupted PCM Software 🟡 Medium Probability
   How to confirm: This can only be confirmed by a professional technician using a Ford-specific diagnostic tool (like IDS). They will attempt to communicate with the PCM and check its software calibration version.
   Typical fix: A technician will attempt to 're-flash' the PCM, which means reloading the factory software. This often resolves corruption issues if the hardware is still good. This is often required after a major repair or even a battery replacement.
   Est. part cost: $0 (labor only)
4. Failed Powertrain Control Module (PCM) ⚪ Low Probability → Shop Engine Control Module (ECM)
   How to confirm: This is the diagnosis after all other possibilities (grounds, power supply, software) have been eliminated. If the PCM will not communicate or a re-flash fails, the module itself is condemned.
   Typical fix: Replace the PCM. The new module must be professionally programmed to the car's VIN and security information (PATS - Passive Anti-Theft System).
   Est. part cost: $400 - $1000

Rare But Worth Checking

• Failed Transmission Control Module (TCM): → Shop Transmission Assembly The 2012-2018 Focus has a known issue with TCM failures (see Ford's Customer Satisfaction Program 14M02). A failing TCM can disrupt the entire vehicle network (CAN bus), potentially causing other modules like the PCM to store communication or error codes like P0602 as a secondary fault.
• Damaged Engine Wiring Harness: On pre-facelift models (2012-2014), a wiring loom fault was identified that could cause fluctuating revs or stalling. While a recall was issued in the US, damage to the harness or its connections to the PCM could cause communication errors and trigger a P0602 code.

Diagnosis Steps

1. Read all codes from all modules using a capable OBD-II scanner. Note any other codes, especially U-codes (communication).
2. Check the battery. Ensure it is fully charged and passes a load test. A weak battery is a common cause of random electronic issues.
3. CRITICAL STEP FOR THIS VEHICLE: Disconnect the battery. Remove the air filter housing and battery tray to gain access to the main chassis ground points on the driver's side frame rail and transmission case.
4. Unbolt the ground straps. There are typically two or three in this area. Thoroughly clean the contact surfaces of the wire terminals and the chassis/transmission mounting points down to bare, shiny metal.
5. Re-secure the ground connections tightly. Apply dielectric grease to the connections to prevent future corrosion.

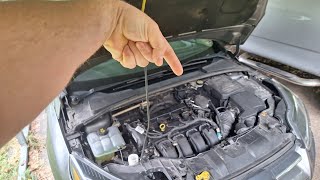

🎬 Watch: How to perform the Focus ground modification
6. Reconnect the battery, clear all codes, and attempt to start the vehicle. Drive the vehicle to see if the code returns. If the problem is solved, you are done.
7. If the code returns, perform a voltage drop test on the main power and ground circuits to the PCM to rule out wiring issues.
8. If wiring is confirmed good, have a professional technician attempt to re-flash the PCM with the latest Ford calibration.
9. If the re-flash is unsuccessful or the PCM will not communicate, the PCM is likely faulty and requires replacement and programming.

Parts You'll Likely Need

• Powertrain Control Module (PCM) (OEM #CM5A-12A650 (base number, full number is VIN specific, e.g., CM5A-12A650-AHF)) — This is only needed if the PCM has internally failed and cannot be fixed by cleaning grounds or re-flashing the software.
  Trusted brands: Motorcraft (OEM), Cardone (Remanufactured), FS1 (Remanufactured)
  OEM price range: $600-$900
  Aftermarket price range: $300-$500
• Battery Ground Strap (OEM #AE5Z-14324-A (example for 2010-2012)) — May be needed if the original ground straps are excessively corroded or frayed. Often, cleaning is sufficient.
  Trusted brands: Motorcraft, Standard Motor Products
  OEM price range: $20-$50
  Aftermarket price range: $10-$30

Related Codes That Often Appear With This One

• U0100 — This code means 'Lost Communication With ECM/PCM'. It often appears with P0602 because if the PCM's internal software crashes, it cannot communicate with other modules on the vehicle's network.
• P1639 — This Ford-specific code means 'Vehicle ID Block Corrupted or Not Programmed'. It frequently accompanies P0602 after a PCM replacement if the new module was not correctly programmed with the vehicle's specific information.
• U0101 — This code means 'Lost Communication with TCM'. It is often seen alongside P0602 and U0100, pointing towards either a failing TCM disrupting the network or a primary PCM/grounding issue causing widespread communication loss.

Technical Service Bulletins (TSBs) & Recalls

• Customer Satisfaction Program 14M02 - Extended warranty coverage for the DPS6 Transmission Control Module (TCM) for symptoms including no-start and lack of power. It addresses DTCs like U0100, U0101, and P0606.
• TSB 16-0129 - Related to 14M02, this TSB provides diagnostic procedures for no-start/loss of power conditions related to the TCM, showing the overlap in symptoms with PCM issues.
• TSB 13-4-5 - Instructs technicians to reprogram the PCM/TCM to address transmission clutch shudder, showing the software link between the two modules.

Platform-Specific Known Issues

• Poor factory grounding points under the battery/airbox are a primary cause of electrical faults on this platform.
• This vehicle is subject to Customer Satisfaction Program 14M02, which extends the warranty on the Transmission Control Module (TCM) for up to 10 years/150,000 miles for symptoms including no-start. While P0602 is a PCM code, the underlying electrical issues are related.

Mechanic-Grade Diagnostic Values

• Alternator Voltage Output (Engine Running) — expected: 13.5V - 14.8V. Failure: Readings below 13.5V or spiking above 14.8V indicate a faulty alternator or voltage regulator, which can corrupt module memory. One owner reported readings of 13.4-13.8V before a ground fix, and 14.2-14.4V after.
• Ground Circuit Voltage Drop — expected: < 0.2V (200mV). Failure: A reading higher than 0.2V between the battery negative post and the engine block/chassis indicates high resistance in the ground circuit, a primary cause of P0602 on this platform.

Scan Tool Commands That Help

• Ford IDS/FDRS: Programmable Module Installation (PMI) — This function is required when replacing a PCM. It downloads the vehicle's 'As-Built' data from Ford's servers and programs it into the new module, configuring it for the specific VIN, options, and PATS security system.
• Ford IDS/FDRS: Module Reprogramming — Used to re-flash the existing PCM with the latest software calibration. This is the first step to try if the original PCM hardware is suspected to be good but the software is corrupt. A stable battery maintainer is mandatory during this process.

Wiring & Ground Locations

• Main Battery Ground — On the driver's side strut tower area, where the negative battery cable connects to the chassis.. This is the primary ground for the entire vehicle. It is notoriously painted over from the factory, causing a poor connection that degrades over time and leads to system-wide voltage instability.
• G104 / G108 (Typical) — Underneath the airbox on the driver's side frame rail. There are typically two ground points in this location.. These are critical chassis and component grounds. Like the main battery ground, they are often attached to painted surfaces, causing intermittent connections that can corrupt PCM and TCM data.
• Transmission Case Ground — A ground strap runs from the chassis to a threaded bolt hole on the transmission bell housing.. This ground is essential for the proper function of the Transmission Control Module (TCM) and other transmission sensors. A loose or corroded connection here can cause a wide range of communication and performance issues, including secondary codes in the PCM like P0602.
• C175B — This is the main, large connector at the Powertrain Control Module (PCM).. All power, ground, and signal wires for the PCM pass through this connector. Checking for corrosion, backed-out pins, or harness damage at this specific connector is a key diagnostic step after verifying the main vehicle grounds.

Real Owner Repair Stories

• Reddit user in r/FordFocus (2017 Ford Focus, 1.0L EcoBoost, 6-speed manual) — Car would not start after replacing the slave cylinder.
  ❌ Tried (didn't work) Retracing steps of the slave cylinder replacement.
  ✅ What actually fixed it The user found a forgotten ground wire that bolts to the transmission bell housing. After identifying the location and securing the ground wire with a new bolt, the no-start issue was resolved. Another user commented that simply cleaning the cable end and the transmission surface with a brass brush was necessary to fix their similar no-start problem.
• YouTube video by 'Mike Potts' (2012 Ford Focus with DCT automatic transmission) — Intermittent 'Transmission Failure Service Now' message, erratic shifting (skipping gears), and entering limp mode.
  ❌ Tried (didn't work) The owner had already ordered a replacement TCM, assuming it was the common failure point.
  ✅ What actually fixed it Before replacing the TCM, the owner performed the 'ground mod'. He removed the airbox to access two ground points on the frame rail and also cleaned the main battery ground on the strut tower. He ground the paint off all contact surfaces to ensure a bare metal connection, re-secured the grounds, and coated them with a battery terminal protector. This preventative step is widely cited as the fix for these electrical issues.

Model Year Variations Within This Range

• 2012-2014 (Pre-facelift) vs. 2015-2018 (Facelift): While the core P0602 causes related to grounds and the PCM/TCM relationship are consistent across the generation, there were wiring harness and software revisions with the 2015 facelift. For example, Safety Recall 18S32 involved a PCM reprogram for potential fuel tank deformation, which is critical software that must be present on any replacement PCM for all years. Always ensure a replacement PCM is programmed with the absolute latest software available for the specific VIN.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• DPS6 'PowerShift' Dual-Clutch Transmission Failure 🔴 High → Shop Transmission Assembly — Extremely common on 2012-2018 models with automatic transmissions. Symptoms include shuddering, hesitation, jerking, and complete failure to engage. (Ref: Multiple lawsuits and Customer Satisfaction Program 14M02, which extends the TCM warranty.)
• Faulty Canister Purge Valve (CPV) 🟠 Medium — Very common across all 2.0L engines, often causing stalling immediately after refueling, rough idle, and difficulty starting. (Ref: Ford Recalls 18S32/18V735 and 19S22, and Customer Satisfaction Program 24N07 address this issue.)
• Electric Power Steering Rack Failure 🔴 High — A significant number of owners report sudden and complete loss of power steering, often accompanied by a 'Steering Assist Fault' message and code U3000. (Ref: No specific recall, but a widely documented failure.)
• Failed Passenger Side Engine Mount 🟠 Medium — The hydraulic-filled passenger side (right front) engine mount is prone to collapsing, causing excessive engine vibration to be felt in the cabin, especially at idle and in gear.
• Faulty Door Latch Mechanism 🟠 Medium — A known issue where a spring in the door latch assembly can break, preventing the door from latching securely or causing it to fly open while driving. (Ref: Subject to multiple recalls.)

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: A used PCM from a junkyard can be a cost-effective option ($100-$150) ONLY if you have access to a cooperative dealership or a high-level independent shop with Ford IDS/FDRS tools and the expertise to perform a 'Programmable Module Installation' (PMI). Without the ability to professionally program it, a used PCM is a paperweight.

Donor-vehicle mileage cap: roughly under 80000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• Match the engineering part number on the PCM sticker EXACTLY (e.g., CM5A-12A650-AHF).
• Source from a vehicle in a dry, salt-free climate to avoid corrosion on the case and pins.
• Ensure the donor vehicle was not involved in a frontal collision that could have damaged the module.
• Ask for the VIN of the donor car; this can sometimes help the programmer retrieve the correct 'As-Built' data.

OEM-only on this vehicle (don't cheap out):

• Powertrain Control Module (PCM): While remanufactured units from reputable brands like Cardone exist, the most reliable (though most expensive) path is a new Motorcraft unit or a professionally programmed used OEM unit. Programming is the critical failure point, not always the hardware.

Aftermarket brands forum-validated for this vehicle:

• Flagship One (FS1) - Specializes in pre-programmed OEM and remanufactured modules.
• Cardone - A widely available remanufacturer, but success hinges on the quality of the core unit and proper programming.

Brands owners have reported issues with on this vehicle:

• Unbranded, no-name sellers on platforms like eBay or Amazon that do not offer programming services or a warranty. A cheap, unprogrammed module will not work and will require additional, expensive programming services.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• U0100 — Lost communication with ECM/PCM; often appears alongside P0602 when poor grounding or low voltage disrupts module networking.
• U0101 — Lost communication with TCM; cited in Customer Satisfaction Program 14M02 as a related code for the transmission issues affecting this platform.
• P0606 — PCM/ECM Processor Fault; another module integrity code mentioned in TSB 16-0129 that shares diagnostic paths with P0602.
• P0607 — Control Module Performance; frequently triggered by the same voltage fluctuations and poor grounding that cause P0602.
