P0602 on 2010-2019 Ford Taurus: Control Module Programming Error Causes and Fixes

What's Unique About the 2010-2019 Ford Taurus

For the 2010-2019 sixth-generation Ford Taurus, the P0602 code does not point to a single, common component failure unique to the platform. Instead, it reflects a universal issue with modern vehicle electronics. The most likely scenarios involve either a recent battery replacement that caused a voltage surge or dip, a failed attempt at a software update (reflash), or the installation of a replacement PCM that wasn't correctly programmed to the car's specific Vehicle Identification Number (VIN) and security settings. A failed aftermarket tune is also a common trigger for this code.

Symptoms You May Notice

• Check Engine Light is on
• Vehicle will not start, or is very hard to start.
• Engine may stall or idle roughly.
• Harsh or erratic automatic transmission shifting.
• Reduced engine performance and acceleration.
• Decrease in fuel economy.
• Wrench light may be illuminated on the dashboard.
🎬 Watch: What the P0602 code means for your vehicle
• Traction control light may be on.

Most Likely Causes

1. Powertrain Control Module (PCM) Not Programmed 🔴 High Probability → Shop Engine Control Module (ECM) This is the most common reason for P0602 after a PCM has been replaced. The new module lacks the vehicle's specific VIN and operational software. This is a frequent outcome of DIY or independent shop replacement without access to Ford-specific programming tools.
   How to confirm: Use a professional scan tool to check the ECU/PCM information. If the VIN is blank, incorrect, or doesn't match the vehicle, it is unprogrammed. Ford's TSB 05-16-10 notes that it is expected to see DTC P0602 after installing a new PCM until the Programmable Module Installation (PMI) procedure is performed.
   Typical fix: The PCM must be programmed by a Ford dealer or a qualified shop with access to Ford's diagnostic software (like the Ford IDS). This process is called Programmable Module Installation (PMI). 🎬 Watch: How to swap and program a used Ford PCM
   Est. part cost: $0 (if PCM is good), $100-$300 for programming labor
2. Corrupted PCM Software 🟡 Medium Probability Can be caused by unstable voltage during normal operation or a failed software update (reflash). A weak battery, failing alternator, or jump-starting the vehicle incorrectly can corrupt the PCM's memory. A failed aftermarket tune is also a frequent cause.
   How to confirm: First, rule out all other causes. If the battery, alternator, and wiring are all confirmed to be good, software corruption is the likely culprit. A dealer-level scan tool may be able to confirm a checksum error. The code appearing immediately after a failed reflash attempt is a direct confirmation.
   Typical fix: Reprogramming (reflashing) the PCM with the latest software from Ford. If the reflash fails, the PCM must be replaced.
   Est. part cost: $100-$300 for reprogramming labor
3. Unstable System Voltage (Battery/Alternator) 🟡 Medium Probability
   How to confirm: Test the battery with a load tester to ensure it's healthy (should be above 12.4V at rest). With the engine running, check the alternator output; it should be stable between 13.5V and 14.8V. Low voltage during a reflash attempt is a primary cause of corruption.
   Typical fix: Replace the weak battery, faulty alternator, or repair the associated charging system wiring. After fixing the voltage issue, the PCM may still need to be reflashed if the software was corrupted.
   Est. part cost: $150-$300 for a battery, $300-$600 for an alternator
4. Defective Powertrain Control Module (PCM) ⚪ Low Probability → Shop Engine Control Module (ECM)
   How to confirm: This is diagnosed by exclusion. If the battery is good, alternator is charging correctly, all power and ground connections to the PCM are secure, and a software reflash fails to resolve the code, the PCM itself is likely internally faulty. In some cases, physical stress on the PCM case can cause internal circuit board issues, as demonstrated in one repair video where squeezing the PCM case induced the failure.
   Typical fix: Replace the PCM and have the new unit professionally programmed to the vehicle's VIN.
   Est. part cost: $400-$1200

Rare But Worth Checking

• Poor Power or Ground Connection to PCM: A loose, corroded, or broken ground strap or power wire can interrupt the PCM's power supply, mimicking an internal failure. Always inspect the PCM connectors and main ground points before replacing the module.
• Failed Aftermarket Tuning: Attempting to load an aftermarket performance tune with a handheld tuner can fail mid-process, corrupting the PCM software and setting a P0602 code. The only fix is often to have a dealer reflash the PCM back to the stock calibration.
🎬 See this walkthrough on fixing a P0602 programming error

Diagnosis Steps

1. Check Battery and Charging System: Ensure the battery is fully charged and healthy. Test the alternator output to confirm stable voltage. Unstable voltage is a common cause of module corruption. A battery charger should always be connected during any programming attempt.
2. Scan for All Codes: Use an advanced OBD-II scanner to retrieve all codes from all modules, not just the engine. Note any communication (U-codes) or other PCM-related faults (P060x, P1639).
3. Inspect PCM Wiring and Connectors: Visually inspect the wiring harness going to the PCM for any signs of damage, corrosion, or loose pins. Ensure the ground straps for the engine and chassis are clean and tight.
4. Verify PCM Programming: Using a capable scan tool (like FORScan for DIY or Ford IDS for professionals), access the 'Module Information' screen for the PCM. Verify that the correct VIN is displayed. If it is blank or incorrect, the module is not programmed.
5. Attempt PCM Reprogramming (Reflash): If the VIN is present but the code persists, the software may be corrupt. A Ford dealership or a specialized repair shop can attempt to 'reflash' the PCM with the latest factory software. This must be done with a stable power supply connected to the vehicle.
6. Diagnose PCM Hardware: If reprogramming fails or is not possible, and all power/ground circuits are confirmed to be good, the PCM is condemned. It has an internal hardware failure and must be replaced.
7. Replace and Program New PCM: Install a new or remanufactured PCM. The new module MUST be programmed to the vehicle's VIN and security system (PATS - Passive Anti-Theft System) using specialized equipment via the Programmable Module Installation (PMI) process.

Parts You'll Likely Need

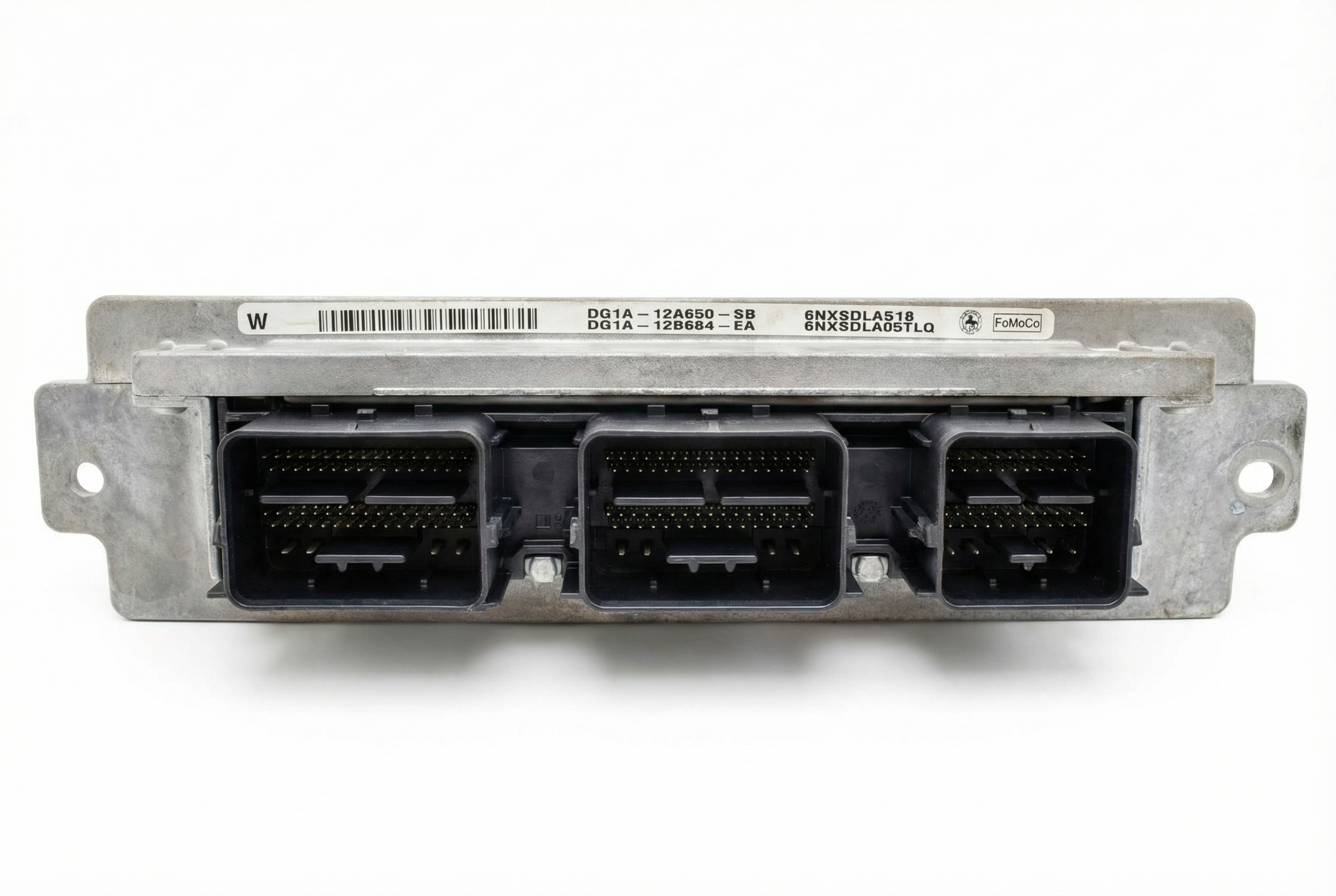

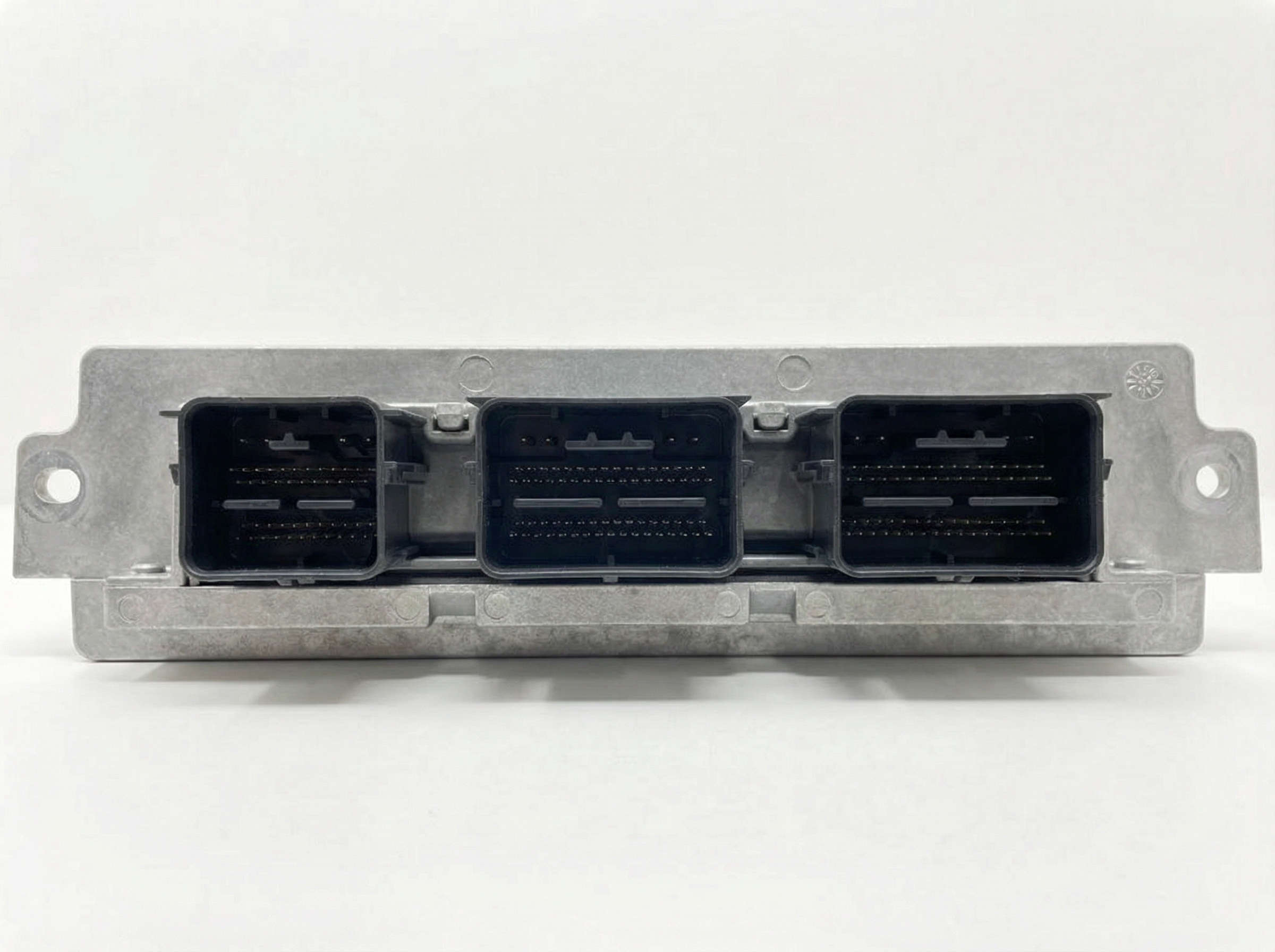

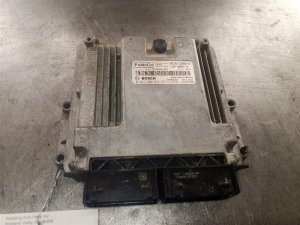

• Powertrain Control Module (PCM) (OEM #Varies by VIN and calibration (e.g., DG1A-12A650-xx for a 2013 model, AG1A-12A650-DF for a 2010 model).) — This is the part that stores the code and is the root cause if reprogramming fails or if it has an internal hardware fault.
  Trusted brands: Motorcraft, Cardone, Standard Motor Products
  OEM price range: $600-$1200
  Aftermarket price range: $400-$800

Related Codes That Often Appear With This One

• U0100 — This code means 'Lost Communication With ECM/PCM'. It often appears with P0602 because if the PCM has an internal software crash, other modules on the vehicle can no longer communicate with it.
• P0601, P0603, P0604, P0605 — These are all related codes indicating internal control module memory or processor faults (e.g., Memory Check Sum Error, Keep Alive Memory Error). Their presence alongside P0602 reinforces the diagnosis of a failed PCM.
• P1639 — This is a Ford-specific code for 'Vehicle ID Block Corrupted or Not Programmed'. It is a very common companion to P0602, especially after a PCM has been replaced and not programmed correctly.

Technical Service Bulletins (TSBs) & Recalls

• TSB 14-0086: This TSB outlines the general procedures for PCM programming (PMI) and notes that failure to follow the procedure can result in DTCs like P0602.
• TSB 10-2-6: This bulletin warns against the use of aftermarket powertrain calibrations (tunes) on EcoBoost models, a common cause of software corruption leading to P0602.

Platform-Specific Known Issues

• A user on a Reddit forum reported getting P0602 after using FORScan to enable cruise control on a vehicle with a previously replaced PCM. The fix was to reload the factory 'As-Built' data to the module. This highlights the sensitivity of the PCM to any configuration changes.

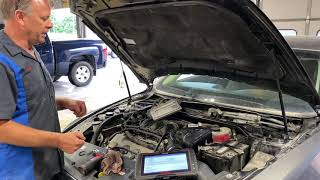

• A YouTube video demonstrated a 2012 Taurus with multiple throttle body codes (P21xx) that were not fixed by a new throttle body. The root cause was a faulty PCM; the technician could induce the fault by physically squeezing the PCM case, indicating an internal circuit board failure.

Mechanic-Grade Diagnostic Values

• System Voltage (Engine Running) — expected: 13.5V - 14.8V. Failure: Voltage below 13.2V or spiking above 15V can indicate a faulty alternator or battery management system, which can corrupt the PCM.
• Battery Voltage (Key On, Engine Off) — expected: 12.4V or higher. Failure: Voltage below 12.4V indicates a weak or discharged battery. Attempting to program a module with low voltage is a primary cause of corruption and P0602.
• PCM Power Supply Pins (Voltage) — expected: Battery Positive Voltage (BPV). Failure: Voltage significantly lower than battery voltage indicates a wiring issue (corrosion, resistance) or a problem with the Battery Junction Box.
• PCM Ground Pins (Resistance) — expected: Less than 1.0 Ohm to chassis ground. Failure: High resistance indicates a poor ground connection, which can cause erratic module behavior and trigger various codes, including P0602.
• CAN Bus Voltage — expected: Approximately 2.5V on both CAN High and CAN Low lines when idle (bus not communicating).. Failure: Voltages that are stuck high (near 5V) or low (near 0V), or that do not mirror each other during communication, indicate a bus wiring fault or a faulty module pulling the bus down.

Hidden / Shadow Codes Worth Checking

• P1639: Vehicle ID Block Corrupted or Not Programmed. This is a Ford-specific code that directly points to the section of the PCM's memory containing the VIN and vehicle configuration being invalid or empty. It is a primary indicator that a PCM replacement has occurred without proper programming. (see via Standard OBD-II scanner, FORScan, Ford IDS. It often appears with P0602.)
• P1260: Theft Detected, Vehicle Immobilized. This code is set by the Passive Anti-Theft System (PATS) when the PCM does not provide the correct security credentials. It is a common result of swapping a PCM (new or used) without performing the PATS 'Parameter Reset' or 'key relearn' procedure. (see via Standard OBD-II scanner, FORScan, Ford IDS.)
• B2139: PCM Identification Not Recognized by PATS Module. This is another security-related code indicating a mismatch between the PCM and the security module (often part of the Instrument Cluster or Body Control Module). It can cause a no-start condition even on vehicles that do not have chipped keys, as the modules are still paired. (see via Advanced scanner like FORScan or Ford IDS.)

Scan Tool Commands That Help

• Ford IDS / FDRS: Programmable Module Installation (PMI) — This is the mandatory procedure to use when a new or used PCM is installed. It either transfers configuration data from the old module or downloads the vehicle's 'As-Built' data from Ford's servers to correctly configure the replacement module.
• Ford IDS / FDRS: Module Reprogramming — Use this function to attempt to fix a P0602 on the *original* PCM. It reflashes the module with the latest factory software, which can correct corruption caused by voltage fluctuations or failed aftermarket tunes.
• FORScan (with Extended License): PATS Programming / Parameter Reset — After installing a replacement PCM, this function is required to synchronize the security information between the PCM and the vehicle's anti-theft system. This is necessary to allow the engine to start. There is typically a 10-12 minute security wait time during this procedure.
• FORScan (with Extended License): Module Configuration (As-Built format) — Used to manually load the vehicle's original factory configuration data into a replacement PCM. This is an advanced alternative to the IDS PMI process. The As-Built data can be downloaded from Ford's motorcraftservice website using the vehicle's VIN.

Wiring & Ground Locations

• PCM Connector C175B — The Powertrain Control Module (PCM) is typically located in the engine bay, near the firewall on the passenger side, close to the battery.. This is the main data and power connector for the PCM. Loose pins, corrosion from water intrusion, or harness damage here can cause a loss of power, ground, or communication, leading to P0602.
• G101 / G103 — Located on the left (driver's side) front of the engine compartment, typically on the frame rail or inner fender structure.. These are primary chassis ground points for the engine bay. The PCM and other critical modules rely on these grounds. A loose or corroded connection here can cause unstable voltage and module errors.
• G104 — Located on the right (passenger's side) rear of the engine.. This is a critical engine-to-chassis ground point. A poor connection here can cause a voltage differential between the engine block and the chassis, leading to data errors and module faults.
• C175B - Pins 51, 52, 53 — In the main PCM connector.. These are typically the main Power Ground pins for the PCM. They should have near-zero resistance to the chassis ground (G101/G103). High resistance here is a direct cause of PCM failure.
• C175B - Pin 71 — In the main PCM connector.. This is a primary Voltage Power (VPWR) pin, fed by a fuse in the engine bay fuse box (Battery Junction Box). It should have constant battery voltage. A loss of voltage here will prevent the PCM from operating.

Real Owner Repair Stories

• Reddit user in r/MechanicAdvice (2010 Ford Explorer 4.0L (similar electronics and programming)) — Needed to replace PCM.
  ❌ Tried (didn't work) Taking it to a dealership for programming was quoted as being very expensive.
  ✅ What actually fixed it The user successfully installed a used (junkyard) PCM. They used a beta version of FORScan software with an extended license and a Vgate vLinker FS adapter to write their vehicle's VIN into the replacement PCM and perform the PATS security relearn procedure. This resolved the issue without a dealer visit.
• Ford Transit Connect Forum user (2010 Ford Transit Connect (shares PATS logic with Taurus)) — No-start condition and B2139 code after installing a 'plug and play' remanufactured PCM.
  ❌ Tried (didn't work) Installing the remanufactured PCM directly, assuming it was 'plug and play'.
  ✅ What actually fixed it The user learned from the Ford workshop manual that even on vehicles without chipped keys (PATS), a 'parameter reset' MUST be performed in both the PCM and the security module when the PCM is replaced. The final fix required a locksmith or mechanic with the proper scan tool (like IDS or a capable FORScan setup) to perform this security synchronization.

OEM Part Supersession History

• GA5Z-12A650-MD → GG1Z-12A650-ALANP — Updated calibration and/or hardware revision.
  Heads up: Part numbers are extremely specific to VIN, engine, transmission, and emissions calibration. A part for a 2019 EcoBoost will not work in a 2013 V6. Always verify the part number with a dealer or a VIN-based lookup.

Model Year Variations Within This Range

• 2010-2019: While the diagnostic process for P0602 is consistent, the PCM hardware and software calibrations are different between the 2010-2012 models and the facelifted 2013-2019 models. Part numbers are not interchangeable across this refresh. For example, a 2010 3.5L may use a part number like AG1A-12A650-DF, while a 2019 may use a GG1Z-12A650-xx series part.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• Internal Water Pump Failure (3.5L/3.7L V6) 🔴 High — Common on higher-mileage vehicles (typically over 80,000 miles). The pump is internal and driven by the timing chain. When its seal fails, it leaks coolant directly into the engine oil, leading to catastrophic engine failure if not caught immediately.
• Power Transfer Unit (PTU) Failure (AWD Models) 🔴 High — Widespread issue. The PTU fluid is considered 'lifetime' by Ford and has no drain plug, leading to overheating and fluid breakdown. This causes gear and bearing failure, resulting in loss of AWD and expensive replacement.
• Electronic Throttle Body (ETB) Failure 🟠 Medium — Common across many Ford models of this era. Internal electronic failure causes the vehicle to suddenly enter 'limp mode' with a wrench light, creating a safety hazard. (Ref: Ford Customer Satisfaction Program 13N03 (expired))
• Timing Chain Stretch (3.5L EcoBoost V6) 🔴 High — Primarily affects first-generation (pre-2017) 3.5L EcoBoost engines. The primary timing chain can stretch over time, causing a rattling noise on cold starts, setting timing-related DTCs (like P0016), and potentially leading to engine damage if ignored.

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: A used PCM from a junkyard is a cost-effective option ONLY if you have the tools and skills to reprogram it yourself (e.g., FORScan with an extended license) or have budgeted for a professional to perform the programming. It is never a 'plug-and-play' part due to VIN and PATS security programming requirements.

Donor-vehicle mileage cap: roughly under 150000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• Match the OEM part number on the sticker exactly, or verify interchangeability.
• Inspect the connector pins for any signs of corrosion, moisture, or physical damage.
• Obtain the VIN of the donor vehicle. This allows you to download the correct 'As-Built' data from Ford's website, which is crucial for programming with FORScan.
• Choose a donor from a vehicle that was not involved in a flood or fire.

OEM-only on this vehicle (don't cheap out):

• Powertrain Control Module (PCM): While remanufactured units from reputable brands are available, using a genuine used Ford (Motorcraft) PCM is often preferred by DIYers as it's known to be 100% compatible with factory programming tools like IDS and FORScan.

Aftermarket brands forum-validated for this vehicle:

• Cardone (Remanufactured)
• FS1inc.com / Flagship One (Remanufactured)
• Solo PCMs (Remanufactured)

Brands owners have reported issues with on this vehicle:

• Unbranded, no-name 'plug-and-play' units sold on auction sites should be avoided. Many are not properly tested or programmed and often fail to work, requiring a security relearn at minimum.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P1639 — Vehicle ID Block Corrupted or Not Programmed; often checked alongside P0602 during PCM information verification.
• P21XX — Series of throttle body codes that may appear as 'false' codes when the PCM has an internal hardware failure.
• U-CODES — Network communication codes that often accompany PCM programming or hardware issues.
• P060X — A family of internal control module error codes related to PCM processor and memory integrity.
