P0602 on 2005-2017 Honda Odyssey: Control Module Programming Error Causes and Fixes

What's Unique About the 2005-2017 Honda Odyssey

For the Honda Odyssey across the third (2005-2010) and fourth (2011-2017) generations, the P0602 code is a serious fault that often points directly to the PCM itself. Unlike some vehicles where this code is a temporary glitch, on the Odyssey it frequently indicates a hard failure. This can be triggered by voltage instability, such as a weak battery or a jump-start, which can corrupt the PCM's memory. An interrupted software update at a dealership or repair shop is another common trigger. Because the PCM is tied to the immobilizer system, a P0602 error is almost always accompanied by a crank-no-start condition and a flashing green key light on the dashboard.

Generation note: This guide covers the third generation (2005-2010) and fourth generation (2011-2017) Honda Odyssey. The causes and diagnostic principles for P0602 are largely the same for both generations, as they both rely on a central PCM that is sensitive to voltage and programming issues. The J35 series engine is used in both generations.

Symptoms You May Notice

• Engine will not start, only cranks
• Check Engine Light is on
• Flashing green immobilizer (key) light on the dashboard
• Vehicle stalls unexpectedly while driving
• Multiple other warning lights may appear, such as ABS, VSA, or the 'D' (Drive) indicator may flash
• Reduced engine performance or 'limp mode'
• No communication with the PCM using a standard OBD-II scanner

Most Likely Causes

1. Internal PCM Failure 🔴 High Probability The PCM can fail internally due to age, heat cycles, or electrical stress, leading to memory corruption or processor faults.
   How to confirm: After ruling out all other possibilities (power, ground, wiring), the PCM is the likely culprit. This is typically confirmed by a professional technician who may attempt a reflash. If the reflash fails or the module won't communicate, the PCM is condemned.
   Typical fix: Replace the Powertrain Control Module (PCM). The new module must be programmed to the vehicle's VIN and immobilizer system by a dealer or qualified shop with a J2534 device.
   Est. part cost: $400-$1400
2. Interrupted or Failed PCM Software Update 🟡 Medium Probability If a software update (reflash) is interrupted by power loss or tool disconnection, the PCM's memory can be left in a corrupted, non-functional state.
   How to confirm: Review the vehicle's recent service history. If the code appeared immediately after a service visit that involved programming, this is the most likely cause.
   Typical fix: Attempt to reprogram (re-flash) the PCM using the Honda Diagnostic System (HDS) or equivalent J2534 tool. This must be done by a professional.
   Est. part cost: $0 (if reflash is successful)
3. Weak or Failing Battery / Low Voltage 🟡 Medium Probability → Shop Vehicle Battery Honda PCMs are sensitive to voltage. A weak battery, failing alternator, or poor connections can cause voltage drops during startup or operation, which can corrupt the PCM's memory.
   How to confirm: Test the battery with a load tester (not just a voltmeter). A healthy battery should be above 12.4V at rest and not drop below ~10V during cranking. Check alternator output (should be 13.5-14.8V when running).
   Typical fix: Replace the battery and ensure terminals are clean and tight. Address any charging system issues.
   Est. part cost: $150-$300
4. Poor Power or Ground Connection to PCM ⚪ Low Probability Corroded or loose ground straps and power wires can create intermittent voltage supply to the PCM, mimicking a bad battery and leading to memory corruption. Forum users have noted corroded main connectors as a potential cause.
   How to confirm: Perform a voltage drop test on the PCM's main power and ground circuits. Visually inspect the main battery-to-chassis ground strap and engine-to-frame grounds for corrosion or damage. Check the main PCM connector for corrosion, which on some Hondas is located behind the headlight.
   Typical fix: Clean or repair the corroded ground connections. Repair or replace the damaged wiring harness section.
   Est. part cost: $10-$200

Rare But Worth Checking

• Installation of an Incorrect or Unprogrammed Used PCM: If a used PCM from another vehicle is installed without being properly programmed with the Odyssey's specific VIN and immobilizer key data, it will set a P0602 code and the vehicle will not start.

Diagnosis Steps

1. Verify Battery Health: Start by fully charging and load testing the battery. A weak battery is a common cause of electronic module errors. Ensure terminals are clean and tight.
2. Check for Other Codes: Use a professional-grade scanner to check for any other stored DTCs. Note any communication codes (U-codes) or other internal module faults (P06xx).
3. Observe Dashboard Lights: When attempting to start the engine, check for a flashing green key light. This is a strong indicator of a PCM/immobilizer communication failure related to P0602.
4. Inspect PCM Power and Grounds: Visually inspect the main ground straps (battery to chassis, engine to chassis). Using a multimeter, perform a voltage drop test on the PCM's power and ground pins to ensure it's receiving stable voltage. Check for corrosion on the main PCM connectors.
5. Check Fuses: Inspect all fuses related to the PCM and engine controls in both the under-hood and interior fuse boxes.
6. Attempt PCM Reprogramming: This is a professional step. A technician will use a Honda HDS or J2534 Pass-Thru device to attempt to re-flash the PCM with the latest factory software. This can fix corruption issues but will fail if the hardware is damaged.
7. Replace the PCM: If reprogramming fails or is not possible, the PCM is deemed faulty and must be replaced. The new module will require programming to the vehicle's VIN and immobilizer system.

Parts You'll Likely Need

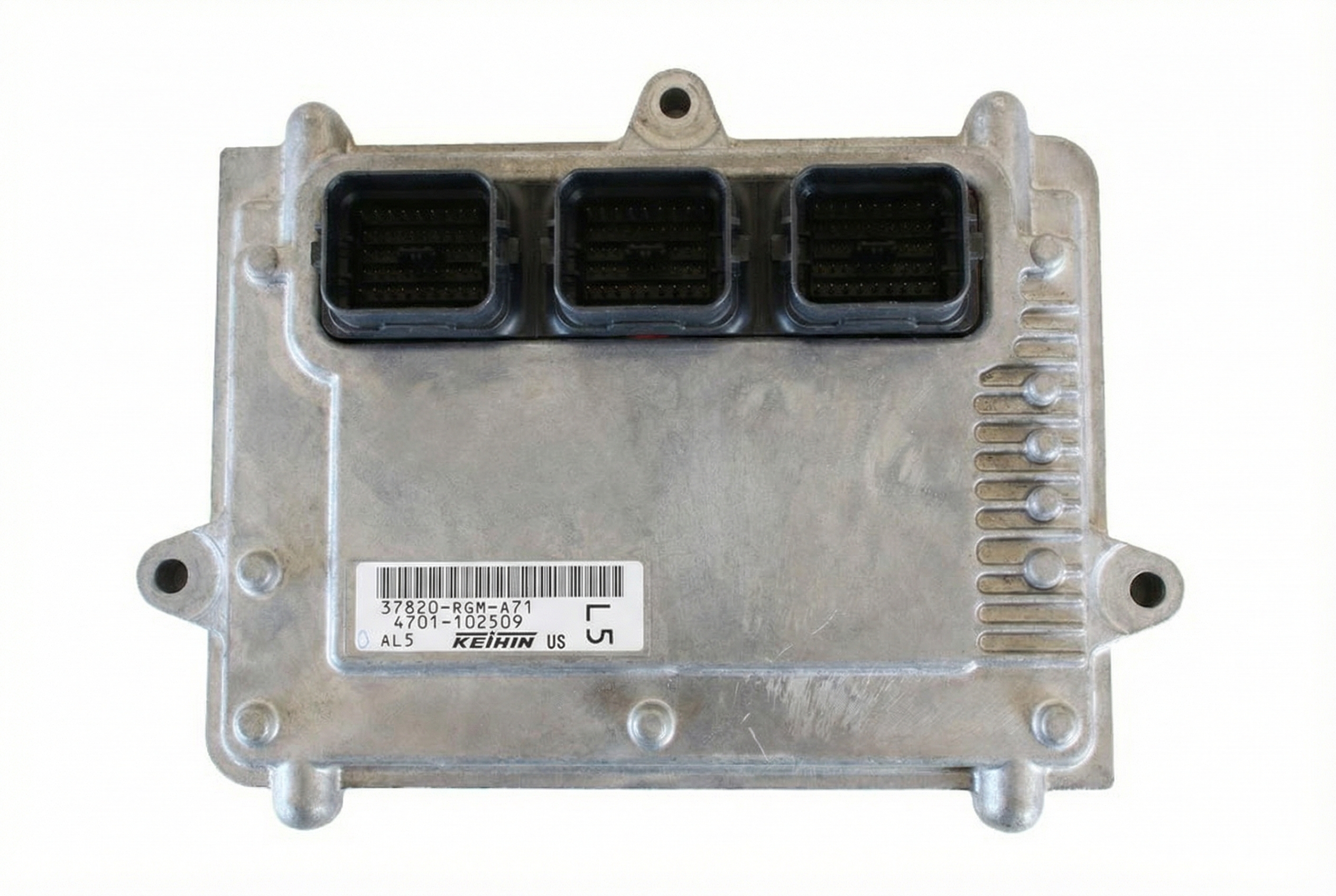

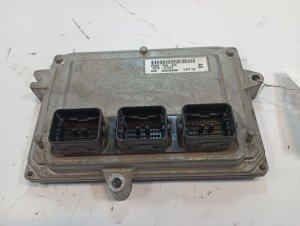

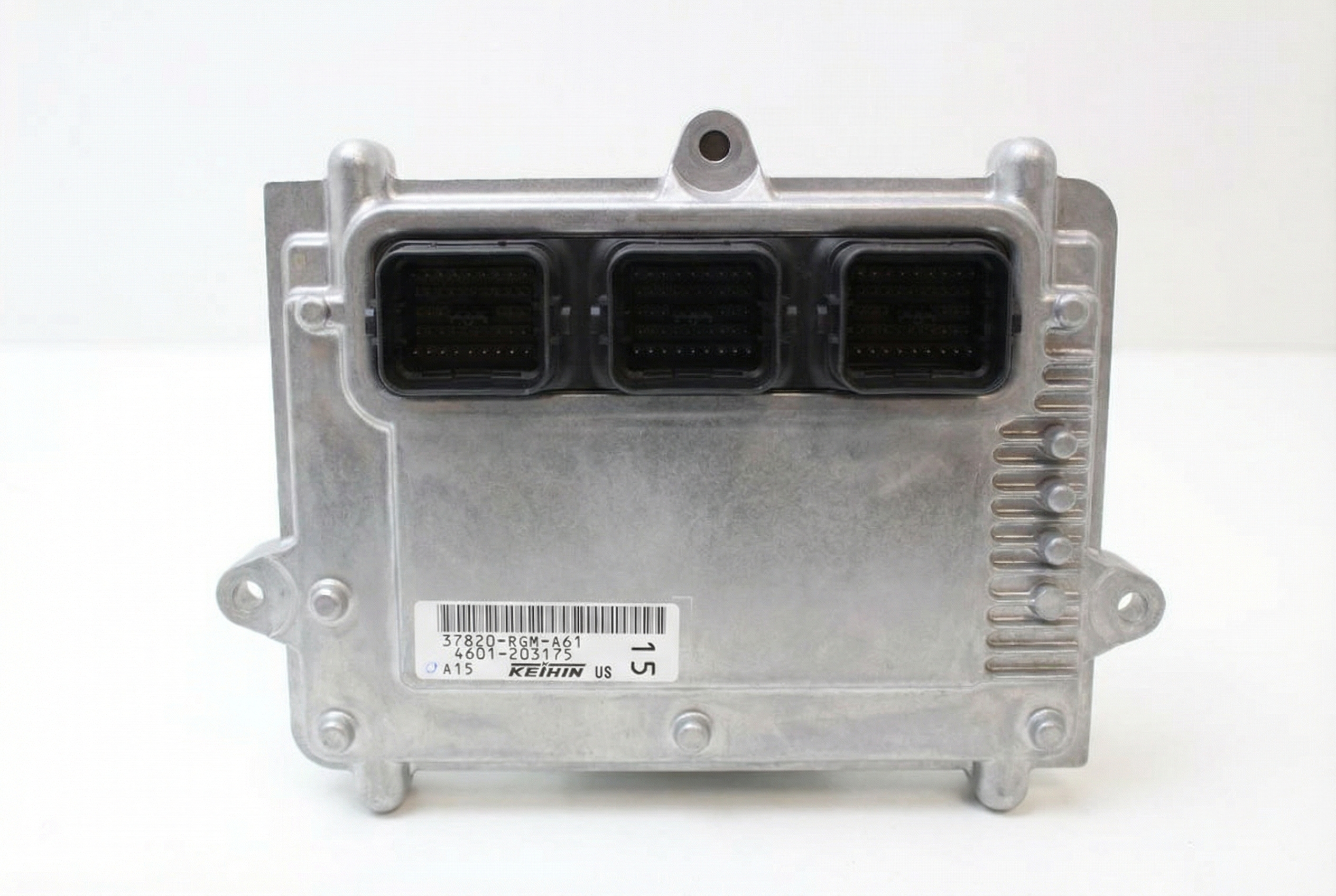

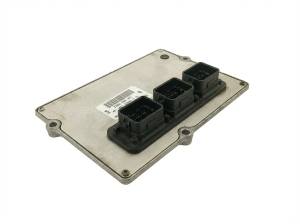

• Powertrain Control Module (PCM) (OEM #Varies by year/trim. Ex: 37820-RGL-A56 (2005), 37820-RV0-A65 (2014-2016). Always verify with VIN.) — This is the most common cause of a persistent P0602 code after power supply issues have been ruled out. The internal memory or processor fails.
  Trusted brands: Honda (OEM), Cardone (Remanufactured), BSE (Remanufactured)
  OEM price range: $900-$1456
  Aftermarket price range: $400-$800 (Remanufactured)

Related Codes That Often Appear With This One

• U0101 — This code indicates a loss of communication with the PCM. It can appear alongside P0602 if other modules on the vehicle's network cannot communicate with the faulty PCM.
• P0601 — P0601 indicates 'Internal Control Module Memory Check Sum Error'. It is a closely related code that also points to an internal failure within the PCM.
• P0606 — P0606 indicates 'ECM/PCM Processor Fault'. This is another severe internal computer error that often requires PCM replacement.

Technical Service Bulletins (TSBs) & Recalls

• Honda Service Bulletin 25-061: While not directly for P0602, this TSB for 2013-2017 Odysseys addresses misfires (P0301-P0304) caused by VCM issues leading to fouled plugs and worn piston rings. It involves a PCM software update as part of the repair, highlighting that Honda uses software updates to address engine mechanical problems, and an interruption could theoretically cause a P0602.

Platform-Specific Known Issues

• VCM-Related Oil Leaks Damaging Alternator: → Shop Alternator On 4th gen (2011-2017) models with Variable Cylinder Management (VCM), the VCM solenoid gasket (spool valve) is prone to leaking oil directly onto the alternator below. A failing alternator can cause voltage spikes or drops, potentially corrupting the PCM and triggering a P0602 code. It is a known issue to check the alternator for oil saturation if voltage issues are suspected.

Mechanic-Grade Diagnostic Values

• PCM/ECM Ground Circuit Integrity — expected: Less than 0.1V drop between the PCM ground pin and the negative battery terminal.. Failure: A voltage drop greater than 0.1V indicates a poor ground connection (corrosion, looseness) which can cause erratic PCM behavior and memory corruption.
• PCM/ECM Power Supply Voltage (at PCM connector) — expected: Battery voltage (approx. 12.6V with key on, engine off).. Failure: Voltage significantly lower than battery voltage at the PCM connector points to a wiring issue (corrosion, open circuit) between the battery/fuse box and the PCM.
• Alternator AC Ripple Voltage — expected: Less than 0.5V AC at idle.. Failure: Excessive AC ripple voltage suggests failing alternator diodes. This 'dirty' power can disrupt PCM operation and corrupt memory, potentially leading to P0602.

Scan Tool Commands That Help

• Honda HDS (Honda Diagnostic System): Replace ECM/PCM — This function is mandatory after installing a new or used PCM. It guides the technician through the process of registering the new PCM with the vehicle's immobilizer control unit. Without this step, the engine will not start.
• Honda HDS (Honda Diagnostic System): Immobilizer Setup Tool — Used to add new keys, delete lost keys, or perform an 'All Keys Lost' procedure. This is often required in conjunction with a PCM replacement to ensure all keys are correctly programmed to the newly synced immobilizer system.

Wiring & Ground Locations

• PCM Location (2005-2010) — Right side of the engine compartment.. Knowing the location is the first step to testing power, ground, and communication wires directly at the module's connectors.
• PCM Location (2011-2017) — Under the hood, next to the main under-hood fuse box.. Physical access is required to check for connector corrosion, and to perform pin-out voltage and ground tests.
• G101 (Main ECU/PCM Ground) — Typically located on the thermostat housing on many Honda engines.. This is a critical power and logic ground termination point for the PCM. A loose or corroded G101 ground is a known cause of no-start and stalling conditions that can be misdiagnosed as a failed PCM.
• PGM-FI Main Relay (PCM Relay) — For 2011-2017 models, the PCM relay function is integrated into a larger multi-functional relay module in the main under-hood fuse box. For earlier models, it is often a separate relay in the under-dash or under-hood fuse box.. A failing PGM-FI main relay can cut power to the PCM, causing no-start or stalling symptoms identical to a failed PCM. This is a common misdiagnosis.

Real Owner Repair Stories

• YouTube user comment/video (1999 Honda Odyssey (similar immobilizer system)) — Cranks but no start, flashing green key (immobilizer) light.
  ❌ Tried (didn't work) Initial diagnosis pointed towards a bad key or immobilizer unit.
  ✅ What actually fixed it Disconnecting the battery overnight. After reconnecting the battery the next morning, the immobilizer light went out and the vehicle started normally. This suggests a hard reset of the modules resolved the temporary glitch.
• 2CarPros Forum User (Honda with immobilizer) — Car will not start, flashing green key icon.
  ❌ Tried (didn't work) Scanning for codes was suggested, but no immediate fix was apparent.
  ✅ What actually fixed it After reconnecting a battery, the alarm went off. The user put the key in the driver's door, locked and unlocked it, which reset the system. The car then started right up.

Model Year Variations Within This Range

• 2005-2010 (3rd Gen): The PCM is located in the right side of the engine compartment. VCM (Variable Cylinder Management) was introduced on EX-L and Touring trims starting in 2008, which can lead to specific oil consumption and spark plug fouling issues that are sometimes misdiagnosed.
• 2011-2017 (4th Gen): The PCM is located under the hood next to the main fuse box. The PCM/ECU relay function is integrated into a large multi-block relay assembly in the fuse box, not a separate, standalone relay. VCM is present on all trims and the associated oil leak from the VCM spool valve onto the alternator is a more prominent issue that can lead to voltage problems triggering P0602.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• Variable Cylinder Management (VCM) Issues 🔴 High — Common on 2011-2017 models. Can cause excessive oil consumption, fouled spark plugs, and engine vibrations. (Ref: Honda Service Bulletin 25-061 addresses related misfires. Aftermarket devices like 'VCMTuner' are a popular owner solution.)
• Automatic Transmission Failure/Judder 🔴 High → Shop Transmission Assembly — A widely reported problem, especially on 3rd gen (2005-2010) models, leading to harsh shifting, juddering, or complete failure. Also noted on early 4th gen models. (Ref: Multiple recalls and warranty extensions have been issued over the years for transmission problems on various Honda models.)
• Power Sliding Door Failures 🟠 Medium — Extremely common across all years. Issues range from broken cables and failed motors to faulty rollers and control modules, causing doors to get stuck, beep incessantly, or not operate automatically.
• Warped Front Brake Rotors 🟡 Low — Very common complaint causing steering wheel vibration or brake pedal pulsation when braking, especially at speed. Rotors may need frequent replacement or resurfacing.
• Failing Engine Mounts 🟠 Medium — The active control engine mounts, particularly the rear one, can fail, leading to excessive vibration in the cabin, especially during acceleration or when VCM engages.

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: A used PCM can be a cost-effective option ONLY if you have access to a professional with a Honda HDS or equivalent J2534 pass-thru tool who can perform the immobilizer programming. Without programming, a used PCM is a paperweight.

Donor-vehicle mileage cap: roughly under 150000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• Verify the part number AND revision on the used PCM EXACTLY matches the original unit.
• Source from a reputable salvage yard that offers a warranty or return policy.
• Avoid units with any signs of physical damage, corrosion, or water intrusion on the case or connectors.
• If possible, get the VIN of the donor vehicle to cross-reference its specific features and trim.

OEM-only on this vehicle (don't cheap out):

• Powertrain Control Module (PCM) - While remanufactured units exist, a used OEM unit that is properly programmed is often a reliable choice. New OEM is the most reliable but most expensive. The key is the programming, not just the part.

Aftermarket brands forum-validated for this vehicle:

• Cardone (Remanufactured)
• BSE (Remanufactured)

Brands owners have reported issues with on this vehicle:

• Unbranded, no-name units from online marketplaces without a clear warranty or programming support.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P0301-P0304 — Misfire codes related to VCM issues; Honda Service Bulletin 25-061 links these to PCM software updates which, if interrupted, can cause P0602.
• U-CODES — Network communication codes that often appear alongside P0602 when the PCM is unable to communicate with other modules or the scanner.
• P06XX — A family of internal control module fault codes that may be stored simultaneously when the PCM hardware or memory is failing.
