P0602 on 2005-2017 Jeep Wrangler: Control Module Programming Error Causes and Fixes

What's Unique About the 2005-2017 Jeep Wrangler

For the 2005-2017 Jeep Wrangler, which spans the late TJ and the entire JK generation, code P0602 is often triggered by voltage instability. A failing battery, a weak alternator, or poor ground connections can disrupt the PCM's operation, leading to this internal programming error. It can also appear after a failed software update or if a replacement PCM was installed without being correctly programmed to the vehicle's specific Vehicle Identification Number (VIN). Wranglers are also frequently modified with aftermarket tuners, which can sometimes intentionally set this code when a custom tune is loaded.

Generation note: This guide covers the end of the Jeep Wrangler TJ generation (2005-2006) and the entire JK generation (2007-2017). The TJ used a 4.0L inline-6 engine, while the JK used a 3.8L V6 (2007-2011) and later the 3.6L Pentastar V6 (2012-2017). While the fundamental cause of P0602 (PCM programming error) is the same, the specific PCM hardware and software differ. Diagnosis and part numbers are not interchangeable between these generations. For example, some 2012 JK models with the 3.6L engine use PCM part number 05150608AC.

Symptoms You May Notice

• Check Engine Light is on
• Vehicle will not start, or starts and immediately stalls
• Engine runs rough or has an unstable idle
• Significant loss of engine power and poor acceleration
• Transmission may not shift correctly or may feel harsh
• Vehicle enters a reduced-power "limp mode"
• Dashboard lights up with multiple warnings and speedometer may quit working, often related to CAN bus communication failures stemming from the PCM error

Most Likely Causes

1. Unstable Power Supply 🔴 High Probability Jeep Wranglers are often equipped with aftermarket electrical accessories (winches, lights) which can strain the electrical system. Age, vibration, and off-road use can also lead to weak battery performance, alternator failure, or loose/corroded ground connections.
   How to confirm: Test the battery voltage with a multimeter; it should be above 12.4 volts with the engine off. With the engine running, the alternator should produce between 13.7 and 14.7 volts. Check battery terminals and main ground straps for corrosion 🎬 See how to diagnose and repair faulty electrical grounds or looseness. A battery load test is the most definitive way to confirm battery health.
   Typical fix: Replace a weak battery, faulty alternator, or clean/repair corroded terminals and ground connections. Ensure all connections are tight.
   Est. part cost: $150-$450
2. Failed or Interrupted PCM Re-flash 🟡 Medium Probability If a software update at a dealership or with an aftermarket tuner is interrupted by power loss or tool disconnection, the PCM's software can become corrupted. This is a known risk during any flash procedure.
   How to confirm: This is typically known from the vehicle's recent service history. A professional scan tool is needed to check the PCM's software version and attempt a re-flash. The tool will often show if the module is in a non-programmed state.
   Typical fix: Successfully re-flash the PCM with the correct, manufacturer-approved software using a stable power supply (a battery charger maintaining 13.2-13.5V is required). This must be done by a dealer or a properly equipped independent shop.
   Est. part cost: $100-$250 (Labor)
3. Faulty Powertrain Control Module (PCM) ⚪ Low Probability → Shop Engine Control Module (ECM) Internal failure of the PCM's memory chips or voltage regulator can occur due to heat, vibration, or age. A recall (U87 / NHTSA 18V-524) was issued for some 2017-2018 models for a faulty voltage regulator chip inside the PCM, which could cause stalling. This highlights a known hardware vulnerability.
   How to confirm: This is the diagnosis after all other causes (power supply, wiring, programming) have been ruled out. If a re-flash fails repeatedly, or if a memory integrity test fails, the PCM is condemned.
   Typical fix: Replace the PCM with a new or remanufactured unit that is correctly programmed to the vehicle's VIN and security settings.
   Est. part cost: $500-$1200+

Rare But Worth Checking

• Aftermarket Performance Tuner: Some aftermarket engine tuners (e.g., Superchips, DiabloSport) can cause a P0602 code to be set. Sometimes this is intentional as part of their process. If you have a tuner installed, try returning the vehicle to the stock tune to see if the code clears. For some 2018+ models, an unlocked PCM is required for tuning, which adds another layer of complexity.
• Incorrect PCM Installed: If a used or improperly sourced PCM was installed, it may not have the correct programming for the vehicle's VIN and options, triggering the P0602 code. The part number must be an exact match or a validated superseded number.
• CAN Bus Wiring Issues: While less common, damage to the Controller Area Network (CAN) bus wiring harness can interrupt communication between modules and potentially corrupt data, leading to a P0602. A user on JLWranglerForums.com traced a host of communication errors to a faulty CAN bus star network connector behind the glove box.

Diagnosis Steps

1. Check Battery and Charging System: Ensure the battery has a full charge (12.4V+ engine off) and the alternator is charging correctly (13.7-14.7V engine on). A weak power supply is a common trigger.
2. Inspect PCM Connections: Visually inspect the wiring harnesses and connectors at the PCM for any signs of corrosion, damage, or loose pins. Clean and secure all power and ground connections.
3. Scan for Other Codes: Use a professional-grade scanner to check for any other stored trouble codes. Communication codes (U-codes) can provide additional clues about network issues.
4. Attempt to Re-flash the PCM: Using a dealer-level scan tool (like wiTECH) and a stable power supply (battery charger connected), attempt to reprogram the PCM with the latest factory software. This will fix any corrupted software. An interruption during this process can be fatal to the PCM.
5. Test PCM Power and Grounds: If the re-flash fails, use a digital multimeter and wiring diagrams to verify the PCM is receiving proper voltage and has a solid ground connection on all required pins.
6. Replace the PCM: If all power/ground circuits are good and the PCM will not accept a re-flash or the code returns immediately, the PCM has failed internally and must be replaced. The new module must be programmed to the vehicle's VIN.

Parts You'll Likely Need

• Powertrain Control Module (PCM) (OEM #05150608AC (Example for 2012 3.6L AT)) — This is the part that fails when the code is caused by an internal hardware fault. Replacement is the last resort after ruling out software and power supply issues.
  Trusted brands: Mopar (OEM), Cardone, Standard Motor Products, FS1
  OEM price range: $800-$1200+
  Aftermarket price range: $400-$800
• Battery — A weak or failing battery can cause low voltage spikes and drops during startup, which can corrupt the PCM's memory and trigger a P0602 code.
  Trusted brands: Mopar (OEM), Interstate, DieHard, Optima
  OEM price range: $200-$350
  Aftermarket price range: $150-$250

Related Codes That Often Appear With This One

• U0100 — This code means 'Lost Communication With ECM/PCM.' It can appear alongside P0602 if the PCM's internal error is severe enough to disrupt its ability to communicate on the vehicle's data network.
• P0601 — This code means 'Internal Control Module Memory Check Sum Error.' It is a more specific version of P0602, pointing directly to a failure in the PCM's memory integrity check. If you see both, a faulty PCM is highly likely.
• P0606 — This code for 'Internal Control Processor' can also be related. A Jeep TSB for other models indicates that a software update can fix P0606, which causes limp mode or no-start, showing the close relationship between internal processor and programming faults.

Technical Service Bulletins (TSBs) & Recalls

• NHTSA 18V-524 / Mopar U87: A safety recall for 2017-2018 Wranglers (and other FCA vehicles) where the PCM's internal voltage regulator could fail, causing a stall or no-start.
• TSB Bulletin #9100156: While issued for other models in the manufacturer lineup, this bulletin notes that a "Control Module Programming Error/Not Programmed" (P0602-00) can occur in conjunction with internal electronic failures in advanced control modules, sometimes following the replacement of related hardware.

Platform-Specific Known Issues

• Recall U87 (NHTSA 18V-524) was issued for some 2017-2018 Jeep Wranglers due to a faulty voltage regulator chip in the PCM that could cause stalling or a no-start condition, which could be related to a P0602 code. The remedy was to replace the PCM free of charge.
• A user on a JL Wrangler forum described chasing multiple high-voltage sensor codes (P01xx) and a P0622 (Generator Field Control Circuit) which ultimately pointed towards a faulty PCM, similar to the symptoms described in the U87 recall.
• Electrical chaos, including multiple warning lights and failing accessories, has been traced by some owners to failing batteries or bad CAN bus connections, which can mimic or lead to PCM-related codes like P0602.

Mechanic-Grade Diagnostic Values

• PCM Power Supply (Live Data) — expected: 12.6V - 14.7V. Failure: Voltage below 12.6V (engine off) or outside the 13.7V-14.7V range (engine running) indicates a battery or alternator issue that can trigger P0602.
• PCM Power Pin Voltage (TJ 4.0L, Black Connector) — expected: 12V+ at Pin 22 (Fused B+). Failure: No voltage indicates a blown fuse or open circuit between the fuse box and the PCM.
• PCM Ignition Signal (TJ 4.0L, Black Connector) — expected: 12V+ at Pin 2 (Ignition Switch Output) with key on. Failure: No voltage indicates a problem with the ignition switch circuit.
• PCM Ground (TJ 4.0L, Black Connector) — expected: Continuity to ground at Pin 32. Failure: High resistance or an open circuit indicates a bad ground connection.
• PCM Ground (2012 JK 3.6L, C2 Connector) — expected: Continuity to ground at Pins 2, 4, and 6 (Circuit Z905).. Failure: High resistance indicates a compromised ground path, a common issue on off-road vehicles.
• 5-Volt Sensor Supply (3.6L) — expected: Above 4.5 volts at the sensor connector (e.g., Accelerator Pedal Position Sensor).. Failure: Voltage below 4.5V suggests a short or open in the 5-volt reference circuit from the PCM.

Scan Tool Commands That Help

• wiTECH / wiTECH 2.0: Flash ECU / Reprogram PCM — This is the primary function used to fix software corruption or to program a new or used PCM with the correct vehicle calibration file.
• wiTECH / Autel IM-series: Write VIN — This is required after installing a new or used PCM. The vehicle's VIN must be written to the module for it to communicate with other modules like the ABS and TIPM.
• wiTECH / Autel IM-series: Transfer Secret Key / SKIM Learn — This is a critical anti-theft step after PCM replacement. It syncs the PCM with the vehicle's immobilizer module (Sentry Key Immobilizer Module). Failure to do this will result in a no-start condition.
• wiTECH: Learn ETC (Electronic Throttle Control) — After a PCM is replaced and programmed, this function calibrates the electronic throttle body to the new module.
• wiTECH: Check PCM Odometer — Used to verify or write the vehicle's mileage into the new PCM to ensure consistency across modules.

Wiring & Ground Locations

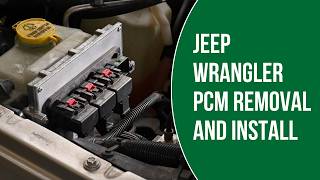

• Powertrain Control Module (PCM) — Located in the engine bay, on the driver's side firewall, mounted to a metal bracket.. This is the module setting the code. Its location makes it susceptible to heat and vibration, and its connectors can be exposed to moisture.
• PCM Main Ground Strap — A dedicated ground wire is secured under one of the PCM's 10mm mounting bolts.. A loose or corroded main ground for the PCM is a primary cause of unstable voltage, which can corrupt memory and trigger a P0602 code.
• CAN Bus Star Connector (Gateway) — Located behind the glove box, mounted on a metal support rail. It is a small hub where multiple CAN bus wire pairs connect.. This is a known weak point. Corrosion or bad solder joints inside this connector can disrupt communication between the PCM and other modules, causing a flood of U-codes and potentially leading the PCM to set internal error codes like P0602.
• Totally Integrated Power Module (TIPM) — The main fuse and relay box in the engine compartment.. The TIPM is not just a fuse box; it's a control module that supplies power to the PCM. Internal TIPM relay failures can cause unstable voltage or communication faults that are misdiagnosed as a bad PCM.

Real Owner Repair Stories

• Multiple YouTube and Forum Posts (2018+ Jeep Wrangler (JL), but concept applies to JK) — Multiple warning lights (Service Shifter, Stability Control), no-start, or going into limp mode. A flood of communication (U-prefix) codes.
  ❌ Tried (didn't work) Replacing individual sensors., Clearing codes, only for them to return immediately., Checking battery and alternator, which tested good.
  ✅ What actually fixed it The CAN Bus Star Connector located behind the glove box had failed. On inspection, solder joints inside the connector were found to be cracked or separated from heat. Replacing the small connector (Part example: 68321746AA) and reconnecting the bus harnesses resolved all communication errors.
• Common scenario from multiple programming service descriptions (2007-2017 Jeep Wrangler) — P0602 and no-start condition immediately after installing a used or remanufactured PCM.
  ❌ Tried (didn't work) Swapping the PCM back and forth with the old one., Checking all fuses and relays.
  ✅ What actually fixed it The replacement PCM was not plug-and-play. It required programming with a dealer-level tool (like wiTECH) to write the vehicle's VIN into the new module and perform the SKIM (Sentry Key Immobilizer) secret key transfer. Once the VIN and security key were programmed, the vehicle started and the code was resolved.

"I Checked Everything" — The Actual Cause

• The equivalent for this electronic code is 'Power and Grounds Test Good, But Problem Persists'. A technician may test the main power and ground pins directly at the PCM connector and find them to be perfect. However, the P0602 code and communication issues remain. The actual cause was often found to be a failing CAN Bus Star Connector behind the glove box. This part acts as a data hub, and its failure isolates the PCM from other modules, causing internal confusion and errors, even though its direct power supply is stable.

OEM Part Supersession History

• 68253684AA (For a 2016 Wrangler) → 68253684AB, AC, AD, AE, AF, AG, AH, AI — Revisions to address hardware or software vulnerabilities.
  Heads up: Generally, later revisions are backward compatible IF they are properly programmed for the vehicle's VIN and options. The last two letters are less important than the main part number and the programming.
• 56041313AA (For a 1997 TJ) → 56041313AB, 56041313AC, 56041313AD — Standard software and hardware updates over the part's lifecycle.
  Heads up: A used module must be from a vehicle with the same engine, transmission, and emissions type. Programming is required.

Model Year Variations Within This Range

• 2005-2006 (TJ): Uses a 4.0L engine with a Next Generation Controller (NGC) PCM. This PCM has four main connectors. Diagnostics focus on specific pins on these connectors.
• 2007-2011 (JK): Uses a 3.8L engine with an NGC PCM, but is heavily integrated with the failure-prone TIPM system. PCM failures in this era are often related to internal coil driver circuits or alternator control issues.
• 2012-2017 (JK): Uses a 3.6L Pentastar engine with a Global Powertrain Engine Controller (GPEC), which has two main connectors instead of four. This architecture is completely different from the NGC and is not cross-compatible.

Diagnostic Flowchart

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: A used PCM is a viable, cost-saving option ONLY if you have a confirmed plan for programming it. This means either taking it to a dealer/shop with a wiTECH subscription or using a mail-in service that can flash it with your VIN and SKIM data before shipping. It is never a plug-and-play part.

Donor-vehicle mileage cap: roughly under 150000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• Verify the part number on the donor PCM matches your original or is a known superseded number.
• Confirm the donor vehicle had the exact same engine, transmission, and emissions configuration.
• Inspect the connectors for any bent, corroded, or pushed-out pins.
• Check the case for any signs of physical damage, pry marks, or water intrusion.

OEM-only on this vehicle (don't cheap out):

• While remanufactured PCMs are common, using a blank Mopar OEM PCM and having it programmed by a dealer is the most surefire method to avoid compatibility issues. The critical component is the OEM-level software flash.

Aftermarket brands forum-validated for this vehicle:

• Cardone (Remanufactured)
• Standard Motor Products (Remanufactured)
• FS1 / Flagship One (Specialty Programmer)
• MAKS ECM Rebuilders (Specialty Programmer)

Brands owners have reported issues with on this vehicle:

• Any seller offering a 'plug-and-play' used PCM without requiring your vehicle's VIN and mileage for pre-programming. These are likely unprogrammed and will not work.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P0562 — System Voltage Low. This code directly supports the most common cause for P0602 on a Wrangler: an unstable power supply from a weak battery, failing alternator, or bad ground connection.
• U-CODES (E.G., U0100) — Lost Communication With ECM/PCM. The diagnostic steps note that communication codes often appear with P0602, indicating a broader network issue stemming from the PCM's failure or a CAN bus problem.
• P0601 — Internal Control Module Memory Check Sum Error. This is a direct companion code to P0602, indicating a different type of fatal internal PCM hardware or software failure.
• P0622 — Generator Field Control Circuit. This code was reported by an owner in conjunction with a faulty PCM. It can be set when the PCM's internal voltage regulator fails, which is a known issue covered by recall U87.
• P01XX CODES — Sensor Circuit High/Low codes. A failing PCM voltage regulator can supply incorrect voltage to various engine sensors, causing them to set false codes. An owner reported chasing multiple P01xx codes before identifying the PCM as the root cause.

Frequently Asked Questions
