P0603 on 2007-2013 Cadillac Escalade EXT: Keep Alive Memory (KAM) Error Guide

What's Unique About the 2007-2013 Cadillac ESCALADE EXT

On this generation of Cadillac Escalade and other GM trucks (GMT900 platform), P0603 is frequently a secondary code caused by a primary electrical issue, not a faulty computer. 🎬 Watch: What does the P0603 code actually mean? The provided NHTSA Technical Service Bulletins (TSBs) are significant because they show GM has documented that this code can appear in the Transmission Control Module (TCM), not just the main engine computer. This often leads to symptoms like poor shifting, which might cause a technician to incorrectly suspect the transmission itself. The root cause, however, is very often a simple power supply problem like a weak battery or a corroded ground strap, a common issue on these trucks.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Check Engine Light is on
• ABS or Traction Control light may be illuminated
• Transmission may shift harshly or erratically
• Engine may be hard to start or stall intermittently
• Rough or unstable idle
• Reduced fuel economy
• Hesitation during acceleration
• Message on Driver Information Center (DIC) about service warnings

Most Likely Causes

1. Weak or Failing Battery 🔴 High Probability → Shop Vehicle Battery These large vehicles have a high electrical demand, which can expose a weakening battery. A voltage drop during engine cranking is enough to erase the Keep Alive Memory. This is the most cited fix in owner forums.
   How to confirm: Use a multimeter to test the battery. A healthy battery should read about 12.6 volts with the engine off and 13.7 to 14.7 volts with the engine running. Most auto parts stores offer free battery load testing, which is more definitive.
   Typical fix: Replace the vehicle's battery.
   Est. part cost: $150-$350
2. Loose or Corroded Battery Terminals/Cables 🔴 High Probability → Shop Vehicle Battery
   How to confirm: Visually inspect the battery terminals for white or greenish corrosion. Wiggle the cable connections to ensure they are tight and do not move. Check both the positive and negative cable ends.
   Typical fix: Disconnect the battery (negative terminal first) and clean the terminals and cable ends with a wire brush or terminal cleaning tool. Reconnect securely (positive terminal first).
   Est. part cost: $5-$15
3. Poor or Corroded Ground Straps 🟡 Medium Probability → Shop Engine Ground Strap GMT900 trucks are known for having issues with chassis and engine ground straps corroding or becoming loose, causing a host of strange electrical problems. A poor ground can cause intermittent voltage drops to the control modules.
   How to confirm: Inspect the main ground locations. Key spots include the strap from the engine block to the firewall (often on the rear of the driver's side cylinder head), and grounds on the frame rail under the driver's door. Look for corrosion or looseness.
   Typical fix: Remove, clean, and securely re-attach the ground straps. In cases of heavy corrosion, the strap itself may need to be replaced.
   Est. part cost: $15-$50
4. Recent Battery Disconnect or Jump Start 🟡 Medium Probability → Shop Vehicle Battery
   How to confirm: If the battery was recently replaced, disconnected for service, or the vehicle was jump-started, this will almost certainly trigger a P0603 code. This is normal.
   Typical fix: Clear the code with an OBD-II scanner. If no other issues are present, the code should not return after a few drive cycles.
   Est. part cost: $0

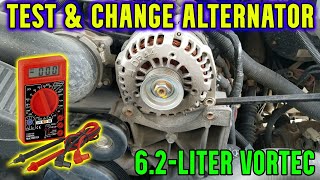

5. Failing Alternator ⚪ Low Probability → Shop Alternator
   How to confirm: With the engine running, check the battery voltage. If it's below 13.5 volts or fluctuating wildly, the alternator is likely failing to charge the battery properly.
   Typical fix: Replace the alternator.
   Est. part cost: $200-$450
6. Aftermarket Engine Tuner/Programmer ⚪ Low Probability
   How to confirm: If you have an aftermarket performance chip or programmer installed, it can sometimes interfere with the PCM's self-check routines.
   Typical fix: Remove the tune and return the PCM to its stock programming. Clear the codes and see if P0603 returns.
   Est. part cost: $0

Rare But Worth Checking

• Faulty Powertrain Control Module (PCM) or Transmission Control Module (TCM): → Shop Engine Control Module (ECM) This is the most expensive possibility and should only be considered after all power supply issues (battery, cables, grounds, alternator) have been definitively ruled out. The TSBs confirm this code can originate in the TCM.
• Blown Fuse or Damaged Wiring: A blown fuse for the PCM/TCM memory circuit or a break in the wiring that provides constant power can cause this code. This requires tracing the specific power circuits using a wiring diagram.

Diagnosis Steps

1. Read the code with an OBD-II scanner and note if it is stored in the ECM or TCM. TSB PIP4653E emphasizes verifying which module set the code.
2. Check if the battery has been recently disconnected. If so, clear the code, drive the vehicle for several key cycles, and see if it returns.
3. Visually inspect the battery terminals for corrosion and ensure the cable clamps are tight.
4. Test the battery voltage with the engine off (should be ~12.6V) and running (should be 13.7V-14.7V). A load test is recommended for a definitive diagnosis.
5. Inspect the main engine and chassis ground straps for tightness and corrosion. Pay special attention to the strap at the rear of the driver's side cylinder head to the firewall and the grounds on the frame under the driver's side.
6. Test the alternator output to ensure it is properly charging the battery.
7. If an aftermarket tuner is installed, flash the vehicle back to the stock tune and re-test.
8. If all power and ground systems are confirmed to be working correctly and the code returns, the issue may be with the PCM/TCM itself, which may require professional diagnosis.

Parts You'll Likely Need

• Vehicle Battery (OEM #ACDelco Gold 48AGM (or Group H6/L3/48)) — A weak or failing battery is the most frequent cause of a P0603 code, as the voltage drop during startup erases the Keep Alive Memory.
  Trusted brands: ACDelco, Duralast, DieHard, East Penn
  OEM price range: $250-$350
  Aftermarket price range: $170-$280
• Battery Terminal Cleaner — To ensure a clean, solid connection if the battery terminals are corroded, which is a common cause of intermittent power loss to the modules.
  OEM price range: $5-$15
  Aftermarket price range: $5-$15
• Engine Ground Strap (OEM #GM 19434466 (example)) — The original ground straps on GMT900 trucks can corrode and fail, leading to this code. Replacement is necessary if cleaning doesn't resolve a bad connection.
  Trusted brands: ACDelco, Dorman
  OEM price range: $25-$45
  Aftermarket price range: $15-$30

Related Codes That Often Appear With This One

• P0601 — This is an 'Internal Control Module Memory Check Sum Error', which is a related but more severe internal module fault. The TSBs group them together.
• P0604 — This indicates an 'Internal Control Module RAM Error', another related memory fault within the control module.
• P1621 — This is a GM-specific code for 'Control Module Long Term Memory Performance', which is very similar to P0603 and is often seen with it per TSB PIP4653E.

Technical Service Bulletins (TSBs) & Recalls

• PIP4653E: Notes that P0603 can be stored in the TCM and cause shifting concerns. It is critical to identify which module stored the code before reprogramming or replacing parts.
• 05-06-04-060A: Communicates that P0603 and other similar codes can be set in multiple modules.

Platform-Specific Known Issues

• Per TSB #PIP4653E, this code can be stored in the Transmission Control Module (TCM), causing shifting issues. The bulletin warns technicians to verify which module set the code before attempting repairs.
• TSB #05-06-04-060A notes that P0603 is part of a group of diagnostic codes that can be shared across multiple control modules, indicating a potential systemic electrical issue rather than a single component failure.
• Owners on forums for GMT900 platform vehicles frequently report resolving P0603 and associated erratic electrical behavior by finding and cleaning corroded ground points on the frame and from the engine to the firewall.

Mechanic-Grade Diagnostic Values

• Battery Voltage for Module Reprogramming — expected: Greater than 12 volts but less than 16 volts.. Failure: Voltage outside this range can cause programming to fail or damage the module.

Scan Tool Commands That Help

• GDS2/Tech2: Service Fast Learn — Required after reprogramming or replacing the Transmission Control Module (TCM) to reset adaptive values. This may be necessary if P0603 was set in the TCM and caused shifting issues.

Wiring & Ground Locations

• G104 — On the rear of the driver's side (left) cylinder head.. This is a primary engine-to-chassis ground point. Corrosion or looseness here can cause intermittent power issues for multiple modules.
• G108 — At the top of the firewall, where the main ground strap from the cylinder head (G104) attaches.. This is the other end of the critical engine ground strap. Both ends must be clean and tight.
• G103 — On the driver's side of the engine block, closer to the oil pan.. Another engine block ground point that ensures proper grounding for various sensors and components.
• G300 — Under the vehicle on the frame rail, near the driver's door area.. This is a critical body/chassis ground. Owners frequently report that corrosion at this specific point causes numerous strange electrical problems, including those that can trigger a P0603.
• G201 — Inside the cabin, in the upper left corner of the instrument panel near the A-pillar (requires dash disassembly to access).. This grounds instrument panel components and can be a factor if other interior electrical symptoms are present.

Real Owner Repair Stories

• Tahoe Yukon Forum (GMT900 Platform Truck (e.g., Tahoe, Escalade)) — Weird problems with dash lights, messages on the DIC, bad fuel mileage, and possessed rear wiper.
  ✅ What actually fixed it The owner found a corroded ground wire that had fallen off its stud on the frame under the driver's side door. They cleaned the frame contact point with a Dremel, used a new stainless steel bolt to reattach it, and the multiple electrical problems were solved.
