P0603 on 2007-2011 Chevrolet Express: Keep Alive Memory (KAM) Error Causes and Fixes

What's Unique About the 2007-2011 Chevrolet EXPRESS

On the Chevrolet Express, like other GM trucks of this era, the electrical system is sensitive to voltage drops. A P0603 code is a very common and often harmless side effect of disconnecting the battery for service or replacement. A GM Technical Service Bulletin (TSB #05-06-04-060A) acknowledges that this and other similar internal module codes can be set across various control modules, suggesting it's a known electrical characteristic rather than an immediate sign of a major component failure. 🎬 Watch: A quick breakdown of P0603 causes and solutions. The bulletin cautions technicians against immediate module replacement and to identify which module set the code before diagnosing.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Check Engine Light is on.
• Rough or unstable idle, especially after starting.
• Hesitation during acceleration.
• Harsh or erratic transmission shifting.
• Engine may be hard to start or stall intermittently.
• Reduced fuel economy.
• Illuminated ABS or traction control light.

Most Likely Causes

1. Weak, Failing, or Recently Disconnected Battery 🔴 High Probability → Shop Vehicle Battery These vans have significant electrical demands, and their control modules are sensitive to low voltage, especially during engine cranking. A power interruption from disconnecting the battery is the most common trigger. A momentary voltage drop during startup is enough to erase the KAM.
   How to confirm: Check if the battery was recently serviced. If not, test the battery voltage. It should be above 12.4 volts with the engine off and 13.5-14.5 volts when running. A load test at an auto parts store is the most definitive way to confirm battery health, as a battery can show good voltage but fail under load.
   Typical fix: If the battery was just disconnected, clear the code and drive. If the battery is weak, replace it. Using a memory saver tool during battery replacement can prevent this code.
   Est. part cost: $150-$300
2. Loose or Corroded Battery Terminals/Cables 🟡 Medium Probability → Shop Vehicle Battery Corrosion is common on battery terminals and can create enough resistance to interrupt the constant power supply required for the PCM's Keep Alive Memory. The negative battery cable assembly itself can also corrode internally, causing high resistance.
   How to confirm: Visually inspect the battery terminals, cable ends, and main chassis ground connections for corrosion (white or greenish powder) or looseness. A voltage drop test across the cables can confirm high internal resistance.
   Typical fix: Disconnect the battery (this will set the P0603 code if it's not already present), clean the terminals and cable ends with a wire brush, and re-secure them tightly. In some cases, the entire negative battery cable assembly may need replacement.
   Est. part cost: $5-$75
3. Faulty Alternator or Charging System ⚪ Low Probability → Shop Alternator If the alternator is failing, it may not provide a consistent voltage to charge the battery and run the vehicle's electronics, causing voltage drops that trigger the code.
   How to confirm: With the engine running, check the battery voltage. If it's below 13.5 volts or fluctuating wildly, the alternator is likely failing.
   Typical fix: Replace the alternator.
   Est. part cost: $200-$450
4. Faulty Powertrain Control Module (PCM) ⚪ Low Probability → Shop Engine Control Module (ECM) While rare, the PCM itself can fail and lose its ability to retain memory. This is almost never the root cause unless visible damage or water intrusion is present.
   How to confirm: This is a diagnosis of exclusion. If the battery, all connections, grounds, and the charging system are confirmed to be in perfect working order, and the code consistently returns immediately after being cleared, the PCM may be at fault. A professional may need to perform deeper diagnostics.
   Typical fix: Replace and reprogram the PCM. This typically requires a professional.
   Est. part cost: $400-$800

Rare But Worth Checking

• Poor Engine or Body Ground Connections: A corroded or broken ground strap between the engine and the chassis can cause a wide range of bizarre electrical issues, including memory loss in control modules. On GM trucks, key grounds to inspect are G102 and G103 on the engine block/cylinder heads and the main ground strap from the battery to the engine block. A ground point under the driver's door on the frame rail is also a known trouble spot.
🎬 Watch: How to find and fix common Chevy ground wire issues.
• Improperly Installed Aftermarket Accessories: Aftermarket remote starters, alarms, stereos, or performance tuners can cause parasitic battery drain or voltage fluctuations if not wired correctly, leading to a P0603 code. If you have an aftermarket tuner, returning the vehicle to the stock tune is a critical diagnostic step.
• Faulty Ignition Switch: In some cases documented on forums for the same vehicle platform, a failing ignition switch caused intermittent power loss to multiple modules during cranking or driving, leading to a P0603 code among other electrical issues.

Diagnosis Steps

1. Scan for any other trouble codes. Address other codes first, as they may be the root cause.
2. Ask if the battery has been recently disconnected or replaced. If so, clear the code, drive the vehicle for 15-20 minutes, and see if the code returns. If it doesn't, the issue is resolved.
3. Visually inspect the battery terminals and cable ends for looseness or corrosion. Clean and tighten as needed.
4. Test the battery. Use a multimeter to check for at least 12.4 volts with the engine off. Perform a load test to confirm its health.
5. Test the charging system. With the engine running, ensure the voltage at the battery is between 13.5 and 14.5 volts.
6. Inspect the main engine-to-chassis ground straps for corrosion or damage. Key locations include the main battery-to-engine block cable and straps on the cylinder heads (G102/G103).
7. Check fuses related to the PCM and ignition system in the underhood fuse block.
8. If an aftermarket tuner is installed, return the vehicle to its stock factory tune and see if the code disappears.
9. If all power and ground sources are good and the code persists, the PCM may be faulty. This step may require professional diagnosis.

Parts You'll Likely Need

• Car Battery (OEM #ACDelco Gold 48AGM (Group Size 48, AGM Recommended)) — A weak or failing battery is the number one cause of the voltage drop that triggers a P0603 code.
  Trusted brands: ACDelco, Deka, Interstate
  OEM price range: $200-$300
  Aftermarket price range: $150-$250
• Battery Terminals — Corroded or damaged terminals are a frequent cause of poor electrical connections that lead to this code.
  Trusted brands: Dorman, Standard Motor Products
  OEM price range: $20-$40
  Aftermarket price range: $10-$25

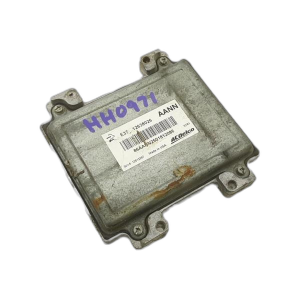

• Powertrain Control Module (PCM) (OEM #ACDelco 12612384 (Fits 2008 Express, verify by VIN)) — This is the last resort when all power, ground, and charging system issues have been ruled out, and the code persists.
  Trusted brands: ACDelco (GM Genuine)
  OEM price range: $500-$800
  Aftermarket price range: $300-$500

Related Codes That Often Appear With This One

• P0601 — This indicates an internal memory checksum error in the control module. Both P0601 and P0603 point to internal module self-test failures, as noted in TSB 05-06-04-060A.
• P0602 — This indicates a control module programming error. It can appear alongside P0603 if a power interruption occurred during a programming event or if the module is failing.
• P0604 — This indicates a Random Access Memory (RAM) error within the control module, closely related to the Keep Alive Memory (KAM) function that triggers P0603.

Technical Service Bulletins (TSBs) & Recalls

• 05-06-04-060A: This informational bulletin from GM informs technicians that several internal control module codes (P0601, P0602, P0603, P0604, etc.) can be set in multiple modules. It cautions against immediate module replacement and advises careful diagnosis to determine which module is the source and to rule out simple power/ground issues first.

Platform-Specific Known Issues

• Sensitivity to Low Voltage During Cranking: The GMT610 (Express/Savana) and related GMT900 (Silverado/Tahoe) platforms are well-documented in owner forums for their sensitivity to battery voltage during engine start. Even a slightly weak battery that can still crank the engine may drop voltage enough to reset the PCM's keep-alive memory, setting a P0603 without any other real fault present.
• Known Problematic Ground Locations: Beyond the main battery terminals, these vans can develop poor ground connections over time. A common spot mentioned by owners is the main ground strap from the engine to the frame. A video guide for the similar GMT900 platform identifies specific grounds like G102 (left rear of engin

Mechanic-Grade Diagnostic Values

• PCM Keep Alive Memory (KAM) Power Feed Voltage — expected: Constant Battery Voltage (12.4V+). Failure: Any voltage loss or reading below battery voltage indicates a problem in the power supply circuit.
• PCM Ground Circuit Voltage Drop — expected: Less than 0.1 Volts DC. Failure: A reading greater than 0.3 Volts is unacceptable and indicates high resistance from corrosion or a faulty wire.
• PCM Ground Circuit Resistance — expected: Less than 2.0 Ohms. Failure: A reading higher than 2.0 Ohms suggests a poor ground connection. Note: A voltage drop test is the preferred method for checking grounds under load.

Scan Tool Commands That Help

• Tech2 / GDS2: Module Identification — Because TSB 05-06-04-060A notes that P0603 can be set in multiple modules, the first step is to use a professional scanner to determine which specific module (ECM, TCM, BCM, etc.) has logged the fault. This focuses the diagnostic effort.
• Tech2 / GDS2: Crankshaft Position System Variation Learn — If the P0603 code was set due to a significant power loss or after PCM replacement, a separate code P0315 for the crank relearn may also be present. This procedure must be performed with a scan tool to recalibrate the crankshaft position sensor for accurate misfire detection.

Wiring & Ground Locations

• KAM Power Feeds — At the main Engine Control Module (ECM/PCM), located on the left side of the engine compartment.. These are the specific wires that provide constant battery power to maintain the Keep Alive Memory. On the E38 ECM, these are the Orange wires at Pins 20 and 57 of the C1 (Blue) connector. Loss of voltage here is the direct electrical cause of P0603.
• G102 — On the rear of the left (driver's side) cylinder head.. This is a primary engine-to-chassis ground point. Many of the PCM's own ground circuits are consolidated here. A poor connection at this stud can cause a floating ground, leading to memory loss and other erratic electrical behavior.
• G103 — On the front of the right (passenger's side) cylinder head.. This is another critical PCM and sensor ground location. On some GM trucks, the main negative battery cable connects directly here or nearby, making it essential for the entire engine management system.
• Underhood Fuse Block (Junction Block) — On the left side of the engine compartment, near the battery.. The power for the KAM circuit originates from a fuse in this block. A poor connection at the fuse, a corroded terminal underneath, or a chafed wire at the mounting bracket can interrupt power to the PCM.

OEM Part Supersession History

• Varies by year/VIN → 12612384 (Remanufactured) — Standard service replacement part.
  Heads up: Part #12612384 is a common service replacement for the E38 ECM used in this era, including the 2008 Express. However, it always requires programming to the specific vehicle's VIN and calibration file. It will not work as a plug-and-play replacement.

Model Year Variations Within This Range

• 2007-2011: It is a known pattern that GM vans (Express/Savana) sometimes use powertrain components and wiring harnesses from the previous model year of the trucks (Silverado/Sierra). A technician working on a 2007 Express, for example, might find that wiring diagrams for a 2006 Silverado are a more accurate match than 2007 truck diagrams. This is crucial to remember when tracing circuits.
