P0603 on 2007-2011 GMC Sierra Denali: Keep Alive Memory (KAM) Error Causes and Fixes

What's Unique About the 2007-2011 Gmc SIERRA DENALI

On the GMT900 platform, which includes the 2007-2011 Sierra Denali, P0603 is a very common code that almost never points to a failed computer. The electrical architecture of these trucks is sensitive to voltage drops, and the most frequent culprits are an aging battery or poor ground connections. GM has issued service bulletins acknowledging that this and other similar codes can appear across multiple modules, advising technicians to investigate systemic electrical issues before replacing expensive components like the PCM or TCM.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Check Engine Light is illuminated.
• Erratic or harsh transmission shifting.
• Rough or unstable idle.
• Reduced fuel economy.
• Engine may be hard to start or stall intermittently.
• Factory remote start may be disabled.
• Other warning lights, like for the ABS or traction control, may illuminate.

Most Likely Causes

1. Weak or Failing Battery 🔴 High Probability → Shop Vehicle Battery These trucks have significant electrical demands. An aging battery that drops below the required voltage (approx. 10.5V) during engine cranking is the most common trigger for a KAM reset. Many owners report that a battery that seems to start the truck fine can still be weak enough to cause this code.
   How to confirm: Use a multimeter to check battery voltage. A healthy battery should read about 12.6V with the engine off and 13.7-14.7V while running. A load test, which many auto parts stores perform for free, is the most definitive way to confirm battery health.

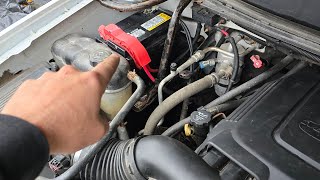

   Typical fix: Replace the vehicle's battery. Common sizes for this truck are BCI Group 48 (H6) or Group 94R (H7) 🎬 Watch: Step-by-step battery replacement for your Sierra Denali, with AGM type being recommended.
   Est. part cost: $170-$350
2. Loose or Corroded Battery Terminals and/or Ground Wires 🔴 High Probability → Shop Vehicle Battery The main chassis ground connections on GMT900 trucks are exposed to road salt and moisture, making them prone to corrosion. Key locations include the engine-to-firewall strap (G104 to G108) and the ground on the cylinder head (G103).
   How to confirm: Visually inspect battery terminals for corrosion. Follow the negative battery cable to its connection points. Inspect the braided ground strap from the rear of the driver's side cylinder head (G104) to the firewall (G108). A voltage drop test across the ground circuit can confirm high resistance; it should be less than 0.2V.
   Typical fix: Disconnect the battery. Thoroughly clean the battery posts, terminal clamps, and all main ground connection points (G103, G104, G108) with a wire brush until shiny. Reassemble and apply dielectric grease to prevent future corrosion. 🎬 See how to fix common GM truck ground issues
   Est. part cost: $5-$20
3. Recent Battery Disconnection or Replacement 🟡 Medium Probability → Shop Vehicle Battery
   How to confirm: If the code appeared immediately after the battery was disconnected for service, jump-started, or replaced, this is the expected cause.
   Typical fix: Clear the code with a scanner. If no underlying issue exists, the code will not return. The vehicle will relearn its adaptive strategies over the next few drive cycles. A memory saver tool can prevent this during service.
   Est. part cost: $0
4. Failing Alternator ⚪ Low Probability → Shop Alternator
   How to confirm: With the engine running, measure the voltage at the battery terminals. If it is below 13.5V or fluctuating wildly, the alternator is likely failing to charge the battery properly.
   Typical fix: Replace the alternator.
   Est. part cost: $200-$450
5. Aftermarket Accessories or Tuning ⚪ Low Probability
   How to confirm: The code is common on trucks with aftermarket engine performance tuners (e.g., DiabloSport, Superchips). Poorly installed remote starters or audio equipment can also cause a parasitic draw or voltage interference. If you have such devices, temporarily disconnect them or revert to the stock tune to see if the code disappears.
   Typical fix: Remove the aftermarket tuner or have the wiring for the accessory professionally repaired.
   Est. part cost: $0-$150

Rare But Worth Checking

• Faulty Powertrain Control Module (PCM) or Transmission Control Module (TCM): → Shop Engine Control Module (ECM) This is extremely rare and should be considered a last resort. Both manufacturer TSBs for this vehicle warn against premature module replacement. All power and ground supply issues must be definitively ruled out first.

Diagnosis Steps

1. Check if the battery has been recently disconnected or replaced. If so, clear the code and drive the vehicle to see if it returns.
2. Perform a full battery and charging system test. Check voltage with the engine off (~12.6V) and running (13.7-14.7V). Perform a load test on the battery.
3. Disconnect the battery. Thoroughly inspect and clean the battery terminals and cable ends.
4. Locate and inspect the key ground points. Check the ground on the passenger side cylinder head (G103) and the braided strap from the driver's side cylinder head (G104) to the firewall (G108). Clean these points with a wire brush and ensure they are tight.
5. If the battery is healthy but the code returns, perform a parasitic draw test to check for components draining power while the vehicle is off.

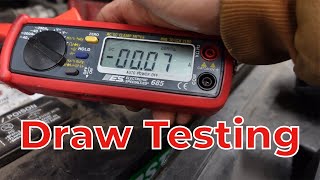

🎬 Watch: How to perform a parasitic draw test
6. Inspect for any aftermarket electronic accessories (remote starters, alarms, tuners). If present, revert to the stock tune or disconnect the accessory to isolate the issue.
7. If all power and ground circuits are confirmed to be in perfect condition, only then should you consider a faulty control module as the potential cause.

Parts You'll Likely Need

• Vehicle Battery (OEM #ACDelco Gold 94RAGM (GM P/N: 88864542) or 48AGM (GM P/N: 88864541)) — A weak or failing battery is the number one cause of code P0603 on this truck, as it cannot provide the stable voltage needed to maintain the control module's Keep Alive Memory.
  Trusted brands: ACDelco, DieHard, Odyssey
  OEM price range: $200-$300
  Aftermarket price range: $170-$280
• Battery Terminals / Cable Ends (OEM #e.g., GM 22846469 (Negative Cable, verify by VIN)) — Corroded or damaged terminals prevent a solid electrical connection, causing voltage drops that trigger the P0603 code. The factory negative terminal is known to stretch and cause a poor connection.
  Trusted brands: ACDelco (GM Genuine), Dorman, Standard Motor Products
  OEM price range: $40-$80
  Aftermarket price range: $10-$50

Related Codes That Often Appear With This One

• P0601 — This indicates an internal memory checksum error. Both P0601 and P0603 can be triggered by voltage fluctuations or internal module faults, as noted in TSB #PIP4653E.
• P0604 — This indicates a RAM error. Like P0603, it points to a memory issue within a control module that is often caused by an unstable power supply. TSB #PIP4653E also lists this code.
• P1621 — A GM-specific code for 'Control Module Long Term Memory Performance'. It is frequently cited alongside P0603 in TSB #PIP4653E, often pointing to an internal TCM fault.

Technical Service Bulletins (TSBs) & Recalls

• Bulletin #PIP4653E: Notes that P0603 may be found in the Transmission Control Module (TCM) along with other codes (P0601, P0604, P1621). It advises technicians to confirm which module set the code, especially if there are shifting complaints, before proceeding with repairs.
• Bulletin #05-06-04-060A: An informational bulletin that communicates to technicians that P0603 and other P06xx codes can be shared across multiple modules. It cautions against immediate module replacement and emphasizes proper diagnosis to find the source module.

Platform-Specific Known Issues

• Corrosion-Prone Ground Locations: The main chassis and engine ground points on GMT900 trucks are notoriously prone to corrosion. Specifically, the braided ground strap running from the driver's side cylinder head (G104) to the firewall (G108) and the ground on the passenger side cylinder head (G103) are common failure points that cause intermittent voltage issues and trigger P0603.
• Aftermarket Remote Start Interference: A real-world owner experience on GM-Trucks.com detailed a case where a poorly installed aftermarket remote start system was tapped into a PCM power source, causing a voltage drain that repeatedly set the P0603 code. Removing the system resolved the issue permanently.

Mechanic-Grade Diagnostic Values

• PCM/TCM Power and Ground Pin Voltage Drop — expected: < 0.1 Volts (100 millivolts). Failure: A reading greater than 0.1V indicates excessive resistance in the wiring or connections, which can cause a KAM reset.
• Parasitic Draw (Quiescent Draw) — expected: < 50 milliamps (mA). Failure: A sustained draw over 50-80mA after all modules have gone to sleep (wait at least 20 minutes) indicates a component is not shutting down and is draining the battery, causing the P0603 on startup.
• Alternator Output Voltage (Engine at Idle) — expected: 13.7 - 14.7 Volts. Failure: Voltage below 13.5V or fluctuating wildly indicates the alternator is not properly charging the battery, leading to low voltage conditions that trigger P0603.
• Battery Voltage (Engine Off) — expected: ~12.6 Volts. Failure: A reading below 12.4V suggests a discharged or failing battery that cannot maintain the constant power required for Keep Alive Memory.

Scan Tool Commands That Help

• GDS2 / Tech2: Clear DTCs — This is the first step after any battery service or power interruption. If P0603 was set due to the intentional power loss, it will not return after being cleared, confirming no underlying fault exists.
• GDS2 / Tech2: Module Information / ID Information — To verify the software and calibration files on the PCM/TCM. This is useful for checking if an aftermarket tune is present, as tuners are a known cause of P0603.

Wiring & Ground Locations

• Negative Battery Cable to Engine Block — The main, thick ground cable from the negative battery terminal to a bolt on the engine block.. This is the primary ground for the alternator and engine. High resistance here can cause charging system problems and electrical noise, leading to module voltage instability and P0603.
• G104 to G108 — Braided ground strap from the rear of the driver's side cylinder head to the firewall.. This is a critical body ground. It provides the ground path for many interior modules and the instrument panel. Corrosion here can cause intermittent power loss to various controllers, triggering memory-related codes like P0603.

Real Owner Repair Stories

• GM-Trucks.com forum user (2011 GMC Sierra 1500) — Check engine light with code P0603, and the factory remote start was not working.
  ❌ Tried (didn't work) Initial diagnosis was unclear, focusing on standard battery and connection checks.
  ✅ What actually fixed it The owner discovered a faulty aftermarket remote start system had been poorly installed. A power wire for the remote start module was tapped into a critical PCM power source, causing a constant voltage drain. Removing the aftermarket system and repairing the spliced wire permanently resolved the P0603 code.

"I Checked Everything" — The Actual Cause

• A common scenario for P0603 is when the battery, alternator, and all visible ground connections test perfectly. The root cause is often a parasitic draw, where a module or component fails to enter its 'sleep' mode after the ignition is off. This slowly drains the battery overnight, causing its voltage to drop low enough to erase the KAM. The code then appears on the next startup. This is why a parasitic draw test is a critical step if the initial, more obvious checks pass.

When the Usual Fixes Don't Work

• While the vast majority of P0603 codes on this platform are resolved by addressing the battery, terminals, or grounds, a persistent code after these items have been confirmed good points strongly toward a parasitic draw. Before condemning an expensive control module, a parasitic draw test is the next mandatory diagnostic step. A real-world example showed an aftermarket remote start causing such a draw, which would not have been found by only checking the battery and grounds.

OEM Part Supersession History

• 15252178, 15826906, 20905414, 25848470, 25878311 → 22846469 — Part consolidation and potential design improvements to the cable terminal to prevent stretching and corrosion issues that caused poor connections.
