P0604 on 2011-2015 Chevrolet Cruze: Internal Memory Error Causes and Fixes

What's Unique About the 2011-2015 Chevrolet CRUZE

On this generation of Chevrolet Cruze and its platform mates, the P0604 code is frequently linked to the Transmission Control Module (TCM), not just the main engine computer (PCM). Manufacturer Technical Service Bulletin (TSB) #PIP4653E specifically directs technicians to investigate the TCM when this code appears with shifting problems. Unlike some other GM vehicles where the TCM is inside the transmission (a TEHCM), on many Cruzes, the TCM is a separate unit bolted to the transmission housing, often behind the battery tray, making access easier.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Check Engine Light is on
• Transmission may shift harshly, erratically, or with significant delay
• Transmission may get stuck in one gear (e.g., 3rd or 5th gear 'limp mode')
• Engine may stall, misfire, or be hard to start
• Vehicle may enter 'Reduced Power' or 'limp mode'
• ABS or Traction Control lights may illuminate
• PRNDL shift indicator on the dashboard may go blank

Most Likely Causes

1. Weak or Failing Battery / Poor Connections 🔴 High Probability → Shop Vehicle Battery Modern vehicle electronics, especially control modules, are highly sensitive to voltage. A weak battery or a poor ground connection (like the G101 on the engine block) can cause temporary memory corruption during startup, mimicking a module failure.
   How to confirm: Perform a load test on the battery, not just a voltage check. It should hold a charge above 12.4 volts with the engine off. Check that the alternator output is stable, typically between 13.5 and 14.5 volts. Inspect and clean all battery terminals and main ground straps, especially the primary ground (G101) on the engine block. 🎬 See this walkthrough for replacing the negative battery cable
   Typical fix: Charge or replace the battery. Clean or replace corroded terminals and ground straps.
   Est. part cost: $10-$300
2. Transmission Control Module (TCM) Software Glitch 🟡 Medium Probability → Shop Transmission Assembly GM TSB #PIP4653E specifically notes that this code can be stored in the TCM due to software anomalies and recommends reprogramming as a first step. This indicates that the original programming may have flaws that are corrected in later updates.
   How to confirm: A professional scan tool is needed to confirm the code is stored in the TCM and to check for available software updates via the GM TIS2Web service.
   Typical fix: Reprogramming the TCM with the latest software calibration from a GM dealer or a qualified shop with a J2534 pass-thru device.
   Est. part cost: $100-$250 (Labor for reprogramming)
3. Faulty Transmission Control Module (TCM) 🟡 Medium Probability → Shop Transmission Assembly The 6T30/6T40 series TCM is a known failure point. As noted in TSB #PIP4653E, the TCM is a known point of failure for this code. Heat and vibration can cause internal components or solder joints to fail over time.
   How to confirm: If reprogramming the TCM fails and the battery/charging system are confirmed to be good, the module itself is the likely culprit. Diagnosis requires a professional scan tool to isolate the fault to the TCM.
   Typical fix: Replace the Transmission Control Module. This part is often located on the exterior of the transmission case. The new module must be programmed to the vehicle's VIN.
   Est. part cost: $300-$700
4. Faulty Powertrain Control Module (PCM) ⚪ Low Probability → Shop Engine Control Module (ECM) While less common than a TCM issue for this specific code on a Cruze, the PCM can still fail its internal RAM self-check due to hardware degradation.
   How to confirm: This is a diagnosis of exclusion. If the code is confirmed to be in the PCM and all other causes (battery, wiring, TCM) have been ruled out, the PCM is likely faulty.
   Typical fix: Replace the PCM and program it to the vehicle's VIN.
   Est. part cost: $370-$600

Rare But Worth Checking

• Wiring Harness Issue: A short or open in the power or ground circuit to the PCM or TCM can cause voltage drops that trigger a P0604 code. This can be caused by chafing against the chassis, corrosion in a connector, or rodent damage.

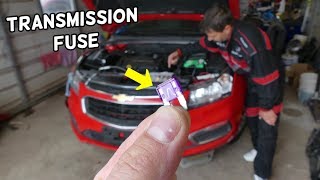

🎬 Watch: How to find and check the transmission fuse
• Aftermarket Tuning: Improperly loading a custom engine or transmission tune can sometimes corrupt the module's memory or cause checksum errors, leading to a P0604 code.

Diagnosis Steps

1. Connect a professional-grade OBD-II scanner and confirm which module (PCM or TCM) has stored the P0604 code.
2. Check for any other stored DTCs, paying close attention to P0700 (TCM fault) or other P06xx/U-series codes.
3. Thoroughly test the battery's health with a load tester. Ensure it is fully charged and capable of holding a load.
4. With the engine running, use a multimeter to check the charging system voltage. It should be stable and within the manufacturer's specification (typically 13.5-14.5V).
5. Inspect all battery terminals, main power cables, and chassis/engine ground straps for tightness and corrosion. Pay special attention to the G101 ground on the engine block.
6. If the electrical system is sound, check with a dealer or qualified shop for any available software updates for the module that stored the code. This is a mandatory step per TSB #PIP4653E before replacement.
7. If the code persists, perform a voltage drop test on the power and ground circuits for the affected module to rule out wiring issues.
8. Inspect the wiring harness and connectors to the affected module for any signs of physical damage, chafing, or corrosion.
9. If all previous steps fail to resolve the issue, the control module (TCM or PCM) that stored the code is likely faulty and requires replacement and programming.

Parts You'll Likely Need

• Transmission Control Module (TCM) (OEM #24256524 (Gen 1, check VIN for exact fitment), 24286712 (Gen 2)) — As per GM TSB #PIP4653E, the TCM is a frequent source of the P0604 code on this platform, due to either software glitches or internal failure. This part number is for the Gen 1 6T40/6T45 transmission and is widely cited.
  Trusted brands: ACDelco (OEM), Dorman
  OEM price range: $400-$700
  Aftermarket price range: $300-$550
• Powertrain Control Module (PCM) — If the fault is isolated to the PCM and not the TCM or electrical system, the PCM itself has failed its internal memory check and needs replacement.
  Trusted brands: ACDelco
  OEM price range: $400-$600
  Aftermarket price range: $350-$500
• Battery — A weak or failing battery is a very common cause of this code, as unstable voltage can corrupt the module's RAM during startup.
  Trusted brands: ACDelco, DieHard, Interstate
  OEM price range: $180-$250
  Aftermarket price range: $150-$220

Related Codes That Often Appear With This One

• P0700 — This code means 'Transmission Control System Malfunction.' The PCM sets this code to turn on the check engine light when the TCM has stored a fault, such as P0604. Seeing P0700 is a strong indicator the problem is in the transmission's control system.
• P0601, P0603, P1621 — These are all related internal control module memory or processor error codes. TSBs from GM group them together as a family of faults that can occur in the same modules.
• U0101 — This code indicates 'Lost Communication with TCM'. It can appear alongside P0604 if the TCM is failing intermittently or has completely failed, causing it to drop off the vehicle's communication (CAN bus) network.
🎬 Watch: Troubleshooting TCM communication issues and limp mode

Technical Service Bulletins (TSBs) & Recalls

• PIP4653E: Advises that DTCs P0601, P0603, P0604, P062F, or P1621 may be stored in the Transmission Control Module and to check for software updates before replacement.
• 05-06-04-060A: An informational bulletin that groups P0604 with other internal control module DTCs that can be set by various issues, including low voltage.

Platform-Specific Known Issues

• Per TSB #PIP4653E, this code is often stored in the Transmission Control Module (TCM), causing shifting issues. Technicians are advised to check for TCM software updates before replacing the module.
• TSB #05-06-04-060A is an informational bulletin confirming that P0604 is part of a family of internal module errors that can be triggered by issues like low voltage.
• The TCM for the 6-speed automatic (6T30/6T40) is a known weak point. A user on AliExpress shared their experience replacing the TCM on a 2012 Cruze after experiencing erratic shifting and persistent codes, which a re-flash did not fix.

Mechanic-Grade Diagnostic Values

• TCM Power Supply Voltage (Ignition On) — expected: 12.0 - 12.6 V at the TCM connector power pin.. Failure: No voltage or significantly low voltage points to a blown fuse or an open in the power wire.
• TCM Ground Circuit Resistance — expected: Below 0.5 Ohms between the TCM ground pin and a clean chassis ground.. Failure: High resistance indicates a corroded, loose, or broken ground connection.
• Battery Voltage at Module (during cranking) — expected: Should stay above 9.0 V.. Failure: A drop below 9.0 V indicates a weak battery or excessive starter draw, which can corrupt module memory.
• Negative Battery Cable Voltage Drop (Engine Running) — expected: Less than 0.2 Volts.. Failure: A reading higher than 0.2V suggests a high-resistance fault within the negative battery cable itself, a known issue on some Cruze models.

Scan Tool Commands That Help

• GDS2 / Tech 2: Service Programming System (SPS) — This is the mandatory function used to reprogram an existing TCM with updated software or to program a brand new replacement TCM to the vehicle's VIN.
• GDS2 / Tech 2: Idle Learn Reset — After reprogramming or replacing a PCM/TCM, this function may be required to reset idle parameters and prevent idle-related codes.
• GDS2 / Tech 2: Transmission Adaptive Pressure Reset — This should be performed after replacing or reprogramming the TCM to clear old learned shift data and allow the module to relearn shift pressures, ensuring smooth shifting.

Wiring & Ground Locations

• TCM Fuse #1 — In the underhood fuse block. It is typically a 15-amp fuse and is the primary power source for the TCM.. A blown fuse will cut all power to the TCM, causing communication loss (U0101) and potentially logging memory codes if power is intermittent before complete failure.
• G101 — Located at the front left (driver's side) of the engine, on the lower block. It is part of the main negative battery cable harness.. This is a primary ground for the Engine Control Module (ECM) and Transmission Control Module (TCM). A poor connection here can cause unstable voltage and trigger memory-related codes like P0604.
• G103 — On the left front shock tower in the engine compartment.. This ground serves multiple components, including the instrument cluster and BCM. While not a direct TCM ground, a fault here can cause widespread electrical issues that may affect module communication.
• Connector X3 (Underhood Fuse Block) — A large connector at the underhood fuse block.. The power feed from the TCM fuse travels through this connector. A bent or corroded pin (specifically pin 37 in some cases) can interrupt power to the TCM, causing communication and memory codes.

Real Owner Repair Stories

• Reddit user in r/cruze (2014 Chevy Cruze) — Check Engine Light with code U0101 (Lost Communication with TCM) appeared after a battery change.
  ❌ Tried (didn't work) Replacing the negative battery cable.
  ✅ What actually fixed it A local mechanic found and tightened a loose ground bolt further down from the battery, resolving the communication issue for a $125 diagnostic fee.

OEM Part Supersession History

• Multiple (e.g., 24248192, 24251677, 24252871) → 24256524 — Standard part evolution and consolidation for the Gen 1 6T40/6T45 TCM.
  Heads up: Part 24256524 has itself been superseded by 24041956. It is critical to use a part number compatible with the specific model year, as Gen 1 and Gen 2 TCMs are not interchangeable.

Model Year Variations Within This Range

• 2011-2012: These early model years primarily used the Gen 1 6T40 automatic transmission, which is known to be less reliable and prone to failure. The TCMs for these units are not compatible with later generations.
• 2013-2015: Starting around the 2013 model year, the Cruze began using the more robust Gen 2 version of the 6T40/6T45 transmission. This also involved a different, incompatible TCM.
• 2014-2015: A 2.0L turbodiesel engine option was added, which uses a different transmission and control module setup compared to the 1.8L and 1.4L gasoline engines.
