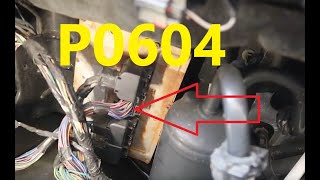

P0604 on 2010-2015 GMC Terrain: Internal Memory Error Causes and Fixes

What's Unique About the 2010-2015 Gmc TERRAIN

For the first-generation GMC Terrain and its sibling, the Chevrolet Equinox, the P0604 code is frequently associated with the Transmission Control Module (TCM), as noted in manufacturer service bulletins. While it's a generic code, its appearance on this platform often points toward transmission-related symptoms due to potential issues within the TCM itself. Owners may experience this alongside other transmission problems common to this vehicle generation, such as harsh shifting or a feeling of the transmission being in neutral between shifts.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Check Engine Light is on
• Transmission shifts harshly or enters limp mode
• Engine may stall, misfire, or have trouble starting
• Vehicle may not start at all
• Anti-lock Brake System (ABS) or Traction Control light may activate
• Instrument cluster gauges (speedometer, tachometer) may drop to zero intermittently.
• Vehicle may feel like it's in neutral between shifts, with RPMs flaring up.

Most Likely Causes

1. Low Battery Voltage or Unstable Power Supply 🔴 High Probability → Shop Vehicle Battery Control modules require a stable voltage to maintain their Keep Alive Memory (KAM). A weak battery, failing alternator, or poor connections can cause memory corruption during startup. These vehicles are known for issues with corroded battery cables and ground straps, which can cause a host of intermittent electrical problems that trigger module errors.
   How to confirm: Test the battery voltage with a multimeter; it should be above 12.4V with the engine off. With the engine running, check the alternator output, which should be between 13.5V and 14.5V. Inspect battery terminals and main ground connections (from battery to chassis and engine block) for corrosion or looseness. A voltage drop test across the ground cables is the most effective way to find a bad ground.
   Typical fix: Clean battery terminals and all major ground points. Charge or replace the battery if it fails a load test. In some cases, the entire negative battery cable (ACDelco #20954579 for 2.4L, #20894120 for 3.0L) may need to be replacement due to internal corrosion.
   Est. part cost: $50-$100 for a new cable, $150-$300 for a new battery
2. Faulty Transmission Control Module (TCM) 🟡 Medium Probability → Shop Transmission Assembly Manufacturer TSBs for this vehicle specifically mention P0604 being stored in the TCM. [Bulletin #PIP4653E] The first-generation Terrain/Equinox is also known for transmission-related issues, and the TCM is a common failure point.
   How to confirm: After ruling out power supply issues, a professional scan tool is needed to communicate directly with the TCM. If the P0604 code returns immediately after being cleared (without even driving the vehicle), it strongly suggests a hard internal fault in the module.

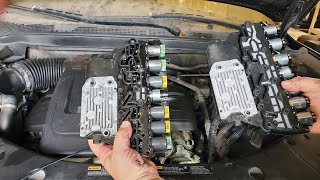

   Typical fix: Replace the Transmission Control Module. The new module must be programmed by a dealer or a qualified shop with the proper tools. Some vendors sell pre-programmed modules that are ready for installation.
   Est. part cost: $300-$700
3. Faulty Powertrain Control Module (PCM) ⚪ Low Probability → Shop Engine Control Module (ECM) The PCM is the central computer, and like any electronic component, it can fail internally. This is less common than power supply issues but is a primary cause of the code itself.
   How to confirm: This is typically a diagnosis of exclusion. If power, grounds, and the TCM are confirmed to be good, and a software reflash doesn't solve the issue, the PCM is likely the cause. A scan tool would show the P0604 code originating from the PCM, not the TCM.
   Typical fix: Replace and program the Powertrain Control Module.
   Est. part cost: $500-$1000
4. Corrupted Software ⚪ Low Probability Software glitches can cause the module to write invalid data to its RAM. TSBs often address these issues with updated software calibrations. TSB PIP4653E suggests that reprogramming the TCM may be a first step before replacement.
   How to confirm: A dealership or professional shop can check if a software update (reflash) is available for the PCM or TCM using your vehicle's VIN.
   Typical fix: Update the module's software. This must be done professionally.
   Est. part cost: $100-$250 for the labor to perform the reflash

Rare But Worth Checking

• Blown Fuse or Wiring Issue: A blown fuse for the TCM/PCM or a damaged wire in the harness can cut power to the module, causing memory errors. Always check the relevant fuses before condemning an expensive control module.

Diagnosis Steps

1. Check the battery. Ensure it is fully charged and the terminals are clean and tight. Perform a load test to confirm its health.
2. Inspect the charging system. Verify the alternator is providing a stable voltage (typically 13.5-14.5V) when the engine is running.
3. Inspect all major power and ground connections. Pay close attention to the negative battery cable and the ground straps from the engine to the chassis for any signs of corrosion or looseness.
4. Check for other DTCs. Use a scan tool that can read codes from all modules (TCM, BCM, etc.), not just the PCM. A P0700 code confirms the issue is transmission-related.
5. Clear the codes. Note if the P0604 code returns immediately after clearing, even without starting the engine. An immediate return strongly points to a failed control module.
6. Inspect fuses for the PCM and TCM. A video guide can help locate these fuses.
7. Examine the wiring and connectors to the PCM and TCM for any signs of damage, corrosion, or loose connections.
8. If all the above checks are good, the next step is to use a professional scan tool to check for available software updates for the control modules, particularly the TCM per TSB #PIP4653E.
9. If no updates are available or a reflash does not fix the issue, and the code returns, the fault is an internal failure of the control module (most likely the TCM).
10. Replace the faulty module and have it professionally programmed to your vehicle.

Parts You'll Likely Need

• Transmission Control Module (TCM) (OEM #24256960) — As cited in TSB #PIP4653E and corroborated by diagnostic info for its platform mate, the TCM is the most common location for the P0604 code on this platform. It is often the source of shifting problems that accompany the code.
  Trusted brands: ACDelco, Dorman
  OEM price range: $400-$700
  Aftermarket price range: $300-$500
• Battery — A weak or failing battery is a primary cause of voltage fluctuations that can corrupt a control module's RAM and trigger a P0604 code.
  Trusted brands: ACDelco, DieHard, Interstate
  OEM price range: $200-$300
  Aftermarket price range: $150-$250

Related Codes That Often Appear With This One

• P0700 — This is a generic transmission fault code. It means the TCM has detected a problem (in this case, P0604) and has requested the PCM to turn on the Check Engine Light. It almost always accompanies a more specific transmission code.
• P0601 — This code indicates an Internal Control Module Memory Check Sum Error, another type of internal module fault. TSB #05-06-04-060A and #PIP4653E group these codes together as related internal TCM faults.
• P0602 — This code means Control Module Programming Error. It can appear with P0604 if a software update has failed or the module's programming is corrupt.
• U-codes (e.g., U0100, U0101) — U-codes indicate a loss of communication with a specific module. If the TCM or PCM is failing, it may stop communicating on the vehicle's network, triggering these codes in other modules.

Technical Service Bulletins (TSBs) & Recalls

• 05-06-04-060A: Information on control module Diagnostic Trouble Code(s) (DTC)(s) P0601, P0602, P0603, P0604, P0606, P062F, P06F3, P1621 which can be shared in multip

Platform-Specific Known Issues

• Known 6T40/6T45 Transmission Issues: → Shop Transmission Assembly The 6-speed automatic transmission used in the 2010-2015 Terrain and Equinox has several known issues, including failed wave plates and problematic control modules (TCM). The P0604 code is often a direct symptom of the electronic failure of the TCM, which is housed inside the transmission and subject to heat and vibration. Owners often report P0604 in conjunction with other transmission complaints like harsh shifting or slipping.

Mechanic-Grade Diagnostic Values

• TCM Power Supply Voltage — expected: 12.0V - 12.6V (measured at the TCM connector power supply pin with ignition on). Failure: Low or no voltage indicates a problem with the fuse, relay, or wiring supplying power to the module.
• TCM Ground Circuit Resistance — expected: < 0.5 Ω (measured between the TCM connector ground pin and a clean chassis ground). Failure: High resistance indicates a corroded or loose ground connection, which can cause intermittent module operation and memory errors.

Scan Tool Commands That Help

• GM GDS2/Tech2Win: Control Module Reprogramming (using SPS) — This is the first step recommended by GM before replacing a module that sets a P0604. An available software update may fix the internal logic error without requiring hardware replacement.
• GM GDS2/Tech2Win: Module Replacement and Setup — After physically installing a new TCM or PCM, this function is required to download the correct software and VIN, and configure the module to the vehicle's specific options.
• GM GDS2: Crankshaft Position Variation Learn — This procedure is often required after replacing or reprogramming the PCM to synchronize the new module with the engine's crankshaft position sensor, preventing misfire codes.

Wiring & Ground Locations

• G112 — On the lower left front of the engine (2.4L) or the left rear of the engine (3.0L/3.6L).. This is a specific ground point for the 'Control Solenoid Valve Assembly,' which is the component assembly that includes the TCM. A poor connection at G112 can directly cause unstable voltage and memory errors within the TCM.
• G105 — On the rear/top of the engine (location varies slightly by engine type).. This is a primary ground for the Engine Control Module (ECM/PCM). A fault here can cause the PCM to set a P0604 or other communication codes.
• G103 — Located in the left front of the engine compartment, under the battery tray.. This is a major chassis and module ground point. Corrosion here is common due to its location and can cause a wide range of seemingly unrelated electrical issues, including module memory faults.
• TCM Fuses & Relay — Underhood Fuse Block: Fuses #17, #44, #52, #53 and Relay #66. Passenger Compartment Fuse Block (passenger footwell): Fuse #25.. Before condemning the TCM, these specific fuses and the relay must be checked as they provide power to the module. A single blown fuse can mimic a complete module failure.

OEM Part Supersession History

• 24256960 → Multiple revisions exist — Software updates and minor hardware changes.
  Heads up: This part number is used across many GM platforms (Cobalt, Silverado, etc.). It is critical to order a replacement TCM using the vehicle's VIN to ensure it has the correct hardware and can accept the correct software programming. A physically identical module from another vehicle model will not work without proper programming.

Model Year Variations Within This Range

• 2010-2015: The location of key ground points (like G112) and the specific TCM used differs between models equipped with the 4-cylinder (2.4L) and V6 (3.0L, 3.6L) engines due to the different transmissions used (6T40/45 vs. 6T70/75).
