P0604 on 2007-2014 GMC Yukon XL: Internal Memory Error Causes and Fixes

What's Unique About the 2007-2014 Gmc YUKON XL

On the GMT900 platform, which includes the 2007-2014 Yukon XL, this code is frequently associated with the Transmission Control Module (TCM) for the 6L80 automatic transmission. This is highlighted in manufacturer service bulletins. [Bulletin #PIP4653E] A critical detail is that this TCM is a 'mechatronic' unit, also called a TEHCM (Transmission Electro-Hydraulic Control Module), located inside the transmission oil pan, making its replacement a more involved job than a typical external module. These vehicles are also highly sensitive to low voltage; a weak battery or a corroded ground strap (a common issue is the ground on the frame behind the driver's side front wheel or the engine-to-firewall strap) can easily corrupt the module's memory and trigger this code without the module itself being faulty.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Check Engine Light is on
• Transmission may shift harshly, get stuck in one gear, or enter 'limp mode'
• Engine may stall intermittently or fail to start
• ABS or Traction Control lights may illuminate
• Vehicle may seem to perform normally, with only the Check Engine Light on
• PRNDL gear indicator on the dash may go blank or show incorrect information

Most Likely Causes

1. Low Battery Voltage or Poor Connections 🔴 High Probability → Shop Vehicle Battery Control modules in this generation are sensitive to voltage fluctuations. A weak battery, corroded terminals, or loose/corroded ground straps (especially the main engine-to-chassis or chassis-to-body grounds) can cause temporary memory loss during startup.
   How to confirm: Test the battery with a multimeter; it should read above 12.4 volts at rest and, critically, stay above 9.5 volts while cranking. Inspect all battery terminals and main chassis/engine ground straps for corrosion or looseness. A key ground to check is located on the frame rail behind the driver-side front wheel. 🎬 Watch: How to upgrade and fix common GMT900 ground issues. Another critical ground is the engine-to-firewall strap (G104/G108).
   Typical fix: Charge or replace the battery. Thoroughly clean battery terminals and all major ground connection points with a wire brush.
   Est. part cost: $150-$300 for a new battery
2. Faulty Transmission Control Module (TCM) 🟡 Medium Probability → Shop Transmission Assembly As cited in GM Technical Service Bulletin #PIP4653E, the TCM is a known module to set this code on this platform. The TCM for the 6L80 transmission (known as a TEHCM) is located inside the transmission pan and is subjected to heat and vibration, leading to failure.
   How to confirm: A professional scan tool is needed to communicate directly with the TCM. If the TCM is unresponsive or sets the P0604 code internally, it is the likely culprit after power/grounds are verified. This was a confirmed failure mode for a user on TahoeYukonForum.com who lost communication with the TCM suddenly.
   Typical fix: Replacement of the TCM, which is located inside the transmission. This requires draining the fluid, dropping the pan, replacing the module, and then programming the new TCM to the vehicle's VIN.
   Est. part cost: $200-$500 for a remanufactured TCM
3. Faulty Powertrain Control Module (PCM/ECM) ⚪ Low Probability → Shop Engine Control Module (ECM) While less common than voltage or TCM issues for this specific code, the main computer located near the driver-side fender can fail internally.
   How to confirm: After ruling out all power, ground, and TCM issues, a diagnostic scan tool can be used to attempt a reflash. If the code returns immediately after a reflash, and all power/ground inputs to the PCM test good, the PCM is likely bad. A Reddit user described this exact scenario, where even a second programmed ECM immediately threw the code, indicating a complex wiring or system issue.
   Typical fix: Replacement of the PCM/ECM, which must be programmed to the vehicle.
   Est. part cost: $300-$700 for a remanufactured PCM

Rare But Worth Checking

• Corrupted Software or Failed Reprogramming: If the code appeared immediately after a software update or the use of an aftermarket tuner, the programming may be the issue. This can also happen if a programming attempt with a tool like a Tech 2 fails mid-process.
• Faulty Fuse or Power Supply Circuit: A blown fuse for the PCM or TCM, or a damaged wire in the power supply harness, can mimic a module failure. On these vehicles, fuses F14 (TCM) and F19 (TRANS) in the underhood fuse block are critical to check.

Diagnosis Steps

1. Check for other stored DTCs. Codes like U0101 strongly point towards the TCM.
2. Fully charge and load test the vehicle's battery. Ensure voltage is stable and remains above 9.5V during cranking.
3. Inspect and clean all battery terminals, posts, and primary ground connections. Key locations include the battery-to-chassis strap, the engine-to-chassis strap (G108), and the body ground on the frame behind the driver's side front wheel.
4. Clear the DTCs with a scan tool. Disconnect the battery for 15 minutes to force a full reset of all modules, then reconnect and test drive to see if the code returns immediately.
5. If the code returns, inspect the wiring harness and connectors at the PCM (on the driver's side fender) and the main transmission case connector for any signs of damage, corrosion, or fluid intrusion.
6. Using a professional scan tool, attempt to communicate directly with both the PCM and TCM. Check if one of the modules is unresponsive or if the P0604 code is isolated to one specific module.
7. If the TCM is suspected, the next step involves draining the transmission fluid, removing the pan, and visually inspecting the TCM and its internal wiring harness.
8. If all wiring, power, and grounds are confirmed good, the final step is to replace the suspected control module (most often the TCM on this platform). The new module will require programming to the vehicle's VIN.

Parts You'll Likely Need

• Transmission Control Module (TCM) (OEM #ACDelco 24256861 (verify by VIN)) — This module is specifically cited in a GM TSB and frequently discussed in owner forums as the primary cause for P0604 on this vehicle platform. It is located inside the 6L80 transmission. [2, 4, Bulletin #PIP4653E]
  Trusted brands: ACDelco, Dorman
  OEM price range: $350-$600
  Aftermarket price range: $200-$500
• Powertrain Control Module (PCM/ECM) — If the TCM is not the cause, the fault may lie in the main engine computer, which also runs RAM self-tests.
  Trusted brands: ACDelco, Cardone
  OEM price range: $400-$800
  Aftermarket price range: $300-$700
• Battery — A weak or failing battery is a very common cause of this code due to low voltage corrupting the module's memory during startup or operation.
  Trusted brands: ACDelco, DieHard, Interstate
  OEM price range: $200-$350
  Aftermarket price range: $150-$250

Related Codes That Often Appear With This One

• P0601 — This indicates an Internal Control Module Read Only Memory (ROM) Checksum Error, another type of internal module fault. [Bulletin #PIP4653E, Bulletin #05-06-04-060A]
• P0603 — This indicates an Internal Control Module Keep Alive Memory (KAM) Error, often related to power supply interruptions. [Bulletin #PIP4653E, Bulletin #05-06-04-060A]
• U0100 — This code means 'Lost Communication With ECM/PCM'. A module with an internal RAM error may stop communicating on the vehicle's network.
• U0101 — This code means 'Lost Communication with TCM'. This is very common when the P0604 is originating from the TCM, as the internal fault can cause it to stop talking to other modules.

Technical Service Bulletins (TSBs) & Recalls

• PIP4653E: Mentions that DTCs P0601, P0603, P0604, P062F or P1621 may be stored in the Transmission Control Module. This bulletin directs technicians to specifically check the TCM as the source of the code.
• 05-06-04-060A: Informs technicians that DTCs like P0604 can be shared in multiple control modules, confirming that diagnosis is required to pinpoint the specific faulty module.

Platform-Specific Known Issues

• Sudden TCM Failure and Communication Loss: A user on TahoeYukonForum.com with a 2007-2014 generation vehicle reported a sudden failure while driving, where the transmission stopped shifting and the PRNDL indicator went blank. Upon connecting a scan tool, they found the TCM was completely unresponsive. This points to an internal failure of the TCM, requiring replacement. The user purchased a new TCM from a dealer for around $101 but then had trouble programming it, highlighting the need for proper tools (like GM's Techline Connect) or professional service for the final step.

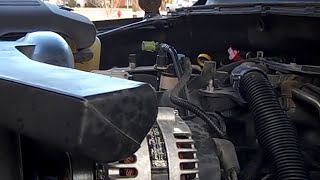

• The Importance of Ground Locations: Multiple threads on forums like TahoeYukonForum.com emphasize the role of poor grounds in causing strange electrical issues. For the GMT900 platform, a particularly troublesome ground point is located on the frame rail, just behind the driver's side front wheel. This location is exposed to road spray and often becomes corroded, leading to intermittent electrical faults that can trigger codes

Mechanic-Grade Diagnostic Values

• TCM/TEHCM Power Supply Voltage — expected: 12.0 - 14.8 Volts. Failure: Voltage below 12.0V, or a significant drop when wiggling the harness, indicates a power supply or wiring issue.
• TCM/TEHCM Ground Circuit Resistance — expected: Less than 0.5 Ohms. Failure: Resistance higher than 0.5 Ohms between the ground pins at the module connector and a known good chassis ground indicates a faulty ground connection.
• Cranking Voltage at Module — expected: Should stay above 9.5 Volts. Failure: A dip below 9.5V during engine cranking can corrupt module memory and trigger a P0604 as a glitch.

Hidden / Shadow Codes Worth Checking

• Symptom Byte (e.g., P0604 71): GM uses two-digit hexadecimal symptom bytes to provide more specific information about a generic DTC. For example, a symptom byte of '71' often indicates 'Invalid Serial Data Received,' pointing to a communication or software issue rather than a pure hardware failure. (see via Visible using dealer-level scan tools like the GM GDS2 (Global Diagnostic System 2) or a Tech 2. Basic OBD-II readers will not display them.)

Scan Tool Commands That Help

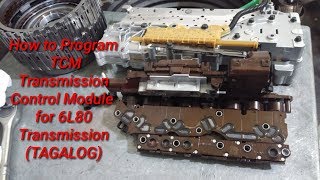

• GM GDS2 / Techline Connect: Replace and Reprogram ECU — This function is mandatory after installing a new or remanufactured TEHCM. It uses the Service Programming System (SPS) to download the correct VIN-specific calibration file from GM's servers and flash it to the new module.
• GM GDS2 / Tech 2: Fast Learn / Reset Adapts — After a new TEHCM is programmed, this procedure must be run to allow the module to learn the specific clutch volume indexes and pressure curves for smooth shifting.

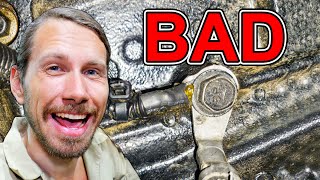

Wiring & Ground Locations

• G103 — On the front of the passenger-side cylinder head.. This is a primary engine ground. A poor connection here can cause unstable voltage and electrical noise, corrupting module memory.
• G104 / G108 — A ground strap running from the rear of the driver's side cylinder head (G104) to the firewall (G108).. This is a critical engine-to-body ground. It is notoriously difficult to access and a frequent point of corrosion, leading to widespread electrical issues including module memory codes like P0604.
• Underhood Fuse Block — In the engine compartment on the driver's side.. Contains fuses F14 (TCM) and F19 (TRANS) which provide power to the Transmission Control Module. An intermittent or blown fuse can trigger memory-related faults.
• TCM Connector (inside transmission) — The main electrical connector for the TEHCM, located on the valve body inside the transmission oil pan.. This connector and its seals are critical. To separate the TEHCM from the valve body for replacement, 11 bolts (a mix of 7mm, 8mm, and 10mm) must be removed.

Real Owner Repair Stories

• Reddit user on r/MechanicAdvice (2009 Chevrolet Suburban) — Persistent P0604 code that would not clear.
  ❌ Tried (didn't work) Replaced ECM with a dealer remanufactured unit and flashed it., Removed an aftermarket CANBUS-connected radio., Tested every fuse and relay., Checked all grounds and replaced a missing hood ground strap., Removed a faulty park assist module that was causing other errors.
  ✅ What actually fixed it The user's post was a request for help after all common fixes failed, highlighting that even after replacing the ECM and cleaning grounds, the P0604 code can persist due to deeper, unresolved wiring or module communication issues. The final resolution was not posted.

OEM Part Supersession History

• 24241350 / 24252114 → 24256861 / 24256863 — Early Gen 1 TEHCMs (2007-2009) were prone to pressure switch failures. The later generation parts used in 2010-2013 models featured improved solenoids and an updated pressure manifold gasket.
  Heads up: TEHCMs from different year groups are generally not interchangeable due to calibration and logic differences. Installing a 2014+ TEHCM (e.g., 24274046) into an earlier vehicle will cause immediate limp mode. Always match the part number or use the correct superseded part for the vehicle's specific year.

Model Year Variations Within This Range

• 2007-2009: These early models used a Gen 1 TEHCM (e.g., 24241350, 24252114) which was known for a higher rate of pressure switch failures. While the P0604 code is a RAM error, the overall module reliability was lower.
• 2010-2013: These models used an updated TEHCM (e.g., 24256861) with improved solenoids and gaskets, though they are still the primary suspect for a P0604 code.
• 2014: The 2014 model year can be a transition. Some may use the 2010-2013 TEHCM, while later 2014 models may use a newer, non-interchangeable part (e.g., 24274046). VIN verification is critical for this year.
