P0604 on 2007-2012 Nissan Altima 3.5L V6: RAM Error Causes and Fixes

What's Unique About the 2007-2012 Nissan Altima

For the 2007-2012 Nissan Altima, there are no widespread, documented issues, recalls, or Technical Service Bulletins (TSBs) specifically for code P0604. This suggests the code is not due to a unique design flaw on this platform. The causes are typically the same as for most other vehicles, meaning the issue is most often found in the car's basic electrical system (battery, alternator, grounds) rather than a faulty ECM. However, some owners have traced similar electrical issues to the Intelligent Power Distribution Module (IPDM), which is the main fuse/relay box in the engine bay.

Symptoms You May Notice

• Check Engine Light is on
• Engine stalls intermittently or dies after starting
• Vehicle cranks but will not start
• Noticeable loss of power or hesitation during acceleration
• Harsh or erratic automatic transmission shifting
• ABS or Traction Control warning lights may illuminate
• Engine may run rough or idle poorly

Most Likely Causes

1. Weak or Failing Battery 🔴 High Probability → Shop Vehicle Battery This is a universal issue. If battery voltage drops too low (especially during cranking), it can corrupt the ECM's temporary memory, triggering a P0604 code. This is the most common cause reported by owners in forums.
   How to confirm: Test the battery with a multimeter or electronic battery tester. A healthy, fully charged battery should read approximately 12.6 volts with the engine off. Have it load-tested at an auto parts store to confirm its health under load.
   Typical fix: Replace the vehicle's 12V battery.
   Est. part cost: $150-$250
2. Failing Alternator / Charging System Fault 🟡 Medium Probability → Shop Alternator An alternator that produces unstable voltage (either too low or too high) can cause electrical 'noise' and memory errors in the ECM. The VQ35DE's alternator is a standard, non-complex component but failure is common with age.
   How to confirm: With the engine running, measure the voltage across the battery terminals. A healthy alternator should produce a steady voltage between 13.5 and 14.8 volts. If the voltage is fluctuating, too low, or too high, the alternator is likely faulty.
   Typical fix: Replace the alternator.
   Est. part cost: $200-$450
3. Poor Power/Ground Connections 🟡 Medium Probability Corroded or loose battery terminals, engine ground straps, or ECM power/ground wires create high resistance, which can mimic a weak battery and cause voltage drops. Check the main ground from the battery to the chassis and the strap from the engine to the frame.
   How to confirm: Visually inspect all battery terminals, cables, and major ground straps (from the battery to the chassis and from the engine to the chassis). Look for corrosion (white or green powder), fraying, or looseness. Clean all connection points until they are bright metal and ensure they are tight. A voltage drop test across the ground cables can also pinpoint high resistance.
   Typical fix: Clean or replace battery terminals, cables, or ground straps.
   Est. part cost: $20-$100

Rare But Worth Checking

• Corrupted ECM Software: Sometimes, a software glitch can cause this code. A dealership or a specialized shop with Nissan's CONSULT diagnostic tool can reflash the ECM with the latest software version, which can resolve the issue without replacing hardware. TSB NTB08-007a addresses reprogramming for various electronic issues, indicating that software updates are a known fix for certain glitches.
• Faulty Engine Control Module (ECM): → Shop Engine Control Module (ECM) This is the least likely cause. The ECM itself can fail internally, but this should only be considered after all power, ground, and charging system issues have been definitively ruled out.
• Faulty Intelligent Power Distribution Module (IPDM): → Shop Fuse Box The IPDM (engine bay fuse box) contains internal relays and a circuit board that can fail, causing erratic voltage to various components, including the ECM. In one documented case, a technician found no ground signal from the IPDM controlling the alternator, leading to a charging system failure that could precipitate a P0604.

Diagnosis Steps

1. Check for other stored DTCs. Address any other codes, especially those related to voltage or communication, before diagnosing P0604.
2. Perform a 'hard reset'. Disconnect the negative battery terminal for 30 minutes to clear the ECM's memory. Reconnect it and drive the vehicle to see if the code returns. If it doesn't, it may have been a one-time glitch caused by a momentary voltage drop.
3. Test the battery. Ensure it has a full charge (12.6V+) and have it load-tested to confirm it can hold a charge under load. This is the most critical first step.
4. Test the charging system. With the engine running, verify the alternator output is stable and between 13.5V and 14.8V.
5. Inspect all power and ground connections. Meticulously check the battery terminals, main engine ground strap, and chassis grounds for corrosion and tightness. Don't forget the smaller ground wires attached to the engine and body. Clean or replace as needed.
6. Inspect ECM and IPDM wiring and fuses. Check the fuses related to the ECM and IPDM (engine bay fuse box). Inspect the wiring harnesses for any signs of damage, corrosion, or moisture intrusion.
7. Consider an ECM reflash. If all electrical tests pass, contact a dealership or qualified repair shop to check if a software update is available for your vehicle's ECM, referencing TSBs like NTB08-007a.
8. If all previous steps fail to resolve the issue, the ECM is likely faulty and requires replacement. A new ECM will need to be programmed to the vehicle's VIN and key.

Parts You'll Likely Need

• 12V Battery — A weak battery is the most frequent trigger for a P0604 code due to voltage drops during engine start-up.
  Trusted brands: Bosch, Duralast, DieHard
  OEM price range: $200-$300
  Aftermarket price range: $150-$250

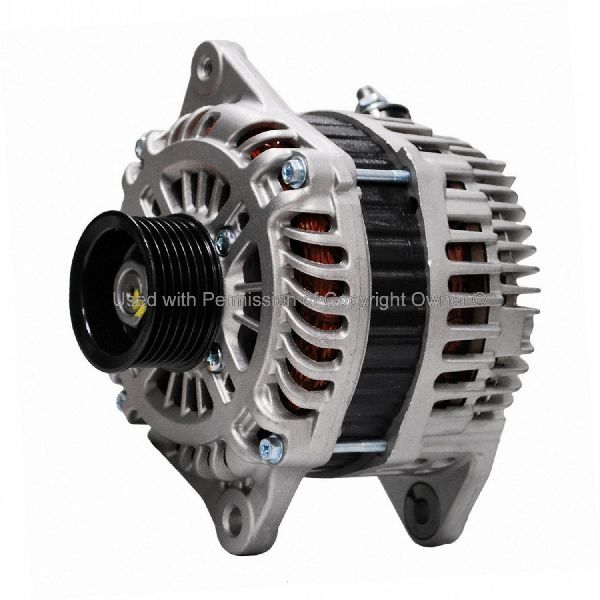

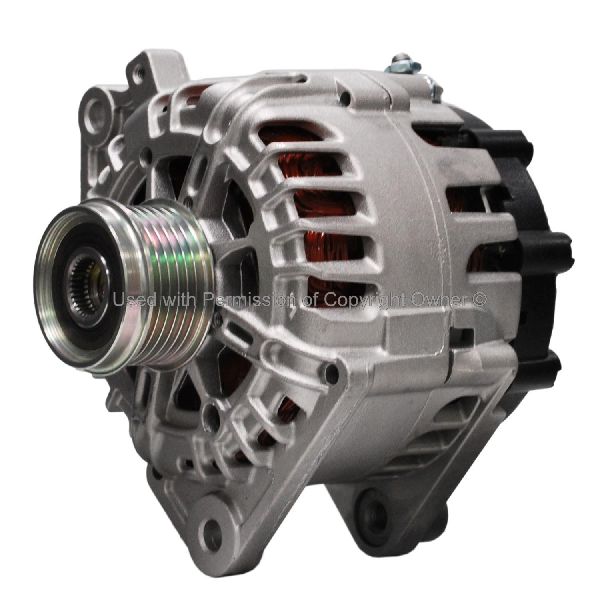

• Alternator (OEM #23100-JA11A (or superseding part numbers like 23100-JA11B, 2310M-JA11ARW)) — A failing alternator provides unstable voltage, which can corrupt the ECM's RAM and trigger the code.
  Trusted brands: Denso (OEM supplier), Bosch, Hitachi
  OEM price range: $400-$600
  Aftermarket price range: $200-$450

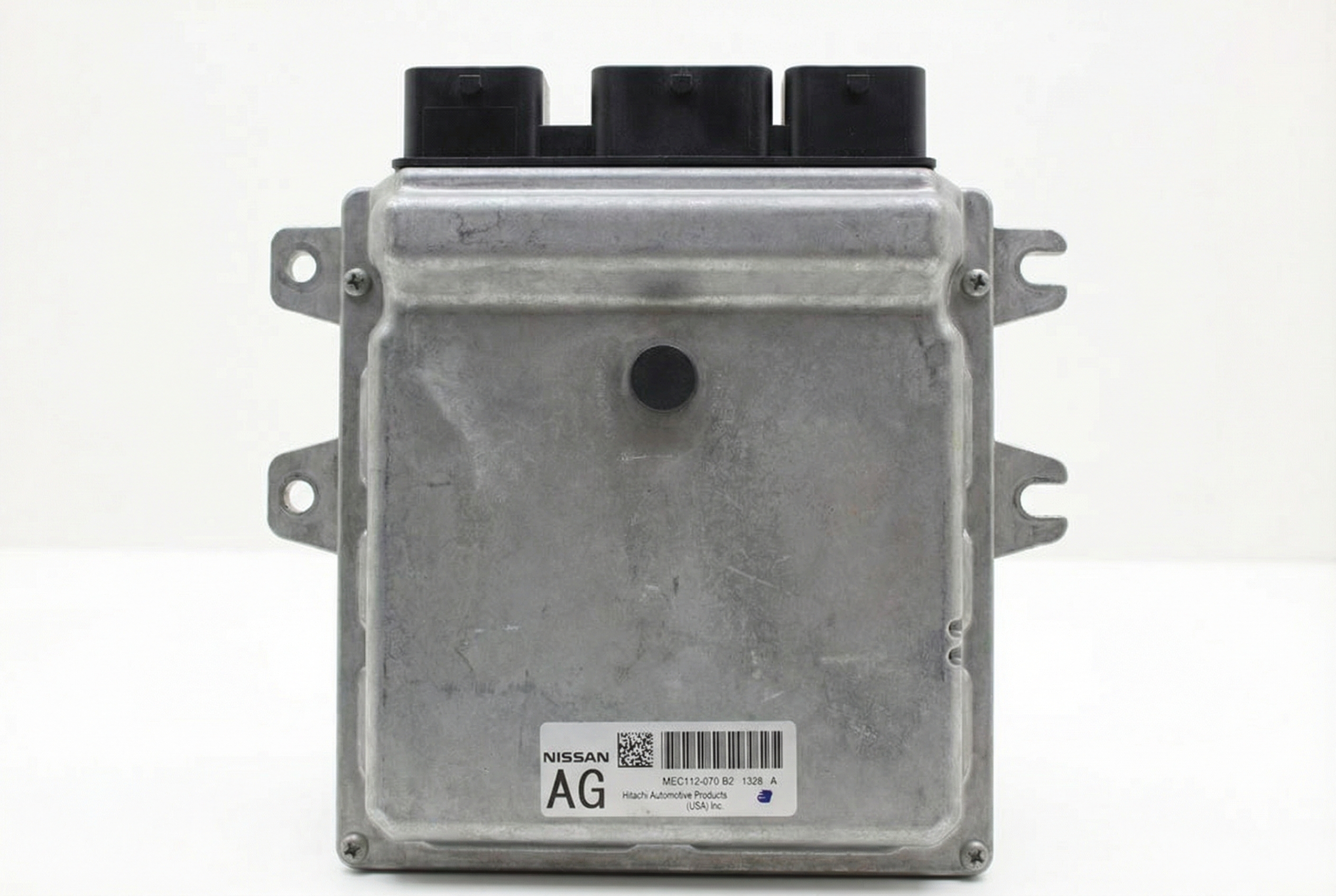

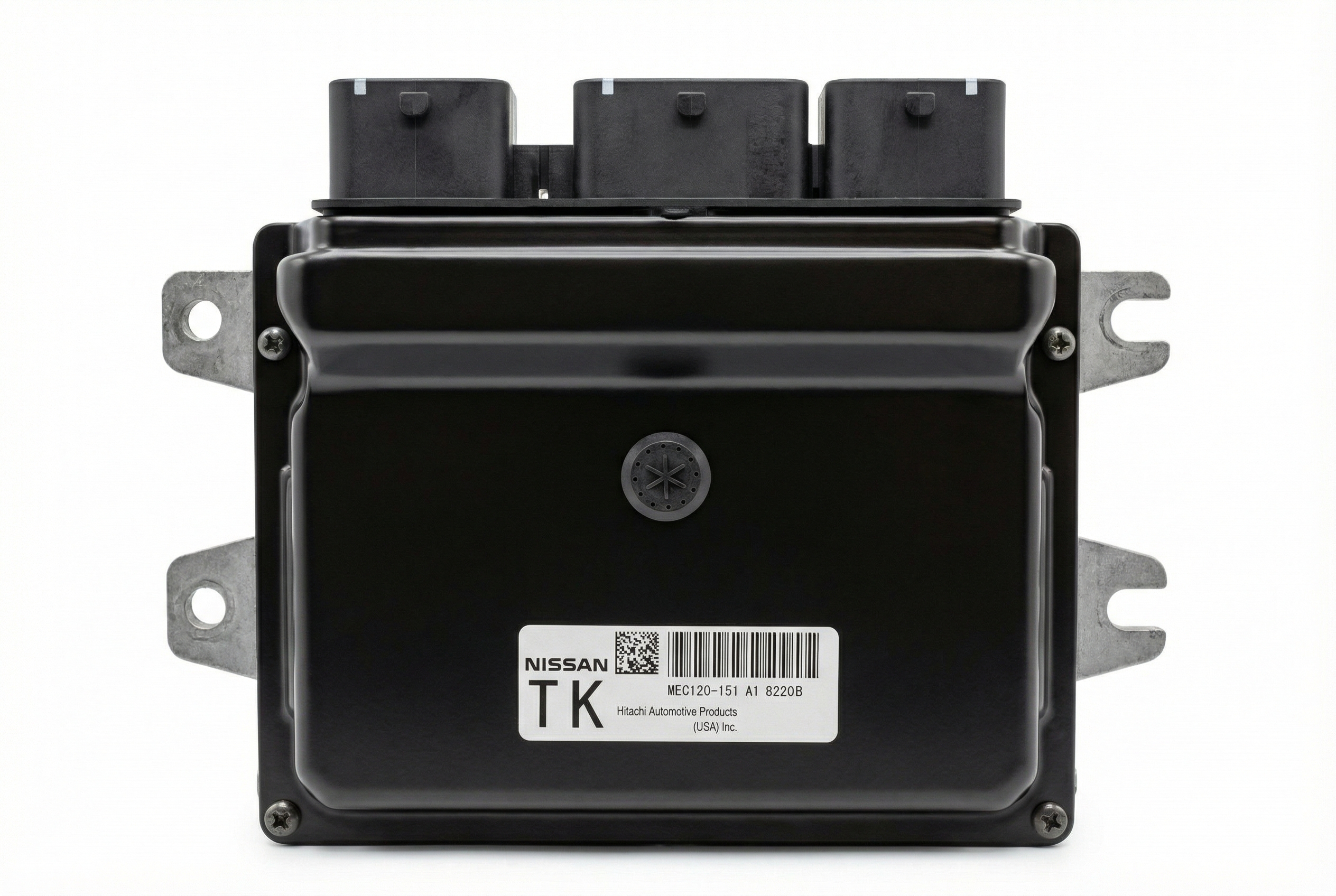

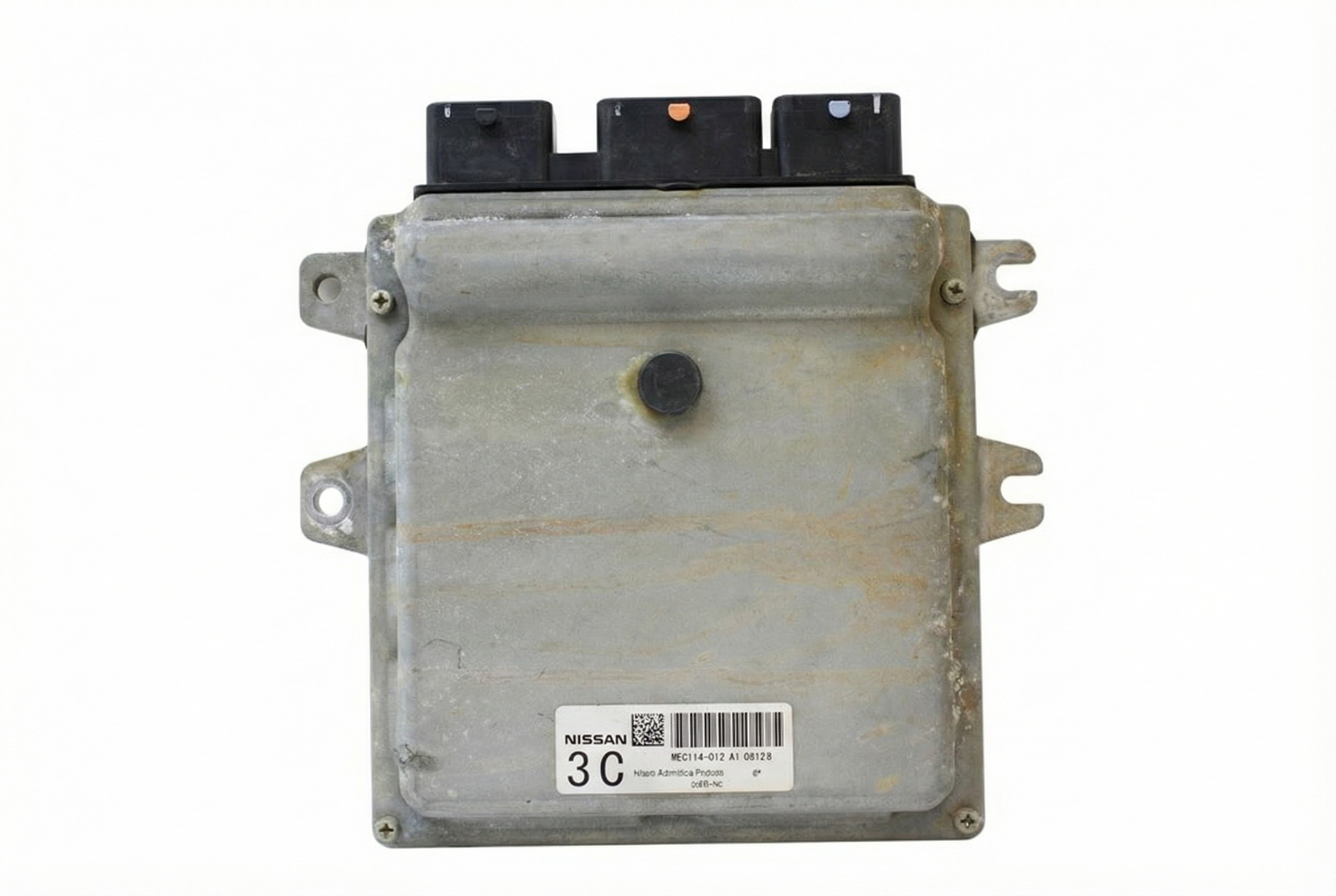

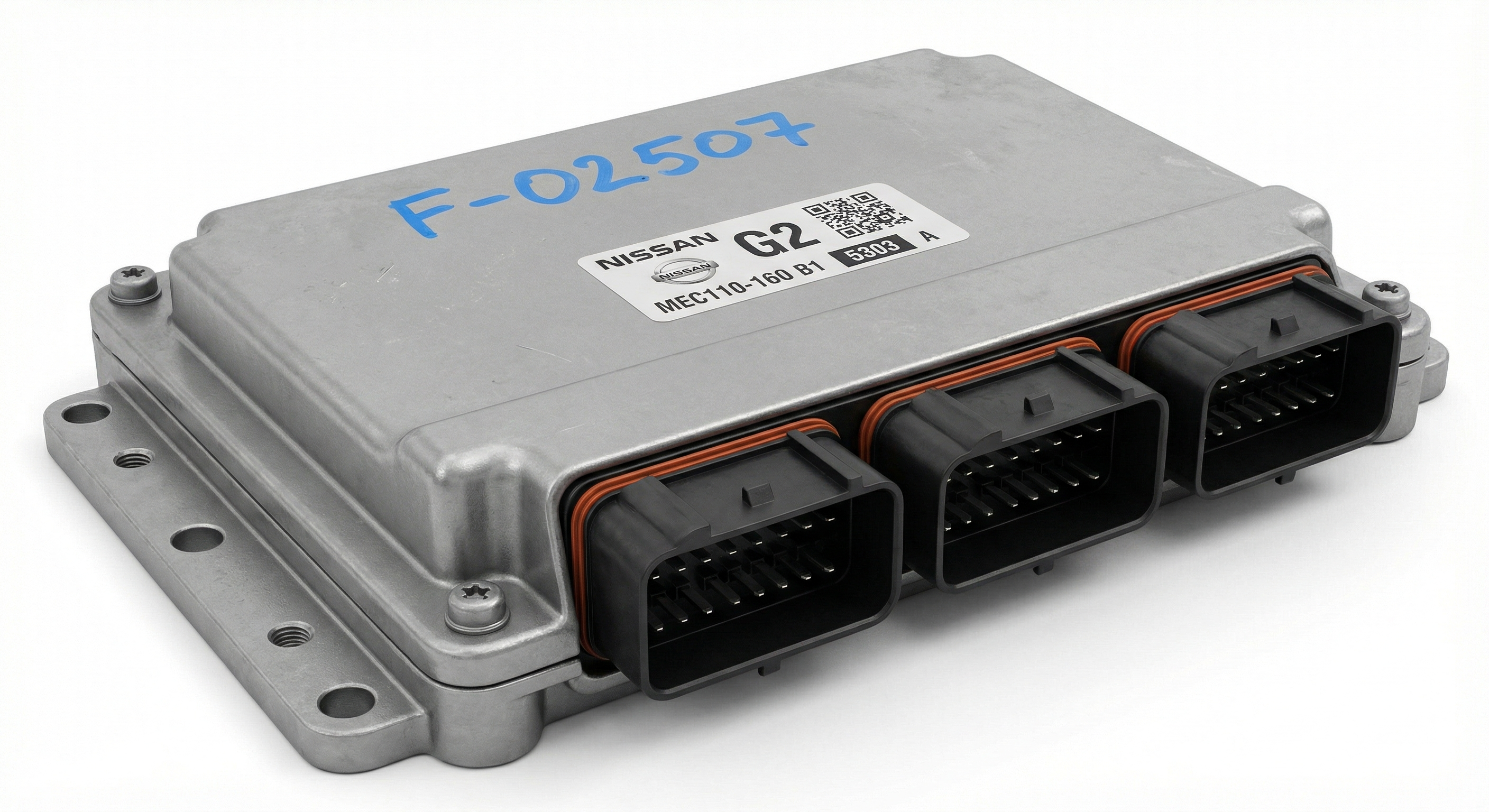

• Engine Control Module (ECM) (OEM #23710-JA80A (Part number varies by year, transmission, and emissions. Superseded by 23710-JA80E). Another example is 23710-JA04A for 2.5L models, showing the need for VIN-specific matching.) — This is the last resort. If all electrical systems are confirmed to be working perfectly, the ECM itself has likely failed internally.
  Trusted brands: Hitachi (OEM), Cardone (Remanufactured), Flagship One (Remanufactured)
  OEM price range: $800-$1200
  Aftermarket price range: $300-$600

Technical Service Bulletins (TSBs) & Recalls

• NTB08-007a: This Technical Service Bulletin for various Nissan models addresses issues that can be resolved by reprogramming the ECM. While not specifically for P0604, it establishes a precedent for fixing electrical gremlins with software updates rather than hardware replacement.
• TSB Bulletin #NTB17-063: While issued for a different model (Titan), this manufacturer bulletin notes that a MIL may illuminate with DTC P0604, demonstrating that Nissan recognizes this code as a valid diagnostic trigger for control module memory issues across various platforms.

Platform-Specific Known Issues

• Real-World Repair Story: Faulty IPDM: A technician diagnosing a charging system issue on a similar Nissan found that a new alternator was not charging. The root cause was not the alternator but a faulty IPDM (main fuse box) that was not providing the necessary ground signal to activate the alternator. This highlights that complex electrical issues can originate from modules other than the ECM.

Mechanic-Grade Diagnostic Values

• ECM/PCM Power Supply Voltage (at module) — expected: Approximately 12.6V with key on, engine off; 13.5V to 14.8V with engine running.. Failure: Voltage below 12V with engine off, or fluctuating/outside the expected range when running, points to battery, alternator, or wiring issues.
• ECM/PCM Power Supply Voltage (during cranking) — expected: Should stay above 9.0V.. Failure: A dip below 9.0V during cranking indicates a weak battery unable to supply sufficient power, which is a primary trigger for P0604.
• ECM/PCM Ground Resistance — expected: Below 0.1 Ω between the ECM connector ground pin and a solid chassis ground.. Failure: Resistance higher than 0.1 Ω indicates a poor ground connection, which can cause floating voltages and trigger RAM errors.
• Voltage at Mass Airflow Sensor (MAF) supplied by ECM Relay — expected: Should be within 0.5V of battery voltage.. Failure: A reading significantly lower, such as 5-6 volts, is a common symptom of a failing ECM relay inside the IPDM.

Scan Tool Commands That Help

• Manual Procedure (No Tool Required): IPDM Auto-Active Test — This is a built-in self-test for the Intelligent Power Distribution Module (IPDM). Since a faulty IPDM or its internal ECM relay can cause voltage issues leading to P0604, running this test is a crucial first step. It confirms if the IPDM can properly command various systems like headlights, wipers, and the A/C compressor clutch. The procedure involves turning the ignition on and pressing the driver's door switch 10 times within 20 seconds.
• Nissan CONSULT-III plus: Re/programming, Configuration — If all power and ground tests pass, a software glitch may be the cause. The CONSULT tool is required to reflash the ECM with updated software. This function should be used before replacing the ECM, as a software update can often resolve the P0604 code.

Wiring & Ground Locations

• ECM Power Supply Pins — At the main ECM harness connector.. These pins provide the main operating power to the ECM. According to a VQ35DE pinout, Pin 119 and Pin 120 are the primary power supplies, while Pin 121 is the backup power for memory retention. Verifying stable voltage at these specific pins is critical.
• ECM Ground Pins — At the main ECM harness connector.. A solid ground is just as important as stable power. A VQ35DE pinout shows Chassis Ground at Pin 1, Pin 115, and Pin 116. A voltage drop test or resistance check on these pins can quickly identify a bad ground connection causing the P0604.
• ECM Relay (within IPDM) — Located inside the IPDM, which is the main fuse/relay box in the engine compartment.. This relay, controlled by the IPDM, supplies power to the ECM. A failing relay can provide intermittent or low voltage, directly causing RAM corruption and the P0604 code. Some IPDMs had issues with this specific relay, leading Nissan to release an updated part.

Real Owner Repair Stories

• Reddit user in r/altima (2010 Nissan Altima) — Car won't start (single click), dashboard lights on, security light blinking, high beam indicator flickering, door locks and trunk button inoperative.
  ❌ Tried (didn't work) Replacing the key fob battery, Charging the car battery
  ✅ What actually fixed it The consensus from multiple commenters was that this combination of widespread, seemingly unrelated electrical failures points directly to a bad battery, a loose battery terminal, or a corroded main ground connection, not a complex module failure. The symptoms indicate unstable power across the entire vehicle.

OEM Part Supersession History

• 23710-JA80A → 23710-JA80B, 23710-JA80C, 23710-JA80D, 23710-JA80E. — General revisions for reliability and software updates.
  Heads up: This part number is listed for the Altima Hybrid with the gas engine. It highlights the critical need to match the ECM part number exactly to the vehicle's VIN, year, engine, and emissions package. Using the wrong ECM, even if it fits, will result in a no-start or other critical failures.

Model Year Variations Within This Range

• 2010-2012: The 2010 model year marked a mid-cycle refresh for the Altima. Changes included a new front fascia, new wheel designs, and making Vehicle Dynamic Control (VDC) standard. More importantly, option packages were revised with more technology, including an updated navigation system with a larger screen and a 9.3GB Music Box hard drive. These electrical additions could potentially alter diagnostic paths for certain electrical issues compared to the 2007-2009 models, though the fundamental causes of P0604 remain the same.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• CVT Transmission Failure/Hesitation 🔴 High → Shop Transmission Assembly — Very common, especially in earlier years of the generation (2007-2010). Can occur at any mileage, but frequently reported between 60k-100k miles. Nissan extended the warranty to 10 years/120,000 miles for some models due to this issue. (Ref: Warranty Extension)
• Melting / Sticky Dashboard 🟠 Medium — Widespread in vehicles exposed to heat and sun, particularly 2008-2009 models. Creates a dangerous glare on the windshield. (Ref: Class action lawsuit settlement (expired) for Florida residents.)
• Crankshaft/Camshaft Position Sensor Failure 🔴 High — A very common failure point across many Nissan models with the VQ35DE, causing stalling while driving or a no-start condition. (Ref: Recalls were issued for some VINs, but the problem is widespread.)
• Steering Lock Failure 🔴 High — A faulty Electronic Steering Column Lock (ESCL) module can prevent the car from starting. This was a common enough issue that Nissan issued a warranty extension for this part. (Ref: Warranty Extension)
• Oil Cooler Gasket Leak 🟡 Low — The O-ring for the oil cooler is a common failure point, leading to oil leaks on the passenger side of the engine. It's a relatively minor fix.
• Premature Fuel Pump Failure 🟠 Medium — Can cause stalling, hard starting, and loss of power. Often preceded by a whining noise from the rear seat area.

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: A used IPDM from a junkyard can be a cost-effective choice, as they generally do not require programming and are 'plug and play'. However, it's best to source one from a vehicle that was not in a front-end collision and has low mileage.

Donor-vehicle mileage cap: roughly under 100000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• Ensure the part number on the used IPDM exactly matches the original.
• Inspect the connectors for any signs of corrosion, melting, or bent pins.
• If possible, get the IPDM from a vehicle of the same model year.
• Check for a black-colored IPDM case, which may indicate it is a later, updated version compared to an original white one.

OEM-only on this vehicle (don't cheap out):

• Engine Control Module (ECM)

Aftermarket brands forum-validated for this vehicle:

• Denso (often the OEM supplier for alternators)
• Bosch (alternators)
• Hitachi (alternators)

Brands owners have reported issues with on this vehicle:

• Avoid 'no-name' or unbranded electrical components like alternators and especially remanufactured ECMs from unknown sellers, as quality control can be poor and lead to repeat failures.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P0335 — Crankshaft Position Sensor failure code; frequently occurs on VQ35DE engines causing stalling or no-start conditions similar to P0604 symptoms.
• P0340 — Camshaft Position Sensor failure code; a common high-severity issue on this vehicle platform that results in engine hesitation and stalling.
• U1000 — CAN communication circuit code; often appears when the ECM or IPDM has power/ground issues or internal memory errors like P0604.
• P0562 — System Voltage Low; directly related to the weak battery and failing alternator conditions that are the primary triggers for P0604 RAM errors.
