P0621 on 2015 Chevrolet Impala: Generator 'L' Circuit Fault Causes and Fixes

What's Unique About the 2015-2015 Chevrolet IMPALA

For the 2015 Impala, which can have either the 2.5L LCV or 3.6L LFX engine, this code is frequently accompanied by a "Service Charging System" message. A key issue, noted in GM Technical Service Bulletin #PIC6017A 🎬 Watch: Real-world diagnosis of the P0621 code and charging message., is that the code can appear intermittently during an auto-stop event, a feature of the vehicle's fuel-saving technology. Another critical TSB, #PI1409A, specifically links P0621 with an seemingly unrelated emissions code (P2096) on models with the 2.5L engine. In this specific scenario, if physical checks of the charging system find no faults, the official GM fix is not a part replacement but an ECM software update to correct overly sensitive diagnostic parameters.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• "Service Charging System" message on the instrument panel.
• Battery or charging system warning light is on, dim, or flickering.
• Engine stalling, particularly during an auto-stop event.
• Dimming headlights and interior lights.
• Delayed engine cranking or a no-start condition.
• Unusual whining or grinding noises from the alternator.
• Voltage gauge reading low or fluctuating wildly.

Most Likely Causes

1. Faulty Alternator 🔴 High Probability → Shop Alternator The internal voltage regulator within the alternator is a common failure point. This component manages the 'L' circuit communication, and when it fails, it triggers the P0621 code. On the 3.6L V6 engine, the alternator is located below the oil fill cap, making it susceptible to damage from oil spills during oil changes, which can lead to premature failure. In many owner experiences, even if the alternator passes an initial bench test, it can fail intermittently under load, making replacement the ultimate fix.
   How to confirm: Test the charging system voltage with a multimeter with the engine running; it should be between 13.8-14.5 volts. If the voltage is low (e.g., under 12.6V), the alternator is not charging. Many auto parts stores can perform a bench test on the alternator, but be aware that intermittent failures may not be caught. A definitive sign of failure is a battery positive terminal that gets extremely hot after the engine has been running, indicating the alternator is drawing excessive current instead of supplying it.
   Typical fix: Replace the alternator.
   Est. part cost: $175-$450
2. Outdated ECM Software 🟡 Medium Probability GM issued TSB #PI1409A for 2015 Impalas with the 2.5L engine where P0621 appears with P2096 (Post Catalyst Fuel Trim System Low Limit). The bulletin states that if no physical faults are found, the cause is overly sensitive software in the Engine Control Module that incorrectly flags the fault.
   How to confirm: This can only be confirmed by a GM dealership or a qualified shop with access to GM's Service Programming System (SPS). If P2096 is also present and all physical checks of the alternator, battery, and wiring are good, this is the likely cause.
   Typical fix: Reprogram the K20 Engine Control Module (ECM) with the latest software calibration available on TIS2WEB.
   Est. part cost: $0 (if covered by a campaign) - $200
3. Wiring or Connector Issue ⚪ Low Probability Vibration and heat in the engine bay can cause wires to fray or connectors to become loose or corroded over time. The two-wire connector at the alternator is a key point to inspect for loose pins or damage.
   How to confirm: Visually inspect the wiring harness and the two-pin connector at the alternator for any signs of damage, corrosion, or loose pins. Check for continuity on the 'L' terminal wire (often an orange or brown wire) between the alternator and the ECM. With the engine running and connector unplugged, the 'L' terminal wire should have approximately 5.0V.
   Typical fix: Repair the damaged section of wiring or replace the connector pigtail.
   Est. part cost: $15-$50

Rare But Worth Checking

• Faulty Engine Control Module (ECM): → Shop Engine Control Module (ECM) This is rare. The ECM's internal driver for the 'L' circuit can fail, but all other possibilities like the alternator and wiring should be exhaustively ruled out before considering ECM replacement.

Diagnosis Steps

1. Use an OBD-II scanner to confirm P0621 is the active code and check for any other codes, especially P2096 or P0622.
2. With the engine off, check the battery voltage. It should be ~12.6V.
3. Start the engine and measure the voltage at the battery terminals. A healthy charging system should read between 13.8V and 14.5V. A reading below 13V indicates a charging problem.
4. Inspect the alternator connector (a two-wire pigtail) and the main power wire for any visible damage, corrosion, or loose connections. Check for signs of oil contamination on the alternator, especially on 3.6L V6 models.
5. If code P2096 is also present (on 2.5L models) and the charging system voltage is correct, consult a dealer about TSB #PI1409A regarding an ECM software update.
6. If the charging voltage is incorrect, the alternator is the most likely culprit. It can be removed and tested at most auto parts stores, though intermittent faults may not be detected.
7. If the alternator tests good, perform a continuity test on the 'L' terminal wire between the alternator connector and the ECM connector to rule out a wiring break.

Parts You'll Likely Need

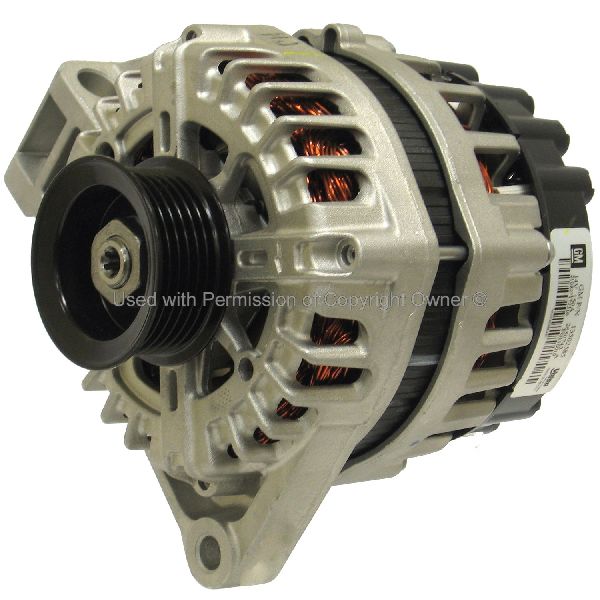

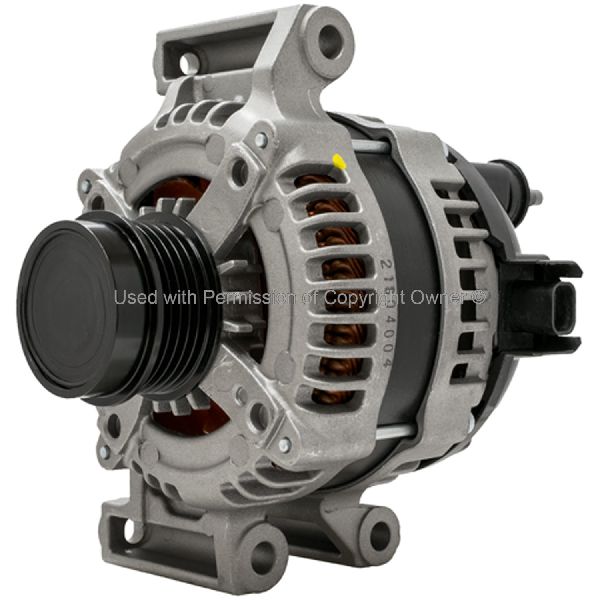

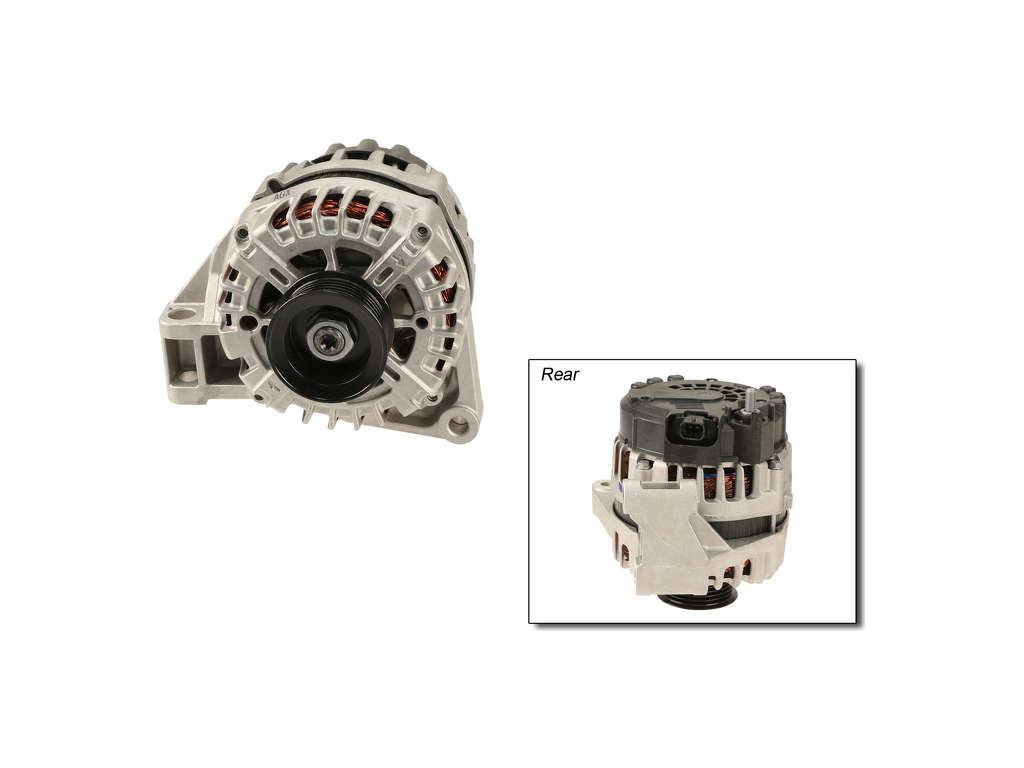

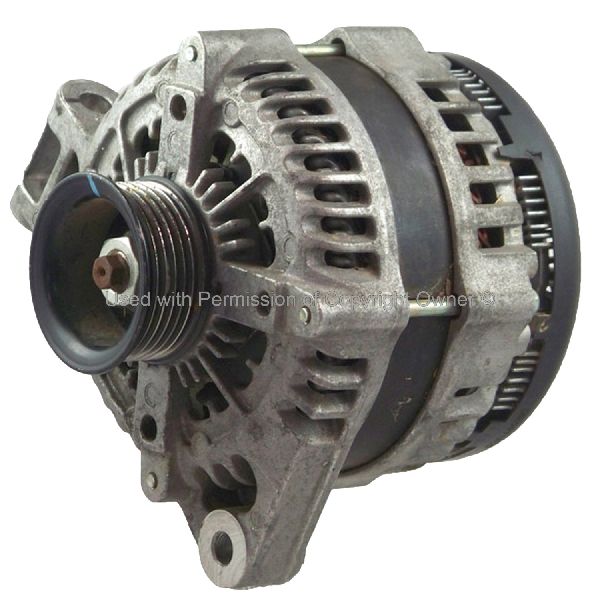

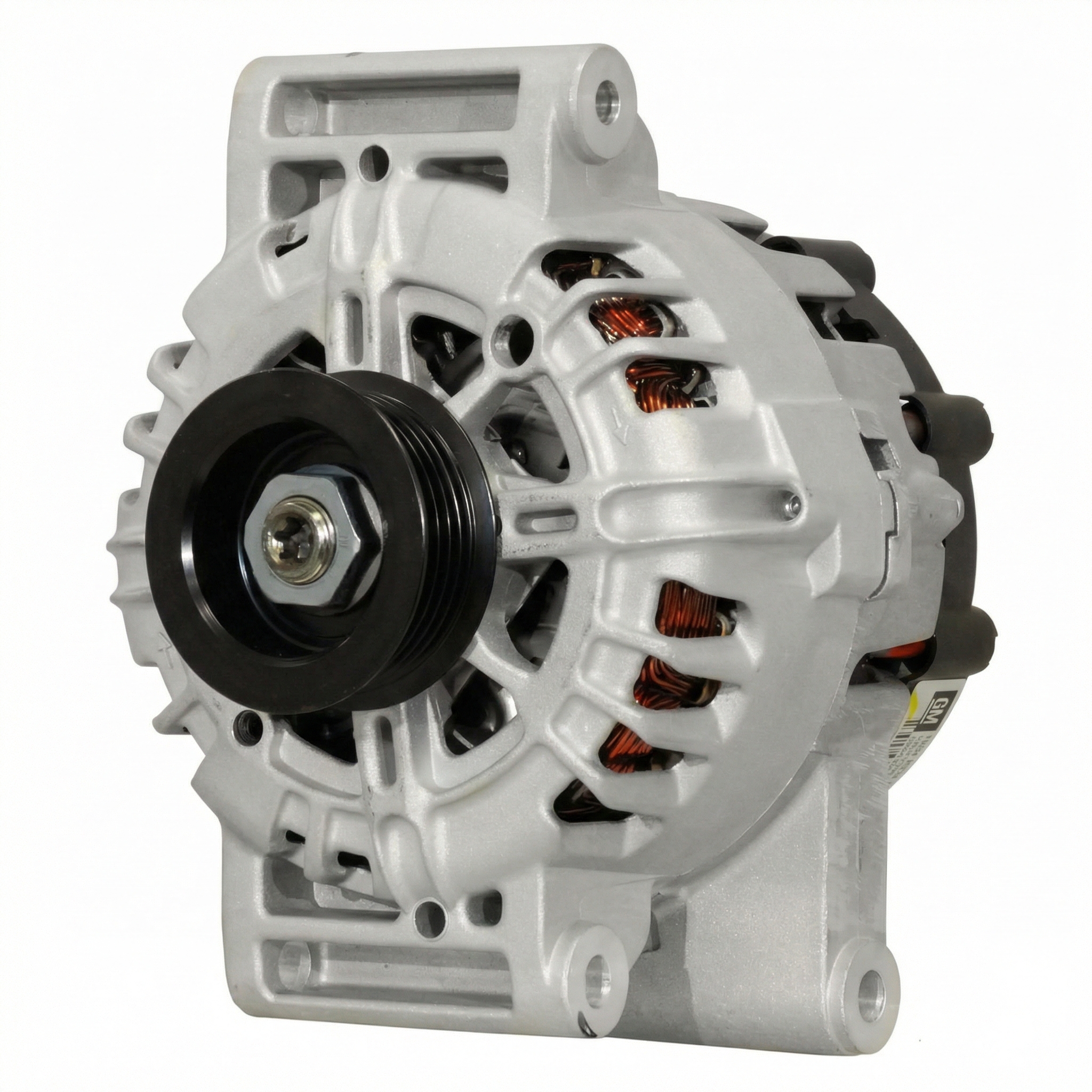

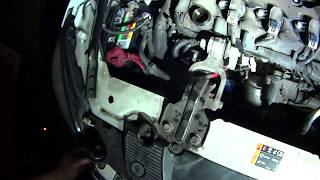

• Alternator (OEM #84143543) — The internal voltage regulator is the most common point of failure that causes a P0621 code. This part is integral to the alternator and not typically replaced separately.
  Trusted brands: ACDelco, Bosch, Denso
  OEM price range: $300-$450
  Aftermarket price range: $175-$300

Related Codes That Often Appear With This One

• P2096 — According to GM TSB #PI1409A, these codes can appear together on 2.5L models due to an ECM software issue that requires an update to fix. P2096 indicates a lean condition in the post-catalyst fuel trim.
• P0622 — This code stands for "Generator Field 'F' Control Circuit Malfunction." Since both P0621 ('L' circuit) and P0622 ('F' circuit) relate to alternator control, they can appear together, often pointing strongly to an internal failure of the alternator's regulator.

Technical Service Bulletins (TSBs) & Recalls

• PI1409A: Malfunction Indicator Lamp (MIL) Illuminated with DTCs P2096 and/or P0621 Set.
• PI1409: Malfunction Indicator Lamp (MIL) Illuminated with technicians finding DTCs P2096 and/or P0621 set
• PIC6017A: Intermittent Service Charging System Message/ Battery MIL DTC P0621.

Platform-Specific Known Issues

• TSB #PI1409A: Notes that if P0621 is found with P2096 on 2.5L models and no physical faults are present, the ECM needs a software update.
• TSB #PIC6017A: Highlights that this code can set intermittently during an auto-stop event, accompanied by a 'Service Charging System' message, and advises contacting GM technical assistance if diagnostics find no fault.
• Oil Contamination on 3.6L V6: The placement of the alternator directly beneath the oil fill cap makes it vulnerable to damage from oil spills, which can saturate the internal electronics and cause failure.

Mechanic-Grade Diagnostic Values

• Generator 'L' Terminal Voltage (Key On, Engine Off) — expected: ~11.0V - 14.0V (near battery voltage). Failure: Voltage is zero or significantly lower than battery voltage, indicating an open circuit or short to ground.
• Generator 'L' Terminal Voltage (Engine Running) — expected: ~0V - 1.0V. Failure: Voltage remains high (near battery voltage), indicating the alternator's internal regulator is not pulling the circuit to ground as it should be when charging.
• Chassis Ground Resistance — expected: Less than 0.1 Ω. Failure: Values above 0.1 Ω when measuring between the battery negative post and a clean spot on the chassis or engine block suggest a corroded or failing ground connection that can cause electrical issues.

Scan Tool Commands That Help

• GDS2 (GM Dealer Scan Tool): Monitor Data Stream for 'Generator L-Terminal' parameters — When diagnosing an intermittent P0621, a technician can use the GM GDS2 scan tool to watch the status of the ECM's internal circuit tests. Look for parameters like 'L terminal circuit short to ground test status' and 'L terminal circuit open test status' to see if the ECM is detecting a specific fault type, which can help differentiate between a wiring issue and an internal alternator problem.

Wiring & Ground Locations

• Alternator Connector — On the alternator itself, a small 2-pin electrical connector.. This connector houses the 'L' terminal wire (Generator Lamp) and the 'F' terminal wire (Field Control). For P0621, the relevant wire is typically brown on GM vehicles of this era. A poor connection, corrosion, or wiring damage at this plug is a common cause of the code.
• G101 — Typically located on the front of the engine block, on the driver's side.. This is a primary ground location for the Engine Control Module (ECM). A poor connection at G101 can cause a host of unpredictable issues, including incorrect readings from various circuits the ECM monitors, potentially triggering a false P0621.
• G103 — Located in the engine compartment on the cowl, often above the brake booster on the driver's side.. This ground serves the Body Control Module (BCM) and Instrument Panel Cluster (IPC). Since the 'L' circuit controls the battery warning lamp in the cluster and may be routed through the BCM, a bad ground here can interrupt the signal and cause P0621.

Real Owner Repair Stories

• YouTube channel 'TS Mobile Mechanic' (GMC Malibu LTZ (platform mate)) — P0621, charging system warning, intermittent electrical issues.
  ❌ Tried (didn't work) Initial visual inspection of wiring did not reveal an obvious break.
  ✅ What actually fixed it The mechanic diagnosed a faulty alternator. A key diagnostic clue was that the positive battery terminal became extremely hot while the engine was running, indicating the alternator was internally shorted and drawing excessive current instead of supplying it. Replacing the alternator resolved the issue.
• YouTube channel 'Parts shooter' (Chevrolet vehicle with a modern 2-wire alternator) — P0621 and P0622
  ❌ Tried (didn't work) The video focuses on diagnosis rather than failed parts replacement.
  ✅ What actually fixed it Using an oscilloscope, the presenter demonstrated how the ECM communicates with the alternator. The final diagnosis was an internal alternator failure due to bad diodes, which prevented the alternator from charging correctly and disrupted the L and F circuit signals. The fix was to replace the alternator.

"I Checked Everything" — The Actual Cause

• The diagnostic equivalent for this electrical code is when all physical component and wiring tests pass, yet the code persists. For the 2015 Impala with the 2.5L engine, if P0621 is accompanied by P2096 and tests on the alternator, battery, and wiring show no faults, the actual cause is often not a hardware failure. According to GM TSB #PI1409A, the root cause is overly sensitive diagnostic parameters within the Engine Control Module (ECM) software. The correct fix in this specific scenario is to have a dealer reprogram the ECM with the latest calibration, not to replace parts.

When the Usual Fixes Don't Work

• While a faulty alternator is the most frequent cause of P0621, it is not always the root problem. A significant counter-example, documented in GM TSB #PI1409A, applies to 2.5L models where P0621 appears alongside the P2096 fuel trim code. In these instances, if the charging system passes all electrical tests, replacing the alternator is the incorrect repair. The actual fix is a software update for the Engine Control Module (ECM) to correct overly sensitive fault-triggering logic. This highlights the importance of checking for TSBs and associated codes before defaulting to alternator replacement, which would be an unnecessary expense.

OEM Part Supersession History

• 84143543 → N/A — This is the current OEM part number for the 150 Amp alternator.
  Heads up: Searches did not reveal a direct supersession history for this part number. When replacing, ensure the amperage rating (150A for this part) matches the vehicle's original equipment, as different options may exist.
