P0645 on 2012-2016 Ford Focus: A/C Clutch Relay Circuit Causes and Fixes

What's Unique About the 2012-2016 Ford FOCUS

For the third-generation Ford Focus (2012-2018), the P0645 code is a straightforward electrical issue. There are no widespread, unique design flaws that make this model particularly prone to the code. The causes are typical for most modern vehicles: relay failure, wiring damage from engine bay heat and vibration, or a failing compressor clutch coil. A Ford Technical Service Bulletin (TSB) for the 2012 model specifically links this code to an inoperative A/C, confirming its direct impact. The specific fuse and relay to check are F27 (15A) and R11 in the under-hood fuse box.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle. 👇

Symptoms You May Notice

• Air conditioning does not blow cold air.
• A/C compressor clutch does not 'click' or engage when the A/C is turned on.
• The Check Engine Light is on.
• A/C system may work intermittently.
• Compressor 'chatters' or rapidly clicks on and off.

Most Likely Causes

1. Faulty A/C Clutch Relay 🔴 High Probability → Shop Wiring Relay Relays are electromechanical switches that wear out over time from heat and repeated use. It's often the first and cheapest part to fail in this circuit.

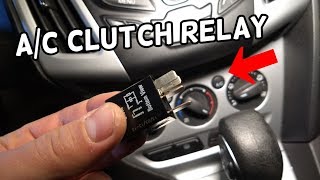

   How to confirm: Locate the A/C clutch relay (R11) in the under-hood fuse box (also called the Battery Junction Box). 🎬 Watch: How to locate and replace the A/C clutch relay. Swap it with an identical relay from a non-essential system (like the horn) and see if the A/C clutch engages.
   Typical fix: Replace the faulty relay with a new one. A common Motorcraft part number is F0AB-14B192-AA, but always verify for your specific vehicle.
   Est. part cost: $10-$25
2. Damaged Wiring or Connectors 🟡 Medium Probability The wiring harness to the A/C compressor is located in the engine bay where it's exposed to heat, vibration, and potential chafing, which can cause wires to break or short to ground. Check for wires rubbing against moving parts or sharp edges.
   How to confirm: Visually inspect the wiring harness running to the A/C compressor clutch for any signs of melting, chafing, or corrosion at the connector. Use a multimeter to check for continuity and proper voltage at the compressor connector when the A/C is commanded on.
   Typical fix: Repair the damaged section of wire or replace the corroded connector. Secure the harness with zip ties or loom to prevent future damage.
   Est. part cost: $5-$50
3. Failed A/C Compressor Clutch Coil 🟡 Medium Probability → Shop A/C Compressor The electromagnetic coil that engages the clutch can fail by developing an internal short or an open circuit, especially with age and heat cycles.

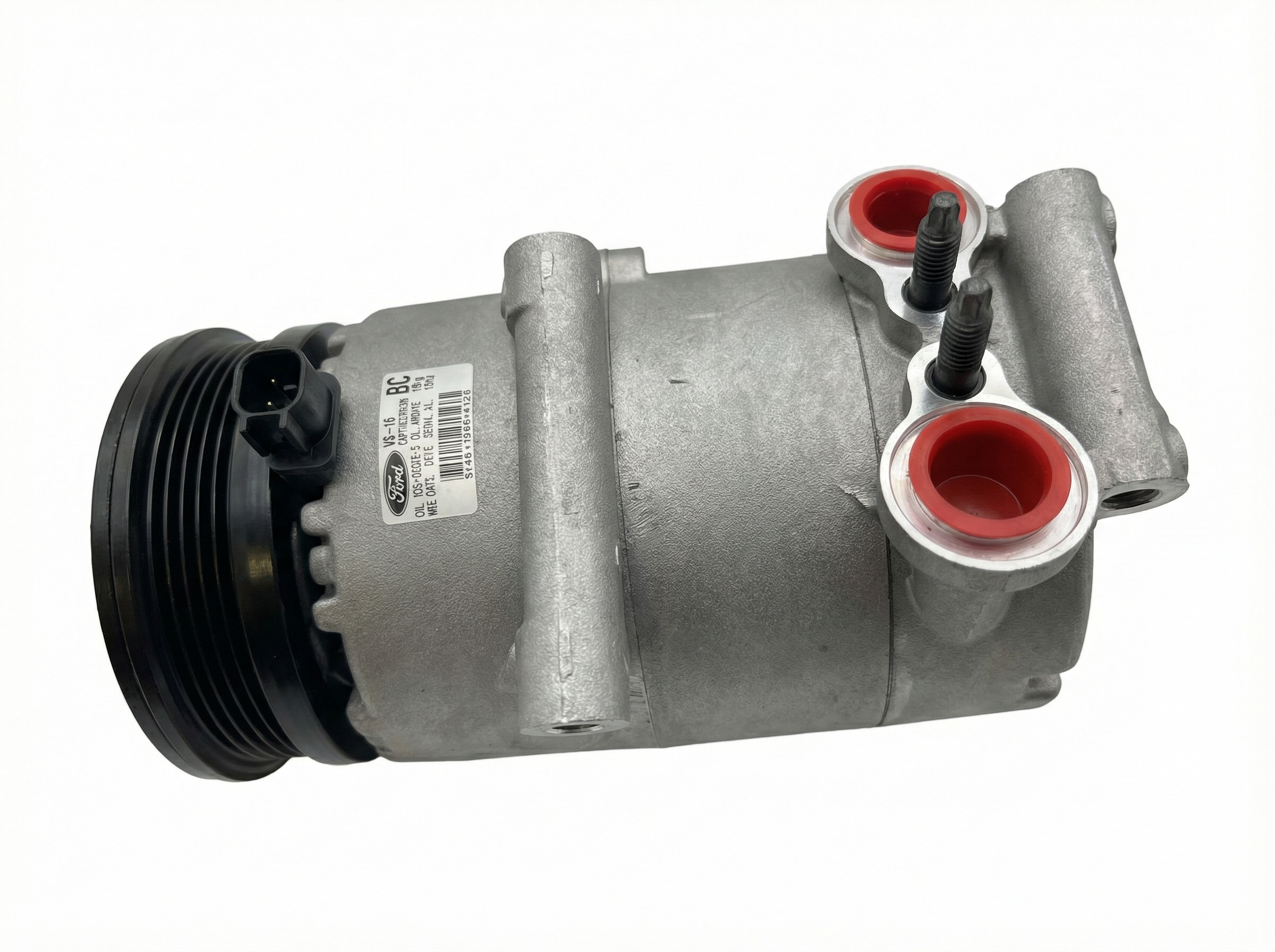

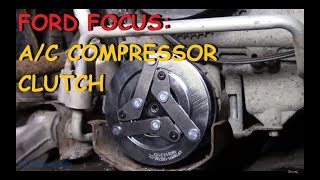

   How to confirm: Disconnect the A/C compressor clutch connector and measure the resistance across the two pins of the coil with a multimeter. 🎬 See this simple walkthrough for testing your A/C clutch coil. A normal reading is typically between 3.0 and 5.0 ohms. A reading of 0 ohms indicates a short, and an infinite (O.L.) reading indicates an open circuit.
   Typical fix: Replace the A/C compressor clutch coil. In some cases, it may be easier or more cost-effective to replace the entire A/C compressor assembly.
   Est. part cost: $40-$100 for the coil, $200-$450 for a full compressor assembly.
4. Blown Fuse ⚪ Low Probability
   How to confirm: Check the under-hood fuse box for the A/C compressor clutch fuse, which is position F27 (a 15A fuse). A diagram on the fuse box lid should identify the correct fuse. Visually inspect the fuse or test it for continuity.
   Typical fix: Replace the blown fuse. If the new fuse blows immediately, it indicates a short circuit in the system that must be found and repaired.
   Est. part cost: $1-$10

Rare But Worth Checking

• Faulty Powertrain Control Module (PCM): This is the least likely cause. The PCM's internal driver for the A/C relay can fail, but all other potential causes like wiring, the relay, and the clutch coil should be exhaustively ruled out before considering PCM replacement. TSB SSM-45815 specifically notes that if the A/C clutch can be commanded on using a diagnostic tool, the PCM is NOT the cause.
• Faulty A/C Pressure Transducer: A defective A/C pressure switch can send a false signal to the PCM, causing it to disable the A/C clutch relay as a protective measure. This can sometimes trigger a P0645 code indirectly.

Diagnosis Steps

1. Read the code with an OBD-II scanner to confirm P0645 is present.
2. Check fuse F27 (15A) for the A/C clutch circuit in the under-hood fuse box. Replace if blown.
3. Locate the A/C clutch relay (R11) in the same fuse box. Swap it with a known-good, identical relay (e.g., the horn relay) to see if the A/C clutch engages. If it does, the relay is bad.
4. If the relay is good, visually inspect the wiring harness leading to the A/C compressor clutch connector for any visible damage like burns, chafing, or loose connections.
5. Disconnect the compressor clutch connector. With the engine running and A/C on, carefully check for battery voltage at the harness-side connector using a multimeter. If voltage is present, the problem is likely the clutch coil. If no voltage is present, the issue is upstream in the wiring or PCM.
6. With the connector still unplugged, measure the resistance of the A/C compressor clutch coil. A reading between 3.0-5.0 ohms is expected. If the reading is outside this range, the clutch coil is bad.
7. If all other components test good, the final step is to check for a proper ground control signal from the PCM at the relay socket (pin 85), which may require a wiring diagram and advanced diagnostic knowledge.

Parts You'll Likely Need

• A/C Clutch Relay (OEM #F0AB-14B192-AA) — This is the most common and easiest part to fail in the control circuit. It's a simple electromechanical switch that wears out.
  Trusted brands: Motorcraft, Bosch, Standard Motor Products
  OEM price range: $15-$30
  Aftermarket price range: $10-$20
• A/C Compressor Clutch Coil — The coil is an electromagnet that can short out or break internally from heat and vibration, preventing the clutch from engaging.
  Trusted brands: Motorcraft, UAC, Four Seasons
  OEM price range: $70-$120
  Aftermarket price range: $40-$80
• A/C Compressor Assembly (OEM #F1F119D629AB) — Sometimes the clutch coil is not sold separately, or the labor to replace just the coil makes replacing the entire compressor assembly a more practical repair.
  Trusted brands: Motorcraft, Denso, Sanden
  OEM price range: $300-$500
  Aftermarket price range: $200-$350

Technical Service Bulletins (TSBs) & Recalls

• SSM-45815: AIR CONDITIONING (A/C) INOPERATIVE - DIAGNOSTIC TROUBLE CODE (DTC) P0645

Platform-Specific Known Issues

• Ford issued Technical Service Bulletin #SSM-45815 for some 2012 Focus models, specifically noting that DTC P0645 is associated with an inoperative A/C system. The TSB advises technicians that if the A/C clutch can be commanded on with the Ford IDS scan tool, the PCM should not be replaced and normal diagnostics should be followed.

Mechanic-Grade Diagnostic Values

• A/C Compressor Clutch Coil Resistance — expected: 3.0 to 5.0 Ohms at room temperature.. Failure: A reading below 2.0 Ohms (short), above 5.0 Ohms (high resistance), or infinite/O.L. (open circuit) indicates a faulty coil.
• A/C Clutch Coil Circuit Voltage Drop (Positive Side) — expected: 1.0 volts or less.. Failure: A reading higher than 1.0 volt indicates excessive resistance in the power feed circuit (wiring, connectors, relay contacts).
• Operating Voltage at A/C Clutch Coil Connector — expected: Within 1.0 volt of the battery's charging voltage (typically 13.5V - 14.5V with engine running).. Failure: A significant voltage drop points to high resistance in the circuit upstream of the connector.
• Main Chassis Ground Resistance — expected: As close to 0.0 Ohms as possible. 🎬 Watch: How to find and clean the main electrical grounds. A good, clean connection should measure under 0.5 Ohms.. Failure: Readings above 1.0 Ohm from the negative battery terminal to a chassis ground point can indicate a poor connection that may cause intermittent electrical issues.

Scan Tool Commands That Help

• Ford IDS (or FORScan, advanced generic scanners): Monitor Live Data PIDs (Parameter IDs) while commanding A/C on/off. — Use this to see the PCM's decision-making process. Key PIDs to watch are 'Air conditioning clutch allowed' (should be YES), 'A/C clutch cycling switch' (should be ON/YES), and 'wide open throttle AC cut off relay' (should toggle to ON when PCM commands the clutch). This confirms if the PCM is even trying to engage the clutch, which helps isolate the problem to the control side vs. the output circuit.

Wiring & Ground Locations

• Battery Junction Box (BJB) — Under the hood, left side of the engine compartment.. This is the location of the A/C Clutch Relay (R11) and the A/C Clutch Fuse (F27).
• G104 / G105 — Left side of the engine compartment, on the chassis frame rail, often under the air filter box.. These are primary chassis ground points for multiple engine and body electrical systems. On the Focus, these grounds are notorious for having paint underneath the terminal from the factory, leading to high resistance and intermittent electrical problems that can mimic component failure.
• A/C Compressor Clutch Connector — On the front of the A/C compressor, low down in the engine bay.. This is the final connection point before the clutch coil. It's where you test for voltage from the relay and test the resistance of the coil itself. It is exposed to road debris and engine heat, making it a potential point of failure due to corrosion or damage.

Real Owner Repair Stories

• Reddit user, r/MechanicAdvice (JDM vehicle, but universally applicable diagnostic logic) — A/C would blow warm air intermittently. Confirmed the compressor clutch was not engaged during failure, even though the scan tool showed the ECM was commanding it ON.
  ❌ Tried (didn't work) Swapping the A/C relay with a known good one.
  ✅ What actually fixed it The user confirmed 13.85V was present at the compressor connector, ruling out a wiring/relay issue. They then tested the resistance of the clutch coil and found it was 8.4 ohms when hot and 11.5 ohms when cold. This was well outside the expected 3-5 ohm range, indicating a failing coil. The high resistance prevented the coil from creating a strong enough magnetic field to engage the clutch, especially when hot.
• YouTube video from Mike Potts (2012 Ford Focus with DCT transmission) — General electrical gremlins and transmission faults, but the root cause is highly relevant to any electrical fault on this platform, including P0645.
  ❌ Tried (didn't work) Initial diagnosis pointed towards a faulty Transmission Control Module (TCM).
  ✅ What actually fixed it The owner discovered that the main chassis ground points under the airbox were bolted directly onto a painted surface from the factory. This created a poor, high-resistance ground connection. The fix was to remove the airbox, unbolt the two ground terminals, grind the paint off the chassis to expose bare metal, and re-secure the ground terminals. This provided a solid ground for the vehicle's electrical systems and resolved the issues.

OEM Part Supersession History

• F0AB-14B192-AA → N/A
  Heads up: This is a very common 4-pin/5-pin 'ice cube' relay used by Ford across many models and years for various functions (fuel pump, horn, A/C, etc.). While not officially superseded, ensure any replacement has the same pin configuration and amperage rating.

Model Year Variations Within This Range

• 2012-2016: No significant variations have been identified within this year range that affect the diagnosis or common causes of code P0645. The A/C clutch control circuit, including the location of fuse F27 and relay R11 in the under-hood fuse box, remained consistent through the 2015 facelift and up to 2018.
