P0645 on 2012-2016 Lincoln MKS: A/C Clutch Relay Circuit Fault Causes and Fixes

What's Unique About the 2012-2016 Lincoln MKS

For the Lincoln MKS and its platform mates (Ford Taurus, Flex, Lincoln MKT), this code is a well-documented issue. Ford issued a Technical Service Bulletin (TSB SSM-45815) for a wide range of 2011-2017 vehicles regarding inoperative A/C systems, with or without a P0645 code. The bulletin specifically advises technicians to use the Ford Integrated Diagnostic System (IDS) to manually command the A/C clutch (ACC_CMD PID). If the clutch engages with the scan tool, the PCM is working correctly, which helps avoid unnecessary and expensive computer replacements. The problem is most often a simple electrical component failure, like a relay or wiring.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Air conditioning does not blow cold air or blows warm air.
• The A/C compressor clutch does not engage (no 'click' sound when A/C is turned on).
• A/C system works intermittently.
• Check Engine Light is illuminated.
• A/C Malfunction light may be illuminated on the dash.

Most Likely Causes

1. Faulty A/C Clutch Relay 🔴 High Probability → Shop Wiring Relay Relays are electromechanical switches that wear out from heat cycles and repeated use. It's a very common failure point in many automotive electrical circuits and a top suspect for P0645. 🎬 See this step-by-step P0645 troubleshooting and repair guide.
   How to confirm: The A/C clutch relay is in the under-hood power distribution box. You can swap it with an identical relay from a non-critical system (like the horn or rear defroster relay) and see if the A/C starts working. If the A/C works and the other system fails, the relay is bad.
   Typical fix: Replace the faulty relay with a new one. The OEM part number is Motorcraft 8T2Z-14N089-A, which is superseded by GU5Z-14N089-A.
   Est. part cost: $15-$35
2. Wiring or Connector Issue 🟡 Medium Probability Engine bay heat and vibration can cause wires to become brittle, frayed, or shorted. The harness near the A/C compressor is a common spot for damage. The connector pins themselves can also corrode or spread, causing a poor connection.
   How to confirm: Visually inspect the wiring harness and connector going to the A/C compressor clutch for any signs of damage, melting, or corrosion. Use a multimeter to check for 12V power and a good ground at the compressor clutch connector when the A/C is commanded on. A lack of sufficient current, even with 12V present, can also prevent the clutch from engaging.

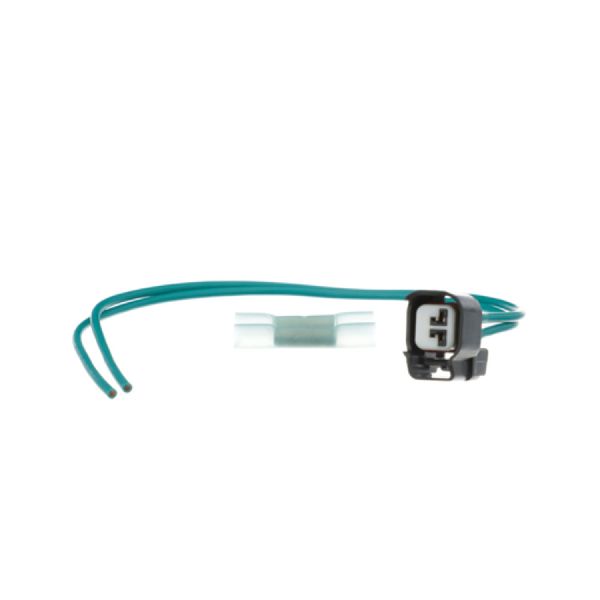

   Typical fix: Repair the damaged section of wiring or clean/replace the faulty connector. In some cases, a new pigtail connector is needed. 🎬 Watch: How to re-pin and repair damaged A/C connectors.
   Est. part cost: $10-$60
3. Failed A/C Compressor Clutch Coil ⚪ Low Probability → Shop A/C Compressor The electromagnetic coil that engages the clutch can fail by developing an internal short or open circuit. A short can also cause the associated fuse to blow repeatedly.
   How to confirm: Disconnect the A/C compressor clutch connector and measure the resistance across the two pins of the clutch coil with a multimeter. A reading outside the manufacturer's specification (typically 3-5 ohms) indicates a bad coil. Also check for continuity from each pin to ground; there should be none.
   Typical fix: On some models, the clutch can be replaced separately. However, it is most often replaced as part of a complete A/C compressor assembly.
   Est. part cost: $250-$550

Rare But Worth Checking

• Faulty Powertrain Control Module (PCM): This is rare. TSB SSM-45815 specifically warns against replacing the PCM unless all other possibilities have been exhausted and it's confirmed the PCM cannot command the relay on using a diagnostic tool.
• Blown Fuse: A blown fuse (typically 10A) for the A/C circuit will cause it to fail. This is often a symptom of another problem, like a shorted wire or a failing clutch coil, so it's important to find out why the fuse blew.
• Low Refrigerant Pressure: While low refrigerant usually sets a pressure-related code, some systems may disable the compressor clutch via the PCM as a protective measure, which can occasionally be misinterpreted or logged as a P0645 circuit fault.

Diagnosis Steps

1. Scan for any other stored trouble codes. Address those first if they are present.
2. Visually inspect the A/C compressor, clutch, connector, and wiring for obvious signs of damage, such as chafing or melting.
3. Locate the A/C clutch relay in the under-hood power distribution box (fuse box). 🎬 Watch: Locate your A/C fuses and relays here. Check the associated 10-amp fuse for the A/C clutch circuit.
4. Swap the A/C clutch relay with an identical relay (e.g., the horn relay) to quickly test if the relay is the fault.
5. If the relay and fuse are good, use a multimeter to check for 12V power at the A/C clutch connector when the A/C is turned on.
6. If power is present, check the resistance of the A/C compressor clutch coil. It should be between 3 and 5 ohms. An open circuit (infinite resistance) or a short (near-zero resistance) indicates a failed clutch coil.
7. If power is not present at the connector, trace the wiring back from the relay to the compressor for any breaks or shorts. Check for a good ground connection.
8. As a final step, if all wiring, the relay, and the clutch are good, use an advanced scan tool to check if the PCM is commanding the A/C on (ACC_CMD PID), per TSB SSM-45815. If it is not, there may be an issue with the PCM or another input sensor.

Parts You'll Likely Need

• A/C Clutch Relay (OEM #8T2Z-14N089-A (superseded by GU5Z-14N089-A)) — This is the most common failure point for a P0645 code. It's an inexpensive and easy part to replace for diagnosis and repair.
  Trusted brands: Motorcraft
  OEM price range: $20-$35
  Aftermarket price range: $15-$25
• A/C Compressor Assembly (OEM #FB5Z-19703-B) — If the A/C compressor clutch coil is faulty, the entire compressor assembly is typically replaced. The OEM part includes the compressor and the clutch.
  Trusted brands: Motorcraft, Denso, Four Seasons, GPD, UAC
  OEM price range: $450-$550
  Aftermarket price range: $250-$400

Technical Service Bulletins (TSBs) & Recalls

• SSM-45815: AIR CONDITIONING (A/C) INOPERATIVE - DIAGNOSTIC TROUBLE CODE (DTC) P0645

Platform-Specific Known Issues

• TSB SSM-45815: A Technical Service Bulletin (TSB SSM-45815) was issued for 2011-2017 Ford/Lincoln vehicles for an inoperative A/C, which may or may not be accompanied by a P0645 code. It guides technicians to perform standard diagnostics, specifically using the IDS scan tool to command the clutch on, before considering PCM replacement.
• Internal Water Pump (3.5L/3.7L): Though unrelated to code P0645, owners of this platform should be aware of a significant design issue where the water pump is located internally and driven by the timing chain. A pump failure can leak coolant directly into the engine oil, leading to catastrophic engine damage.

Mechanic-Grade Diagnostic Values

• A/C Compressor Clutch Coil Resistance — expected: Less than 5 ohms. Failure: A reading of infinite resistance (open) or significantly higher than 5 ohms indicates a failed coil.
• A/C Clutch Relay Coil Resistance — expected: 40 to 120 ohms. Failure: A reading outside this range (OL or near zero) indicates a faulty relay coil.
• Voltage at A/C Clutch Relay Socket (Power Feed) — expected: Greater than 10 volts (with key on). Failure: Low or no voltage indicates a problem with the fuse or the power supply wire to the relay.
• Voltage on PCM Control Circuit (at relay socket) — expected: Approximately 0 volts when A/C is commanded ON; Battery voltage when OFF.. Failure: Voltage not dropping to near zero when commanded ON points to a PCM driver issue or an open in the control wire. Voltage at 0 when OFF indicates a short to ground.

Scan Tool Commands That Help

• Ford IDS / FORScan: ACC_CMD (Air Conditioning Clutch Command) PID — This is a bidirectional control used to manually command the A/C compressor clutch on and off. It is the definitive test to verify if the PCM, its driver, the relay control circuit, the relay, and the clutch power circuit are all functioning. This is the primary step recommended by TSB SSM-45815.
• Ford IDS / FORScan: Key-On-Engine-Off (KOEO) Self-Test — This automated test cycles through all PCM-controlled outputs, including the A/C clutch relay. It's a quick way to perform a load test on the entire circuit without manually selecting PIDs. A successful test that engages the clutch confirms the integrity of the electrical circuit from the PCM to the clutch.

Wiring & Ground Locations

• A/C Clutch Relay — In the under-hood Power Distribution Box (Battery Junction Box). For 2013+ models, this is specifically Relay #98.. This is the component the PCM uses to switch power to the A/C compressor clutch. It is the most common failure point.
• A/C Clutch Fuse — In the under-hood Power Distribution Box. For 2013+ models, this is specifically Fuse #62 (10A).. This fuse protects the A/C clutch circuit. If it's blown, the clutch will not receive power. A repeatedly blowing fuse indicates a short circuit.
• Circuit CH302 (WH/BN wire) — Runs from the A/C clutch relay coil to the PCM. On 3.5L engines, it connects to pin C175B-18. On 3.5L GTDI (EcoBoost), it connects to pin C1381B-12.. This is the specific control wire that the PCM grounds to activate the relay. A short or open on this wire will cause a P0645.
• Grounds G100 / G102 / G103 / G104 — These are major engine compartment ground points located on the left side of the engine bay, on the cowl, and near the front frame rail.. A poor engine or chassis ground can cause a variety of electrical issues, including intermittent or failed operation of the A/C clutch circuit. These are primary grounds to inspect for corrosion or looseness.

Real Owner Repair Stories

• ScannerDanner YouTube Channel / 2013 Ford F-150 (2013 Ford F-150 (similar electronic control)) — Intermittent A/C operation. A/C would work for a while and then blow warm.
  ❌ Tried (didn't work) Initial check showed correct refrigerant pressure., Scan tool showed the PCM was commanding the A/C on.
  ✅ What actually fixed it The female terminals in the A/C compressor's electrical connector had spread apart, causing a poor connection. Even though voltage was present, not enough current could flow to reliably engage the clutch. The fix was to tighten the connector's female pins and re-secure the harness.

"I Checked Everything" — The Actual Cause

• This code is electrical, so a smoke test is not applicable. However, a similar pattern exists where a simple voltage test can be misleading. A circuit can show 12 volts on a high-impedance digital multimeter but fail to deliver the necessary amperage (current) to engage the A/C clutch due to corrosion or a loose pin. This was the case in a documented repair where tightening the connector pins resolved the issue after voltage tests seemed to pass. The proper method to verify the circuit's integrity is to load it using a test light or by commanding the component on with a scan tool.

OEM Part Supersession History

• 8T2Z-14N089-A → GU5Z-14N089-A — Standard part number update/revision by manufacturer. No specific functional changes or incompatibility issues were noted in searches.

Model Year Variations Within This Range

• 2013-2016: Following the 2013 model year facelift, the A/C clutch relay is specifically identified as relay #98 and the corresponding fuse is #62 (10A) in the under-hood Power Distribution Box. Diagrams for 2012 and earlier models are less specific about the exact slot number.
