P0645 on 2012-2016 Lincoln Navigator: A/C Clutch Circuit Causes and Fixes

What's Unique About the 2012-2016 Lincoln NAVIGATOR

For this generation of Lincoln Navigator and its Ford platform mates, the key is to avoid misdiagnosis. Ford/Lincoln issued a Technical Service Bulletin (TSB SSM-45815) for a wide range of 2011-2017 vehicles, specifically warning technicians not to immediately replace the expensive Powertrain Control Module (PCM). The bulletin advises that if the A/C clutch can be manually turned on with a professional scan tool (specifically using the ACC_CMD PID), the problem lies elsewhere in the circuit, not with the PCM itself. This highlights that simpler components like the relay, wiring, or even an A/C pressure switch are the more common failure points.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Generation note: The 2012-2016 year range covers a mid-cycle refresh of the third-generation Navigator. - 2012-2014 models use a 5.4L V8 engine. - 2015-2016 models feature a refreshed exterior and interior, and use a 3.5L EcoBoost V6 engine. While the underlying cause of P0645 is the same, the location of the A/C clutch relay and fuse in the under-hood fuse box differs between these two versions. The wiring harness routing also differs, with the 3.5L EcoBoost having a known issue with the A/C pressure switch.

Symptoms You May Notice

• Air conditioning does not blow cold air.
• A/C compressor clutch does not 'click' or engage when the A/C is turned on.
• Check Engine Light is illuminated.
• Intermittent A/C operation or compressor 'chattering' (clicking on and off rapidly).
• A/C button on the climate control may blink.
• On 3.5L EcoBoost models, the engine cooling fan may run at maximum speed as soon as the A/C is turned on, sounding like a jet engine.

Most Likely Causes

1. Faulty A/C Clutch Relay 🔴 High Probability → Shop Wiring Relay Relays are electro-mechanical switches that wear out over time from heat and repeated cycling. It is the most common, simplest, and cheapest point of failure in the circuit.
   How to confirm: Locate the A/C clutch relay in the under-hood fuse box. Swap it with an identical relay from a non-essential system (like the horn or fog lights). If the A/C clutch now engages and the other system doesn't work, the relay is bad.
   Typical fix: Replace the faulty relay with a new one.
   Est. part cost: $10-$25
2. Blown Fuse for A/C Clutch Circuit 🟡 Medium Probability
   How to confirm: Visually inspect the fuse for the A/C clutch circuit in the under-hood fuse box. Use a multimeter or test light to confirm it has continuity.
   Typical fix: Replace the blown fuse. If the new fuse blows immediately, it indicates a short circuit in the wiring or A/C clutch coil that must be diagnosed.
   Est. part cost: $1-$5
3. Wiring or Connector Issue 🟡 Medium Probability The wiring harness leading to the A/C compressor is exposed to engine heat and vibration. Wires can break, chafe, or melt against hot components like the exhaust manifold. The connector at the compressor clutch can also become corroded or filled with debris, causing a poor connection.
   How to confirm: Visually inspect the wiring harness from the fuse box to the A/C compressor. Check the connector at the compressor clutch for corrosion, bent pins, or loose connections. Use a multimeter to check for 12V power at the connector when the A/C is commanded on.
   Typical fix: Repair the damaged section of wiring or clean/replace the electrical connector pigtail.
   Est. part cost: $10-$80
4. Failed A/C Compressor Clutch Coil ⚪ Low Probability → Shop A/C Compressor
   How to confirm: Disconnect the A/C compressor clutch connector. Use a multimeter to measure the resistance across the two pins of the clutch coil. A normal reading is typically between 2 and 5 ohms. Infinite resistance (OL) indicates an open circuit, and near-zero resistance indicates a short circuit. 🎬 Watch: Troubleshooting a Ford A/C compressor clutch that won't engage
   Typical fix: Replace the A/C compressor clutch assembly. In many cases, it is more cost-effective to replace the entire A/C compressor assembly which includes a new clutch.
   Est. part cost: $75-$150 for a clutch kit, $250+ for a full compressor assembly.
5. Faulty A/C Pressure Switch (Transducer) ⚪ Low Probability On the 3.5L EcoBoost engine, the A/C pressure switch (transducer) can fail, sending incorrect data to the PCM. This can cause the PCM to disable the compressor and set a P0645 code, even though the clutch circuit itself is fine. A primary symptom of this specific failure is the radiator fan running at full speed when the A/C is on.
   How to confirm: A professional scan tool can monitor the A/C pressure readings. If the pressure readings are erratic or nonsensical, the switch is likely bad. A DIY diagnosis involves replacing the switch, as it's a known issue for these symptoms.
   Typical fix: Replace the A/C pressure switch. On many Ford models, the line has a Schrader valve, so the system does not need to be evacuated for this repair.
   Est. part cost: $50-$100

Rare But Worth Checking

• Faulty Powertrain Control Module (PCM): This is the least likely cause. Before condemning the PCM, all other parts of the circuit must be tested and proven to be good. TSB SSM-45815 specifically warns against replacing the PCM if the clutch can be activated by a scan tool.

Diagnosis Steps

1. Read the trouble codes with an OBD-II scanner to confirm P0645 is present.
2. Check the Fuse (2012-2014): In the under-hood fuse box, inspect Fuse #30 (10A).
3. Check the Fuse (2015-2016): In the under-hood fuse box, inspect Fuse #11 (10A).
4. Test the Relay (2012-2014): Locate the A/C clutch relay at position #23 in the under-hood fuse box. 🎬 Watch: Locate and test your A/C relay and fuse Swap it with a known-good, identical relay (e.g., the horn relay) to see if the A/C clutch engages.
5. Test the Relay (2015-2016): Locate the A/C clutch relay at position R11 in the under-hood fuse box. Swap it with an identical relay to test.
6. Use a Scan Tool: If possible, use a scan tool with active command capabilities. Try to command the A/C clutch ON (Ford-specific PID: ACC_CMD). If it engages, the PCM and its output driver are good, and the fault is downstream.
7. Inspect Wiring: Visually inspect the wiring harness leading to the A/C compressor clutch for any signs of melting, chafing, or damage, paying close attention to where it runs near the exhaust manifold. Check that the connector is secure and free of corrosion.
8. Test the Clutch Circuit: With the A/C turned on, use a multimeter to check for 12V at the A/C compressor clutch connector. If voltage is present but the clutch does not engage, the clutch coil is likely faulty.
9. Test the Clutch Coil: Disconnect the clutch and measure its resistance. A reading between 2-5 ohms is typical. A reading of infinity (OL) or near zero indicates a failed coil.
10. If no voltage is present at the clutch connector and the relay/fuse are good, test for continuity on the control wire between the relay socket and the PCM. A detailed pinpoint test can be found in Ford's workshop manuals.

Parts You'll Likely Need

• A/C Clutch Relay (OEM #9L2T-14B192-AA) — This is the most common failure point for code P0645. It's an inexpensive and easy part to replace as a first step. Note that this is an 'engineering number' and may cross-reference to a different service part number at the dealer.
  Trusted brands: Motorcraft, Standard Motor Products
  OEM price range: $15-$30
  Aftermarket price range: $10-$20
• A/C Pressure Switch (Transducer) (OEM #HG1Z-19D594-A) — A common failure on 3.5L EcoBoost models that can trigger P0645 and cause the cooling fan to run at high speed.
  Trusted brands: Motorcraft
  OEM price range: $50-$100
  Aftermarket price range: $30-$60

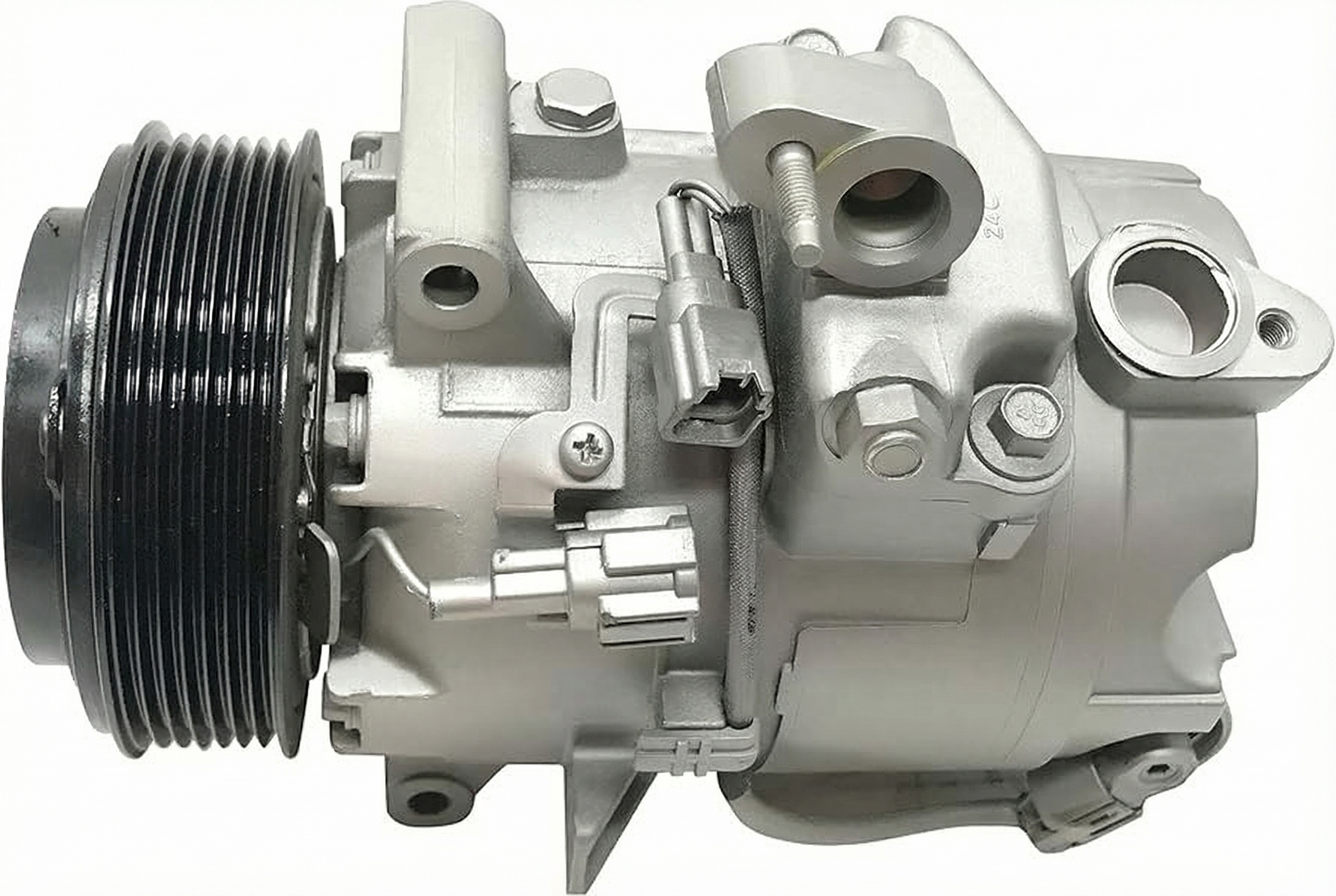

• A/C Compressor with Clutch — If the clutch coil is shorted or open, the entire compressor assembly is often replaced as it includes a new clutch and is more labor-efficient.
  Trusted brands: Motorcraft, Denso, Four Seasons, GPD
  OEM price range: $450-$880
  Aftermarket price range: $150-$350
• Mini Fuse (10 Amp) — A short in the circuit will blow the fuse. It should always be checked during diagnosis.
  Trusted brands: Bussmann
  OEM price range: $1-$5
  Aftermarket price range: $1-$5

Technical Service Bulletins (TSBs) & Recalls

• SSM-45815: AIR CONDITIONING (A/C) INOPERATIVE - DIAGNOSTIC TROUBLE CODE (DTC) P0645. Advises against replacing the PCM if the A/C clutch can be commanded on via a scan tool using the ACC_CMD PID.

Platform-Specific Known Issues

• A known issue documented by TSB SSM-45815 involves the A/C being inoperative with code P0645. The primary takeaway is that the PCM is often not the cause of the

Mechanic-Grade Diagnostic Values

• A/C Clutch Relay Coil Resistance — expected: 50-90 ohms. Failure: A reading outside this range indicates a faulty relay.
• Voltage at A/C Clutch Relay Socket (Power Feed) — expected: Greater than 10 volts with ignition on. Failure: Less than 10 volts indicates an open or short in the power supply circuit to the relay.
• Resistance of PCM Control Circuit to Ground — expected: Greater than 10,000 ohms (with PCM disconnected). Failure: Less than 10,000 ohms indicates a short to ground in the control wire between the relay and the PCM.
• Continuity of PCM Control Wire — expected: Less than 5 ohms. Failure: Greater than 5 ohms indicates an open/high resistance in the control wire between the relay socket and the PCM connector.

Wiring & Ground Locations

• PCM Connector C175b (5.4L V8) — Right rear of the engine compartment.. Pin 14 (WH-BN wire) is the A/C clutch relay control circuit. This is where you test for shorts or opens back to the relay socket.
• PCM Connector C175E (3.5L V6) — Right rear of the engine compartment.. Pin 3 (WH-BN wire) is the A/C clutch relay control circuit on gasoline engines of this platform generation. This is the test point for the control circuit.
• G203 / G204 — G203 is at the lower left 'A' pillar. G204 is behind the right kick panel.. These are primary interior/dash ground points. While not directly for the clutch, a poor ground here can cause issues with the HVAC control module, which requests the A/C from the PCM.
• A/C Clutch Relay Control Wire — For 2012-2014 models, this is typically a White/Brown wire at the relay socket and at PCM connector C175b, pin 14.. This is the specific wire the PCM uses to ground the relay and activate the A/C clutch. Faults are tested on this wire.

OEM Part Supersession History

• BT4Z-19D594-A → HG1Z-19D594-A — Part number update/revision by Ford.
  Heads up: The new part number HG1Z-19D594-A is the correct service replacement for the original.

Model Year Variations Within This Range

• 2012-2014 (5.4L V8): The A/C clutch relay control circuit is on Pin 14 of PCM connector C175b.
• 2015-2016 (3.5L V6): The A/C clutch relay control circuit is on Pin 3 of PCM connector C175E.
