P0705 on 2013-2020 Ford Fusion: Transmission Range Sensor Causes and Fixes

What's Unique About the 2013-2020 Ford Fusion

The 2013-2020 Ford Fusion (second generation) primarily uses the 6F35 automatic transmission for its gasoline engines. A key feature for this repair is that the Transmission Range Sensor (TRS) is mounted externally on the front of the transmission case, making it much more accessible than designs where the sensor is inside the transmission. This makes diagnosis and replacement a feasible DIY task. The sensor's location, however, makes it vulnerable to road debris, moisture, and potential fluid leaks from components higher up in the engine bay, which can corrode the connector and sensor.

Symptoms You May Notice

• Check Engine Light is illuminated
• Vehicle may not crank or start
• Vehicle will only start in Neutral, but not Park
• Gear indicator on the dashboard (PRNDL) is incorrect, blank, or has a warning light
• Transmission is stuck in one gear (limp mode)
• Harsh, erratic, or delayed shifting
• Reverse/backup lights do not work
• Inability to shift out of Park

Most Likely Causes

1. Faulty Transmission Range Sensor (TRS) 🔴 High Probability → Shop Transmission Assembly The sensor is an electronic component exposed to harsh conditions (heat, vibration, moisture) on the outside of the transmission, leading to eventual failure. Internal contacts can wear down or get contaminated over time.
   How to confirm: After confirming the wiring is intact, test the sensor's output signal with a multimeter while an assistant moves the gear selector. The voltage should change smoothly and predictably for each gear position according to the service manual's specifications. An erratic or non-existent signal confirms a bad sensor. A capable scan tool can also monitor the live data from the sensor to see if it's reporting the correct gear.
   Typical fix: Replace the Transmission Range Sensor. 🎬 Watch: Diagnose and fix a P0705 code
   Est. part cost: $75-$175
2. Damaged Wiring or Corroded Connector 🟡 Medium Probability The TRS connector is located on the front of the transmission, where it is susceptible to corrosion from water and road salt. Fluid leaks from higher in the engine bay can drip onto the sensor and connector, causing shorts and failures. This is a very common failure point and should be inspected before replacing the sensor.
   How to confirm: Visually inspect the wiring harness and the electrical connector going to the TRS. Look for green/white crust (corrosion), bent pins, broken wires, or signs of fluid contamination. Perform a continuity test on the wires between the sensor and the Transmission Control Module (TCM) if a visual inspection is inconclusive.
   Typical fix: Clean the connector terminals with an electrical contact cleaner. If corrosion is severe or wires are broken, the connector pigtail or a section of the harness may need to be replaced.
   Est. part cost: $15-$50
3. Misadjusted or Damaged Shift Cable/Linkage ⚪ Low Probability While less likely to cause a P0705 electrical code, a loose or damaged shift cable can prevent the manual lever on the transmission from fully engaging in the correct gear detent. This could lead to an ambiguous signal from the sensor if it's not perfectly aligned with the shifter position. Ford has issued recalls for degraded shifter cable bushings on this platform (see Common Misdiagnoses).
   How to confirm: With the vehicle safely supported, have an assistant move the gear shifter inside the car. Observe the manual lever on the side of the transmission to ensure it moves into each detent position crisply. Check for excessive play in the cable and its connection points.
   Typical fix: Adjust or replace the shift cable and/or its bushings.
   Est. part cost: $20-$100

Rare But Worth Checking

• Faulty Powertrain Control Module (PCM) or Transmission Control Module (TCM): → Shop Transmission Assembly This is very rare. The control module should only be considered after all other possibilities, including the sensor and its entire circuit, have been exhaustively tested and ruled out. This is almost never the cause.

Diagnosis Steps

1. Scan for Codes: Use an OBD-II scanner to confirm P0705 and check for any other related transmission codes (like P0707, P0708). Note the freeze frame data.
2. Inspect the Wiring and Connector: Locate the Transmission Range Sensor on the lower front side of the transmission, near the shift lever. Carefully inspect the electrical connector for corrosion, moisture, or damage. Look for any signs of fluid that may have leaked from above.
3. Check Shift Linkage: Ensure the shift cable is properly connected and not damaged. Verify the manual lever on the transmission moves correctly as the shifter is moved. Check for recalls related to the shift cable bushing.
4. Test the Circuit: If the wiring looks good, use a multimeter to test for proper voltage and ground at the sensor connector according to the vehicle's service manual. Test the sensor's output signal through each gear range to see if it's within spec.
5. Check for TSBs and Recalls: Check for recalls like the shift cable bushing (22S43) to rule out related mechanical issues.
6. Replace the Sensor: If the sensor itself is confirmed to be faulty, replace it. The new sensor may require alignment. 🎬 See this step-by-step TRS replacement tutorial An alignment tool can be used, but it can often be done by aligning marks on the sensor and lever, or by ensuring the vehicle starts in Park and Neutral and the reverse lights work in Reverse before tightening the bolts.
7. Clear Codes and Test Drive: After repair, clear all codes and perform a test drive, shifting through all gears to ensure the issue is resolved.

Parts You'll Likely Need

• Transmission Range Sensor (OEM #DG9Z-7H557-B) — This is the sensor that reads the gear selector's position and is the most common point of failure for this code.
  Trusted brands: Motorcraft, Dorman, Rostra, Standard Motor Products (SMP)
  OEM price range: $150-$275
  Aftermarket price range: $60-$120

Related Codes That Often Appear With This One

• P0707 — Indicates 'Transmission Range Sensor Circuit Low Input', pointing specifically to a low voltage signal from the sensor, often due to a wiring short or internal sensor failure.
• P0708 — Indicates 'Transmission Range Sensor Circuit High Input', pointing to a high voltage signal, also caused by wiring or sensor faults.
• P1702 — A Ford-specific code indicating the TRS is sending an invalid signal. This often appears alongside P0705 and points directly to a fault with the sensor or its circuit.

Mechanic-Grade Diagnostic Values

• TR Sensor Power Supply Voltage — expected: Greater than 10 Volts. Failure: Voltage below 10V indicates a power supply issue to the sensor circuit.
• TR Sensor Signal Circuit to Ground Resistance — expected: Greater than 10,000 Ohms. Failure: Resistance less than 10,000 Ohms indicates a short to ground in one of the signal wires.
• Live Data PID: TR_FREQ (Signal Frequency) — expected: A stable frequency, typically between 100-150 Hz.. Failure: A frequency that is erratic, zero, or outside the expected range points to a sensor or circuit fault.
• Live Data PID: TR_DC (Signal Duty Cycle) — expected: A specific percentage that changes with each gear position (e.g., Park: ~15%, Reverse: ~35%, Neutral: ~45%, Drive: ~65%). Exact values should be referenced from a service manual.. Failure: The duty cycle value does not change when the shifter is moved, or the value does not match the selected gear.

Hidden / Shadow Codes Worth Checking

• P1705: This is a Ford-specific code for 'Manual Lever Position Sensor Out of Self-Test Range'. While visible on standard scanners, its specific meaning points to a failure during the PCM's internal check of the sensor, which is more precise than the generic P0705 definition. (see via Standard OBD-II scanner, Ford IDS, FORScan.)

Scan Tool Commands That Help

• Ford IDS, FORScan: PID Monitoring (TR_DC, TR_FREQ) — This is the primary diagnostic step. Monitor these live data PIDs while an assistant moves the shifter through each gear. The values should change smoothly and logically. Wiggling the harness while monitoring can help identify intermittent shorts or opens.
• FORScan: Clear Transmission Adaptive Tables — This service function should be performed after any major transmission work, including replacing the sensor or valve body, to reset the transmission's learned shift behavior.
• FORScan: Transmission Characterization Update — This is required if the valve body or entire transmission is replaced. The new component has a solenoid body strategy ID that must be programmed into the PCM/TCM for correct operation. While not typically required for just an external sensor swap, it's a critical related procedure.

Wiring & Ground Locations

• Transmission-to-Chassis Ground Strap — Typically runs from a bolt on the transmission bell housing to a grounding point on the chassis frame rail, often located under the battery tray and/or air filter box.. This is a primary ground path for the transmission and its electronics. If this strap is loose, corroded, or broken (often after other service like a starter replacement), it can cause a wide range of electrical issues, including a no-start condition and various transmission codes like P0705, mimicking a failed sensor or module.
• G105 — On the right side of the engine compartment.. This is a key engine bay ground point. A poor connection here can affect various powertrain sensors and modules.
• G111 / G112 — Located at the left front of the engine compartment.. These are additional engine bay ground points that are critical for the proper function of the PCM and related sensor circuits.
• C175T — This is a major multi-pin connector at the Powertrain Control Module (PCM).. The signal wires from the Transmission Range Sensor run to the PCM through this connector. It's a point of failure if pins become corroded or loose, and it's a key location for circuit testing between the sensor and the PCM.

Real Owner Repair Stories

• Reddit user on r/FordFocus (2017 Ford Focus with manual transmission (similar grounding principles apply)) — Car would not start after replacing the slave cylinder.
  ❌ Tried (didn't work) Initial reassembly after clutch/slave cylinder work.
  ✅ What actually fixed it The user found a forgotten ground wire that bolts to the transmission bell housing. After cleaning the mating surfaces on the cable end and the transmission with a brass brush and securely bolting it down, the no-start issue was resolved.
• NHTSA ODI #11547976 — An owner reported their vehicle was diagnosed with code P0705 due to the transmission range sensor circuit malfunctioning.
• NHTSA ODI #11673731 — A Ford owner described having no way of visually confirming the gear position; a diagnostic scan returned P0705, and the radiator fans would turn on high when the vehicle was placed in Park.
• NHTSA ODI #11488420 — In this report, a scanner retrieved codes P0706 and P0705, and the vehicle would not start back up.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• EcoBoost Engine Coolant Intrusion 🔴 High — Common on 1.5L and 2.0L EcoBoost engines. A design flaw can cause the engine block to crack, allowing coolant to leak into the cylinders. Symptoms include white smoke, low coolant, and misfires. (Ref: TSB 19-2346, TSB 22-2134, Customer Satisfaction Program 21N12)

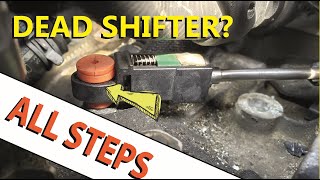

• Degrading Shifter Cable Bushing 🔴 High — Extremely common across millions of Ford vehicles, including the Fusion. The bushing that attaches the shift cable to the transmission fails, preventing the vehicle from being in the gear selected by the driver. This can lead to a rollaway risk. (Ref: Recalls 18S20, 22S43 / NHTSA 22V413)
• EPAS (Electric Power Steering) Failure / Corrosion 🔴 High — Affects vehicles in regions where road salt is used. Corrosion of the steering gear motor bolts can lead to a sudden loss of power steering assist, making the vehicle very difficult to steer. (Ref: Recall 19S26)
• Loose Steering Wheel Bolt 🔴 High — A bolt in the steering column could loosen over time, potentially leading to the steering wheel detaching. Affects 2014-2018 models. (Ref: Recall 18S08)
• Failing Door Latches 🟠 Medium — A widespread issue on many Ford models from this era. The door latch can fail, preventing the door from closing securely or causing it to open while driving. (Ref: Multiple recalls and NHTSA investigations exist for this issue on various Ford platforms.)
• Swollen Lug Nuts 🟡 Low — Very common. The two-piece lug nuts have a steel core with an aluminum cap. Moisture gets between the layers, causing the cap to swell and deform, making it impossible to remove the lug nut with the standard-sized wrench.

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: For this repair, a used OEM (Motorcraft) sensor from a low-mileage donor vehicle can be a cost-effective option. The external mounting makes inspection and replacement relatively simple. Avoid used parts if the donor vehicle shows signs of flood damage or high mileage.

Donor-vehicle mileage cap: roughly under 60000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• Check the electrical connector pins for any signs of corrosion (green or white powder) or moisture.
• Inspect the plastic housing for cracks, melting, or physical damage.
• Ensure the mounting points are intact and not broken.
• If possible, get the sensor from a vehicle that was running and driving without transmission issues.

OEM-only on this vehicle (don't cheap out):

• While not strictly 'OEM-only', community feedback suggests that for critical electronic sensors like the TRS, using the OEM Motorcraft part is the safest bet to avoid premature failure and ensure correct signaling.

Aftermarket brands forum-validated for this vehicle:

• Standard Motor Products (SMP) is generally considered a reliable aftermarket alternative.

Brands owners have reported issues with on this vehicle:

• Dorman has mixed reviews for electronic parts. While some users have no issues, others report premature failure or out-of-box defects. Given the critical function of this sensor, it may be worth spending more on an OEM or top-tier aftermarket part to avoid repeat labor.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P0707 — A related transmission range sensor circuit code (low input) that may be scanned alongside P0705 during diagnosis.
• P0708 — A related transmission range sensor circuit code (high input) often checked during the initial scan for P0705.
• 18S20 — A Ford recall code related to the shifter cable bushing which can cause mechanical gear selection issues similar to P0705 symptoms.

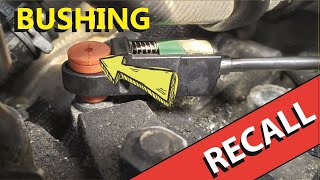

• 22S43 — A major Ford recall for the shift cable bushing; failure of this bushing prevents the transmission from reaching the gear selected by the driver, mimicking sensor alignment issues.
