P0706 on 2012-2019 Hyundai Accent: Transmission Range Sensor Causes and Fixes

What's Unique About the 2012-2019 Hyundai ACCENT

For the 2012-2019 Hyundai Accent, the P0706 code is frequently tied directly to the externally mounted inhibitor switch. Unlike some vehicles where the sensor is inside the transmission, the Accent's sensor is generally accessible on the outside of the transmission case, making diagnosis and replacement more straightforward for a DIYer or professional. To access it, one must typically remove the air cleaner assembly, battery, and battery tray. Hyundai has issued multiple Technical Service Bulletins (TSBs) that cover this exact code, indicating it's a known and common issue.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Generation note: This range covers the end of the fourth generation (RB, 2012-2018) and the beginning of the fifth generation (YC, 2018-2019). Both generations use a 1.6L GDI engine and a 6-speed automatic transmission and can experience this code. The inhibitor switch is a common cause for both, but part numbers have been superseded. Part number 42700-26500 was common for earlier models and is now replaced by the updated part 42700-26700 for the entire range. Always verify the part number with your vehicle's VIN before purchasing.

Symptoms You May Notice

• Check Engine Light is on
• Vehicle will not start, or only starts in 'N' (Neutral)
• Gear indicator on the dashboard is incorrect, blank, or all positions are lit up
• Transmission shifts harshly or at the wrong times
• Vehicle enters 'limp mode' (stuck in one gear, usually 3rd or 4th)
• Inability to shift out of Park
• Reverse lights do not turn on

Most Likely Causes

1. Defective Transmission Range Sensor (Inhibitor Switch) 🔴 High Probability → Shop Transmission Assembly The switch is an electro-mechanical part with internal moving contacts that wear out. It's exposed to heat and vibration on the transmission case, leading to internal wear and failure over time. This is a well-documented, high-failure item for this platform and its Kia Rio sibling.
   How to confirm: Use a scan tool to monitor the 'Shift Lever Switch' live data while moving the shifter. If the displayed gear position does not match the actual shifter position, the sensor is likely faulty. You can also test the sensor's electrical circuits for correct voltage and resistance at the connector pins according to the service manual.
   Typical fix: Replace the inhibitor switch. This involves disconnecting the battery, removing the air cleaner assembly and the battery tray for access. Then, disconnect the shift linkage, unbolt the old switch, and install the new one. Proper alignment in the Neutral position is crucial before tightening.
   Est. part cost: $30-$100
2. Damaged Wiring or Corroded Connector 🟡 Medium Probability The wiring harness to the sensor is located in the engine bay and can be susceptible to damage from heat, oil contamination, or vibrations, leading to corrosion on the connector pins or broken wires.
   How to confirm: Visually inspect the wiring harness and the connector pins for any signs of green/white corrosion, fraying, or breaks. Perform a continuity test on the wires between the sensor connector and the PCM if a visual inspection is inconclusive.
   Typical fix: Repair the damaged section of the wire or clean the connector pins with an electrical contact cleaner. If corrosion is severe, the connector pigtail may need to be replaced.
   Est. part cost: $5-$50
3. Improperly Adjusted Inhibitor Switch or Shift Cable ⚪ Low Probability → Shop Transmission Park Inhibitor Switch If the switch or shift cable has been previously replaced or disturbed, it may not have been correctly aligned, causing a mismatch between the mechanical gear position and the electrical signal. This is a common error during installation.

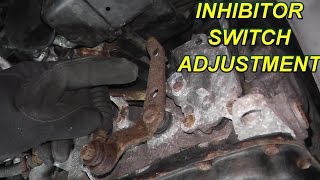

   How to confirm: Check the alignment of the inhibitor switch. When the transaxle is in the Neutral position, a 5mm alignment hole on the switch body should line up with a corresponding hole on the lever, allowing a small pin or drill bit to be inserted through both.
   Typical fix: Loosen the switch mounting bolts, shift the transmission to Neutral, align the switch correctly using a 5mm pin, and retighten the bolts to the specified torque (7-9 lb-ft). Adjust the shift cable if necessary.
   Est. part cost: $0

Rare But Worth Checking

• Faulty Powertrain Control Module (PCM): This is very rare. The PCM should only be considered after all other possibilities, including the sensor, wiring, and adjustment, have been thoroughly ruled out and confirmed good.

Diagnosis Steps

1. Connect an OBD-II scanner and confirm the presence of P0706. Note any other transmission-related codes (P0705, P0707, P0708 are common).
2. Using the scanner's live data function, monitor the transmission range sensor parameter ('Shift Lever Switch'). Move the gear shifter slowly through P, R, N, D and observe if the data on the scanner matches the shifter's position without glitches or delays.
3. If the data is incorrect or erratic, the issue is likely the switch or its wiring. If the data is correct, the problem may be intermittent.
4. Access the inhibitor switch by removing the air intake duct, battery, and battery tray.
5. Visually inspect the inhibitor switch connector and wiring harness for obvious signs of damage, corrosion, or loose connections.
6. Place the transmission shift lever in Neutral. Check the alignment of the inhibitor switch. Insert a 5mm drill bit or alignment pin into the alignment hole on the switch body; it should pass through into the lever behind it.
7. If the alignment is off, adjust the switch. If it is aligned correctly, the sensor itself is the primary suspect.
8. Using a multimeter and a wiring diagram, back-probe the connector to test the sensor's circuits for correct voltage and resistance according to the service manual specifications.
9. If the sensor and wiring test good, the problem may lie with the PCM, but this is extremely unlikely.

Parts You'll Likely Need

• Inhibitor Switch (Transmission Range Sensor) (OEM #42700-26700) — This is the most common failure point for the P0706 code on this vehicle. It is an electro-mechanical part that wears out over time. The original part 42700-26500 has been superseded by this number.
  Trusted brands: Hyundai / Kia (Genuine OEM), Duralast, Standard Motor Products, Rostra
  OEM price range: $50-$100
  Aftermarket price range: $30-$80

Related Codes That Often Appear With This One

• P0705 — P0705 indicates a general malfunction in the transmission range sensor circuit, and often appears alongside P0706 as the sensor begins to fail.
• P0707 — This code for 'Circuit Low Input' can be triggered if the failing sensor's voltage drops below the expected threshold.
• P0708 — This code for 'Circuit High Input' can be triggered if the failing sensor's voltage goes above the expected threshold.

Technical Service Bulletins (TSBs) & Recalls

• 17-AT-005: Supersedes previous TSBs and provides updated diagnostic procedures for P0705, P0706, P0707, and P0708 across a wide range of Hyundai vehicles, including the 2012+ Accent (RB).
• 12-AT-022-1: An earlier TSB that provides detailed diagnostic and replacement procedures for the inhibitor switch on the Accent (RB) and other models, specifically mentioning the alignment procedure.

Platform-Specific Known Issues

• Common No-Start Condition: A very frequent complaint from owners is an intermittent no-start. The car will have all power, but turning the key does nothing, as if it were in Drive. Wiggling the shifter or shifting to Neutral often allows the car to start, pointing directly to a failing or misadjusted inhibitor switch.
• DIY Repair Access: Owners performing the repair themselves note that while the switch is externally mounted, getting to it requires removing the battery and the entire battery tray, which can be tedious. A video tutorial by a user on YouTube for a similar Kia/Hyundai platform shows this process clearly.

Mechanic-Grade Diagnostic Values

• Inhibitor Switch Power Supply Voltage — expected: Battery Voltage (approx. 12V) at the power supply pin of the switch connector with ignition on.. Failure: No voltage indicates a problem with the fuse or wiring leading to the switch.
• Inhibitor Switch Individual Gear Signal Voltage — expected: Battery Voltage (approx. 12V) on the specific signal wire corresponding to the selected gear (P, R, N, or D).. Failure: Zero volts on the corresponding signal wire when a gear is selected points to an internal switch failure.
• Continuity between switch terminals — expected: Continuity (near 0 ohms) should exist between specific pairs of terminals for each gear position (Park, Reverse, Neutral, etc.).. Failure: No continuity when a gear is selected indicates an open circuit inside the switch.
• Ground connection voltage drop — expected: Less than 0.2 V between the ground terminal and a known good ground.. Failure: Voltage greater than 0.2 V indicates a poor ground connection that needs to be cleaned and tightened.

Scan Tool Commands That Help

• Hyundai GDS (Global Diagnostic System): Current Data / Live Data Monitoring — Use this function to view the 'Shift Lever Switch' and 'Current Gear' parameters in real-time. As you move the shifter, the GDS display should instantly match the gear position. A mismatch, delay, or incorrect reading confirms a fault in the range sensor circuit, which is a primary diagnostic step for P0706.

Wiring & Ground Locations

• Inhibitor Switch Connector — On the top or side of the transmission housing, accessible after removing the battery and battery tray.. This is the main connection point for all electrical tests of the switch and its harness. Corrosion or damage here is a common cause of the P0706 code.
• Gf03 — At the left kick panel area.. This is a major ground point for interior and dash components. While not directly for the inhibitor switch, a poor ground here can cause erratic behavior in the instrument cluster, which receives signals related to gear position.
• Ggg04 — Located at the left rear of the engine compartment, often near the PCM/ECM.. This is a primary engine compartment ground. The PCM relies on a solid ground reference to accurately interpret voltage signals from sensors like the inhibitor switch. A poor ground here could cause irrational readings.

Real Owner Repair Stories

• Hyundai-Forums.com user (2012 Hyundai Accent) — Intermittent no-start in Park, but would start in Neutral. The gear indicator on the dashboard was also malfunctioning.
  ❌ Tried (didn't work) Initially, the owner suspected the battery or starter.
  ✅ What actually fixed it Replacing the inhibitor switch (transmission range sensor) resolved all symptoms. The user confirmed the part number and that the replacement fixed the no-start and gear indicator issues.

OEM Part Supersession History

• 42700-26500 → 42700-26700 — Updated part from the manufacturer. This is a common revision for high-failure rate parts to improve durability or performance.
  Heads up: The new part number 42700-26700 is the correct replacement for the entire 2012-2019 Accent range. Older part numbers like 42700-26000 and 42700-26500 are now superseded by this part.

Model Year Variations Within This Range

• 2018-2019 (YC Generation): While the fault and the primary fix (inhibitor switch) remain the same, the fifth-generation (YC) Accent introduced a revised body and interior. However, the 1.6L engine and 6-speed automatic transmission, along with the associated inhibitor switch part number (42700-26700), are carried over from the late fourth generation, making the diagnosis and repair procedure virtually identical.
