P0708 on 2011-2015 Hyundai Sonata Hybrid: Transmission Range Sensor Failure Causes and Fixes

What's Unique About the 2011-2015 Hyundai SONATA HYBRID

The 2011-2015 Sonata Hybrid, part of the YF generation, is highly prone to this specific failure. Hyundai has released multiple Technical Service Bulletins (TSBs) over the years acknowledging this issue, confirming that the inhibitor switch is a known weak point across many of their models using the 6-speed automatic transmission. The failure is so common that it's the first and most probable cause for any P0708-related symptoms on this vehicle. Some owners have reported the issue appearing after a high-pressure car wash, suggesting water intrusion into the externally-mounted sensor can trigger the fault.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Check Engine Light (Malfunction Indicator Light, MIL) is on.
• Transmission is stuck in a single gear (4th gear fail-safe).
• Gear position indicator on the dashboard is blank or incorrect.
• Vehicle may not start, as the computer cannot confirm it is in Park or Neutral.
• Harsh or erratic shifting.
• Inability to shift out of Park.
🎬 Watch: 9 common symptoms of a bad range sensor
• Engine starts in a gear other than Park or Neutral (a serious safety risk).
• After depressing the Start/Stop button to turn the car off, the cluster may not indicate 'Key OFF' because it doesn't recognize the 'P' position.

Most Likely Causes

1. Failed Transmission Range Sensor (Inhibitor Switch) 🔴 High Probability → Shop Transmission Assembly This is a well-documented, common failure part on this platform, as evidenced by multiple Hyundai TSBs (e.g., 19-AT-024H, 17-AT-005). The sensor is exposed to the elements on the top of the transmission, and internal electrical failure or water intrusion are common failure modes.
   How to confirm: Use a scan tool to monitor live data from the range sensor. As you move the shifter, the displayed gear should match. If it's erratic, stuck, or shows multiple gears, the sensor is bad.
   Typical fix: Replace the inhibitor switch located on the top of the transmission. The new switch must be correctly aligned in the Neutral position using a 5mm pin or bolt before tightening.
   Est. part cost: $40-$125
2. Damaged Wiring or Corroded Connector 🟡 Medium Probability The sensor's location on the transmission can expose its wiring and connector to moisture, heat, and vibration, leading to corrosion or damage over time. A high-pressure car wash has been anecdotally linked to forcing water into the connector and causing the fault.
   How to confirm: Visually inspect the wiring harness and connector going to the inhibitor switch for any signs of green corrosion, frayed wires, or loose/bent pins. Check for voltage drops and continuity with a multimeter.
   Typical fix: Clean the connector terminals with electrical contact cleaner and apply dielectric grease. If the wiring is damaged, it will need to be repaired or the connector pigtail replaced.
   Est. part cost: $10-$50

Rare But Worth Checking

• Misadjusted Shift Cable or Sensor: This is most likely to occur after other transmission work has been performed. If the sensor or cable is not perfectly aligned, it can send incorrect signals. The alignment procedure is critical during installation to prevent this.
• Faulty Transmission Control Module (TCM): → Shop Transmission Assembly This is extremely rare. TSBs instruct to only consider replacing the TCM/PCM after the sensor and wiring have been definitively ruled out as the cause. Usually, a faulty computer will present with multiple other error codes, not just P0708.

Diagnosis Steps

1. Connect an OBD-II scanner and confirm P0708 is present. Note any other related codes (P0705, P0706, P0707).
2. Using the scanner's live data function, monitor the Transmission Range Sensor data PID (e.g., 'Current Gear Shift Lever Switch' on Hyundai GDS). Shift the lever through P, R, N, and D.
3. Verify that the scanner displays the correct gear position for each selection. If the data is incorrect, stuck, or shows multiple inputs, the sensor or its circuit is faulty.
4. Turn off the vehicle and disconnect the battery. Locate the inhibitor switch on the top of the transmission. This will require removing the air intake duct, air filter box, and the battery/battery tray.
5. Visually inspect the sensor's electrical connector and wiring for corrosion, damage, or loose/bent pins.
6. If the wiring looks good, the most likely cause is a failed sensor. Proceed with replacement.
🎬 See this step-by-step DIY tutorial for the repair
7. Remove the shift cable nut, manual control lever nut, and the two sensor mounting bolts.
8. Install the new sensor. Before tightening the mounting bolts, place the transaxle in Neutral. Insert a 5mm bolt or alignment pin into the alignment hole on the switch to lock it in the correct position. Then, tighten the mounting bolts and lever nut to specification.
9. Reassemble all components, reconnect the battery, clear the trouble codes, and test drive to confirm the fix.

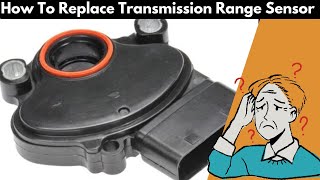

🎬 Watch: A quick 3-minute overview of the replacement process

Parts You'll Likely Need

• Transmission Range Sensor (Inhibitor Switch) (OEM #42700-26500) — This is the component that fails in the vast majority of P0708 cases on this vehicle. It is a known failure point acknowledged by Hyundai TSBs. This part number is superseded by 42700-26700.
  Trusted brands: Hyundai Genuine, Kia Genuine, Dorman, Standard Motor Products (SMP)
  OEM price range: $80-$125
  Aftermarket price range: $40-$75

Related Codes That Often Appear With This One

• P0705 — P0705 indicates a general circuit malfunction for the range sensor. P0708 is a more specific 'circuit high' fault. They are often listed together in Hyundai TSBs and point to the same failing inhibitor switch.
• P0706 — Indicates a range/performance issue with the sensor. It is also caused by a failing or misadjusted inhibitor switch and is listed in the same TSBs.
• P0707 — Indicates a 'circuit low' input, the opposite of P0708. Seeing both could suggest a very erratic sensor or intermittent wiring short. It is also listed in the same TSBs.

Technical Service Bulletins (TSBs) & Recalls

• 19-AT-024H: Supersedes 17-AT-005. Lists P0708 as 'Range switch - short circuit or multiple inputs' and confirms symptoms like '4th gear fail-safe', 'No gear indication', and 'Intermittent no engine crank/no start'. It covers the 2011-2015 Sonata Hybrid.
• 17-AT-005: An earlier TSB with the same diagnostic information, confirming this has been a long-standing issue. It also provides key diagnostic values like checking for ground voltage drop.
• SA317A / SA317B/C (Kia): A Kia Service Action for the same inhibitor switch issue on various 2016-2017 models, including the Optima Hybrid, demonstrating the shared nature of this problem.

Platform-Specific Known Issues

• Hyundai has issued multiple Technical Service Bulletins (TSBs) for this exact issue, including 19-AT-024H and 17-AT-005, which detail the symptoms and diagnostic procedure for P0708 related to the inhibitor switch.
• Owner forums frequently discuss this failure. One user on Reddit noted the P0708 code appeared immediately after using a high-pressure car wash, pointing to water intrusion as a potential cause of the short circuit.

Mechanic-Grade Diagnostic Values

• Inhibitor Switch Signal Voltage — expected: Approximately 12V (battery voltage) on the specific signal wire for the selected gear, and 0V on the others.. Failure: Voltage is high on multiple signal wires at once, or the voltage does not change when the gear is shifted.
• Rear Combination Lamp Ground Voltage Drop — expected: Less than 0.2V.. Failure: Voltage greater than 0.2V indicates a poor ground connection that must be cleaned and tightened.

Scan Tool Commands That Help

• Hyundai GDS (or equivalent): Live Data Monitoring: 'Current Gear Shift Lever Switch' — This is the primary diagnostic step to confirm what the TCM is seeing. While moving the shifter, the scan tool display should show the corresponding gear (P, R, N, D). If the display is blank, shows 'Invalid,' or jumps between gears, it confirms a fault in the sensor or its circuit before any parts are removed.
• Advanced Scan Tool: TRS Relearn / Quick Learn / Reset Adaptations — After replacing the inhibitor switch, some modern vehicles require a scan tool to initiate a relearn procedure for the new sensor's values. While Hyundai TSBs for this model focus on mechanical alignment, performing a reset of adaptations or a relearn function, if available, ensures the TCM has the correct baseline values for the new part.

Wiring & Ground Locations

• Inhibitor Switch Connector — On the top of the transaxle, under the battery and battery tray.. This is the primary connection point for the sensor. It is exposed to the elements and is a common location for corrosion or damage that can cause the P0708 code.
• Rear Combination Lamp Ground — Exact location not specified, but it is the ground point for the rear combination lamp wiring.. Hyundai TSB 17-AT-005 specifically instructs technicians to check the voltage drop at this ground when diagnosing P070x codes. A poor ground here can cause electrical feedback or voltage issues that the TCM misinterprets as a range sensor fault.

Real Owner Repair Stories

• Reddit user report (2011-2018 Hyundai Sonata (specific year not mentioned)) — P0708 code present.
  ✅ What actually fixed it The cause was not a failed sensor but a wire that had become unclipped and was tucked under the battery, causing a connection issue. Re-securing the wire resolved the code.
• Reddit r/MechanicAdvice (2011 Hyundai Sonata, 134k miles) — P0706 code (related to P0708), gear indicator on the dashboard went blank.
  ✅ What actually fixed it The problem was resolved by replacing the 'ATM Inhibitor Switch'.

OEM Part Supersession History

• 42700-26000 → 42700-26500, then 42700-26700 — Part revision and consolidation by the manufacturer.
  Heads up: No known incompatibilities; 42700-26700 is the current direct replacement for the earlier parts on this vehicle.
• 42700-26500 → 42700-26700 — Part revision by the manufacturer.
  Heads up: No known incompatibilities; 42700-26700 is the current direct replacement.

Model Year Variations Within This Range

• 2013-2015: For 2013, the Sonata Hybrid received a more powerful electric motor and battery pack, which changed the total system horsepower and torque ratings. However, it continued to use a 6-speed automatic transmission, and the P0708 fault related to the inhibitor switch remained a common issue with the same diagnostic procedure.
• 2011-2015: The transmission used in the Sonata Hybrid is a unique 6-speed automatic with a Transmission-Mounted Electric Drive (TMED) and is not interchangeable with the transmission from the standard gasoline-only Sonata. Additionally, owner's manuals for this generation reportedly state the automatic transaxle fluid is 'No check, No service required,' unlike many other vehicles.
