P0711 on 2016 Fiat 500X: Transmission Temperature Sensor Causes and Fixes

What's Unique About the 2016-2016 Fiat 500X

For the 2016 Fiat 500X, particularly those with the ZF 9-speed automatic transmission, this code is frequently linked to software issues. Manufacturer Technical Service Bulletins (TSBs), such as 21-042-17, specifically call for reprogramming the Transmission Control Module (TCM) as a primary fix. This is different from many other vehicles where the default repair is to immediately replace the sensor. Ignoring the software aspect can lead to unnecessary repairs and recurring problems. This issue also affects platform mates like the Jeep Renegade which use the same transmission and have the same TSB applied to them.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Check Engine Light is on.
• Transmission-related warning messages on the dashboard (e.g., 'controleren versnellingsbak' which is Dutch for 'check gearbox').
• Harsh, erratic, or delayed gear shifts, especially harsh 1-2 upshifts.
• Vehicle may get stuck in a single gear (limp mode).
• Abnormal torque converter clutch operation.
• A burnt smell from the transmission fluid if the issue leads to overheating.

Most Likely Causes

1. Outdated Transmission Control Module (TCM) Software 🔴 High Probability → Shop Transmission Assembly Fiat has issued TSB 21-042-17 specifically recommending a software update to resolve this code, indicating a known logic issue in the original programming 🎬 Watch: A helpful breakdown of P0711 causes and common fixes. for vehicles with the 9-speed transmission.
   How to confirm: A Fiat dealership or a properly equipped independent shop can check the current software version against the latest available version using a wiTECH scan tool. This is the first step before any hardware replacement.
   Typical fix: Reprogramming the TCM with the latest manufacturer software. The TSB also notes that the PCM should be updated at the same time.
   Est. part cost: $0
2. Faulty Transmission Fluid Temperature (TFT) Sensor 🟡 Medium Probability → Shop Transmission Assembly The sensor itself can fail, providing incorrect readings. In the ZF 9-speed (948TE) transmission, the temperature sensor is integrated into the valve body wiring harness, not a simple standalone sensor.
   How to confirm: Using a scan tool, monitor the live data for the TFT sensor. If the reading is stuck at a single value (e.g., -40°F or 300°F) or doesn't change logically as the transmission warms up, the sensor/harness assembly is likely bad.

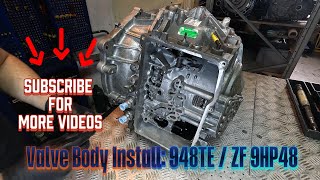

   Typical fix: Replace the entire valve body wiring harness which contains the sensor. This requires draining the fluid, removing the transmission oil pan, and carefully disconnecting the harness from the solenoids. 🎬 See this step-by-step valve body and harness installation guide.
   Est. part cost: $150-$250
3. Damaged Wiring or Corroded Connector ⚪ Low Probability
   How to confirm: Visually inspect the main transmission wiring harness leading to the transmission case for any signs of damage, chafing, or corrosion at the main connector. Perform a continuity test on the wires from the external connector to the TCM.
   Typical fix: Repair the damaged section of the external wiring harness or clean/replace the main connector.
   Est. part cost: $10-$50
4. Low or Contaminated Transmission Fluid ⚪ Low Probability → Shop Transmission Assembly
   How to confirm: The 2016 Fiat 500X does not have a dipstick. The fluid level must be checked via a check plug on the transmission case while the vehicle is level and at a specific temperature. This is best done by a professional. Fluid should be red and clear, not brown, black, or smelling burnt.
   Typical fix: Perform a transmission fluid drain and fill with the correct specification fluid (Mopar ZF 8&9 Speed ATF or equivalent). Address any leaks found.
   Est. part cost: $100-$200

Rare But Worth Checking

• Failing Transmission Control Module (TCM): → Shop Transmission Assembly If software, the sensor/harness, and wiring are all confirmed to be good, the TCM's internal circuitry for processing the sensor signal may have failed. This is a last resort diagnosis.
• Failed Transmission Aux Pump Motor: → Shop Transmission Assembly A forum user with a 2016 500X reported that a failing electric motor for the transmission pump caused overheating and general transmission errors at low mileage, which could present with similar symptoms.

Diagnosis Steps

1. Check for Technical Service Bulletins (TSBs). Specifically, reference TSB 21-042-17, which strongly suggests a TCM software update is the primary fix for P0711 on this vehicle.
2. Use an OBD-II scanner to confirm P0711 and check for any other related codes listed in the TSBs (e.g., P072F, P1CC9, P061B, P0887).
3. Connect a professional scan tool (like wiTECH) to monitor the live data from the Transmission Fluid Temperature sensor. Observe the reading with the engine cold and then during a test drive. The temperature should rise steadily and not be stuck or erratic.
4. If the sensor reading is illogical or stuck, and the software is confirmed to be up-to-date, the next step is to inspect the external transmission wiring harness and main connector for visible damage or corrosion.
5. If wiring is intact, have a professional check the transmission fluid level and condition.
6. If fluid and wiring are good, and the sensor data is still incorrect, the internal valve body wiring harness (which includes the TFT sensor) is the most likely culprit and should be replaced.
7. If all other steps fail to resolve the issue, the TCM itself may be faulty, but this is rare.

Parts You'll Likely Need

• Transmission Valve Body Wiring Harness (OEM #Mopar 68197332AA (or similar, part of a larger sensor kit)) — The TFT sensor is integrated into this harness inside the ZF 9-speed transmission. It is not sold as a separate, simple sensor. This is the most common hardware failure for this code.
  Trusted brands: Mopar, ZF
  OEM price range: $150-$250
  Aftermarket price range: $100-$180
• Automatic Transmission Fluid (OEM #Mopar 68218925AB (ZF 8&9 Speed ATF)) — Fluid must be drained and refilled when the transmission pan is removed to access the internal harness. Using the correct fluid is critical for ZF 9-speed transmissions.
  Trusted brands: Mopar ATF, Liqui Moly Top Tec 1950, Valvoline ATF Pro 236.15
  OEM price range: $25-$35 per quart
  Aftermarket price range: $15-$25 per quart

Related Codes That Often Appear With This One

• P072F — This code for 'Stuck In Fourth Gear' is cited in TSB 21-042-17 alongside P0711, indicating a related software or control issue. [Bulletin #21-042-17]
• P1CC9 — 'Unable to Engage Gear' is also listed in multiple TSBs with P0711, pointing to a common underlying fault affecting transmission control. [Bulletin #08-010-16]
• P061B — 'Internal Control Module Torque Calculation Performance' often appears with P0711, suggesting the TCM is struggling with multiple internal calculations, possibly due to software or internal faults. [Bulletin #2103116]
• P0887 — 'TCM Power Control Circuit High' can accompany P0711, indicating a broader electrical issue within the transmission control system. [Bulletin #21-042-17]

Technical Service Bulletins (TSBs) & Recalls

• 21-042-17: This is the key TSB. It involves reprogramming the TCM with the latest software to fix P0711 and other codes on 2016 500X and 2015-2016 Jeep Renegade models with the 1.4L engine and 9-speed transmission.
• 2103116: Also lists P0711 with other codes, pointing to a known pattern of TCM faults.
• 08-010-16: Cites P0711 as a potential cause for MIL illumination and drivability issues.
• 21-024-15 REV D: Another bulletin that includes P0711 in a list of DTCs related to transmission problems.

Platform-Specific Known Issues

• Multiple TSBs exist for the 2016 Fiat 500X that address P0711, often pointing to a required TCM software update rather than a hardware replacement. [1, Bulletin #21-042-17, Bulletin #2103116, Bulletin #08-010-16, Bulletin #21-024-15 REV D]
• The code is frequently accompanied by other transmission control codes, indicating a systemic software or electronic fault rather than an isolated sensor failure.
• The issue is not unique to the Fiat 500X; it is shared with its platform mate, the Jeep Renegade, which uses the same ZF 9-speed transmission and is covered under the same TSB for the P0711 code.

Mechanic-Grade Diagnostic Values

• TFT Sensor Resistance (General) — expected: Resistance should decrease as temperature increases. A common reference is ~2.5 kΩ at 20°C (68°F) and ~0.3 kΩ at 80°C (176°F).. Failure: An open circuit (infinite resistance) or short circuit (near-zero resistance) indicates a failed sensor. A reading that does not change as the transmission warms up also indicates a failure.
• TFT Sensor Signal Voltage (General) — expected: Approximately 1.5V at 20°C (68°F), dropping to approximately 0.5V at 80°C (176°F).. Failure: Voltage that is stuck high (e.g., 5V) or low (e.g., 0V), or does not decrease as the fluid warms, points to a circuit or sensor fault.
• TCM 'Range/Performance' Check Logic — expected: The TCM expects to see the transmission fluid temperature change by more than 2°C (4°F) after the vehicle has been driven at over 5 mph for 5 minutes.. Failure: If the temperature reading remains static after the warmup period, the P0711 code will be set.

Scan Tool Commands That Help

• wiTECH: Reset Adaptive Values — This function should be used to clear the transmission's learned shift adaptations before performing a 'Quick Learn'. It is part of the diagnostic process for shift quality concerns.
• wiTECH: Quick Learn — This procedure must be performed anytime the transmission is repaired, the TCM is replaced, or adaptive values are cleared. It forces the TCM to relearn the clutch fill times and pressure characteristics. Failure to perform this can result in poor shift quality after a repair.
• wiTECH: BCM Proxy Alignment — This is required after installing a new module, such as a TCM. It allows all control units on the CAN bus to recognize the new module. A flashing odometer is the primary symptom indicating a proxy alignment is needed.
• wiTECH: VB/Solenoid Learn — This specific learn procedure is required if the entire valve body or TCU assembly is replaced.

Wiring & Ground Locations

• Main Engine/Transmission Ground Strap — Connects from the chassis leg, located underneath the battery tray, to a mounting point on the gearbox housing.. This is the main ground for the powertrain. If it becomes corroded or loose, it can create a floating ground, causing erratic voltage signals from various sensors, including the TFT sensor. This can trigger P0711 and other spurious electrical fault codes.
• TCM Power Supply — The Transmission Control Module (TCM) is mounted on the transmission. Its power and ground connections are critical.. An unstable power supply or bad ground directly at the TCM can cause it to misinterpret sensor data or fail entirely. Before condemning a TCM, checking for a stable voltage supply and a solid ground connection to the case is essential.
• Transmission Main Connector — This is the large, round electrical connector on the transmission case that connects the internal harness (including the TFT sensor) to the main vehicle harness.. This connector is the sole pathway for the TFT sensor signal to the TCM. The pins for the sensor circuit must be tested here for continuity, shorts, and correct voltage from the TCM.

Real Owner Repair Stories

• The FIAT Forum (2016 Fiat 500X) — Service transmission warning, Check Engine Light, drive mode unavailable.
  ❌ Tried (didn't work) A transmission fluid change performed by an independent mechanic did not resolve the issue.
  ✅ What actually fixed it The final resolution was complex. The dealer replaced the torque converter, but this led to immediate grinding and shifting problems. The dealer then stated the TCM had been 'wiped' and required reprogramming. After the reprogramming, the car worked correctly. This suggests the root cause may have been a software/TCM issue all along, and the torque converter replacement may have been a misdiagnosis that necessitated the final, correct step of reprogramming.

"I Checked Everything" — The Actual Cause

• For code P0711, the equivalent of a 'smoke test clean' scenario is when the TFT sensor and its wiring test perfectly with a multimeter (correct resistance, no opens/shorts), yet the code persists. In this situation, the root cause is almost certainly the TCM software logic, as highlighted by multiple TSBs. The TCM's programming incorrectly interprets valid sensor data, requiring a software update to correct the fault logic.
