P0712 on 2011-2014 Hyundai Sonata: Transmission Temperature Sensor Fixes

What's Unique About the 2011-2014 Hyundai Sonata

The 2011-2014 Hyundai Sonata (YF generation) uses a 6-speed automatic transmission (A6MF1 family) where the transmission fluid temperature sensor is a known failure point. Hyundai issued Technical Service Bulletins (including TSB 13-AT-012 and its revisions) acknowledging this issue. A key point for this vehicle is that starting in early March 2013, Hyundai integrated the temperature sensor directly into the internal valve body wire harness, meaning the sensor cannot be replaced separately; the entire harness must be changed. Owners should be aware that simply buying a standalone sensor may not be correct for their specific vehicle's production date.

Symptoms You May Notice

• Check Engine Light is on
• Harsh, erratic, or delayed shifting.
• Vehicle may enter "limp mode," limiting speed and staying in one gear.
• Transmission temperature warning light may be illuminated.
• Improper torque converter clutch operation.
• Scan tool live data shows a fixed, impossibly low temperature (e.g., -40°F or a default fail-safe value).

Most Likely Causes

1. Failed Transmission Fluid Temperature Sensor / Internal Wire Harness 🔴 High Probability → Shop Transmission Assembly This is a documented common failure part on this platform, as acknowledged by Hyundai's TSBs (13-AT-012, 14-AT-010). The sensor, which is a thermistor, fails electrically, causing the short circuit that triggers the code. For vehicles manufactured after March 2013, the sensor is permanently integrated into the harness.
   How to confirm: Using a scan tool, check the live data for the transmission fluid temperature. A reading of -40°F or another fixed, extremely low value confirms the sensor circuit is shorted. You can also test the sensor's resistance at the transmission connector pins; an out-of-spec reading (typically a very low resistance for P0712) indicates a failed sensor.
   Typical fix: Replace the internal transmission wire harness which includes the temperature sensor (Hyundai P/N 46307-3B650). This involves draining the fluid, removing the transmission pan, and accessing the valve body to swap the harness.
   Est. part cost: $140-$200
2. Damaged Wiring or Corroded Connector 🟡 Medium Probability
   How to confirm: Visually inspect the external wiring harness leading to the transmission for any signs of damage, chafing, or corrosion at the main connector. Perform a continuity test on the wires between the transmission connector and the Powertrain Control Module (PCM).
   Typical fix: Repair the damaged section of the wire or clean/replace the corroded connector.
   Est. part cost: $10-$50

Rare But Worth Checking

• Faulty Powertrain Control Module (PCM) or Transmission Control Module (TCM): → Shop Engine Control Module (ECM) This is very rare. Before condemning the control module, all other possibilities, including the sensor, harness, and wiring, must be exhaustively tested and ruled out.

Diagnosis Steps

1. Connect an OBD-II scanner and confirm P0712 is the active code. 🎬 Watch: How to test the sensor circuit with a multimeter. Note any other related codes like P0711 or P0713.
2. View live data from the Transmission Fluid Temperature sensor. A reading of -40°F or a similarly low, static number strongly suggests a shorted sensor circuit.
3. Inspect the main transmission electrical connector for corrosion, damage, or loose pins.
4. If the connector is fine, locate the correct pins for the TFT sensor on the transmission-side connector. Using a multimeter, measure the resistance across these pins. Compare the reading to the manufacturer's specifications (found in the service manual). A very low or near-zero resistance reading confirms a short circuit, pointing to a faulty sensor/harness.
5. If resistance is within spec, the issue may be in the wiring between the transmission and the control module. Perform a continuity test on these wires to check for shorts to ground.
6. If wiring and the sensor test good, the fault may lie with the PCM, but this is extremely unlikely and should be the last diagnostic step.

Parts You'll Likely Need

• Internal Transmission Wire Harness (with integrated Temperature Sensor) (OEM #46307-3B650) — This is the most common failure point for a P0712 code on this vehicle. For models from March 2013 onwards, the sensor is integrated and not sold separately. This part number supersedes previous versions like 46307-3B610 and 46307-3B620.
  Trusted brands: Hyundai (OEM)
  OEM price range: $140-$200.
  Aftermarket price range: $100-$150
• Transmission Pan Gasket (OEM #45285-3B700 (for steel pan, use sealant) or specific gasket for plastic pan) — The gasket or sealant must be replaced anytime the transmission pan is removed to prevent leaks. TSB 13-AT-012 notes that steel pans require sealant like Permatex Ultra Gray, while plastic pans use a new gasket.
  Trusted brands: Hyundai (OEM), Fel-Pro
  OEM price range: $20-$30
  Aftermarket price range: $10-$20
• Hyundai SP-IV Automatic Transmission Fluid (OEM #00232-19045) — Approximately 4-5 quarts are needed to refill the transmission after dropping the pan. Using the correct OEM-spec fluid is critical for the health and performance of the A6MF1 transmission.
  Trusted brands: Hyundai (OEM), Valvoline MaxLife ATF, Castrol Transmax Full Synthetic Multi-Vehicle
  OEM price range: $20-$25/quart
  Aftermarket price range: $10-$15/quart

Related Codes That Often Appear With This One

• P0711 — P0711 indicates a 'Range/Performance' issue with the same sensor, often caused by an intermittent fault before it fails completely and shorts out, 🎬 Watch: A step-by-step fix for related code P0711. triggering P0712.
• P0713 — P0713 indicates 'Circuit High Input' for the same sensor, which points to an open circuit (like a broken wire) instead of a short circuit. Both relate to the same component's electrical integrity.

Technical Service Bulletins (TSBs) & Recalls

• 13-AT-012 (and revisions): Addresses repair procedures for DTCs P0711, P0712, and P0713 by replacing the oil temperature sensor or the integrated wire harness. Explicitly states not to replace the transaxle.
• 14-AT-010: Supersedes previous TSBs to add more models, including the 2015 Sonata, confirming the issue extends across multiple vehicles with the 6-speed automatic transmission.

Platform-Specific Known Issues

• Hyundai issued Technical Service Bulletin 13-AT-012 (and subsequent revisions like 12-AT-021-1 and 14-AT-010) specifically to address DTCs P0711, P0712, and P0713 by replacing the oil temperature sensor and/or the internal wire harness.
• There was a design change in early March 2013 where the temperature sensor was integrated into the wire harness. Pre-change models may have a separate sensor, but post-change models require the full harness replacement (P/N 46307-3B650).
• The repair procedure is detailed in the TSB and involves removing the battery, air cleaner, transmission undercover, and transmission oil pan to access the valve body and harness.

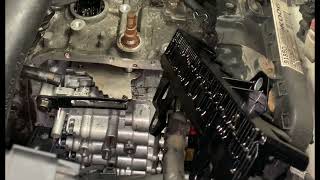

🎬 See this walkthrough of the sensor and harness replacement procedure.

Mechanic-Grade Diagnostic Values

• Transmission Fluid Temperature (TFT) Sensor Resistance — expected: Approximately 2.5 kΩ at 20°C (68°F). Resistance decreases as temperature increases.. Failure: A very low or near-zero resistance reading indicates a short circuit, which triggers P0712. An extremely high or infinite resistance reading would indicate an open circuit (P0713).
• TFT Sensor Voltage (at TCM) — expected: Signal voltage decreases as fluid temperature rises. A typical value might be ~3.2V at 104°F and drop to ~0.29V at 302°F.. Failure: A voltage signal that is persistently lower than the expected value for a given temperature, or a signal that is stuck at a very low value, indicates a short.

Scan Tool Commands That Help

• Hyundai GDS (Global Diagnostic System) or equivalent professional scanner: Resetting Auto T/A values (Reset Transmission Adaptive Values) — This procedure MUST be performed after replacing the transmission, valve body, or internal harness. It erases the old learned shift adaptations stored in the TCM. Failure to reset the values can result in continued poor shift quality even after the hardware fix.

Wiring & Ground Locations

• Transmission Connector (Valve Body Side) — The main electrical connector on the transmission case that connects to the internal valve body harness.. This is the primary location for testing the TFT sensor without opening the transmission. The sensor's resistance can be measured across pins 9 and 13 on the male side of this connector.
• TCM Connector — Located within the Powertrain Control Module (PCM) assembly.. This is the other end of the circuit. A continuity test between the transmission connector pins (9 & 13) and the corresponding pins at the TCM can isolate a wiring fault from a sensor fault. For example, pin 13 at the transmission may correspond to pin 59 at the TCM connector.

Real Owner Repair Stories

• hyundai-forums.com user report (2011 Hyundai Sonata 2.4L) — Check engine light on with code P0712, harsh shifting especially when cold, vehicle entering limp mode.
  ❌ Tried (didn't work) Clearing the code (it returned immediately), Checking transmission fluid level and condition (was full and clean)
  ✅ What actually fixed it Replaced the internal transmission wire harness, part number 46307-3B650. The user confirmed that after replacing the harness, clearing the code, and performing a transmission adaptive value reset, all symptoms were resolved and the code did not return.

OEM Part Supersession History

• 46307-3B610, 46307-3B620 → 46307-3B650 — Revisions to improve durability and address the known failure of the integrated temperature sensor.
  Heads up: While older part numbers exist, 46307-3B650 is the current, correct replacement part for this repair and is backward compatible.

Model Year Variations Within This Range

• 2011 - Early 2013: These models may have had a separate temperature sensor from the main harness, as per early TSBs. However, the current repair procedure for all years is to replace the entire integrated harness (46307-3B650) as the separate sensor is often no longer stocked or recommended.
• 2011-2014: The 2011-2014 Sonata has a sealed transmission with no dipstick. The fluid level must be checked via a level check plug on the side of the transmission case while the fluid is at a specific temperature (typically 122-140°F or 50-60°C), which requires a scan tool to monitor.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• Theta II GDI Engine Failure 🔴 High — Very common on 2.0L and 2.4L engines. Can occur at various mileages, often preceded by knocking noises and/or excessive oil consumption. (Ref: Multiple recalls (e.g., NHTSA 15V-568, 17V-226) and a major class-action lawsuit settlement led to extended warranties (10yr/120k miles) and a Knock Sensor Detection System software update (Campaign 953).)
• Steering Coupler Wear 🟠 Medium — Extremely common. Owners typically notice a clicking or clunking sound in the steering column when turning the wheel. Usually appears after 50,000 miles. (Ref: Hyundai issued TSB 17-ST-002 and extended the warranty for the flexible coupler (P/N 56315-2K000-FFF) to 10 years/100,000 miles.)
• Transmission Shift Cable Detachment 🔴 High → Shop Transmission Assembly — Common enough to warrant a safety recall. The cable can detach from the shift lever, causing the gear selection to not match the indicator and potentially leading to a rollaway risk. (Ref: Hyundai Safety Recall 121 (NHTSA 14V-332) was issued for 2011-2014 Sonatas to inspect and secure the connection.)
• Engine Seizing and Fires 🔴 High — A direct and dangerous consequence of the Theta II engine defect, where worn rod bearings lead to engine seizure and potential oil leaks that can ignite. (Ref: Addressed by the same engine failure recalls and class-action lawsuit. A subsequent recall (NHTSA 19V-063) was issued to inspect fuel tubes on previously replaced engines to prevent fuel leaks.)
• Subframe Corrosion (Salt Belt Regions) 🔴 High — A significant issue for vehicles operated in states that use road salt. Corrosion can weaken the front subframe, potentially leading to control arm separation. While more prominent on older Sonatas, TSB-13-01-025 addresses rear control arm replacement for 2011-2013 Sonatas in salt belt areas due to corrosion. (Ref: TSB-13-01-025 for rear control arms. Earlier generations had major recalls and settlement programs for front subframe corrosion.)

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: A used part is NOT recommended for this repair. The internal wire harness is a known failure point due to heat and age causing the sensor's electronics to fail. A used harness from a junkyard has been subjected to the same conditions and is likely to fail soon, if it hasn't already. The significant labor involved in accessing the part makes it unwise to risk using a used component.

OEM-only on this vehicle (don't cheap out):

• Internal Transmission Wire Harness (P/N 46307-3B650)

Brands owners have reported issues with on this vehicle:

• Unbranded or generic harnesses from online marketplaces. Forum users report a high rate of DOA (Dead on Arrival) or premature failure with non-OEM parts for this specific issue.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P0711 — Transmission Fluid Temperature Sensor 'A' Circuit Range/Performance. This code is often triggered by the same failing sensor/harness as P0712 and is addressed by the same Hyundai TSBs (13-AT-012, 14-AT-010). It indicates an intermittent or out-of-range signal.
• P0713 — Transmission Fluid Temperature Sensor 'A' Circuit High Input. This is the opposite of P0712, indicating an open circuit (high resistance). It is caused by the same component failing in a different way and is covered by the same TSBs.
• P0710 — Transmission Fluid Temperature Sensor 'A' Circuit Malfunction. This is a more general fault code for the same sensor circuit. It can be set if the control module detects a general problem with the sensor's signal before a specific short (P0712) or open (P0713) is identified.
• P0700 — Transmission Control System Malfunction. This is a generic informational code set by the PCM to indicate that the Transmission Control Module (TCM) has stored a specific fault, such as P0712. It serves as the trigger for the Check Engine Light for most transmission-specific codes.
