P0713 on 2020-2022 Ford Transit: Causes for Transmission Temp Sensor Circuit High

What's Unique About the 2020-2022 Ford TRANSIT

The 2020-2022 Ford Transit uses the 10-speed 10R80 automatic transmission. In this design, the TFT sensor is not a separate, easily replaceable part. Instead, it is integrated into a larger component inside the transmission called the molded lead frame or internal harness. This assembly is a known failure point across many Ford platforms using the 10R80. Furthermore, Ford has issued specific TSBs (like SSM 49510) that link P0713, when accompanied by a cluster of other codes, to specific external wiring connector failures, making diagnosis more complex than a simple sensor swap.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Illuminated Malfunction Indicator Lamp (MIL or Check Engine Light)
• Illuminated powertrain malfunction (wrench) indicator
• Harsh, erratic, or delayed transmission shifts.
• Transmission may be stuck in one gear (limp mode).
• Improper or failed torque converter clutch operation.
• Scan tool live data shows an extremely low, static temperature reading (e.g., -40°F), which is the default for a high circuit/open fault.
🎬 Watch: Understanding P0713 causes and common fixes

Most Likely Causes

1. Wiring Harness or Connector Fault 🔴 High Probability Ford TSB SSM 49510 explicitly identifies issues with connectors C1551, C1280, and C1281 as the cause for a specific group of codes including P0713. These connectors can suffer from water intrusion, corrosion, or pushed-out pins. Forum users also report rodent damage to harnesses.
   How to confirm: Scan for all DTCs. If codes P2804, P2803, P0710, P0709, and P0708 are present with P0713, immediately inspect connectors C1551, C1280, and C1281 as per TSB SSM 49510. A visual inspection and wiggle test of the harness and connectors is the first step. The connectors are major junctions; for example, on some Ford platforms, C1281 is related to the ABS/ESP module, indicating a complex shared harness.
   Typical fix: Repairing the damaged section of the wiring harness, cleaning the connector terminals with contact cleaner, applying dielectric grease, or replacing the faulty connector pigtail.
   Est. part cost: $20-$150
2. Failed Transmission Internal Harness (Molded Lead Frame) 🔴 High Probability → Shop Transmission Assembly The TFT sensor is integrated into the 10R80's molded lead frame, which sits inside the transmission attached to the valve body. This part is a very common failure point on Ford trucks and vans, causing various sensor-related codes. The internal electronics and connections fail due to heat and vibration.
   How to confirm: If P0713 appears alone, without the specific cluster of codes from TSB SSM 49510, the lead frame is the primary suspect. A technician can test the TFT sensor's resistance from the main transmission connector pins to confirm an open circuit before removing the pan. A reading of -40°F on a scan tool is a strong indicator. An out-of-limit (OL) resistance reading on a multimeter confirms an open circuit.

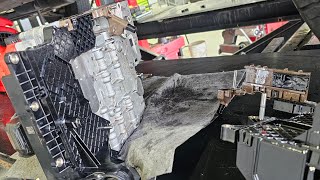

   Typical fix: Replacement of the entire molded lead frame assembly. This requires draining the transmission, removing the pan, and removing the valve body to access the part. It is a labor-intensive job. 🎬 Watch: Transit lead frame and fluid service walkthrough
   Est. part cost: $250-$500
3. Control Module Fault (PCM/SOBDMC) ⚪ Low Probability TSB 25-2385 notes that P0713 can be stored in the Secondary On-Board Diagnostic Module C (SOBDMC) along with other codes, indicating a potential module-level software or hardware fault. However, module failure is rare compared to wiring and sensor issues.
   How to confirm: This is a diagnosis of last resort. All other possibilities (wiring, connectors, lead frame) must be exhaustively ruled out by a professional using advanced diagnostic equipment. The module's software version should also be checked for any available updates.
   Typical fix: Reprogramming or, if necessary, replacement and programming of the faulty control module.
   Est. part cost: $500-$1200

Rare But Worth Checking

• Low or Dirty Transmission Fluid: → Shop Transmission Assembly While unlikely to directly cause a 'circuit high' code, which is electrical, extremely low or degraded fluid can cause overheating and erratic operation. This may indirectly stress electrical components or mask other issues.

Diagnosis Steps

1. Perform a full diagnostic scan of all vehicle modules (PCM, TCM, SOBDMC) and record all stored trouble codes. Pay close attention to code groupings.
2. If the codes listed in TSB SSM 49510 are present, prioritize the inspection of connectors C1551, C1280, and C1281 for any signs of damage, corrosion, moisture, or pushed-out pins.
3. If P0713 is present alone, proceed to check the transmission wiring harness. Visually inspect for any signs of melting, chafing, or damage, particularly where it may contact the exhaust or engine block.
4. Using a scan tool, observe the live data for the Transmission Fluid Temperature sensor. A static, extremely low reading (like -40°F) confirms an open circuit fault.
5. Test the TFT circuit from the main transmission harness connector. Using a wiring diagram, identify the pins for the TFT sensor and measure the resistance. An out-of-limit (OL) reading indicates an open circuit, likely in the internal lead frame.
6. If wiring and external connectors appear intact and the circuit tests open, the fault is almost certainly the internal molded lead frame. The next step is to drop the transmission pan to gain access.
7. Check the transmission fluid level and condition. Ensure it is at the correct level and does not smell burnt. This is good practice but unlikely to be the root cause of a circuit code.
8. If all wiring, connectors, and the lead frame test good, the possibility of a faulty Powertrain Control Module (PCM) should be investigated by a professional.

Parts You'll Likely Need

• Transmission Internal Harness / Lead Frame (OEM #MB3Z-7A100-A (Kit with valve body, lead frame may not be sold separately)) — On the 10R80 transmission, the TFT sensor is integrated into this assembly. It is a common failure item and often the root cause of P0713 if external wiring is good. Ford often sells it as a kit with the valve body.
  Trusted brands: Motorcraft
  OEM price range: $300-$600
  Aftermarket price range: $200-$400
• Wiring Harness Connector Pigtail — If the fault is at one of the external connectors cited in TSB SSM 49510 (C1551, C1280, C1281), replacing the connector pigtail is often the most effective repair for corrosion or pin damage.
  Trusted brands: Motorcraft, Dorman
  OEM price range: $40-$80
  Aftermarket price range: $20-$50
• Transmission Fluid (OEM #Motorcraft MERCON ULV (XT-12-QULV)) — The transmission pan must be removed to replace the lead frame, requiring a fluid drain and refill. Using the correct fluid is critical for 10R80 transmission health.
  Trusted brands: Motorcraft
  OEM price range: $15-$25 per quart

Related Codes That Often Appear With This One

• P0708, P0709, P0710, P2803, P2804 — According to Ford TSB SSM 49510, this specific group of codes appearing with P0713 points directly to a fault in connectors C1551, C1280, or C1281.
• P0711, P0712, P0A2B, P0A2C, P0A2D — As per Ford TSB 25-2385, these codes may be stored alongside P0713 in a secondary control module (SOBDMC), indicating a different, potentially more complex, electrical or module-related issue.

Technical Service Bulletins (TSBs) & Recalls

• SSM 49510: Addresses P0713 when found with a specific group of codes, pointing to external connectors.
• TSB 25-2385: Notes P0713 in conjunction with other codes in the SOBDMC module.

Platform-Specific Known Issues

• TSB SSM 49510: This bulletin is highly relevant. It states that if P0713 is found with the specific group of codes P2804, P2803, P0710, P0709, and P0708, the technician should inspect connectors C1551, C1280, and C1281 before performing any other repairs.
• TSB 25-2385: This bulletin notes that P0713 may appear with a different set of codes (P0711, P0712, P0A2B, etc.) in the Secondary On-Board Diagnostic Module C (SOBDMC), pointing to a different, potentially more complex, electrical fault.
• Molded Lead Frame Failure: A widely documented issue on Ford vehicles with the 6R80 and 10R80 transmissions. The internal circuitry for the sensors, including the TFT, fails over time, requiring replacement of the entire lead frame assembly.

Mechanic-Grade Diagnostic Values

• TFT Sensor Resistance vs. Temperature (Approximate) — expected: Resistance is inversely proportional to temperature. At -40°F (-40°C): ~284-978 kΩ; at 68°F (20°C): ~94-100 kΩ; at 212°F (100°C): ~5.3-5.8 kΩ.. Failure: An infinite resistance reading (OL on a multimeter) indicates an open circuit, which is the direct cause of a P0713 code.
• TFT Sensor Circuit Voltage (Key On, Engine Off) — expected: The sensor operates on a 5-volt reference circuit. Normal voltage varies with temperature but should be well below 5V (e.g., 1.5-3.8V).. Failure: A reading near 5 volts (typically >4.6V) indicates an open in the sensor circuit or internal harness, triggering the P0713 code.

Scan Tool Commands That Help

• Ford IDS / FDRS: Solenoid Body Strategy Programming — This is mandatory after replacing the valve body and lead frame assembly. The new part comes with a 12-digit ID and a 13-digit strategy number that must be programmed into the PCM/TCM. Failure to perform this step will result in harsh shifting and other performance issues, even with the new part installed.
• Ford IDS / FDRS / High-End Aftermarket Scan Tools (e.g., FORScan): Clear Transmission Adaptive Tables — This procedure must be performed after programming the new solenoid strategy or any major transmission repair. It erases the old learned shift patterns, allowing the TCM to create a new adaptive profile based on the new hardware during a specific drive cycle.

Wiring & Ground Locations

• Main Transmission Case Connector (16-pin) — The main electrical connector on the outside of the 10R80 transmission case.. This is the primary location for testing the internal lead frame without dropping the pan. The TFT sensor circuit can be tested here. On many 10R80s, the TFT signal is Pin 7 (BN-YE wire) and the signal return/ground is shared with other sensors. Always verify with a vehicle-specific diagram.
• Connector C1551 — A large, multi-wire inline connector typically located on the driver's side frame rail near the transmission.. TSB SSM 49510 specifically calls out this connector as a potential failure point for water intrusion and corrosion when P0713 is present with a cluster of other transmission codes. A thorough inspection here is required before condemning internal parts.

Real Owner Repair Stories

• Ford F-150 Forum (similar 10R80 transmission) (2018 Ford F-150) — Check engine light, hard shifting.
  ❌ Tried (didn't work) Clearing codes (code returned immediately).
  ✅ What actually fixed it The dealership replaced the entire valve body assembly, which includes the integrated molded lead frame. This permanently resolved the P0713 code and shifting issues.
• Ford Transit USA Forum (2020 Ford Transit) — Wrench light, check engine light, multiple transmission codes including P0713.
  ❌ Tried (didn't work) Initial dealership diagnosis could not pinpoint the fault.
  ✅ What actually fixed it After further diagnosis, the dealership replaced the internal transmission wiring harness (the molded lead frame), which resolved all codes and symptoms.

OEM Part Supersession History

• FL3Z-7A100-D (and subsequent F, G revisions) → MB3Z-7A100-A — The lead frame and valve body assembly for the 10R80 has undergone several revisions. The newer part numbers often include design improvements to enhance the durability of the internal electronics and molded traces on the lead frame, which are the common failure point for sensor circuit codes like P0713.
  Heads up: While physically interchangeable, using an older part number may lead to a repeat failure. It is critical to use the latest available part number and perform the required solenoid strategy programming for the new part.
