P0715 on 2018 Land Rover Range Rover Velar: Input Speed Sensor Fault Causes and Fixes

What's Unique About the 2018-2018 Land Rover RANGE ROVER VELAR

For the 2018 Range Rover Velar and its platform mates (like the Jaguar F-Pace) equipped with the ZF 8HP45 or 8HP70 transmission, P0715 is uniquely and frequently tied to the vehicle's Eco/Auto Stop/Start system. Manufacturer technical service bulletins (TSBs) explicitly state that a TCM software error is the primary cause for this code appearing immediately following a stop/start event, particularly on low-mileage vehicles. This is a critical distinction from many other vehicles where P0715 almost always points to a direct hardware failure of the sensor or its wiring.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• "Gearbox Fault" warning message on the instrument cluster.
• Flashing 'D' on the gear selector switch or instrument cluster.
• Vehicle enters limp mode (fail-safe), limiting speed and gear selection.
🎬 Learn how to use the emergency neutral release for towing.
• Harsh, erratic, or delayed gear shifts.
• Failure to shift into higher gears.
🎬 Watch: Real-world diagnosis of Range Rover gearbox issues and limp mode.
• Stalling when shifting from Park to Drive.
• Abrupt stop when vehicle speed reduces to around 3 mph (5 km/h).
• Check Engine Light is illuminated.

Most Likely Causes

1. Transmission Control Module (TCM) Software Error 🔴 High Probability → Shop Transmission Assembly As documented in TSBs LTB01205NAS1 and SSM73847, a software glitch can cause P0715-64 to set after an auto start/stop event. This is particularly common on low-mileage 2017-2018 models (under 2500 miles/4000 km) with the ZF 8HP45 or 8HP70 transmission.
   How to confirm: A Land Rover dealer or specialist with Pathfinder diagnostic software can check the current software version against available updates referenced in the TSBs. The diagnosis is confirmed if only codes P0715-64 and P0700-02 are present.
   Typical fix: Update the TCM software to the latest version using Pathfinder version 170 or later. In some cases, an adaptation drive cycle must be performed afterward. The software update is typically covered under warranty.
   Est. part cost: $0
2. Failed Input/Turbine Speed Sensor 🟡 Medium Probability → Shop Automatic Transmission Input Shaft Speed Sensor The sensor is an electronic component that can fail over time. It is located inside the transmission, making replacement labor-intensive.
   How to confirm: If a software update doesn't resolve the issue, the sensor's circuit must be tested. This involves checking for a proper signal waveform with an oscilloscope and comparing its resistance to factory specifications (typically 500-1,200 ohms). This is performed after the software-first approach fails.
   Typical fix: Replace the input/turbine speed sensor. This requires accessing the transmission's internal components.
   Est. part cost: $35-$180
3. Damaged Wiring or Connector ⚪ Low Probability Wiring can be susceptible to chafing, corrosion, or damage over time, especially at the main transmission connector.
   How to confirm: Visually inspect the wiring harness leading to the transmission for any signs of chafing, corrosion, or damage. Perform a continuity test on the wiring between the sensor connector and the TCM; resistance should be less than 1 ohm.
   Typical fix: Repair or replace the damaged section of the wiring harness or the connector.
   Est. part cost: $10-$100

Rare But Worth Checking

• Faulty Mechatronic Valve Body Assembly: → Shop Transmission Valve Body TSB SSM73847 mentions this as a possible, though less common, cause if software updates and adaptation relearns do not resolve the issue. In this case, the dealer is instructed to capture adaption data and consult a ZF Transmission Engineer.
• Failed Transmission Control Module (TCM): → Shop Transmission Assembly In rare cases, the module itself can fail internally, preventing it from correctly processing the sensor's signal. This is usually diagnosed after all other possibilities, including software, sensor, and wiring, have been eliminated. A repair on a similar Jaguar F-Pace platform involved replacing a faulty TCM to resolve gearbox issues.
• Damaged Reluctor Ring: The sensor reads a toothed reluctor ring on the input shaft. If this ring is cracked, has broken teeth, or is covered in debris, it can cause erratic signals and trigger P0715. This would require significant transmission disassembly to inspect and repair.

Diagnosis Steps

1. Connect a JLR-approved diagnostic scanner (like Pathfinder) and confirm the presence of P0715-64 and P0700-02.
2. Check for applicable Technical Service Bulletins (TSBs), specifically LTB01205NAS1 and SSM73847.
3. If the TSBs apply and the fault occurred after a start/stop event, the first step is to have a dealer or qualified shop update the TCM software. This requires a stable battery power supply during the procedure.
4. If the software is up to date or the update does not fix the issue, clear the DTCs and perform a transmission adaptation drive cycle as specified in TSB SSM73847. This involves achieving a minimum of 3 counts for each clutch via the Pathfinder tool.
5. If the problem persists, inspect the transmission fluid level and condition. Low or contaminated fluid can cause various shifting issues.
6. Visually inspect the external transmission wiring harness and connectors for any visible damage, corrosion, or loose connections.
7. If no external issues are found, test the sensor's circuit. This is an advanced step. With the ignition on, check for 5V reference at the TCM connector power pin for the sensor. Check the sensor's resistance, which should be between 500-1,200 Ω. Using an oscilloscope, verify the sensor is producing a clean signal that corresponds to input shaft speed.
8. If the sensor or its circuit tests faulty, replace the input speed sensor. This part is located inside the transmission on the ZF 8HP series.
9. If the sensor and wiring are confirmed to be good, the fault may lie within the mechatronic unit or the TCM itself, requiring more advanced diagnostics as per TSB SSM73847.

Parts You'll Likely Need

• Transmission Input Shaft Speed Sensor (OEM #ZF Part (related to 8HP45/8HP70 transmissions, specific JLR number unconfirmed)) — If a software update does not resolve the P0715 code, the sensor itself is the next most likely component to have failed. It is a hardware component that reads the input shaft's speed.
  Trusted brands: ZF (OEM), Bosch, Aftermarket sellers on eBay/AliExpress
  OEM price range: $150-$250
  Aftermarket price range: $35-$100

Related Codes That Often Appear With This One

• P0700 — This is a generic code indicating the TCM has stored a fault. It essentially tells the main engine computer to turn on the check engine light. It is almost always present alongside a specific transmission code like P0715. The TSBs for the Velar specifically mention P0700-02 appearing with P0715-64.

Technical Service Bulletins (TSBs) & Recalls

• LTB01205NAS1: Notes that a TCM software error can cause P0715-64 and P0700-02 after an Auto Stop/Start event, resulting in a flashing 'D' and a 'Gearbox Fault' message. The fix is a software update using Pathfinder version 170 or later.
• SSM73847: Reinforces that a TCM software error or a mechatronic valve block fault can cause P0715-64 after an ECO Stop/Start event, especially on low-mileage vehicles. Recommends clearing codes and performing an adaptation drive cycle. If the issue persists, data must be sent to a ZF Transmission Engineer for review.

Platform-Specific Known Issues

• A well-documented software error in the Transmission Control Module (TCM) causes P0715 to appear after an Auto Stop/Start event, accompanied by a 'Gearbox Fault' message and a flashing 'D' on the gear selector. This is detailed in Land Rover TSBs LTB01205NAS1 and SSM73847.
• This issue is noted to be most common on 2017-2018 models with low mileage (under 2500 miles/4000 km) equipped with the ZF 8HP45 or 8HP70 automatic transmission.

Mechanic-Grade Diagnostic Values

• Input Speed Sensor Resistance — expected: 500 - 1,200 Ohms (Ω). Failure: A reading of open circuit (OL) or resistance outside the specified range indicates a faulty sensor.
• Input Speed Sensor Power Supply Voltage — expected: 5 Volts DC at the TCM connector pin for the sensor.. Failure: No voltage or significantly lower voltage suggests a problem with the TCM or the wiring.
• Sensor Signal Wire Continuity — expected: Less than 1 Ohm (Ω). Failure: High resistance indicates corrosion or a poor connection in the harness between the sensor and the TCM.
• Live Data Scan Tool Reading — expected: The 'Turbine Speed' or 'Input Shaft Speed' PID should show a value that fluctuates in sync with engine RPM.. Failure: A flat, zero, or erratic reading while the engine is running confirms a fault in the sensor circuit.

Hidden / Shadow Codes Worth Checking

• P0715-64: The '-64' suffix is a manufacturer-specific identifier for a 'Signal Plausibility Failure'. This points directly to the TCM software issue where the sensor's signal is present but not logical compared to other powertrain data, especially after a start/stop event. (see via JLR-specific diagnostic tools like Pathfinder.)

Scan Tool Commands That Help

• JLR Pathfinder: ECU Diagnostics > Transmission Control Module (TCM) > Update ECU — This is the primary fix when P0715-64 is caused by the known software bug related to auto start/stop events.
• JLR Pathfinder: ECU Diagnostics > Transmission Control Module (TCM) > Transmission control module adaption learn — This function should be used after a software update or if the update does not resolve the issue. It forces the TCM to relearn clutch engagement points and can resolve shifting problems.
• Advanced Scan Tool (e.g., iCarsoft CR Ultra): Bi-Directional TCM Test (Simulated ISS Signal) — This advanced test can help isolate the fault. If the scan tool can send a simulated speed signal and the TCM recognizes it, the fault lies with the sensor or wiring. If the TCM does not recognize the simulated signal, the TCM itself is likely faulty.

Wiring & Ground Locations

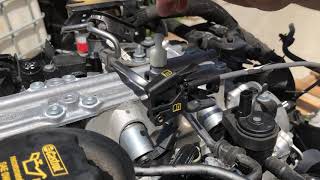

• Manual Park Release Lever — Under the main engine cover, visible as a small lever with an icon of a book and an exclamation point.. Since a P0715 fault can leave the vehicle in 'limp mode' or unable to shift out of Park, this manual release allows the transmission to be put into Neutral for towing or moving the vehicle without engine power. To engage Neutral, the lever is pulled up until it locks at a 90-degree angle.

Real Owner Repair Stories

• Carly Community User (2022 Jaguar F-Pace Diesel (platform mate with same ZF 8-speed transmission)) — Erratic shifting, unresponsive paddle shifters, grinding sounds, slipping between gears, and vehicle entering emergency mode with transmission error codes.
  ❌ Tried (didn't work) The user suspected a software issue initially, but the severity of symptoms pointed towards a hardware or module failure.
  ✅ What actually fixed it A workshop diagnosis confirmed a faulty Transmission Control Module (TCM). The final repair involved replacing the TCM, followed by programming and calibration. The total cost was 1150€.

OEM Part Supersession History

• LR023294 → LR065238 — This is the part number for the transmission oil pan, which on the ZF 8HP series includes the integrated transmission filter. The part was updated by the manufacturer.
  Heads up: Using the older part number may result in fitment issues or sourcing obsolete stock. LR065238 is the correct OEM replacement pan/filter assembly for servicing the ZF 8HP45/70/76 transmission in this vehicle.

Model Year Variations Within This Range

• 2018: The TSB for the software-related P0715 fault specifies an affected VIN range for the Range Rover Velar (LY) as 700000-776521.
