P0717 on 2007-2012 Hyundai Santa Fe: Input Speed Sensor Circuit No Signal Fixes

What's Unique About the 2007-2012 Hyundai Santa Fe

For the second-generation (CM) Santa Fe, Hyundai has issued a Technical Service Bulletin (TSB 20-AT-011H) for this exact code, specifically covering the 2010-2012 models with the 6-speed automatic transmission. The bulletin advises replacing the internal input/output speed sensor and sometimes the internal harness. The key challenge on this vehicle is that the input speed sensor is not an easily accessible external part; it is located inside the transmission, mounted to the valve body. This makes replacement an involved job that requires draining the fluid, dropping the oil pan, and removing the valve body. Models from 2007-2009 use a 5-speed automatic (A5HF1) while 2010-2012 models use a 6-speed (A6MF2), which may use different parts and procedures.

Symptoms You May Notice

• Check Engine Light is on
• Transmission is stuck in one gear (usually 2nd or 3rd)
• Harsh, erratic, or delayed shifting
• Inability to shift manually
• Engine may stall when coming to a stop
• Reduced fuel economy due to inefficient gear selection
• Flashing gear indicator on the dashboard

Most Likely Causes

1. Failed Internal Input/Turbine Speed Sensor 🔴 High Probability → Shop Automatic Transmission Input Shaft Speed Sensor Hyundai has released TSB 20-AT-011H that specifically addresses replacing this sensor for code P0717 on 2010-2012 models, indicating it's a known failure point. The sensor is often a combined input/output sensor assembly.
   How to confirm: After verifying the external wiring is intact, the next step is to test the sensor itself. However, since it's internal, this usually involves replacing it as part of the diagnostic process due to the high labor cost of access.
   Typical fix: Replace the input/output speed sensor assembly. This requires draining the transmission fluid, removing the oil pan, and removing the valve body to access the sensor. The internal wiring harness is often replaced at the same time per the TSB.
   Est. part cost: $50-$120
2. Damaged Wiring or Connector 🟡 Medium Probability The main external wiring harness leading to the transmission can be exposed to heat and debris. More critically, the internal wiring harness that connects the sensor to the main connector can also fail, which is addressed in TSB 20-AT-011H.
   How to confirm: Visually inspect the external wiring harness going to the main transmission connector. Check for frayed wires, corrosion, or loose pins. A multimeter can be used to check for continuity from the TCM to the transmission connector. Internal harness damage can only be confirmed after removing the valve body.
   Typical fix: Repair the damaged section of the external wiring harness or clean/replace the connector. If the internal harness is faulty, it must be replaced, which requires removing the valve body.
   Est. part cost: $10-$150 for repair materials or a new internal harness
3. Faulty Transmission Control Module (TCM) or Powertrain Control Module (PCM) ⚪ Low Probability → Shop Transmission Assembly
   How to confirm: This is a diagnosis of exclusion. If the sensor, internal harness, and external wiring have all been proven to be good but the code persists, the TCM/PCM is the likely culprit. This requires advanced diagnostic tools to verify.
   Typical fix: Replace and reprogram the faulty control module.
   Est. part cost: $200-$800

Rare But Worth Checking

• Low or Contaminated Transmission Fluid: → Shop Transmission Assembly While less likely to cause a 'no signal' code, extremely low or contaminated fluid can cause erratic transmission behavior and a variety of codes. It's always the first and easiest thing to check.

Diagnosis Steps

1. Scan the vehicle for all stored trouble codes using a Hyundai GDS or equivalent scanner. Note any other transmission-related codes like P0721 or P0722.
2. Check the level and condition of the automatic transmission fluid. The fluid should be at the correct level and not appear burnt or contain excessive debris.
3. Inspect the main transmission wiring harness and connector for any visible signs of damage, corrosion, or loose connections.
4. If external wiring appears okay, consult TSB 20-AT-011H (for 2010-2012 models). The next step is to access the internal components.
5. Drain the transmission fluid and remove the transmission oil pan.

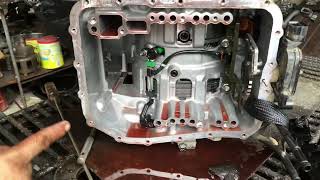

6. Remove the transmission valve body to gain access 🎬 See this walkthrough for removing the 6-speed valve body. to the input/output speed sensor assembly.
7. Inspect the internal wiring harness that connects to the sensor for any signs of damage.
8. Replace the input/output speed sensor assembly. It is recommended to replace it rather than test it due to the high labor involved in accessing it. The TSB also recommends replacing the internal harness.
9. Reinstall the valve body, a new oil pan gasket, and the oil pan. Torque all bolts to manufacturer specifications (typically 6-7 lb-ft for valve body and sensor bolts).
10. Refill the transmission with the correct type and amount of Hyundai-specified ATF. 2007-2009 models often use SP-III, while 2010-2012 models require SP-IV / SP4-M. Using the wrong fluid can cause damage.
11. Clear all DTCs and perform a test drive to ensure the transmission is shifting correctly and the code does not return.

Parts You'll Likely Need

• Automatic Transmission Input/Output Speed Sensor (OEM #42620-39200) — This is the most common failure point for code P0717 on this vehicle, as documented by Hyundai's own service bulletins. This part often serves as both the input and output sensor. 🎬 Watch: How to locate and replace the speed sensor assembly.
  Trusted brands: Hyundai (OEM), Dorman
  OEM price range: $60-$120
  Aftermarket price range: $40-$80
• Automatic Transmission Fluid — The transmission fluid must be drained to access the sensor and must be replaced with fluid meeting Hyundai's specification. 2007-2009 models typically require SP-III. 2010-2012 models require SP-IV or SP4-M.
  Trusted brands: Hyundai/Kia (OEM SP-III or SP-IV), Idemitsu, ENEOS, Valvoline MaxLife ATF
  OEM price range: $15-$25 per quart
  Aftermarket price range: $10-$18 per quart
• Transmission Oil Pan Gasket (OEM #45285-3B700 (example, verify by VIN)) — The oil pan must be removed, and the gasket should always be replaced to prevent leaks.
  Trusted brands: Hyundai (OEM), Beck/Arnley, Fel-Pro
  OEM price range: $20-$40
  Aftermarket price range: $10-$25
• Internal Wire Harness (OEM #46307-3B650 (example for 6-speed, verify by VIN)) — TSB 20-AT-011H recommends replacing the internal harness along with the sensor, as it can also be a point of failure.
  Trusted brands: Hyundai (OEM)
  OEM price range: $75-$150

Related Codes That Often Appear With This One

• P0715 — P0715 is 'Input/Turbine Speed Sensor 'A' Circuit Malfunction'. It's a related code that can appear for similar reasons, indicating a problem with the same sensor circuit.
• P0722 — P0722 is 'Output Speed Sensor Circuit No Signal'. The input and output speed sensors are often a single part or located next to each other, and TSB 20-AT-011H covers both P0717 and P0722, recommending replacement of the same sensor/harness assembly.
• P0721 — P0721 is 'Output Speed Sensor Circuit Range/Performance'. This is another related code covered by TSB 20-AT-011H.

Technical Service Bulletins (TSBs) & Recalls

• TSB 20-AT-011H: Supersedes 16-AT-003. Addresses DTCs P0717, P0721 & P0722 for 2010-2012 Santa Fe (CM) among other models. Provides a specific repair procedure to replace the input/output speed sensor and/or internal wire harness instead of the entire transaxle.

Platform-Specific Known Issues

• Confusion Between Internal and External Sensors: Some owners and even parts stores may confuse the internal input/output sensor assembly with external vehicle speed sensors (VSS). The P0717 code on this platform almost always refers to the sensor located inside the transmission on the valve body.
• Owner Experience on 2CarPros Forum: A user on 2CarPros with a 2007 Santa Fe reported getting code P0717, transmission locking in gear, and difficulty starting. They replaced the sensor but the problem remained, leading to confusion about wiring pinouts, highlighting the diagnostic complexity.

Mechanic-Grade Diagnostic Values

• Input Speed Sensor Power Supply Voltage (A6MF2) — expected: ~9 Volts. Failure: No voltage indicates an open or short in the power supply wire from the TCM/PCM.
• Wiring Harness Continuity — expected: Less than 1.0 Ω. Failure: A reading of OL (Over Limit) indicates an open circuit. A resistance value higher than 1.0 Ω suggests high resistance in the wire that needs to be traced and repaired.
• Valve Body and Sensor Bolt Torque — expected: 6-7 lb-ft (8-9 N.m). Failure: Incorrect torque can lead to leaks or damaged components.

Scan Tool Commands That Help

• Hyundai GDS (Global Diagnostic System): Data Analysis: 'Input speed' and 'Output speed (PG-B)' — This is the first step recommended by Hyundai's TSB. While driving, a technician monitors this live data. If the 'Input speed' value is missing or does not change with vehicle speed while the 'Output speed' does, it strongly suggests a fault in the input speed sensor circuit.
• Hyundai GDS (Global Diagnostic System): Transmission Adaptation Reset — After replacing transmission components like the valve body, sensors, or internal harness, it is best practice to reset the adaptive learning values. This allows the TCM to relearn shift points and pressures with the new components, ensuring smooth operation.

Real Owner Repair Stories

• Hyundai Forums user (2009 Hyundai Accent (uses a similar powertrain logic)) — Check Engine light on, transmission shift problems, codes P0717, P0733, P0734.
  ❌ Tried (didn't work) Initial confusion over the part name, being called 'Turbine-Input shaft speed sensor', 'pulse generator A', or 'VSS'.
  ✅ What actually fixed it The user replaced the externally mounted Vehicle Speed Sensor (VSS), NAPA part #VSS 1022. This highlights a key difference and point of confusion: on some Hyundai models/years, the sensor is external, while on the 2007-2012 Santa Fe, it is internal. This story demonstrates a common misdiagnosis path where a user might try replacing an external sensor first, which is incorrect for the Santa Fe in question.
• Hyundai Owner Report (NHTSA ODI #10849786) — An owner of a vehicle with a similar Hyundai powertrain reported that after the car would not move and triggered code P0717, they replaced the input and output speed sensors, but the problem continued and the vehicle still jerked when changing power modes.

OEM Part Supersession History

• 46307-3B610, 46307-3B620 → 46307-3B650 — Standard part revision and improvement by the manufacturer.
  Heads up: The newer part number (46307-3B650) is the correct replacement for the older versions and should be used for repairs.
• 42621-39200 (Output Sensor) →
  Heads up: Parts catalogs list 42621-39200 as an 'Output Speed Sensor' for the 2007-2009 Santa Fe with the 5-speed A5HF1 transmission. This is a separate, external sensor and should not be confused with the internal input/output sensor assembly used in the 2010-2012 6-speed A6MF2 models which is the primary subject of TSB 20-AT-011H.

Model Year Variations Within This Range

• 2007-2009: These models are typically equipped with the 5-speed A5HF1 automatic transmission. The P0717 code often relates to an external speed sensor (sometimes called Pulse Generator A) which is easier to access and replace than the internal sensor on later models.
• 2010-2012: These models use the 6-speed A6MF2 automatic transmission. For this P0717 code, the fault is almost always the internal input/output sensor assembly located on the valve body, as detailed in TSB 20-AT-011H. This repair requires removing the valve body.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• Faulty Fuel Level Sending Unit 🟠 Medium — Very common on 2007-2009 models, causing erratic or incorrect fuel gauge readings. (Ref: NHTSA Action Number: 10029901)
• Leaking Valve Cover Gaskets 🟠 Medium — Common on V6 engines, oil can leak onto the alternator causing premature failure.
• Catastrophic Engine Failure (2012 2.4L) 🔴 High — The 2012 model year with the 2.4L Theta II engine is known for connecting rod bearing failure, often occurring around 90,000 miles. (Ref: Recalls NHTSA 17V226000, 19V063000)
• Worn Suspension Components 🟡 Low — Ball joints, control arm bushings, and tie rods can wear prematurely, leading to noise and alignment problems.
• Electronic Throttle Body Malfunction 🟠 Medium — On 2010-2012 models with the 3.5L V6, the throttle body can fail, causing a loss of acceleration and limp mode.

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: For this specific repair, using a used part is generally not recommended. The input/output speed sensor and the internal wiring harness are known failure points and are considered wear items. The cost of labor to access these parts inside the transmission is very high, so installing a used part with unknown remaining life is a significant risk.

Donor-vehicle mileage cap: roughly under 100000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• If considering a larger used component like a full valve body assembly, ensure it comes from a reputable salvage yard with a warranty.
• Ask for the VIN of the donor vehicle to verify its mileage and history.
• Visually inspect the part for any signs of physical damage, and check connectors for corrosion or bent pins.

OEM-only on this vehicle (don't cheap out):

• Internal Wire Harness (Part No. 46307-3B650 or equivalent): This is a critical component that is difficult to access. Aftermarket versions are rare or non-existent, and OEM is the only reliable choice.
• Transmission Fluid: Only use fluid that explicitly meets Hyundai SP-III (for 5-speed) or SP-IV/SP4-M (for 6-speed) specifications. Using a generic or incorrect fluid can cause severe transmission damage.

Aftermarket brands forum-validated for this vehicle:

• Dorman is a widely available aftermarket brand that produces a replacement for the speed sensor assembly.

Brands owners have reported issues with on this vehicle:

• Avoid unbranded, extremely low-cost sensors from online marketplaces. The sensor's signal is critical for transmission function, and a poor-quality part can fail quickly, requiring the expensive labor to be repeated.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P0721 — Output Speed Sensor Range/Performance. This code is often set with P0717 because the input and output sensors are frequently part of a single assembly. TSB 20-AT-011H specifically groups these codes for the same repair procedure.
• P0722 — Output Speed Sensor No Signal. Similar to P0721, a complete failure of the combined input/output sensor assembly or its internal harness can cause a loss of signal from both sensors, triggering P0717 and P0722 simultaneously.
• P0732 — Gear 2 Incorrect Ratio. This is a common secondary code. When the TCM loses the input speed signal (P0717), it enters a fail-safe mode, often locking the transmission in 2nd gear. This creates a mismatch between expected and actual gear ratios, triggering P0732.
• P0733 — Gear 3 Incorrect Ratio. Like P0732, this code can appear when the transmission defaults to 3rd gear as a limp-home strategy due to the P0717 fault. The TCM detects the incorrect ratio and logs this code as a symptom of the primary sensor failure.

Frequently Asked Questions
