P0720 on 2004-2012 Chevrolet Malibu: Output Speed Sensor Circuit Causes and Fixes

What's Unique About the 2004-2012 Chevrolet Malibu

The 2004-2012 Malibu spans two distinct generations with different automatic transmissions. The 6th generation (2004-2007) primarily used the 4-speed 4T45-E, while the 7th generation (2008-2012) used both 4-speed and 6-speed automatics like the 6T40 and 6T70. The location and accessibility of the Output Speed Sensor differ significantly between these transmissions. On the 4-speed 4T45-E, the sensor is external and relatively easy to replace. On the 6-speed 6T40/6T70, the sensor is located internally on the valve body, requiring removal of the transmission side cover and a much more involved repair.

Generation note: This range covers the 6th generation (2004-2007) and the 7th generation (2008-2012) Malibu. The 6th gen typically used a 4-speed 4T45-E automatic, where the OSS is external. The 7th gen used both 4-speed and 6-speed (e.g., 6T40, 6T70) automatics. On the 6-speed models, the OSS is internal and its failure can be linked to other known transmission issues like the 3-5-R wave plate failure.

Symptoms You May Notice

• Check Engine Light is on
• Erratic, harsh, or delayed shifting
• Speedometer not working or behaving erratically
• Transmission stuck in one gear (limp mode), described by owners as feeling like it has 'little acceleration'
• Cruise control not working
• Reduced fuel economy
• Vehicle may stall when coming to a stop

Most Likely Causes

1. Failed Output Speed Sensor (OSS) 🔴 High Probability Sensors can fail over time due to heat cycles and exposure to transmission fluid. On 6-speed models, the sensor is also vulnerable to damage from metallic debris created by other internal component failures.
   How to confirm: Use a scan tool to monitor the OSS signal while driving. If the signal is erratic, drops to zero, or doesn't match the vehicle's actual speed, the sensor is likely faulty. You can also test the sensor's internal resistance with a multimeter and compare it to the manufacturer's specifications.
   Typical fix: Replace the Output Speed Sensor. For 4-speed 4T45-E transmissions, this is an external part. For 6-speed 6T40/6T70 transmissions, this requires accessing the transmission's internal valve body.
   Est. part cost: $25-$75
2. Damaged Wiring or Connector 🟡 Medium Probability The wiring harness leading to the transmission can be exposed to road debris, heat, and moisture, leading to corrosion, breaks, or short circuits over time.
   How to confirm: Visually inspect the wiring harness and connector for any signs of damage, corrosion, or loose pins. Perform a continuity test on the wires between the sensor and the TCM.
   Typical fix: Repair the damaged section of the wiring harness or replace the connector.
   Est. part cost: $10-$50
3. Low or Contaminated Transmission Fluid ⚪ Low Probability → Shop Transmission Assembly On 6-speed models, internal component failure (like the 3-5-R wave plate) is a known issue that releases significant metal debris into the fluid, which can directly cause the P0720 code by damaging the sensor.
   How to confirm: Check the transmission fluid level and condition. The fluid should be at the correct level and appear clean (typically red). If it is dark, burnt-smelling, or contains visible metal particles (often looks like glitter), it indicates a serious internal problem.
   Typical fix: If fluid is simply low, top it off and check for leaks. If the fluid is heavily contaminated, a full diagnosis of the transmission's internal condition is required, which will likely lead to a rebuild or replacement. A simple fluid change will not fix the underlying mechanical failure.
   Est. part cost: $50-$200 for a fluid service

Rare But Worth Checking

• Faulty Powertrain or Transmission Control Module (PCM/TCM): → Shop Transmission Assembly This is an uncommon cause and should only be considered after the sensor and wiring have been thoroughly tested and ruled out. A faulty module can misinterpret a good sensor signal. On some 6-speed models, the TCM (often called a TEHCM) is located inside the transmission and can also be damaged by heat and contaminated fluid.
• Internal Transmission Mechanical Failure (3-5-R Wave Plate): → Shop Transmission Assembly This is a very notable cause on 2008-2009 Malibus with the 6T70/6T75 6-speed automatic transmission. A fractured 3-5-R clutch wave plate is a common, well-documented failure. This failure releases metal debris that contaminates the fluid and can destroy the internal Output Speed Sensor, triggering P0720. Symptoms of this specific failure often include loss of 3rd, 5th, and Reverse gears. GM issued Special Coverage Adjustment TSB 14404B 🎬 Watch: How a broken wave plate damages internal sensors for this issue.

Diagnosis Steps

1. Check and document any stored trouble codes using an OBD-II scanner.
2. Inspect the transmission fluid level and condition. Pay close attention to any signs of metal shavings or a burnt smell, especially on 6-speed models.
3. Visually inspect the Output Speed Sensor's wiring harness and connector for any obvious signs of damage, corrosion, or loose connections.
4. Use a scan tool with live data capability to monitor the Output Speed Sensor signal while driving. The reading should be smooth and correspond to the vehicle's speed.
5. If the signal is erratic or absent, test the sensor itself. For external sensors (4-speed), disconnect it and measure its resistance with a multimeter, comparing the reading to the manufacturer's specifications.
6. If the sensor tests good, check for power and ground at the sensor connector and test the continuity of the signal wire back to the TCM/PCM.
7. If the sensor and wiring are confirmed to be good, especially if the fluid is contaminated, the problem is likely internal to the transmission (failed sensor due to debris, or a faulty TCM/TEHCM). This requires more advanced diagnostics, likely involving transmission disassembly.

Parts You'll Likely Need

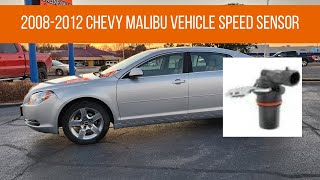

• Transmission Output Speed Sensor (OEM #ACDelco 24218077 (for 4-speed 4T45-E) 🎬 Watch: 2008-2012 Chevy Malibu speed sensor replacement walkthrough or ACDelco 24276628 (for 6-speed 6T40)) — This sensor is the most frequent point of failure in the circuit, leading directly to the P0720 code. The correct part number is critical and depends on the specific transmission in the vehicle.
  Trusted brands: ACDelco, Delphi, Standard Motor Products, NTK
  OEM price range: $35-$80
  Aftermarket price range: $25-$60

Related Codes That Often Appear With This One

• P0700 — P0700 is a generic code indicating that the Transmission Control Module (TCM) has stored a fault. It often appears alongside more specific transmission codes like P0720.
• P0500 — P0500 relates to the Vehicle Speed Sensor (VSS) circuit. Since the OSS data is often used for the speedometer, a fault in the OSS circuit can sometimes trigger a VSS code.
• P0776 — On 6-speed models, this code (Clutch Pressure Control Solenoid 2 Stuck Off) often appears when a broken 3-5-R wave plate has generated debris, affecting both solenoids and sensors within the transmission.

Technical Service Bulletins (TSBs) & Recalls

• TSB 14404B: Special Coverage Adjustment for a fractured 3-5-R clutch wave plate in 6T70/6T75 transmissions, which is a common root cause for P0720 in affected 2008-2009 models. This extended the warranty for this specific failure to 10 years or 120,000 miles.
• TSB 09-07-30-012F: Provides technical details on diagnosing and repairing the broken 3-5-R wave plate, noting that it can generate significant debris and cause various DTCs, including those related to pressure control solenoids.

Platform-Specific Known Issues

• 4-Speed (4T45-E) vs. 6-Speed (6T40/6T70) Sensor Location: This is the most critical vehicle-specific issue. On the 4-speed, the OSS is external and easily accessible for replacement. On the 6-speed, the OSS is internal, requiring removal of the transmission side cover and valve body, making the repair significantly more labor-intensive and costly.
• 6-Speed Wave Plate Failure: On 2008-2009 models with the 6T70/6T75 transmission, the P0720 code is often a secondary symptom of a failed 3-5-R wave plate. The resulting metal debris in the fluid damages the internal OSS. Repairing only the sensor without addressing the wave plate will lead to a repeat failure. GM issued TSB 14404B acknowledging this widespread issue.

Mechanic-Grade Diagnostic Values

• Sensor Reference Voltage — expected: 5V ± 0.5V. Failure: Voltage reading outside of this range indicates a problem with the TCM or wiring.
• Sensor Ground Circuit Resistance — expected: < 0.1 Ω. Failure: Resistance higher than 0.1 Ω indicates a poor ground connection which can cause an erratic signal.

Wiring & Ground Locations

• G107 — On 2.4L models, this ground is located on the lower left side of the engine block, as part of the main engine harness.. A poor engine ground can introduce electrical noise and voltage drops, potentially affecting the Transmission Control Module's ability to get a clean signal from the output speed sensor, leading to an erroneous P0720 code even if the sensor and its direct wiring are good.

OEM Part Supersession History

• 24230723, 24244593, 24245044, 24246847, 24259852, 24275800 → 24276628 — Standard part consolidation and design updates by the manufacturer.
  Heads up: The replacement part 24276628 may require programming and/or special setup procedures. GM Service Information should be consulted to ensure proper operation after installation.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• Electric Power Steering (EPS) Failure 🔴 High — Very common across the 2004-2012 model years, can occur at any mileage. Leads to a sudden loss of steering assist. (Ref: Multiple recalls, including NHTSA Campaign ID 15V064000 (GM recall 14772) for 2006-2007 models.)
• Timing Chain Wear/Failure (2.4L Ecotec Engine) 🔴 High — Common on 7th gen models with the 2.4L engine, typically between 80,000 and 120,000 miles. Caused by stretched chains or failed tensioners/guides, leading to rattling noises, misfires, and potentially catastrophic engine damage.
• Intermediate Steering Shaft Clunk 🟡 Low — Common issue, particularly on the 6th generation (2004-2007), causing a clunking or popping noise in the steering column at low speeds. (Ref: Various TSBs have been issued over the years to address lubrication or replacement of the shaft.)
• Passlock Anti-Theft System Failure 🟠 Medium — A frequent problem on the 6th generation (2004-2007) where a faulty Passlock sensor in the ignition cylinder prevents the car from starting.
• Excessive Oil Consumption (2.4L Ecotec Engine) 🟠 Medium — Affects some 7th generation models, often attributed to piston ring issues. Can lead to low oil levels, which accelerates wear on other components like the timing chain.

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: A used part only makes sense for a complete transmission assembly. This is a viable option if diagnostics confirm catastrophic internal failure (e.g., severe damage from wave plate failure) and the cost of a rebuild is prohibitive. Never buy a used individual speed sensor, especially for the 6-speed models, as the part is inexpensive and the labor to install it is too high to risk a used component failing.

Donor-vehicle mileage cap: roughly under 100000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• Check the transmission fluid from the donor vehicle if possible. It should be reddish/brown and not smell burnt.
• Look for any signs of external damage to the transmission case or connectors.
• Obtain a vehicle history report for the donor car to check for reported accidents or maintenance issues.
• Prefer parts from reputable recyclers that offer a warranty (e.g., 90 days).

OEM-only on this vehicle (don't cheap out):

• Transmission Control Module (TEHCM) - For 6-speed models, the internally-mounted TEHCM is a complex electronic part. Aftermarket or remanufactured units can be unreliable; using a new OEM part is strongly recommended if the module itself is condemned.

Aftermarket brands forum-validated for this vehicle:

• ACDelco (Original Equipment)
• Delphi
• Standard Motor Products (SMP)
• NTK

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P0700 — Often accompanies P0720 as a general Transmission Control System malfunction indicator when the TCM detects a speed sensor circuit issue.
• P0721 — Output Speed Sensor Range/Performance; closely related to P0720 when the OSS signal is erratic or does not match actual vehicle speed.
• P0722 — Output Speed Sensor No Signal; occurs when the OSS signal drops to zero, a common failure mode for these sensors.
• P0751 — Shift Solenoid Performance; can be triggered by the same metallic debris from a failed wave plate that causes P0720.
