P0720 on 2011-2017 Ford Mustang: Output Speed Sensor Causes and Fixes

What's Unique About the 2011-2017 Ford Mustang

The 2011-2017 Mustang uses the 6R80 automatic transmission. Unlike many vehicles where the speed sensor is a simple, externally accessible part, on the 6R80 it is integrated into a larger component called the 'molded lead frame' or 'conductor plate' located inside the transmission, attached to the valve body. This makes the repair significantly more complex than a typical sensor swap. This specific part is a known high-failure item due to internal circuit breaks, leading Ford to issue a recall and extended warranty for other vehicles using the same transmission (like the F-150) due to dangerous, sudden downshifts caused by its failure.

Generation note: This guide covers the end of the S197 generation (2011-2014) and the beginning of the S550 generation (2015-2017). Both generations used the 6R80 automatic transmission, and the P0720 fault related to the internal molded lead frame is common to both.

Symptoms You May Notice

• Harsh, erratic, or delayed gear shifts.
• Transmission stuck in a single gear (limp mode), often 3rd or 5th.
• Sudden and dangerous downshift to 1st gear while driving.
• Wrench light or Check Engine Light is on.
• Speedometer reads 0 mph or behaves erratically while driving.
• Sluggish acceleration from a stop, as if starting in a high gear.
• Cruise control does not work.
• Inability to use manual shift mode (paddle shifters become unresponsive).
• Odometer display may show dashes (-------) or 'ODO DATA ERR'.

Most Likely Causes

1. Failed Molded Lead Frame Assembly 🔴 High Probability → Shop Transmission Valve Body This is a widely documented failure point on the 6R80 transmission. The internal circuitry of the lead frame, which includes the OSS and Turbine Speed Sensor (TSS), is prone to developing open circuits or shorts from heat cycles and contamination from metallic clutch material. Ford acknowledged this with Customer Satisfaction Program 19N01 for other models with the 6R80 transmission.
   How to confirm: A professional technician will confirm the presence of P0720, P0722, or P0731. Using a high-end scan tool (like FORScan or Ford IDS) to monitor the OSS PID will show the signal dropping to zero or becoming erratic during driving, confirming an internal sensor fault when external wiring is ruled out.
   Typical fix: Replace the entire molded lead frame assembly. This involves draining the transmission fluid, removing the pan, and removing the valve body to access and replace the part. The transmission should also receive new fluid, a new filter, a new pan gasket, and a new bulkhead connector sleeve.
   Est. part cost: $250-$550
2. Damaged Wiring or Connector ⚪ Low Probability While less common than internal failure, the main transmission harness connector can become contaminated with fluid if the bulkhead connector sleeve seal fails, wicking fluid up the harness and causing connection issues. The harness itself can also be damaged by road debris or contact with hot exhaust components.
   How to confirm: Visually inspect the main circular connector on the passenger side of the transmission for signs of transmission fluid. Disconnect it and check for corrosion or bent pins. Test for continuity and voltage at the connector using a multimeter and the vehicle's wiring diagram.
   Typical fix: If leaking, replace the bulkhead connector sleeve. Repair the damaged section of the wiring harness or clean the connector pins. If contamination is severe, the harness may need replacement.
   Est. part cost: $20-$150
3. Low or Contaminated Transmission Fluid ⚪ Low Probability → Shop Transmission Assembly While unlikely to be the direct cause of a P0720 electrical fault, extremely low or dirty fluid can cause erratic shifting, overheating, and place additional stress on internal components.
   How to confirm: Check the transmission fluid level and condition via the fill plug on the side of the transmission case (there is no engine bay dipstick). The fluid level check procedure is complex and must be done at a specific temperature (206°F - 215°F). The fluid should not be dark or smell burnt.
   Typical fix: Perform a transmission fluid drain and fill with the correct Motorcraft MERCON LV fluid. This is done as part of the lead frame replacement anyway.
   Est. part cost: $100-$250

Rare But Worth Checking

• Leaking Transmission Bulkhead Connector Sleeve: → Shop Transmission Assembly A very common issue on the 6R80 is for the o-rings on the electrical pass-through connector (bulkhead sleeve) to fail, causing a fluid leak. While this often just makes a mess, in some cases the fluid can contaminate the connector pins and cause various electrical faults, including P0720, before the lead frame itself has failed. This part is typically replaced as a preventative measure during a lead frame job.
• Faulty Powertrain Control Module (PCM): → Shop Engine Control Module (ECM) This is extremely rare. The PCM should only be considered after all other possibilities, including the lead frame and wiring, have been definitively ruled out by a qualified technician. Manufacturer bulletin #TSB-16-0085 notes that certain vehicles with the 5.2L Ti-VCT engine may exhibit an intermittent MIL with DTCs P0720 and P0722 present, which may require specific diagnostic attention.
• Phantom code on Manual Transmission Cars: → Shop Transmission Assembly Some owners of manual-transmission Mustangs have reported seeing a P0720 code, especially with aftermarket tunes. This is likely a software glitch within the tune, as the MT-82 manual transmission does not have the same sensor configuration as the 6R80 automatic. This can typically be ignored or resolved by the tuning company.

Diagnosis Steps

1. Confirm the presence of P0720 and any other related codes (P0722, P0731, P1500) using an OBD-II scanner.
2. Check for any applicable recalls (16S19) or extended warranties (19N01) with a Ford dealer using the vehicle's VIN. Note that 19N01 primarily covered F-150 and Expedition/Navigator models, but the failure is identical.
3. Check the transmission fluid level and condition. This is a complex procedure requiring the vehicle to be level and the fluid to be at a specific operating temperature (206°F - 215°F).
4. Visually inspect the main transmission wiring harness and the round bulkhead connector on the passenger side of the transmission for any signs of physical damage, corrosion, or fluid leakage from the connector sleeve.
5. Using a professional scan tool (like Ford's IDS or FORScan), monitor the Output Shaft Speed (OSS) PID in real-time while driving. If the reading is erratic, drops to zero while the vehicle is moving, or doesn't correspond to vehicle speed, the sensor signal is being lost.
6. If the external wiring is intact and the signal is faulty, the molded lead frame inside the transmission is the confirmed culprit.
7. Professional service is now required to drain the fluid, drop the transmission pan, and remove the valve body to replace the lead frame.

Parts You'll Likely Need

• Molded Lead Frame Assembly (Conductor Plate) (OEM #AL3Z-7G276-D) — This is the assembly that contains the integrated Output Speed Sensor. It is the root cause of the P0720 code in the vast majority of cases. 🎬 Watch a quick overview of the 6R80 lead frame component. The -D revision replaces older -A and -B versions.
  Trusted brands: Motorcraft, Dorman
  OEM price range: $200-$400
  Aftermarket price range: $120-$280
• Transmission Bulkhead Connector Sleeve (OEM #6L2Z-7G276-AA (verify for specific vehicle)) — This sleeve's o-rings are a common leak point on the 6R80. It is highly recommended to replace it when the valve body is removed to prevent future leaks and potential electrical issues.
  Trusted brands: Motorcraft
  OEM price range: $15-$30
  Aftermarket price range: $10-$20
• Transmission Pan Gasket (OEM #BL3Z-7A191-C (verify)) — The pan must be removed to access the lead frame, and the gasket is a reusable design but is often damaged or brittle and should be replaced.
  Trusted brands: Motorcraft
  OEM price range: $30-$50
  Aftermarket price range: $15-$30
• Motorcraft MERCON LV Automatic Transmission Fluid (OEM #XT-10-QLVC) — This is the required fluid for the 6R80 transmission. A full pan drop and lead frame replacement will require approximately 8-10 quarts.
  Trusted brands: Motorcraft
  OEM price range: $8-$12 per quart
  Aftermarket price range: N/A

Related Codes That Often Appear With This One

• P0722 — This code means 'Output Speed Sensor Circuit No Signal', which is a more specific version of P0720 and strongly points to a complete failure of the sensor within the lead frame.
• P0731 — This code means 'Incorrect Gear Ratio - Gear 1'. It can be triggered when the PCM commands a shift but doesn't see the expected change in speed from the faulty OSS, causing it to flag a slipping or gear ratio error.
• P1500 — This code means 'Vehicle Speed Sensor Intermittent'. It was one of the specific DTCs, along with P0720/P0722/P0731, that qualified a vehicle for a free lead frame replacement under Ford's Customer Satisfaction Program 19N01.

Technical Service Bulletins (TSBs) & Recalls

• Recall 16S19 - PCM software update to prevent sudden downshift.
• CSP 19N01 - Extended warranty coverage for the molded lead frame replacement.
• TSB 11-3-25 - Details the procedure for fixing a leak at the transmission bulkhead connector sleeve.
• Bulletin #TSB-16-0085 - Notes that vehicles built on or before 2/26/2016 may exhibit an intermittent illuminated MIL with DTCs P0720 and P0722 present.

Platform-Specific Known Issues

• Ford Safety Recall 16S19: Issued for 2011-2012 Mustangs (and other vehicles) for a sudden downshift to 1st gear caused by this fault. The official fix was a PCM software update to prevent the dangerous downshift from occurring, but it did not fix the root cause (the failing sensor).
• Customer Satisfaction Program 19N01: As a follow-up, Ford offered an extended warranty on the lead frame itself for up to 10 years or 150,000 miles for certain 2011-2013 vehicles (primarily F-150s, but some Mustangs were covered). If the vehicle had DTCs P0720, P0722, P0731, or P1500, the part was replaced for free. This program has expired for most vehicles due to the 10-year time limit.

Mechanic-Grade Diagnostic Values

• Valve Body to Transmission Case Bolts Torque — expected: 8 Nm (71 lb-in). Failure: N/A - This is an assembly specification. Incorrect torque can cause internal leaks or damage.
• Lead Frame to Valve Body Bolts Torque (T27) — expected: 6 Nm (53 lb-in). Failure: N/A - This is an assembly specification.
• Transmission Pan Bolts Torque — expected: 9-11 Nm (80-97 lb-in). Failure: N/A - This is an assembly specification. There are conflicting reports, but this range is commonly cited. Do not overtighten.
• Live Data: Output Shaft Speed (OSS) PID — expected: A steady reading that increases and decreases smoothly with vehicle speed.. Failure: Reading drops to zero, becomes erratic, or does not change while the vehicle is in motion. This confirms a signal loss from the sensor.

Scan Tool Commands That Help

• FORScan / Ford IDS: Reset All Adaptations / Clear Transmission Adaptive Tables — After replacing the lead frame or valve body, this procedure must be performed to clear the old learned shift strategies. Failure to do so can result in poor shift quality with the new parts.
• FORScan / Ford IDS: Reset Keep Alive Memory (KAM) — Used in conjunction with resetting adaptations to ensure all learned values in the TCM are cleared, forcing the system to start a fresh learning process.

Wiring & Ground Locations

• Transmission Bulkhead Connector (C175T) — Large, circular, 16-pin connector on the passenger side of the 6R80 transmission case.. This is the main electrical interface to the transmission. The OSS signal passes through this connector. A leak from the internal sleeve can contaminate these pins and cause a P0720 fault before the lead frame itself has failed.
• C175T - Pin 9 — Pin 9 of the main transmission bulkhead connector.. This is the signal wire for the Output Speed Sensor (OSS). A technician can test for continuity from this pin to the corresponding pin at the PCM to rule out an external wiring break.
• C175T - Pin 10 — Pin 10 of the main transmission bulkhead connector.. This is the signal return (ground) for the Output Speed Sensor (OSS). A continuity test on this wire is also necessary to validate the external circuit.

Real Owner Repair Stories

• YouTube user 'Parts shooter' (2013 Ford Mustang) — Sudden, harsh downshift into 1st gear at speed. Codes P0720, P0722, and P0731 were stored.
  ✅ What actually fixed it The owner diagnosed the issue as the common lead frame failure. He replaced the molded lead frame assembly (part number shown in video), transmission fluid, and filter, which resolved all symptoms.
• Ford F150 Forum user (2013 Ford Expedition (6R80 Transmission)) — Vehicle was not drivable, code P0722 (No Signal from OSS) was present.
  ❌ Tried (didn't work) The OEM Ford lead frame part was on a 3-month backorder.
  ✅ What actually fixed it Due to the unavailability of the OEM part, a Dorman-branded lead frame was installed. The user reported that the Dorman part worked and resolved the issue.

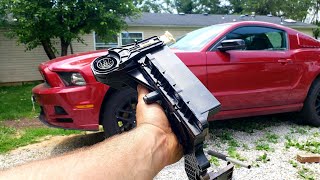

• YouTube user 'DVA Creations' (Ford Mustang (2011-2014 S197 body style)) — Wrench light on, speedometer dropping to zero, airbag and tire sensor lights on, car would suddenly downshift from 50 MPH to 1st gear, revving high and feeling like the rear end was locking up. Code P0720 was present.
  ✅ What actually fixed it The owner correctly identified the problem as the internal molded lead frame, not an external sensor. He replaced the lead frame, which fixed the dangerous downshifting and other electronic symptoms. He torqued the valve body bolts to 71 inch-pounds.
• NHTSA ODI #11625139 — An owner of a V6 Mustang with the 6R80 transmission reported the lead frame failing with code P0720. They noted the airbag light turned on and the odometer showed dashes, requiring an $850 repair because the VIN fell outside the recall.
• NHTSA ODI #11542913 — An owner reported the vehicle entering "Limp Mode" with the check engine light on and code P0720. They noted this is the same issue that occurred on 2011-2013 F-150 and Mustang vehicles.
• NHTSA ODI #11485571 — An owner reported using an OBDII tool that indicated P0720 Output Shaft Speed Sensor Circuit with a severity of 2 out of 3 after the vehicle failed while driving.

OEM Part Supersession History

• AL3Z-7G276-A, AL3Z-7G276-B → AL3Z-7G276-D — The original lead frame designs were prone to internal circuit failure. The revised part is intended to be more durable. Newer replacement kits also include a foam strip to place over the solenoid terminals, which helps prevent metallic debris from causing shorts—a suspected failure mode of the original design.
  Heads up: The 'D' revision is the correct and most current part to use for this repair and is backward compatible.

Model Year Variations Within This Range

• 2011-2017: While the 6R80 transmission and lead frame part are used across this range, Ford's Customer Satisfaction Program (19N01), which extended the warranty on this specific part to 10 years/150,000 miles, officially applied to 2011-2013 F-150s and 2012-2013 Expeditions/Navigators. It did not officially cover the Mustang, meaning Mustang owners were more likely to have to pay for this repair out-of-pocket even when the failure was identical.

Diagnostic Flowchart

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: For the primary failure part, the molded lead frame, a used part is NEVER a smart choice. It is a known high-failure electronic component, and the labor involved in the replacement is too significant to risk on a part with an unknown history. A used wiring harness or connector could be considered if in excellent condition.

What to inspect on the donor part:

• Not applicable for the lead frame itself. Do not buy used.

OEM-only on this vehicle (don't cheap out):

• Motorcraft MERCON LV Fluid: Do not substitute with other fluid types.
• Molded Lead Frame: Motorcraft (OEM) is the most recommended and trusted part for long-term reliability.

Aftermarket brands forum-validated for this vehicle:

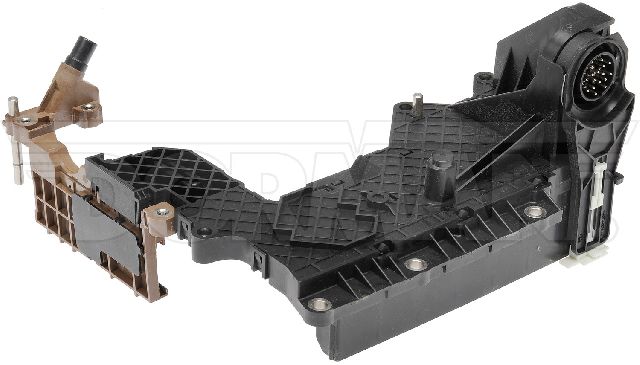

• Dorman: Multiple owner accounts on forums and YouTube confirm that the Dorman lead frame (e.g., Dorman 926-149) is a viable alternative that has successfully fixed the P0720 issue, especially when the Motorcraft part is on backorder or unavailable.

Brands owners have reported issues with on this vehicle:

• No-name, unbranded parts from online marketplaces should be avoided due to the critical function of this component and the high labor cost to replace it if it fails prematurely.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P0722 — Output Speed Sensor Circuit No Signal. This is a direct companion code to P0720, indicating a complete loss of the OSS signal rather than an intermittent one. It is caused by the same failure of the molded lead frame.
• P0731 — Gear 1 Incorrect Ratio. This code often appears with P0720 because the transmission control module compares the input (TSS) and output (OSS) speeds to verify the gear ratio. When the OSS signal is lost, this calculation fails, triggering a gear ratio error. It was a primary qualifying code for Ford's 19N01 extended warranty program.
• P1500 — Vehicle Speed Sensor Intermittent. The Output Shaft Speed (OSS) sensor's data is a primary input for calculating vehicle speed. An intermittent or failed OSS signal from the lead frame will directly cause this vehicle speed-related code to set.
• P0715 — Input/Turbine Speed Sensor (TSS) 'A' Circuit. The TSS is housed in the exact same molded lead frame assembly as the OSS. The lead frame's circuitry is prone to failure from heat and contamination, often causing both sensors to fail and setting both P0715 and P0720.
