P0722 on 2003-2009 Toyota 4Runner: Output Speed Sensor Failure Causes and Fixes

What's Unique About the 2003-2009 Toyota 4Runner

The 2003-2009 4th Generation 4Runner uses the A750E (2WD) or A750F (4WD) 5-speed automatic transmission in V8 models and 2005-2009 V6 models. Early V6 models (2003-2004) used the A340F 4-speed automatic. For this specific platform, particularly the more common A750 models, the P0722 code is very commonly tied directly to the failure of the externally mounted output speed sensor. Unlike some vehicles where this code points to complex internal transmission issues or faulty control modules, 4Runner owners frequently resolve the problem by simply replacing this accessible sensor or repairing its wiring. The sensor is located on the passenger side of the transmission housing, making it a relatively straightforward DIY repair for many.

Symptoms You May Notice

• Check Engine Light is on
• Transmission shifts harshly or erratically
• Transmission gets stuck in one gear (limp mode, often 3rd or 4th)
• Delayed gear engagement
• Inoperative or inaccurate speedometer (though sometimes speedometer data comes from the ABS wheel speed sensors)
• Poor fuel economy
• Traction control (VSC) and/or TRAC OFF lights may illuminate alongside the Check Engine Light

Most Likely Causes

1. Failed Output Speed Sensor (SP2) 🔴 High Probability The sensor is an electronic component exposed to constant heat cycles and vibration at the transmission housing, leading to eventual failure of its internal magnetic coil.
   How to confirm: Remove the sensor and test its resistance with a multimeter. According to the Toyota repair manual for the A750F transmission, the resistance should be between 560 - 680 Ω at 20°C (68°F). A reading outside this range, or an open circuit (infinite resistance), confirms a bad sensor. You can also test for AC voltage generation by passing a magnet quickly over the sensor tip; it should generate a very small, intermittent voltage.
   Typical fix: Replace the output speed sensor. It is located on the passenger side of the transmission case, held in by a single 10mm or 12mm bolt. It is accessible without removing the transmission pan.
   Est. part cost: $40-$180
2. Damaged Wiring or Connector 🟡 Medium Probability The wiring harness leading to the sensor is located underneath the vehicle, where it is exposed to road debris, moisture, and corrosion, which can damage the wires or the connector pins. Off-road use can significantly increase this risk. Rodent damage to the soy-based wiring insulation is also a known issue.
   How to confirm: Visually inspect the wiring harness and connector for any signs of damage, chafing, or corrosion. Perform a continuity test on the wires between the sensor connector and the ECM connector to check for an open circuit or a short to ground. A good wire should show near-zero ohms of resistance.
   Typical fix: Repair the damaged section of the wiring harness or replace the connector pigtail. Ensure the connection is clean and secure. Use heat-shrink butt connectors for a durable, weather-resistant repair.
   Est. part cost: $15-$50

Rare But Worth Checking

• Metal Debris on Sensor Tip: The output speed sensor is magnetic. If there is internal transmission wear, metal shavings can accumulate on the sensor's tip, interfering with its ability to read the tone ring. Wiping the sensor clean might be a temporary fix, but a significant amount of metal indicates a more serious internal transmission problem requiring further investigation.
• Faulty Engine Control Module (ECM): → Shop Engine Control Module (ECM) It is very rare for the ECM itself to be the cause. This should only be considered after the sensor and wiring have been thoroughly tested and confirmed to be good. ECM failure is an absolute last resort in diagnosis.
• Damaged Internal Tone Ring (Reluctor Ring): The sensor reads teeth on a tone ring (or reluctor ring) attached to an internal transmission component. In very rare cases, severe internal transmission failure can cause this ring to become damaged, breaking teeth and preventing the sensor from generating a signal. This requires significant transmission disassembly to inspect and repair.

Diagnosis Steps

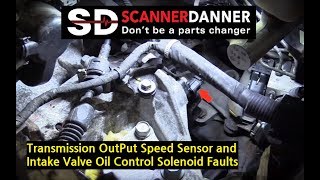

1. Retrieve Codes: Use an OBD-II scanner to confirm P0722 is present 🎬 Watch: Understanding the P0722 output speed sensor code and check for any other related codes.
2. Check Live Data: With the scanner, monitor the live data for the Output Speed Sensor (PID: SPD (SP2)). While driving slowly and safely, check if the reading is 0 RPM/MPH. If it stays at 0 while the vehicle is moving, it confirms a lack of signal.
3. Inspect Wiring: Perform a thorough visual inspection of the output speed sensor's wiring harness and connector. Look for any breaks, corrosion, or loose connections.
4. Test the Sensor: Locate the sensor on the passenger side of the transmission housing. Disconnect it and measure the resistance across its two terminals using a multimeter. For a 2003 4Runner with the A750F transmission, the specification is 560-680 ohms. If the reading is out of spec, the sensor is bad.
5. Test the Circuit: If the sensor tests good, check the wiring harness. Disconnect the ECM connector and the sensor connector. Check for continuity on both wires between the two connectors. Then, check each wire for a short to ground.
6. Inspect for Debris: When removing the sensor, inspect its magnetic tip for any metal shavings. A significant amount of metal indicates a potential internal transmission problem.
7. Replace the Component: Based on the test results, replace the faulty component (most often the sensor itself).
8. Clear Codes and Test Drive: After the repair, clear the trouble codes by disconnecting the battery for about 15 minutes or using the scanner. Perform a test drive to ensure the transmission shifts correctly and the Check Engine Light does not return.

Parts You'll Likely Need

• Transmission Output Speed Sensor (Revolution Sensor) (OEM #89413-32010) — This sensor is the most common point of failure for the P0722 code on this vehicle. Note: Some parts catalogs may list different numbers; always verify fitment with your vehicle's VIN. For example, 89413-0C011 is also a common speed sensor for Toyota trucks, but may be for a different location or application.
  Trusted brands: Toyota (Genuine), Aisin, Denso, Standard Motor Products (SMP)
  OEM price range: $110-$180
  Aftermarket price range: $40-$90

Related Codes That Often Appear With This One

• P0720 — P0720 indicates an erratic or intermittent signal from the output speed sensor, while P0722 indicates no signal at all. An intermittent wiring issue might first cause a P0720 before failing completely and triggering a P0722.

Platform-Specific Known Issues

• The location of the sensor on the 4WD (A750F) model is near the transfer case, but access is generally still considered straightforward and does not require removal of other major components.

Mechanic-Grade Diagnostic Values

• Output Speed Sensor (SP2) Resistance — expected: 560 - 680 Ω at 20°C (68°F). Failure: A reading of infinite resistance (open circuit), zero resistance (short), or any value outside the specified range.
• Output Speed Sensor (SP2) Waveform via Oscilloscope — expected: A clean, pulsing AC sine wave or square wave that increases in frequency and amplitude as vehicle speed increases. At 12 mph (20 km/h), the signal should be clearly visible.. Failure: A flat line (no signal) or a very noisy/erratic waveform indicates a failed sensor, wiring issue, or damaged tone ring.
• Live Data PID: 'SPD (SP2)' — expected: Value should increase smoothly from 0 km/h (0 mph) in direct proportion to vehicle speed.. Failure: The value remains at 0 while the vehicle is moving, or the value is much lower than the actual vehicle speed.

Scan Tool Commands That Help

• Toyota Techstream: Data List > Powertrain / Engine and ECT > SPD (SP2) — This is the primary live data parameter to monitor during a test drive. If it remains at 0 km/h or mph while the vehicle is moving, it directly confirms the 'No Signal' condition of the P0722 code.
• Toyota Techstream: Utility > Reset Memory — After replacing the sensor or repairing the wiring, this function can be used to clear the trouble codes and reset any learned values in the ECM/TCM. A simple battery disconnect for 15 minutes also works.

Wiring & Ground Locations

• ECM Connector E12 (for 1GR-FE V6 with A750F) — Located in the engine bay, typically on the passenger side.. This connector contains the pins for the output speed sensor circuit. Pin E12-26 is for SP2- (sensor ground/return) and Pin E12-34 is for SP2+ (sensor signal). These are the specific pins to test for continuity and shorts back to the sensor connector.
• Engine/Transmission Ground Points — Key grounds for the 2UZ-FE V8 are located on the rear of the cylinder heads (points 'Ee' and 'Ef'), and on the frame rail near the harness mount. A poor ground connection can cause floating voltages and sensor signal issues.. The ECM and sensor circuits rely on solid ground connections. A corroded or loose engine-to-chassis or transmission-to-chassis ground can introduce electrical noise or interrupt the sensor's return path, potentially triggering a P0722 code even with a good sensor and harness.

Real Owner Repair Stories

• T4R.org (4th Gen 4Runner Forum) (2003 Toyota 4Runner V8 4WD) — Check Engine Light, VSC TRAC, and TRAC OFF lights all illuminated. Transmission went into limp mode, stuck in what felt like 3rd gear.
  ❌ Tried (didn't work) Initially thought it was a major transmission failure.
  ✅ What actually fixed it Replaced the output speed sensor (Part No. 89413-32010) located on the passenger side of the A750F transmission. The owner confirmed the fix resolved all symptoms and warning lights.
• Reddit r/AskMechanics (Toyota Truck (assumed 4Runner or similar)) — Check Engine Light on, 'traction control off' message, P0722 code present.
  ❌ Tried (didn't work) Replacing the sensor initially did not clear the code.
  ✅ What actually fixed it After replacing the output speed sensor on the passenger side of the transmission, the owner had to clear the codes by disconnecting the battery for 15 minutes. This successfully resolved the error.

OEM Part Supersession History

• 89413-32010 → 89413-52021 (and others) — Standard part revision and consolidation by Toyota.
  Heads up: While 89413-32010 is the most commonly cited part for the A750F transmission in this 4Runner, always verify the correct part number with the vehicle's VIN. The sensor for the A340F transmission (2003-2004 V6) is a different part number.

Model Year Variations Within This Range

• 2003-2004 (V6 models only): These models were equipped with the A340F 4-speed automatic transmission, not the A750F 5-speed. While the P0722 code has the same meaning, the output speed sensor part number and its physical location on the transmission/transfer case may be different from the V8 and later V6 models. Diagnosis remains similar, but the correct part and location must be identified for the specific transmission.
• 2003-2009 (V8) & 2005-2009 (V6): These models use the A750E (2WD) or A750F (4WD) 5-speed automatic transmission. The information regarding the sensor location on the passenger side of the main transmission case and the 560-680 Ω resistance value applies specifically to these models.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• Frame Rust 🔴 High — Very common, especially in salt-belt states. Can lead to structural failure. Class-action lawsuits were filed regarding this issue. (Ref: No official recall for 4Runner, though other Toyota trucks had warranty extension programs.)
• Cracked/Melting Dashboard 🟡 Low — Extremely common on 2003-2005 models due to heat and humidity, but can affect all years in the generation. (Ref: Toyota issued a Warranty Enhancement Program (ZE6) to replace affected dashboards, but it has since expired.)
• Seized Brake Calipers 🟠 Medium — Very common, particularly the front calipers. Pistons corrode and stick, causing brake drag, pulling, and overheating.
• Cracked Exhaust Manifolds (V8) 🟠 Medium — Common on the 4.7L 2UZ-FE V8 engine. Causes an audible ticking noise, especially when cold.
• Head Gasket Failure (V6) 🔴 High — Affects early 1GR-FE 4.0L V6 engines (approx. 2003-2005). Typically fails around cylinder #6. (Ref: An updated head gasket part was introduced by Toyota in mid-2005.)
• Secondary Air Injection Pump Failure (V8) 🟠 Medium — Common on 2005+ V8 models. The pump ingests moisture and fails, causing a loud vacuum cleaner noise on cold start and triggering limp mode.

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: For this repair, buying a used speed sensor is generally not recommended. The part is a relatively low-cost wear item, and a new, quality aftermarket part is not significantly more expensive than a used one from a salvage yard. The labor to replace it if the used part is faulty or fails prematurely negates any initial savings.

Donor-vehicle mileage cap: roughly under 100000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• Verify the donor vehicle's mileage is as low as possible.
• Inspect the connector pins on the used sensor for any signs of corrosion or damage.
• If possible, test the resistance of the used sensor with a multimeter before purchase to ensure it is within the 560-680 Ω specification.

OEM-only on this vehicle (don't cheap out):

• Engine Control Module (ECM)

Aftermarket brands forum-validated for this vehicle:

• Aisin (often the original OEM supplier)
• Denso (often the original OEM supplier)
• NTK/NGK
• Standard Motor Products (SMP)

Brands owners have reported issues with on this vehicle:

• Unbranded, 'white-box' sensors from online marketplaces should be avoided. Forum users report higher failure rates and out-of-spec resistance values with cheap electronic parts, leading to the code returning.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• SPD (SP2) — This is the specific Parameter ID (PID) monitored during diagnosis to confirm if the Output Speed Sensor is sending a signal to the ECM.

Frequently Asked Questions
