P0729 on 2008-2011 Jaguar XK: Gear 6 Incorrect Ratio Causes and Fixes

What's Unique About the 2008-2011 Jaguar XK

The 2008-2011 Jaguar XK (X150 generation) uses the ZF 6HP26 (4.2L V8) or ZF 6HP28 (5.0L V8) automatic transmission. These gearboxes are known for specific wear patterns that directly lead to P0729 and related gear ratio codes. A Jaguar Technical Service Bulletin (TSB JTB00305NAS1) points to the degradation of internal components as a primary cause, rather than simple sensor failures. Owners frequently face issues with leaking seals, particularly the mechatronic connector sleeve (a common leak point) and the internal bridge seal between the valve body and transmission case, which cause the hydraulic pressure loss that triggers this code.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Check Engine Light and/or 'Transmission Fault' message on the dashboard.
• Failure to shift into 6th gear.
• Harsh or delayed shifting, particularly into 6th gear.
• Transmission slipping, where engine RPMs increase without a corresponding increase in vehicle speed.
• Reduced fuel economy, especially during highway driving.
• Vehicle may enter 'limp mode' (fail-safe mode), limiting available gears and performance.
• A 'Gearbox Fault' or 'DSC Not Available' message may appear, sometimes triggered by a weak battery which can cause spurious codes.

Most Likely Causes

1. Low or Degraded Transmission Fluid 🔴 High Probability → Shop Transmission Assembly The ZF 6HP26 transmission is highly prone to leaks from the mechatronic connector sleeve, a plastic part with O-rings that harden and fail over time, causing a slow but steady fluid loss. Low fluid level is a primary cause of hydraulic pressure loss and shifting problems.
   How to confirm: Check the transmission fluid level and condition. This must be done with the engine running, the transmission fluid at a specific temperature (typically 30-50°C), and the vehicle level. Dark, burnt-smelling fluid indicates internal wear.

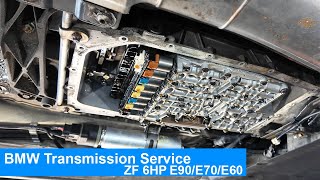

   Typical fix: Top up or replace the transmission fluid and filter. The filter is integrated into the transmission pan, 🎬 Watch: How to perform a standard ZF 6HP transmission oil change. so the entire pan must be replaced. Use only approved fluid like ZF Lifeguard 6 or an equivalent OEM-spec fluid. This is often done while also replacing the leaking connector sleeve.
   Est. part cost: $150-$300
2. Failed Mechatronic Bridge Seal and Adapter Seals 🔴 High Probability This is a well-documented failure point on ZF 6HP transmissions. The rubber seals (a larger 'bridge' or 'figure 8' seal and four smaller tube seals) between the valve body (mechatronic unit) and the transmission case degrade, causing a significant loss of hydraulic pressure to the clutches, which directly causes gear ratio faults.
   How to confirm: This is difficult to confirm without removing the mechatronic unit. It is typically diagnosed after confirming the fluid level is correct and solenoids are functioning, yet pressure-related gear ratio codes persist. It is considered a routine maintenance item by many specialists when the pan is off.
   Typical fix: Replace the bridge seal and the four smaller tube seals. This requires removing the transmission pan and the mechatronic unit. It is often done at the same time as replacing the connector sleeve and servicing the fluid.
   Est. part cost: $50-$100
3. Faulty Shift Solenoids 🟡 Medium Probability → Shop Transmission Valve Body The solenoids within the mechatronic unit can wear out or become clogged with debris over time, leading to sticking and improper fluid flow, which affects clutch engagement pressure.
   How to confirm: A high-end scan tool can perform a solenoid activation test or monitor solenoid commands vs. actual pressure. Resistance can also be checked with a multimeter once the mechatronic unit is accessible.
   Typical fix: Replace the set of shift solenoids. This is done after removing the mechatronic unit from the transmission. After replacement, the transmission adaptations must be reset.
   Est. part cost: $300-$600

Rare But Worth Checking

• Internal Transmission Failure: → Shop Transmission Assembly A Jaguar TSB (JTB00305NAS1) explicitly mentions that degradation of an internal 'lead-free bush' can cause transmission degradation and failure, leading to this code. If the fluid is burnt and contains excessive clutch material, a full transmission replacement or rebuild may be necessary.
• Transmission Control Module (TCM) Failure: → Shop Transmission Assembly While less common than hydraulic issues, the TCM, which is mounted on the valve body inside the transmission (as part of the mechatronic unit), can fail due to heat and vibration. This usually requires replacing the entire mechatronic unit and programming it to the vehicle.

Diagnosis Steps

1. Check the vehicle's battery voltage. Ensure it is stable and above 12.6 volts before proceeding, as low voltage can cause spurious transmission faults.
2. Scan the TCM for all stored trouble codes. Note if P0729 appears alone or with other gear ratio or friction element faults.
3. Inspect the transmission for external leaks, paying close attention to the area around the electrical connector (mechatronic sleeve). A fluid-wetted connector is a sure sign of a leak.
4. With the vehicle on a lift and level, check and verify the transmission fluid level and condition at the correct temperature (30-50°C). This is the most critical preliminary step.
5. If the fluid level is correct, use a scan tool to monitor live data for input/output shaft speeds while driving to confirm the slip in 6th gear.
6. If accessible with your scan tool, command the shift solenoids to check for response.
7. If the above steps do not reveal the cause, the next step is to drop the transmission pan to inspect for debris and access the mechatronic unit.
8. Inspect and replace the mechatronic connector sleeve, bridge seal, and adapter seals. These are high-failure items and should be replaced as a set if the mechatronic unit is removed.
🎬 See this guide on replacing the mechatronic sleeve and internal seals.
9. If the problem persists after seal replacement, the issue may be with the solenoids, the TCM, or internal mechanical components as noted in the TSB, which may require a transmission rebuild or replacement.

Parts You'll Likely Need

• Transmission Pan and Filter Kit (OEM #ZF Part: 0501216243 (Kit)) — The filter is integrated into the plastic pan. It must be replaced during a fluid service. Kits often include a new drain plug and bolts.
  Trusted brands: ZF, Vaico
  OEM price range: $150-$250
  Aftermarket price range: $100-$180
• Mechatronic Sealing Sleeve (Connector Sleeve) (OEM #Jaguar: C2C39599 / ZF: 0501216272 / BMW: 24347588725) — This is the most common leak source on the ZF 6HP26 transmission, leading to low fluid levels that cause this code.
  Trusted brands: ZF, CRP Rein, Febi
  OEM price range: $20-$40
  Aftermarket price range: $15-$30
• Mechatronic Valve Body Seal Adapter Kit (Bridge Seal & Tube Seals) (OEM #Bridge Seal ZF: 0501215718 / Tube Seals ZF: 0734317370, 0734317371, 0734317372) — This set of 5 internal seals (1 bridge, 4 tubes) degrades and causes major hydraulic pressure loss, a direct cause of gear ratio codes. They are replaced as a set.
  Trusted brands: ZF, Sonnax
  OEM price range: $40-$60
  Aftermarket price range: $30-$50

Related Codes That Often Appear With This One

• P0730 — Incorrect Gear Ratio (General). This code often appears with specific gear ratio codes like P0729, indicating a widespread hydraulic pressure or control issue.
• P0731-P0735 — Incorrect Gear Ratio for gears 1-5. The presence of multiple gear ratio codes strongly points to a systemic problem like low fluid or a major seal failure, as mentioned in TSB JTB00305NAS1.
• P2702, P2704 — Transmission Friction Element Apply Time Range/Performance. These codes indicate a problem with the timing of clutch engagement, which is a direct result of the hydraulic pressure loss issues that also cause P0729.

Technical Service Bulletins (TSBs) & Recalls

• JTB00305NAS1: States that the transmission MIL may illuminate with DTCs P0729 to P0735 due to degradation and failure of internal transmission components.

Platform-Specific Known Issues

• Jaguar issued Technical Service Bulletin JTB00305NAS1 for 2008-2011 XK models, which states that codes P0729-P0735 can be caused by the 'degradation and failure of the lead-free bush causing transmission degradation and failure'. In severe cases with burnt fluid, the bulletin recommends replacing the entire transmission assembly.
• Owner experiences on forums frequently confirm that a combination of replacing the fluid/pan, mechatronic connector sleeve, and the internal bridge/tube seals resolves P0729 and related codes, restoring normal operation.

Mechanic-Grade Diagnostic Values

• Shift Solenoid (EDS) Resistance — expected: 5-6 Ohms at 68°F (20°C). Failure: A reading significantly outside this range indicates a faulty solenoid coil.
• Solenoid Vacuum Test — expected: Holds over 21 in-Hg. Failure: Any reading below 20 in-Hg indicates a compromised internal solenoid seal, requiring replacement.
• Pressure Control Solenoid (EDS 2, 4, 5) Output Pressure — expected: 4.6 bar at 0mA current, dropping to 0 bar at 700mA current.. Failure: Pressure readings that do not correspond to the commanded current indicate a faulty solenoid or hydraulic leak.

Scan Tool Commands That Help

• Jaguar SDD (Symptom Driven Diagnostics): Clear Transmission Adaptations — This is mandatory after replacing the valve body, solenoids, internal seals, or the entire transmission. The TCM stores wear parameters for the old components, and failing to clear them will result in poor shifting and can prevent the resolution of fault codes.
• Jaguar SDD (Symptom Driven Diagnostics): Transmission Adaptation Drive Cycle — Immediately after clearing adaptations. The tool guides the technician through a specific, lengthy procedure involving a series of light-throttle upshifts and coast-downs to allow the TCM to relearn clutch fill times and pressures with the new components.

Wiring & Ground Locations

• Forward Earth Point — Located in the driver-side front wheel arch, forward of the wheel, near where the flexible brake hose bolts to the chassis.. Corrosion at this main ground point can cause a variety of seemingly unrelated electrical faults and spurious error messages, including transmission faults. It should be inspected for corrosion and tightness before extensive transmission work.
• Gearbox Earth Strap — A braided ground strap running from the vehicle body to the gearbox housing, visible from behind the driver-side front wheel.. This strap provides the main ground for the transmission assembly. It is exposed to the elements and can corrode or break, leading to poor electrical signals and erratic behavior from the TCM and solenoids.

Real Owner Repair Stories

• Jaguar Forums user (Jaguar XK (X150)) — Persistent 'Transmission Fault' messages and multiple gear ratio error codes, primarily centered around 5th gear.
  ❌ Tried (didn't work) Resetting TCM adaptations with SDD software provided temporary improvement but did not fix the underlying fault.
  ✅ What actually fixed it The diagnostic path pointed to a hydraulic failure. The owner identified the next step as replacing the valve body seals (bridge seal and tube seals), which is the known industry fix for these symptoms. The thread was marked as 'RESOLVED' following this diagnostic conclusion.

OEM Part Supersession History

• Various OEM valve body components → Sonnax Zip Kit (e.g., ZF6-053-ZIP or ZF6-6R60-ZIP depending on separator plate) — The OEM valve body uses plastic components and end plugs that are prone to wear and cause hydraulic leaks. The Sonnax kits replace these failure-prone parts with re-engineered components, such as metal valves and O-ringed end plugs, to permanently seal the valve body and prevent future pressure loss.
  Heads up: It is critical to identify the valve body separator plate number (e.g., '053') before ordering a kit, as different kits are made for different valve body versions.

Model Year Variations Within This Range

• 2008-2009: Models with the 4.2L V8 engine are equipped with the ZF 6HP26 automatic transmission.
• 2010-2011: Following the 2009 facelift, models with the new 5.0L V8 engine were equipped with the updated ZF 6HP28 automatic transmission, which was an evolution of the 6HP26 designed for higher torque. While they share many common failure points (seals, sleeve), internal components and TCM software may differ.
