P0729 on 2018-2023 Lincoln Navigator: Gear 6 Incorrect Ratio Causes and Fixes

What's Unique About the 2018-2023 Lincoln NAVIGATOR

The 2018-2023 Lincoln Navigator uses the Ford 10R80 10-speed automatic transmission, which is known for a specific, well-documented mechanical failure. Unlike many vehicles where this code might point to a sensor or fluid issue, on the Navigator it is most often caused by a design flaw in the 'CDF' clutch drum assembly. A bushing (or sleeve) inside this drum can slide or 'walk' out of place, uncovering oil passages and causing a severe internal hydraulic leak that prevents proper gear engagement. This issue is so prevalent that it has led to multiple Technical Service Bulletins (TSBs) 🎬 Watch: Overview of common 10R80 transmission failures and problems like TSB 24-2254 and class-action lawsuits.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Harsh, jerky, or delayed shifts, especially into or out of 6th gear.
• A feeling like the vehicle has been rear-ended during a shift.
• Engine RPMs flare or surge between shifts as if briefly in neutral.
• Vehicle hesitates, lunges, or clunks between gears.
• Illuminated Check Engine Light or Wrench Light on the dash.
• Transmission may enter a "limp mode," restricting available gears.
• A complete loss of power or failure to engage gears, with the engine free-revving.
• An audible whine from the transmission area.

Most Likely Causes

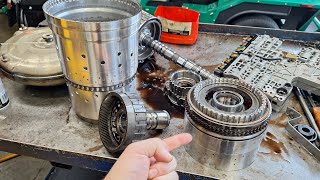

1. Internal Failure of the CDF Clutch Drum Assembly 🔴 High Probability → Shop Transmission Assembly This is a well-documented design flaw in the 10R80 transmission. TSB 24-2254 states the cause is "due to axial movement of the CDF clutch cylinder sleeve causing hydraulic circuit leaks." The sleeve moves and uncovers fluid ports, causing a pressure drop to the clutches.
   How to confirm: Diagnosis requires a transmission specialist. Per TSB 24-2254, a technician may use a pressure vacuum transducer to test specific hydraulic circuits at the valve body. However, definitive confirmation requires disassembling the transmission to visually inspect the CDF drum for a migrated sleeve. 🎬 See a teardown showing the CDF drum bushing failure
   Typical fix: The transmission must be removed and disassembled to replace the faulty CDF drum with an updated part (JL3Z-7H351-B) that has a machined lip or is staked to prevent the bushing from moving. This is a transmission rebuild.
   Est. part cost: $400-$800 for the updated drum assembly.
2. Faulty Main Control Valve Body 🟡 Medium Probability → Shop Transmission Valve Body The valve body contains solenoids and valves that can stick or fail, causing pressure regulation issues. Early TSBs for the 10R80 often pointed to valve body problems. Debris from a failing CDF drum can also damage the valve body, making it a secondary failure.
   How to confirm: A technician can perform a pressure test and scan tool diagnostics to check solenoid operation. However, this can be misdiagnosed when the root cause is the CDF drum, as the hydraulic leak from the drum will cause the valve body to show pressure faults.
   Typical fix: Replacement of the entire main control valve body assembly, followed by a transmission adaptive learning procedure. 🎬 Watch: Step-by-step guide to replacing the 10R80 valve body This is often attempted before a full rebuild.
   Est. part cost: $800-$1500 for an OEM part like HL3Z-7A100-B.
3. Low or Contaminated Transmission Fluid ⚪ Low Probability → Shop Transmission Assembly While possible, this is rarely the root cause for P0729 on this platform. It's more often a symptom of the CDF drum failure, where clutch material contaminates the fluid. The correct fluid is Motorcraft MERCON ULV.
   How to confirm: Check the transmission fluid level and condition. This must be done from under the vehicle as there is no dipstick. The fluid should be reddish, not dark brown, black, or smelling burnt. A fluid change at a shop can cost $400-$515.
   Typical fix: Perform a transmission fluid and filter change. If the fluid is full of clutch material ('glitter'), it confirms a severe internal failure requiring a rebuild. A fluid change alone will not fix the mechanical issue.
   Est. part cost: $150-$250 for fluid and a filter.

Diagnosis Steps

1. Verify the code with a professional-grade OBD-II scanner.
2. Check for other transmission-related DTCs. P0729 is often accompanied by other gear ratio and clutch apply codes.
3. Consult manufacturer TSBs. TSB 24-2254 and TSB 23-2250 directly point to the CDF drum sleeve as the likely cause for a large group of codes including P0729.
4. Check the transmission fluid level and condition from the check plug underneath the vehicle. Dark, burnt, or glittery fluid indicates a severe internal failure.
5. Review live data with a scan tool to monitor transmission input and output speeds, shift commands, and solenoid operation.
6. If symptoms and codes point to an internal failure, the next step is to follow the TSB diagnostic procedure, which may involve a hydraulic pressure test at the valve body ports to confirm a leak.
7. If a leak is confirmed or strongly suspected, the final step is transmission removal and inspection by a qualified technician to confirm the failure of the CDF drum.

Parts You'll Likely Need

• CDF Clutch Drum Assembly (Updated) (OEM #JL3Z-7H351-B (supersedes HL3Z-7H351-A and JL3Z-7H351-A)) — This is the most common point of failure. The original drum allows a bushing to walk out, causing a hydraulic leak. The updated part has a machined lip to prevent this.
  Trusted brands: Motorcraft
  OEM price range: $400-$800
  Aftermarket price range: $300-$500
• Transmission Main Control (Valve Body) (OEM #HL3Z-7A100-B or JL3Z-7A100-B/C) — The second most likely cause, often due to sticking valves or internal leaks. It is sometimes replaced as a primary step or if issues persist after other repairs.
  Trusted brands: Motorcraft
  OEM price range: $800-$1500
  Aftermarket price range: $600-$1200
• Transmission Overhaul Gasket & Seal Kit — Required for any transmission rebuild, which is necessary to replace the CDF drum. Includes various seals, O-rings, and gaskets.
  Trusted brands: Motorcraft
  OEM price range: $200-$400
  Aftermarket price range: $150-$300
• Motorcraft MERCON ULV Automatic Transmission Fluid (OEM #XT-12-QULV) — This is the only specified fluid for the 10R80 transmission. A full rebuild will require a complete fluid replacement.
  Trusted brands: Motorcraft
  OEM price range: $15-$25 per quart

Related Codes That Often Appear With This One

• P0731-P0735, P0736 — These are incorrect gear ratio codes for other gears (1-5, and reverse). They often appear with P0729 because the underlying hydraulic leak from the CDF drum affects multiple gear circuits.
• P2700-P2708 — These codes relate to transmission clutch apply time faults. They are commonly stored alongside P0729 as the hydraulic leak from the CDF drum prevents clutches from applying in the expected timeframe. TSB 24-2254 lists these codes together.

Technical Service Bulletins (TSBs) & Recalls

• TSB 24-2254: The most definitive TSB. It states that for a long list of transmission codes including P0729, the cause may be "due to axial movement of the CDF clut

Platform-Specific Known Issues

• A widespread, documented failure of the CDF clutch drum bushing 'walking' out of place is the primary cause of this code on the 10R80 transmission.
• Multiple Technical Service Bulletins (TSBs), most notably TSB 24-2254, have been issued by Ford/Lincoln acknowledging shifting problems and pointing directly to the CDF drum failure as the root cause for a long list of DTCs, including P0729.
• The 10R80 transmission is the subject of several class-action lawsuits due to these harsh and erratic shifting concerns, which plaintiffs allege are a safety hazard.
• Vehicles built on or before August 15, 2022, are specifically called out in TSBs as being potentially affected by the faulty CDF drum.

Mechanic-Grade Diagnostic Values

• Shift Solenoid Resistance — expected: 5.0 - 5.4 Ohms at 20°C (68°F). Failure: A reading outside this range indicates a faulty solenoid coil.

Hidden / Shadow Codes Worth Checking

• Solenoid Body Strategy ID: A 13-digit alphanumeric code etched onto the transmission valve body. This code contains calibration data for the specific solenoids installed. It is not a fault code, but it must be programmed into the TCM upon valve body replacement to ensure correct transmission operation. (see via The code is physically printed on the valve body and must be read before installation. It is then entered into the TCM using a dealer-level scan tool like Ford IDS.)
• Solenoid Body Identification: A 12-digit code, also etched on the valve body, that uniquely identifies the component. (see via Physically located on the valve body casting.)

Scan Tool Commands That Help

• Ford IDS (or capable aftermarket tool like FORScan): Clear Transmission Adaptive Tables — This function should be used after any transmission repair, including valve body or CDF drum replacement, or a fluid change. It erases the learned shift pressure values, forcing the TCM to start a new learning process.
• Ford IDS: Transmission Characterization/Solenoid IDN — This is a mandatory programming step when replacing the transmission valve body or the entire transmission assembly. It is used to write the new 13-digit Solenoid Body Strategy ID from the new part into the TCM. Failure to perform this step will result in incorrect operation and likely set fault codes.
• N/A - Manual Procedure: Adaptive Learning Drive Cycle — This specific, multi-step road test procedure must be performed after clearing the adaptive tables. It allows the TCM to relearn clutch fill times and shift pressures. The cycle involves a sequence of light-throttle accelerations through gears 1-10, gentle braking to a stop, and shifting between N, R, and D, repeated multiple times.

Wiring & Ground Locations

• Transmission Control Module (TCM) — On the 2018+ Expedition/Navigator platform, the TCM is an external module (not inside the transmission) mounted to the frame rail on the passenger side of the vehicle, often under a protective cover.. While P0729 is typically an internal mechanical/hydraulic fault, all electronic commands originate from the TCM. In rare cases, a damaged module or compromised wiring/ground to the module could be a factor, though it is far less likely than the CDF drum or valve body.

Real Owner Repair Stories

• Reddit user on r/f150 (2019 F-150 2.7L (10R80 Transmission)) — Initial issue was a 2-3 second delay when shifting from Park to Drive/Reverse. Also had general harsh upshifts and downshifts.
  ❌ Tried (didn't work) A previous reflash and parts swap per a TSB did not provide a permanent fix.
  ✅ What actually fixed it The delayed engagement was fixed by replacing the CDF drum. However, 900 km later, the truck developed a new symptom of very hard shifts into 3rd gear. This subsequent issue was resolved by replacing the entire valve body assembly. This indicates a multi-part failure, where the failing drum may have contaminated the new valve body, or both were faulty.
• YouTube user Justin Bell (Ford Mustang (10R80 Transmission)) — After a transmission rebuild (clutches replaced), the transmission was still not shifting correctly, specifically skip-shifting from 4th to 6th gear.
  ❌ Tried (didn't work) A full transmission rebuild with new clutches did not resolve the incorrect shifting pattern.
  ✅ What actually fixed it The problem was ultimately traced to the valve body. The owner suspected the solenoids in the original valve body were full of debris from the previous failure. Replacing the entire valve body assembly and performing a TCM relearn process resolved the shifting issue.

OEM Part Supersession History

• HL3Z-7H351-A, JL3Z-7H351-A → JL3Z-7H351-B — The original CDF clutch drum design allowed an internal bushing/sleeve to 'walk' or slide out of position, causing a major hydraulic leak. The updated JL3Z-7H351-B part features a machined lip that physically prevents the bushing from migrating, providing a permanent fix for the design flaw.

Model Year Variations Within This Range

• 2018 - Mid-2022: Vehicles built on or before August 15, 2022, were originally equipped with the faulty CDF clutch drum design that is prone to the bushing migration and subsequent hydraulic leak that causes P0729 and other codes. Vehicles built after this date should have the updated drum from the factory.
• 2018-2023: Valve body designs and part numbers changed during the production run. For example, a 'gain control valve' feature was reportedly eliminated in 2021 and later Ford valve bodies. Because of these internal differences and the corresponding software 'strategy', swapping a transmission or valve body from a different model year may require reprogramming or even swapping the valve body to match the vehicle's original specification to ensure compatibility.
