P0732 on 2008-2012 GMC Sierra Denali: Gear 2 Incorrect Ratio Causes and Fixes

What's Unique About the 2008-2012 Gmc SIERRA DENALI

The 2008-2012 Sierra Denali is typically equipped with the GM 6L80 or 6L90 automatic transmission. A widely documented weakness in these units is the torque converter lock-up clutch, which is prone to failure. When it fails, it sheds metallic debris that looks like glitter into the transmission fluid. This debris contaminates the entire system, clogging the filter and, more critically, the small orifices in the valve body separator plate, leading to pressure loss and slipping in various gears, including second. Manufacturer Technical Service Bulletins (TSBs) for this exact issue, like #PIP5100A, specifically mention inspecting the valve body separator plate orifices for blockage, confirming this is a common failure pathway for these trucks.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Check Engine Light is on
• Delayed or harsh shifting into 2nd gear
• Transmission slipping (engine RPMs flare up without an increase in speed)
• Vehicle entering "limp mode" (may get stuck in 1st or 3rd gear)
• Reduced fuel economy
• A noticeable shudder or vibration at low speeds, especially around 35 mph, can be a sign of the torque converter failing.
• Vehicle may not move in forward or reverse (in severe cases) [Bulletin #PIP5100A]

Most Likely Causes

1. Low or Contaminated Transmission Fluid 🔴 High Probability → Shop Transmission Assembly Fluid is the lifeblood of the transmission; low levels from leaks or fluid broken down by heat and mileage can't create the hydraulic pressure needed to hold gears. Contamination from a failing torque converter is a primary culprit on the 6L80.
   How to confirm: Check the transmission fluid level and condition via the dipstick or service plug. The fluid should be bright red and clear, not brown, black, or smelling burnt. Look for fine, glitter-like metal particles, which strongly indicate torque converter failure.
   Typical fix: Perform a transmission fluid and filter change. If the fluid is very dark or full of debris, it indicates a more serious internal problem that a simple fluid change won't fix.
   Est. part cost: $75-$150
2. Contaminated or Worn Valve Body / Separator Plate 🔴 High Probability → Shop Transmission Valve Body As documented in TSBs PIP5100A and PIP5100, debris from the torque converter can block small orifices and check balls in the valve body separator plate, causing hydraulic pressure loss to the 2nd gear clutch circuit. The plates themselves can also wear or have gasket issues.
   How to confirm: After dropping the transmission pan, the valve body must be removed and disassembled to inspect the separator plate and valve bores for debris, scoring, or worn check balls. This is a common finding during a teardown for P0732. 🎬 See this breakdown of causes and fixes for P0732 codes
   Typical fix: Clean the valve body and replace the separator plate. In many cases, the entire valve body assembly may need to be replaced or rebuilt. Upgraded separator plates are available from aftermarket companies like Sonnax. 🎬 Watch: Why choosing a reliable separator plate matters for your GM
   Est. part cost: $50-$600
3. Failing Torque Converter 🔴 High Probability → Shop Automatic Transmission Torque Converter The 6L80/6L90 transmissions are notorious for torque converter clutch (TCC) failures, which contaminate the entire transmission with metallic debris. This debris is often the root cause of the valve body contamination and subsequent gear ratio codes like P0732.
   How to confirm: Finding a large amount of metallic, glitter-like debris in the transmission pan is a strong indicator of torque converter failure. A transmission specialist can perform stall speed and pressure tests. A shudder felt during light acceleration is also a key symptom.
   Typical fix: Requires transmission removal to replace the torque converter. The transmission and cooler lines must be thoroughly flushed or replaced to remove all debris. Many experts warn that just replacing the converter without rebuilding/cleaning the rest of the transmission will lead to a repeat failure.
   Est. part cost: $300-$800
4. Worn 2nd Gear Clutch Pack 🟡 Medium Probability Prolonged operation with low hydraulic pressure (from the causes above) will burn out the friction clutches for 2nd gear, causing them to slip. The debris from the torque converter can also embed in the clutch material.
   How to confirm: Confirmed by finding excessive black, burnt-smelling clutch material in the transmission pan and by performing hydraulic pressure tests that show a pressure loss in the 2nd gear circuit. Disassembly will reveal burnt or warped clutch plates.
   Typical fix: Requires a complete transmission rebuild or replacement to replace the worn internal clutch packs and seals.
   Est. part cost: $1800-$4000
5. Failed Shift Solenoid ⚪ Low Probability → Shop Transmission Valve Body The solenoid that controls the 2nd gear shift can fail electrically or become clogged with debris, preventing proper gear engagement.
   How to confirm: A professional scan tool can command the solenoid on and off to check its response. The solenoid can also be tested for resistance with a multimeter. However, debris is a more common issue than outright electrical failure.
   Typical fix: Drop the transmission pan to access and replace the faulty solenoid. The valve body must be removed to access all solenoids.
   Est. part cost: $40-$100

Rare But Worth Checking

• Faulty Transmission Control Module (TCM): → Shop Transmission Assembly While rare, a software glitch or internal failure in the TCM (which is located inside the transmission on the 6L80) can cause incorrect shift commands or misinterpretation of sensor data. This is usually a last resort after all mechanical and hydraulic issues have been ruled out.
• Faulty Input/Output Speed Sensor: An erratic speed sensor can feed the TCM incorrect data, leading to a calculated ratio error. On the 6L80/6L90, these sensors are located internally on the valve body, making replacement a significant job. This issue would typically be accompanied by other sensor-specific fault codes.
• Cracked 1-2-3-4 / 3-5-R Clutch Housing: TSB 09-07-30-004J points to a potential for the 1-2-3-4 / 3-5-R clutch housing to crack, causing various shift issues including harsh 2-3 shifts and related DTCs. This requires transmission disassembly to diagnose.

Diagnosis Steps

1. Check the transmission fluid level and condition. Note if it is low, dark, burnt-smelling, or contains debris. Pay close attention to fine, glitter-like metallic particles (torque converter failure) or excessive black material (clutch failure).
2. Use an OBD-II scanner to check for any other transmission-related codes, especially P0700, P0894, or other gear ratio codes.
3. With a professional scan tool, monitor live data for the Input (ISS) and Output (OSS) speed sensors to ensure they are reading correctly and not dropping out while driving.
4. Command a line pressure test with the scan tool to check for adequate hydraulic pressure. Low or erratic pressure points to a pump, valve body, or major leak issue.
5. Drop the transmission oil pan and inspect the fluid and magnet for metal shavings (from gears/torque converter) or excessive black clutch material. The type of debris is a major clue to the root cause.
6. If significant debris is present, the torque converter is highly suspect. The next step is to remove and inspect the valve body and separator plate for clogged passages or stuck valves, as recommended by TSBs PIP5100A and PIP5100.
7. If the valve body is clean and pressure tests fail, suspect internal seal leaks (per TSB 09-07-30-004J) or a worn clutch pack, likely requiring a transmission rebuild.

Parts You'll Likely Need

• Transmission Filter and Gasket Kit — Always replaced during a fluid service or when the pan is dropped for any diagnosis. A clogged filter is a common consequence of internal failures.
  Trusted brands: ACDelco, Wix, ATP
  OEM price range: $40-$60
  Aftermarket price range: $20-$40

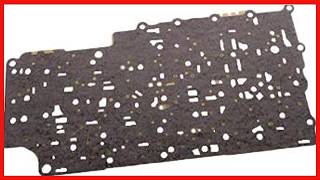

• Valve Body Separator Plate (OEM #24245720 (for 2007-2009 models)) — A common failure point mentioned in TSBs; debris clogs orifices and the plate itself can wear, causing pressure loss. Part numbers vary by year; 2010+ models use a different plate.
  Trusted brands: ACDelco, Sonnax (upgraded)
  OEM price range: $40-$70
  Aftermarket price range: $30-$60
• Torque Converter — A primary cause of P0732 on the 6L80/6L90 due to the failure of its internal lock-up clutch, which contaminates the entire transmission.
  Trusted brands: ACDelco (OEM Remanufactured), Transtar, Sonnax (Billet/Upgraded)
  OEM price range: $300-$500
  Aftermarket price range: $250-$800
• Transmission Rebuild Kit — Necessary if the 2nd gear clutches are burnt or if widespread contamination from a failed torque converter requires a full teardown and replacement of all seals, gaskets, and friction plates.
  Trusted brands: BorgWarner, Raybestos, Transtar
  OEM price range: N/A
  Aftermarket price range: $400-$800

Related Codes That Often Appear With This One

• P0700 — This is a generic code that means the Transmission Control Module (TCM) has stored a fault. It almost always appears with specific transmission codes like P0732.
• P0894 — This code means 'Transmission Component Slipping.' It is a more general slip code that often accompanies specific gear ratio codes like P0732, indicating the slip is significant.
• P0731 — This code indicates an incorrect ratio in 1st gear. Seeing it with P0732 points to a more widespread hydraulic issue, such as a clogged filter, failing pump, or major valve body problem affecting multiple circuits.
• P0776 — This code relates to the Pressure Control Solenoid 'B' being stuck off. This can be caused by the same debris and hydraulic issues that trigger P0732 and is mentioned in TSB 09-07-30-004J.

Technical Service Bulletins (TSBs) & Recalls

• Bulletin #PIP5100A: Mentions inspecting valve body separator plate orifices for blockage when no-move or slip conditions with various DTCs (including P0732) are present.
• Bulletin #PIP4379M: A general diagnostic TSB for a wide range of transmission codes, including P0732, advising technicians to follow standard service information.
• Bulletin #09-07-30-004J: Details issues like slips and harsh 2-3 shifts caused by a cracked 1-2-3-4 / 3-5-R clutch housing or leaking pump cover seals, which can be related to the hydraulic pressure loss causing P0732.

Platform-Specific Known Issues

• TSB #PIP5100A and #PIP5100 specifically call out inspecting the valve body separator plate orifices for blockage on vehicles that will not move and set codes including P0732. [Bulletin #PIP5100A, Bulletin #PIP5100]
• TSB #PIP4379M lists P0732 among a group of codes related to delayed engagement or no engagement into drive or reverse, pointing towards a significant internal hydraulic or mechanical issue. [Bulletin #PIP4379M]

Mechanic-Grade Diagnostic Values

• On/Off Shift Solenoid (SS1, SS2) Resistance — expected: 20 - 40 Ohms. Failure: A reading outside this range indicates a failed solenoid coil. The entire TEHCM must be replaced as solenoids are integrated.
• PWM Solenoid (All Pressure Control & TCC) Resistance — expected: 3 - 8 Ohms. Failure: A reading outside this range points to a faulty solenoid coil, requiring TEHCM replacement.
• Transmission Line Pressure at Idle (in Park/Neutral) — expected: 45 - 80 PSI. Failure: Pressure below this range indicates a potential issue with the pump, a clogged filter, a leak in the valve body, or a stuck pressure regulator valve.
• Transmission Line Pressure at Wide Open Throttle (WOT) Stall — expected: Up to 300 PSI. Failure: Significantly lower pressure under load confirms a major hydraulic leak or a failing pump, preventing clutches from holding pressure.

Scan Tool Commands That Help

• GDS2 / Tech2 or equivalent professional scanner: Solenoid Cleaning / Solenoid Cycle — This function cycles all solenoids to flush out small amounts of debris that may be causing a valve to stick. It can be used as a diagnostic step to see if shift quality temporarily improves, pointing to contamination as the issue.
• GDS2 / Tech2 or equivalent professional scanner: Line Pressure Control (EPC) Command — Used during a line pressure test to command specific pressures and verify the hydraulic system's response. This helps isolate a failing pump or pressure regulator from a control-side issue.
• GDS2 / Tech2 or equivalent professional scanner: Solenoid Control (Activate/Deactivate) — Allows a technician to command a specific solenoid (e.g., the 2nd gear shift solenoid) on and off with the engine off to listen for an audible 'click', confirming basic electrical function.
• GM Special Tool DT 47825 Air Test Plate: Valve Body Air Test — With the valve body and TEHCM removed from the transmission, this test plate is bolted on. A scan tool is used to command solenoids while applying shop air to specific ports to visually check for leaks in clutch circuits, isolating a faulty valve body or TEHCM.

Wiring & Ground Locations

• Main Transmission Connector (16-pin) — On the passenger side of the transmission case.. This is the sole electrical interface for the internal TEHCM. Corrosion or backed-out pins here can interrupt power, ground, or CAN bus communication, leading to various transmission faults including P0732. Pin 5 is ground, Pin 4 is Battery+, and Pins 10/11 are the main CAN bus circuit.
• G103 — On the front of the passenger side (right) cylinder head.. This is a primary engine and control module ground. A poor connection here can cause erratic voltage and faulty signals between the ECM and TCM, potentially leading to incorrect calculations and fault codes.
• G104 — On the rear of the driver side (left) cylinder head, near the firewall.. This is another main engine harness ground. A loose or corroded connection can cause a host of electrical issues, including problems with the transmission control system.

OEM Part Supersession History

• 24265535 → 24265536 — In March 2012, GM changed the output planetary and shaft to a one-piece 'Unigear' design. This required a different height for the Input/Output Speed Sensor assembly.
  Heads up: CRITICAL: Using the early sensor (24265535) with a late (post-March 2012) 'Unigear' transmission WILL result in physical damage to the sensor. Using the late sensor (24265536) with an early transmission will create too wide an air gap and cause speed sensor DTCs. The parts are not interchangeable.
• 24246916 → 24245720 — The early, 1st design 6L80 separator plate had compatibility issues with certain aftermarket valve body upgrades.
  Heads up: If installing Sonnax valve body components like their clutch select valve springs, the original 24246916 plate must be replaced with the 2nd design 24245720 plate to prevent clutch failure and codes like P0751.
• Various (e.g., 24256939, 24261870, 24275873) → Sonnax Remanufactured GM6L-TEHCM-C6 — Provides a cost-effective alternative to a new OE TEHCM (Transmission Electro-Hydraulic Control Module).
  Heads up: All replacement TEHCMs, whether new OE or remanufactured, MUST be programmed to the vehicle's VIN using a J2534 pass-thru device. The vehicle will not start or shift until this is done.

Model Year Variations Within This Range

• 2012: Starting in March 2012, the 6L80/6L90 switched to a 'Unigear' one-piece output shaft and ring gear. This requires a different speed sensor assembly (PN 24265536) that is not backward compatible with pre-2012 units.
• 2008-2009 (Early models): Early production 6L80s were prone to issues with the sealing rings on the stator support shaft, causing cold-start delayed engagements. GM updated the ring design, but the new rings do not fit the old pump design without machining the pump.
• 2008: The 1-2-3-4 clutch piston and housing were changed for the 2008 model year. Installing a 2008+ housing into an earlier transmission can cause a 2-3 shift flare.
