P0734 on 2001-2008 Chevrolet Silverado 2500: 4th Gear Ratio Error Causes & Fixes

What's Unique About the 2001-2008 Chevrolet SILVERADO 2500

The 2001-2008 Silverado 2500 HD trucks are equipped with robust transmissions like the GM 4L80-E (typically with gas engines) or the Allison 1000 (with Duramax diesel engines), designed for heavy-duty use. While durable, P0734 often points to specific, well-documented wear items. On the 4L80-E, this code is very commonly associated with a worn-out 3-4 clutch pack, a frequent failure point after high mileage or heavy towing. For the Allison 1000, while also very durable, slippage leading to a P0734 can be caused by wear in the C3 or C4 clutches, especially in modified or hard-working trucks. The problem is frequently exposed during highway driving under load, rather than in city traffic.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Generation note: This year range covers the first generation GMT800 (2001-2007 Classic) and the second generation GMT900 (2007.5-2008). The GMT800s commonly used the 4L80-E transmission with gas engines, while the GMT900s began to feature the 6-speed 6L90. Duramax diesel models throughout this range were typically paired with the Allison 1000 five or six-speed automatic. While the code's meaning is the same, the specific internal parts (solenoids, clutch packs) will differ between these transmissions. For the 4L80-E, the 3-4 shift is controlled by the 'A' solenoid, while on the Allison, clutch engagement is more complex.

Symptoms You May Notice

• Check Engine Light is on
• Transmission slipping, especially in 4th gear
🎬 Watch: A breakdown of common causes and fixes for P0734.
• Delayed or harsh shifting into 4th gear
• Inability to shift into 4th gear
• Engine RPM is higher than usual at highway speeds
• Reduced fuel economy
• Transmission overheating
• Vehicle enters 'limp mode'

Most Likely Causes

1. Low or Contaminated Transmission Fluid 🔴 High Probability → Shop Transmission Assembly Leaks from seals or the transmission pan can develop over time. Fluid can also break down and become contaminated from heavy use, leading to blocked hydraulic passages. An improperly seated filter after a fluid change can also cause aeration and pressure loss.
   How to confirm: Check the transmission fluid level and condition using the dipstick. The fluid should be at the correct level, bright red, and not smell burnt. Dark, cloudy, or burnt-smelling fluid indicates a problem.

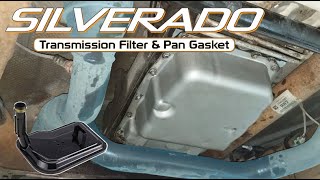

   Typical fix: If low, top off with the correct fluid (DEXRON-VI for 4L80-E/6L90, specific fluid for Allison) and check for leaks. If dirty or burnt, perform a transmission fluid and filter change. 🎬 Watch: How to properly change your transmission fluid and filter.
   Est. part cost: $50-$200
2. Failed Shift Solenoid (4L80-E) 🟡 Medium Probability → Shop Transmission Valve Body The 4L80-E uses two primary shift solenoids, 'A' and 'B'. The 3-4 shift is controlled by Shift Solenoid 'A'. These electro-mechanical valves can fail electrically or become clogged with debris.
   How to confirm: A professional mechanic can use a scan tool to command the solenoid on and off. The solenoid's electrical resistance can also be tested with a multimeter (should be 20-30 ohms).

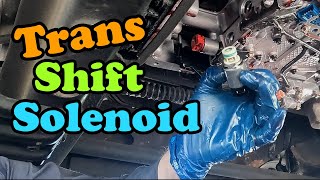

   Typical fix: Replace the faulty shift solenoid. For the 4L80-E, this is the 1-2 / 3-4 Shift Solenoid 'A'. It is located inside the transmission oil pan, attached to the valve body. 🎬 See this walkthrough on replacing 4L80-E solenoids and the pan.
   Est. part cost: $40-$150
3. Internal Mechanical Failure (Worn 3-4 Clutch Pack in 4L80-E) 🟡 Medium Probability The clutches that engage 4th gear in the 4L80-E are a known weak point and can wear out, especially under heavy towing or high mileage. This is a very common cause for P0734 in these trucks.
   How to confirm: This is diagnosed after external causes are ruled out. A mechanic may perform a line pressure test. Finding significant clutch material in the transmission pan during a fluid service is a definitive sign.
   Typical fix: This requires a partial or complete transmission rebuild to replace the worn 3-4 clutch pack, seals, and potentially the 3-4 accumulator piston.
   Est. part cost: $500-$2500+
4. Faulty Valve Body ⚪ Low Probability → Shop Transmission Valve Body The valve body is the hydraulic brain of the transmission. Its channels can become blocked with debris, or its valves can stick, preventing proper fluid pressure from reaching the 4th gear clutches.
   How to confirm: Diagnosis involves pressure testing and inspection after removing the valve body. This is typically done by a transmission specialist.
   Typical fix: The valve body may be cleaned and serviced, or replaced entirely.
   Est. part cost: $300-$1000

Rare But Worth Checking

• Failing Torque Converter: → Shop Automatic Transmission Torque Converter A failing torque converter clutch can sometimes cause slippage issues that may be misinterpreted as a gear ratio error, though this often presents with other codes as well.
• Damaged Wiring Harness: Wiring to the transmission's speed sensors or solenoids can become damaged from heat or chafing, leading to incorrect signals and fault codes.
• Faulty Transmission Control Module (TCM): → Shop Transmission Assembly While rare, the TCM itself can fail, causing incorrect commands or misinterpretation of sensor data. This should be the last item to consider after all other possibilities are exhausted.

Diagnosis Steps

1. Check the transmission fluid level and condition. Look for fluid that is dark, cloudy, or smells burnt.
2. Use an OBD-II scanner to check for any other pending or stored transmission-related codes, especially P0700 or other gear ratio/solenoid codes.
3. With a capable scan tool, monitor live data for input and output shaft speeds to confirm the slippage in 4th gear.
4. Inspect the transmission wiring harness and connectors for any visible damage, corrosion, or loose connections.
5. For the 4L80-E, test the resistance of the Shift Solenoid 'A' and 'B'. They should measure between 20 and 30 ohms.
6. Perform a transmission line pressure test to check for adequate hydraulic pressure. Low pressure indicates a problem with the pump, a clogged filter, or internal leaks.
7. If external checks are inconclusive, drop the transmission pan to inspect for metal shavings or excessive clutch material, which confirms internal mechanical failure.
8. While the pan is off, inspect and replace the shift solenoids if they are suspected to be faulty.
9. If all else fails, internal inspection by a transmission specialist is required to check components like the 3-4 clutch pack and valve body.

Parts You'll Likely Need

• Transmission Fluid and Filter Kit (OEM #ACDelco 24208576 (4L80-E Deep Pan Filter Kit)) — The first step in diagnosis and a common fix if the fluid is low or contaminated. Regular service is key to transmission longevity.
  Trusted brands: ACDelco, Valvoline, Castrol
  OEM price range: $70-$150
  Aftermarket price range: $50-$100
• Shift Solenoid 'A' and 'B' Kit (4L80-E) (OEM #ACDelco 24230298 (Solenoids are often identical, used for both A/B)) — A common electrical failure point that prevents the transmission from properly engaging gears. The 3-4 shift is controlled by solenoid 'A'. It is best practice to replace both while the pan is off.
  Trusted brands: ACDelco, Bosch, Rostra
  OEM price range: $60-$120
  Aftermarket price range: $40-$80
• Transmission Rebuild Kit (Master) — Required when the code is caused by worn internal components like the 3-4 clutch pack, seals, and gaskets in the 4L80-E.
  Trusted brands: Transtar, Alto, Precision International
  Aftermarket price range: $400-$800

Related Codes That Often Appear With This One

• P0700 — This is a general transmission fault code requested by the TCM. It almost always accompanies specific transmission codes like P0734 to illuminate the Check Engine Light.
• P0731, P0732, P0733, P0735 — These are incorrect gear ratio codes for 1st, 2nd, 3rd, and 5th gears, respectively. Seeing multiple ratio codes often points to a widespread internal problem like low fluid, a failing torque converter, or major hydraulic issues.
• P0751, P0756 — These codes relate to shift solenoid 'A' and 'B' performance. Their presence alongside P0734 can help pinpoint whether the issue is electrical (solenoid) or mechanical (clutch).

Technical Service Bulletins (TSBs) & Recalls

• PIP4379N: Addresses delayed or no gear engagement and a wide range of DTCs, including P0734. It suggests that low fluid or a loss of pump prime after service can be a cause.

Platform-Specific Known Issues

• Per Technical Service Bulletin #PIP4379N, code P0734 can be seen with a wide range of other transmission codes, indicating conditions like delayed engagement or a range inhibit, often caused by low fluid level or a loss of pump prime after a service.

Mechanic-Grade Diagnostic Values

• 4L80-E Shift Solenoid 'A' or 'B' Resistance — expected: 20 - 30 Ohms. Failure: A reading outside this range indicates a faulty solenoid coil.
• 4L80-E Line Pressure (Stock, at idle) — expected: 40 - 70 PSI in Drive/Park/Neutral; 60 - 70 PSI in Reverse. Failure: Significantly lower pressure, especially under load, points to a weak pump, clogged filter, or internal leaks.
• 4L80-E Line Pressure (Stock, at WOT Stall) — expected: 160 - 180 PSI in Drive; 300 - 330 PSI in Reverse. Failure: Failure to reach these pressures under load confirms a hydraulic issue preventing clutches from engaging fully.
• Allison 1000 Main Line Pressure (Forward gears, 600 RPM) — expected: 115 - 200 PSI (800 - 1380 kPa). Failure: Pressure below this range at idle indicates a potential pump, filter, or valve body issue.
• Allison 1000 Main Line Pressure (Forward gears, 2100 RPM) — expected: 220 - 260 PSI (1515 - 1795 kPa). Failure: Inability to build pressure with RPM is a clear sign of a significant hydraulic leak or failing pump.

Scan Tool Commands That Help

• Tech2 / GDS2 or equivalent professional scanner: Solenoid Test / Bidirectional Control — To individually command the 3-4 shift solenoid (Solenoid 'A' on 4L80-E) to verify its mechanical function (listening for a click) and observe pressure changes, separating an electrical fault from a mechanical one.
• Tech2 / GDS2 or equivalent professional scanner: Clutch Adaptation Relearn / Solenoid Calibration — This function should be performed after replacing a shift solenoid or the valve body to allow the TCM to learn the hydraulic characteristics of the new components for smooth shifting.
• EFILive / HP Tuners: Live Data Logging (GM.TFMPRS) — This PID logs the *commanded* pressure control solenoid pressure, which can be compared against actual line pressure measured with a mechanical gauge to diagnose discrepancies between what the TCM is requesting and what the transmission is delivering.

Wiring & Ground Locations

• G103 — On the right rear of the engine block (passenger side, near the firewall).. This is a primary engine ground. A poor connection here can cause voltage fluctuations and insufficient ground paths for the PCM/TCM and transmission sensors, leading to erratic behavior and false codes.
• Engine-to-Firewall Ground Strap — A braided strap typically located on the back of the cylinder head (often passenger side) connecting to the firewall.. This is a critical ground path for dissipating electrical noise from transmission solenoids. On GMT800 trucks, this strap is known to corrode or break, causing a host of bizarre electrical issues, including incorrect transmission codes and instrument cluster problems.
• G203 — Behind the left side of the instrument panel (driver's side dash).. This is an interior ground point. While less likely to cause this specific code, issues here can affect modules inside the cab that communicate with the powertrain, such as the Body Control Module.
• 4L80-E Transmission Case Connector — Round, multi-pin connector on the passenger side of the transmission case.. This is the main electrical interface for all internal transmission components. Testing solenoid resistance (Pins S & T for Shift Solenoids A & B) can be done here without dropping the pan, providing a quick electrical health check.

Real Owner Repair Stories

• Transmission repair shop video (Sonnax) (General 4L80-E application, common on 2001-2007 Silverado 2500 with gas engines) — Loss of 4th gear, setting P0734 or other ratio codes.
  ❌ Tried (didn't work) A standard transmission inspection often revealed no severe internal damage to clutches or other hard parts, leaving mechanics confused.
  ✅ What actually fixed it The root cause was a worn bore for the actuator feed limit valve within the valve body. The valve would oscillate and wear the aluminum bore, creating a hydraulic leak that prevented 4th gear from engaging properly. The fix was to ream the bore and install an oversized valve and sleeve kit (e.g., Sonnax P/N 34200-16K).
• GMT800 forum user post (2000-2006 GM Truck with 4L60e/4L80e) — Instrument cluster gauges dying, ABS/Brake lights on, and transmission shift solenoid codes appearing simultaneously.
  ❌ Tried (didn't work) Initially suspecting a faulty transmission solenoid or PCM due to the trouble codes.
  ✅ What actually fixed it The problem was a missing or corroded engine-to-firewall ground strap. Without this ground, voltage spikes from the transmission solenoids were not properly dissipated, causing erratic electrical behavior in the PCM and instrument cluster. Installing a new, clean ground strap from the engine block to the firewall resolved all symptoms.
• YouTube user repair video (Chevrolet Truck with P0734) — Check engine light with code P0734, gear ratio error.
  ❌ Tried (didn't work) The user went straight to replacing sensors as a first step.
  ✅ What actually fixed it The user replaced both the input and output speed sensors, and the code went away. Critically, upon removing the old sensor, its magnetic tip was covered in fine metallic dust ('silver' looking). While replacing the sensor provided a temporary fix, the metal dust was a strong indicator of a more serious internal mechanical failure that was the true root cause of the slippage.

OEM Part Supersession History

• 10478131, 24047681, 24236521 → 24230298 — Updated design for improved reliability and durability of the shift solenoid.
  Heads up: While physically interchangeable, some sources note that this part may require programming or a 'relearn' procedure with a GM scan tool to ensure proper operation and shift quality.

Model Year Variations Within This Range

• 2001-2005 (Duramax): Models equipped with the Duramax diesel engine used the 5-speed Allison 1000 transmission.
• 2006-2008 (Duramax): Starting in the 2006 model year, the Allison 1000 transmission was upgraded to a 6-speed unit, adding a second overdrive gear. While the P0734 code still applies to 4th gear (which is 1.00:1 on both), the specific clutch packs (C3/C4) and hydraulic controls differ slightly.
• 2007.5-2008 (Gas): The introduction of the GMT900 body style in mid-2007 brought the 6-speed 6L90 transmission for some gas engine applications, replacing the 4-speed 4L80-E. The diagnosis for P0734 on a 6L90 would involve different solenoids and clutch packs compared to the 4L80-E.
