P0740 on 1999-2005 VW Jetta: Torque Converter Clutch Circuit Malfunction Causes and Fixes

What's Unique About the 1999-2005 Volkswagen Jetta

The 1999-2005 Jetta (Mk4 generation) with an automatic transmission uses the 01M model, which is well-known for issues with its internal electronics. The internal wiring harness becomes brittle over time due to constant heat cycles and exposure to transmission fluid, leading to cracks and electrical faults. Similarly, the solenoids located on the valve body are a frequent point of failure, making P0740 a relatively common and well-documented code for this specific vehicle.

Symptoms You May Notice

• Check Engine Light is on
• Harsh or delayed gear shifts, particularly from 1st to 2nd.
• Vehicle may feel like it's shuddering or vibrating at steady highway speeds.
• Engine RPMs are higher than usual at cruising speeds
• Noticeable decrease in fuel economy.
• In some cases, the engine may stall when coming to a stop after highway driving.
• Transmission may go into "limp mode," staying in 3rd gear.

Most Likely Causes

1. Faulty Torque Converter Clutch (TCC) Solenoid 🔴 High Probability → Shop Automatic Transmission Torque Converter The solenoids in the 01M transmission are a known weak point and are prone to electrical failure after high mileage. The TCC solenoid is specifically the N91 solenoid.
   How to confirm: After dropping the transmission pan, the TCC solenoid (N91, a black/dark-colored PWM solenoid) can be tested with a multimeter. It should have a resistance of approximately 4.5-5.1 ohms. An out-of-spec reading or open circuit indicates failure. The other five ON/OFF solenoids (light brown) should read between 55-65 ohms.

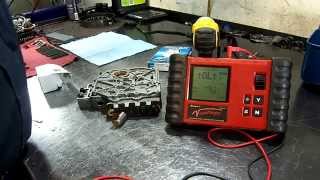

   Typical fix: Replace the TCC solenoid. 🎬 Watch: How to test and replace the N91 solenoid It is highly recommended to replace all seven solenoids as a complete kit while the valve body is accessed, as they fail at similar rates.
   Est. part cost: $40-$80 for a single solenoid, $150-$250 for a full solenoid kit.
2. Damaged Internal Transmission Wiring Harness 🔴 High Probability → Shop Transmission Assembly The harness inside the 01M transmission is submerged in hot fluid, causing its insulation to become brittle and crack over time, leading to short circuits. The plastic connectors that attach to the solenoids also become brittle and can break.
   How to confirm: Visually inspect the harness for cracked, flaking, or bare wires after removing the transmission pan. Check for continuity on each wire with a multimeter. Often, pieces of the black plastic connectors will break off and may be found in the pan.
   Typical fix: Replace the internal transmission wiring harness (VW Part No. 01M-927-365). 🎬 See this walkthrough for installing a new internal harness
   Est. part cost: $50-$100
3. Low or Dirty Transmission Fluid 🟡 Medium Probability → Shop Transmission Assembly Many of these vehicles have 'lifetime' fluid that is never changed, leading to fluid breakdown and contamination that can clog solenoid passages and cause malfunctions.
   How to confirm: Check the transmission fluid level and condition. The 01M has no dipstick, so checking requires raising the vehicle and removing a fill plug. If the fluid is dark, burnt-smelling, or contains debris, it is contaminated.
   Typical fix: Perform a transmission fluid and filter change. This may resolve the issue if it's minor, but often the damage to the solenoid or harness is already done and this is done as part of that repair.
   Est. part cost: $80-$150 for fluid and a filter kit.
4. Failing Valve Body ⚪ Low Probability → Shop Transmission Valve Body Wear in the valve body bores or sticking valves can disrupt hydraulic pressure, affecting solenoid operation. This is a known issue in 01M transmissions, especially at higher mileage.
   How to confirm: This is difficult to confirm without specialized tools and expertise. It's usually suspected after solenoids and wiring have been replaced without resolving the code.
   Typical fix: Replace or rebuild the transmission valve body. Rebuild kits are available from companies like Sonnax.
   Est. part cost: $300-$700 for a remanufactured valve body.

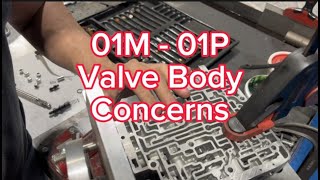

🎬 Watch: Step-by-step valve body replacement and filter service

Rare But Worth Checking

• Failing Torque Converter: → Shop Automatic Transmission Torque Converter While the code points to an electrical circuit, a mechanical failure inside the torque converter can shed debris that clogs the TCC solenoid and valve body, causing the circuit fault.
• Faulty Transmission Control Module (TCM): → Shop Transmission Assembly It is rare for the TCM to fail, but it can happen. This should be the last consideration after all other circuit components have been verified as good. The TCM is located in the plenum area near the wipers on the Mk4 Jetta.

Diagnosis Steps

1. Check and confirm the trouble code with an OBD-II scanner. Note any other transmission-related codes.
2. Check the transmission fluid level and condition. This requires lifting the car level and opening the fill port. If it's low, top it off. If it's dark, burnt, or contains debris, a fluid and filter change is necessary, but further diagnosis is still required.
3. Drain the transmission fluid and remove the transmission oil pan.
4. Visually inspect the internal wiring harness (VW P/N: 01M927365) for any signs of cracking, brittleness, or damage, especially at the connectors.
5. Locate the TCC solenoid (N91, a black PWM solenoid) on the valve body. Disconnect it and test its resistance with a multimeter. The reading should be between 4.5 and 5.1 ohms. Also test the other six solenoids. The remaining PWM solenoid (EPC/N93) should have a similar reading, while the five ON/OFF solenoids (light brown) should be 55-65 ohms.
6. If the solenoid and harness test good, the problem may lie within the valve body itself (worn bores) or, more rarely, the TCM.
7. If significant metal shavings are found in the pan, it could indicate a more serious mechanical failure, such as the torque converter itself.

Parts You'll Likely Need

• Transmission Solenoid Kit — The TCC solenoid is the most common electrical failure point for this code. It is best practice to replace all seven solenoids on the 01M valve body at the same time as they have a similar service life.
  Trusted brands: Bosch, Beck/Arnley, Rostra, Sonnax (for individual solenoids/rebuild parts)
  OEM price range: $300-$450
  Aftermarket price range: $150-$250
• Internal Transmission Wiring Harness (OEM #01M927365) — This harness is a very common failure point due to becoming brittle from heat and fluid exposure, causing electrical faults. It is often replaced alongside the solenoids.
  Trusted brands: Meyle, Febi, Genuine VW
  OEM price range: $100-$150
  Aftermarket price range: $50-$90
• Transmission Filter and Pan Gasket Kit (OEM #01M325429 (Filter)) — This is required for any repair that involves dropping the transmission pan.
  Trusted brands: Vaico, Mahle, Meyle
  OEM price range: $40-$70
  Aftermarket price range: $20-$40

Related Codes That Often Appear With This One

• P0741 — P0741 indicates 'TCC System Stuck Off,' which is a performance-related code that can accompany the P0740 electrical circuit code if the solenoid fails to engage the clutch.
• P0730-P0735 — Codes for incorrect gear ratios can appear if the underlying transmission issue (like a bad valve body or widespread solenoid failure) is affecting overall shifting performance.
• P0725 — An Engine Speed Sensor Circuit code can sometimes appear alongside transmission codes if the TCM is receiving faulty data.

Technical Service Bulletins (TSBs) & Recalls

• While no specific TSB number for P0740 was found in searches, VW has issued numerous technical communications and software updates related to the 01M transmission's shift quality and electronic controls over its lifespan.

Platform-Specific Known Issues

• The 01M automatic transmission is notorious for failure of the internal wiring harness (part no. 01M927365) and the shift solenoids. These two components are the cause of P0740 in the vast majority of cases for the Mk4 Jetta.
• Owner experiences frequently state that replacing both the solenoid kit and the internal harness at the same time is the most effective, long-term repair to avoid having to drop the pan a second time.

Mechanic-Grade Diagnostic Values

• TCC Solenoid (N91) and EPC Solenoid (N93) Resistance — expected: 4.5 - 5.1 Ohms. Failure: A reading outside this range, or an open circuit (OL). A common failure mode is resistance increasing dramatically when hot. A failing solenoid might read ~22 Ohms when cold but jump to over 65 Ohms when at operating temperature.
• Shift Solenoids (N88, N89, N90, N92, N94) Resistance — expected: 55 - 65 Ohms (some sources state up to 73 Ohms is acceptable). Failure: A reading significantly outside this range, or an open circuit (OL).
• TCC (N91) Solenoid Circuit Resistance from External Connector — expected: 4.5 - 5.1 Ohms. Failure: Out of spec reading. This test validates the entire circuit, including the internal harness and the solenoid itself, without dropping the pan.

Hidden / Shadow Codes Worth Checking

• 00264 (VAG Code): This is the Volkswagen-specific fault code for 'Solenoid Valve 4 (N91) - Open Circuit'. It directly corresponds to the generic P0740 and is what a VW-specific tool like VCDS will display. (see via VCDS (VAG-COM) or other OEM-level diagnostic scanner for VW/Audi.)

Scan Tool Commands That Help

• VCDS (VAG-COM): Output Test for TCC Solenoid (N91) — This function is notably absent or non-functional for the N91 solenoid on many 01M controllers. Technicians have reported that VCDS is unable to actuate the TCC solenoid on demand for testing purposes, unlike some other solenoids. Do not rely on this as a primary diagnostic step.
• VCDS (VAG-COM) or similar: Throttle Body Adaptation - Basic Settings Channel 060 — After any repair involving the TCM or significant electrical work, it's good practice to perform a throttle body adaptation. The TCM uses throttle position as a primary input for shift and lock-up decisions. While not directly for the P0740, it ensures the related control systems are reset.

Wiring & Ground Locations

• TCM (J217) — Located in the cowl plenum, under the plastic rain tray on the passenger side of the vehicle, near the base of the windshield.. This is the control module for the transmission. Water intrusion into the plenum is a common Mk4 issue, which can corrode the TCM connector pins and cause various transmission codes, including P0740.
• 12-Pin Round Connector (T12a) — On top of the transmission case, where the main vehicle harness connects to the transmission.. This is the primary external test point for the entire internal electrical system. Corrosion on these pins can cause a P0740. You can test the TCC solenoid (N91) by measuring resistance between Pin 1 and Pin 5 of this connector.
• TCM 68-Pin Connector — Connects directly to the TCM module (J217).. The TCC solenoid (N91) is controlled by the TCM. Power for the solenoids is supplied from the TCM, and the TCM provides a ground path to activate them. A bad pin or broken wire at this connector can cause the circuit fault.
• Transmission Ground — A primary ground strap runs from the transmission case to the chassis, typically near the driver-side frame rail or on a stud on the transmission mount.. A poor ground connection can cause erratic behavior in the transmission electronics and potentially set fault codes. Ensure this strap is clean, tight, and free of corrosion.

Real Owner Repair Stories

• YouTube Channel 'Mr. B's Garage' (1999 VW Jetta Mk4) — Transmission in limp mode, scanned and found open circuit codes for nearly every solenoid (00258, 00260, 00262, 00264, etc.), including the P0740 equivalent.
  ❌ Tried (didn't work) The owner suspected individual solenoids had failed.
  ✅ What actually fixed it The technician identified that all solenoids share a common power feed wire within the internal transmission harness. This wire had failed, causing an open circuit for all solenoids. Replacing only the internal wiring harness (Part No. 01M-927-365) for under $50 resolved all codes and restored normal operation.
• YouTube Channel 'Automatic Transmission' (VW with 01M Transmission) — P0740 code, vehicle would drive okay when cold, but once warmed up, the transmission would go into failsafe (limp mode).
  ✅ What actually fixed it The technician tested the TCC/N91 solenoid and found its resistance was ~22 ohms when cold (already high) and would climb to over 65 ohms when hot, causing the circuit fault. A new solenoid measured a correct 4.9 ohms. Replacing the single faulty N91 solenoid fixed the problem.

OEM Part Supersession History

• 01M-927-365 → 01M-927-365 (no major revisions noted) — This part number has remained consistent for the internal wiring harness for the 01M transmission.
  Heads up: Be aware that while the part number is stable, aftermarket quality varies significantly. Stick to reputable brands like Meyle, Febi, or Genuine VW to avoid premature failure.

Model Year Variations Within This Range

• 1995+: The TCC solenoid (N91) in the 01M transmission is a Pulse-Width Modulated (PWM) solenoid, allowing for variable control. This is different from its predecessor, the 096 transmission (used pre-1995), which used a simpler on/off solenoid for the TCC. Ensure any replacement solenoid is specified as PWM for the 01M.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• Window Regulator Failure 🔴 High — Extremely common. The plastic clips that hold the window glass to the regulator cable break, causing the window to fall into the door.
• Plastic Coolant Flange Leaks 🟠 Medium — Very common. The plastic flanges connected to the engine block for coolant hoses become brittle and crack, causing coolant leaks.
• 1.8T Engine Oil Sludge 🔴 High — Common on 1.8T engines, especially if oil changes were neglected or incorrect oil was used. Sludge clogs the oil pickup tube, leading to oil starvation. (Ref: VW had a warranty extension program (now expired) for this issue.)
• TDI (ALH) Camshaft Wear 🟠 Medium — Occurs at higher mileage (typically over 100k miles) on the ALH TDI engine due to metallurgy and sometimes incorrect oil usage, leading to worn cam lobes.
• Failing Mass Airflow (MAF) Sensor 🟡 Low — A common failure item across many VW engines of this era, causing poor performance, rough idle, and fault codes.
• Glove Box Hinge Failure 🟡 Low — Extremely common. The plastic hinge on the glove box door breaks easily, causing the door to fall off or not close properly.

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: For this specific repair, using used parts is highly discouraged. The primary failure components (solenoids, internal harness) are wear-and-tear items with a finite lifespan. A used part from a junkyard is likely to have similar age and heat cycle exposure as the part that just failed.

Donor-vehicle mileage cap: roughly under 50000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• Not applicable for solenoids or harness. For a major component like a complete used transmission, look for evidence of recent service, clean fluid, and a clear history from the donor vehicle.

OEM-only on this vehicle (don't cheap out):

• While not strictly OEM-only, it is critical to use high-quality, reputable brands for the internal electronics. Cheap, unbranded solenoid kits and harnesses from online marketplaces are notorious for high rates of out-of-the-box failure or short service life.

Aftermarket brands forum-validated for this vehicle:

• Sonnax (for valve body rebuild kits and individual upgraded solenoids)
• Meyle (for internal wiring harness)
• Febi (for internal wiring harness)
• Rostra (for solenoid kits)

Brands owners have reported issues with on this vehicle:

• Unbranded, no-name solenoid kits and harnesses from marketplaces like eBay or Amazon should be avoided. The cost savings are not worth the risk of having to perform the labor-intensive repair a second time.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• N91 — This is the specific identifier for the Torque Converter Clutch (TCC) solenoid which, when faulty, triggers the P0740 code.
• N93 — This is the EPC PWM solenoid located on the same valve body; it should have similar resistance (4.5-5.1 ohms) to the N91 solenoid.
• 01M-927-365 — The part number for the internal wiring harness that frequently fails and causes P0740 due to brittle insulation or broken connectors.

Frequently Asked Questions
