P0741 on 2008-2012 Chevrolet Malibu: Torque Converter Clutch Fixes

What's Unique About the 2008-2012 Chevrolet Malibu

The 2008-2012 Malibu primarily uses the GM 6T40 or 6T45 6-speed automatic transmission. On this specific platform, P0741 is a very common code. The two most frequent culprits are the TCC control solenoid, which is located on the valve body inside the transmission, and the torque converter itself, which can fail internally. While a bad solenoid is a moderately involved repair, a failing torque converter is a major job that requires removing the entire transmission. Another known issue with the 6T40/6T70 family of transmissions is the failure of the 3-5-R wave plate, which can cause debris to circulate and potentially affect TCC operation, though it typically sets other codes like P0776.

Symptoms You May Notice

• Check Engine Light is on
• Engine RPMs are higher than normal at highway speeds
• A noticeable shudder or vibration when cruising, like driving over rumble strips
• Reduced fuel economy
• Transmission may feel like it's slipping or shifts may be harsh/delayed
• Transmission overheating, especially under load
• Engine may stall or almost stall when coming to a stop if the clutch is stuck engaged (less common for 'stuck off' code)

Most Likely Causes

1. Faulty Torque Converter Clutch (TCC) Solenoid 🔴 High Probability → Shop Automatic Transmission Torque Converter The TCC solenoid on the 6T40/6T45 transmission is a known failure point. It can stick internally or have an electrical failure, preventing it from properly directing fluid to engage the clutch. It is located on the valve body, accessible after removing the side pan.
   How to confirm: A technician can command the solenoid on and off with a diagnostic scan tool while monitoring TCC Slip RPM. If the solenoid is commanded on but there is no change in slip, it points to a bad solenoid or a hydraulic issue. The solenoid can also be removed and its resistance tested with a multimeter.
   Typical fix: Replace the TCC solenoid. This requires draining the fluid and removing the transmission's side cover to access the valve body.
   Est. part cost: $40-$80
2. Failed Torque Converter 🔴 High Probability → Shop Automatic Transmission Torque Converter The clutch material inside the torque converter can wear out or delaminate, preventing it from locking up. This failure can release debris into the transmission fluid, which can clog the valve body and damage other components.
   How to confirm: If the TCC solenoid is confirmed to be working but lock-up still fails, the torque converter is the likely cause. Finding excessive metallic or clutch material debris in the transmission pan is a strong indicator of converter failure. A GM-specific TSB notes that debonding friction material is a cause for this code.
   Typical fix: Replace the torque converter. This requires removing the transmission from the vehicle. It is critical to also flush the transmission cooler lines and replace the transmission fluid and filter to remove all contaminants.
   Est. part cost: $180-$500
3. Low or Dirty Transmission Fluid 🟡 Medium Probability → Shop Transmission Assembly The 6T40/6T45 transmission does not have a traditional dipstick, making fluid level checks less frequent. Low fluid can cause a loss of hydraulic pressure needed for lock-up, while old, degraded fluid can cause solenoids to stick or valves to malfunction.
   How to confirm: The vehicle must be lifted, and a check/fill plug on the side of the transmission case 🎬 Watch: How to check your transmission fluid level must be removed to verify the fluid level and condition. The fluid should be red and clear, not dark brown, black, or smelling burnt.
   Typical fix: Perform a transmission fluid drain and fill with the correct DEXRON-VI fluid. If the fluid is very dirty, a full fluid exchange may be needed, but this will not fix a mechanically failed part.
   Est. part cost: $80-$150
4. Worn Transmission Valve Body ⚪ Low Probability → Shop Transmission Valve Body The bores within the aluminum valve body where the TCC control valve and actuator feed limit (AFL) valve move can wear over time, causing hydraulic pressure to leak. This prevents the full pressure needed to apply the clutch. Debris from other failures can accelerate this wear.
   How to confirm: This is difficult to confirm without specialized tools like a vacuum tester. It's typically diagnosed after replacing the TCC solenoid does not solve the problem. Excessive bore wear in the TCC regulator valve bore is a known issue on 6T40 transmissions that directly causes P0741.
   Typical fix: Replace the valve body or have it rebuilt with oversized valves and reamed bores. Sonnax offers kits for this purpose. 🎬 Watch: Professional diagnosis of a reoccurring P0741 code
   Est. part cost: $400-$800

Rare But Worth Checking

• Failed Transmission Control Module (TCM/TEHCM): → Shop Transmission Assembly The TCM is integrated with the valve body and solenoids in a single unit called a TEHCM (Transmission Electro-Hydraulic Control Module). While not as common as a single solenoid failure, the entire control unit can fail, causing this code. Replacement requires programming to the vehicle's VIN.
• Damaged Internal Wiring Harness: → Shop Transmission Wiring Harness The wiring harness inside the transmission can become brittle from heat and fluid exposure over time, leading to intermittent connections or shorts for the TCC solenoid circuit. Manufacturer Bulletin #15111 notes that P0741 may be set alongside a harsh shift from first to second gear, and in such cases, dealers are instructed to replace the automatic transmission wiring harness.
• Internal Mechanical Damage: According to Bulletin #PI1447A, this condition may be caused by a damaged turbine shaft front bushing or damage to the turbine shaft in the journal area.

Diagnosis Steps

1. Check for other transmission-related DTCs. A P0700 will almost always be present with P0741.
2. Using a capable scan tool, monitor live data. Observe the TCC Slip Speed when the computer commands TCC lock-up (typically at steady cruising speeds above 45 MPH). If slip is over 200 RPM, the fault is active.
3. Check the transmission fluid level and condition. This requires raising the vehicle and removing the fluid level check plug. If the fluid is low, black, burnt, or full of debris, suspect significant internal wear.
4. Command the TCC solenoid on and off with the scan tool. Listen for a click and watch the TCC slip data. If there's no change, it points towards a faulty solenoid, wiring, or TCM.
5. If the solenoid seems unresponsive, drop the transmission side pan to access the valve body and TCC solenoid.
6. Inspect the wiring to the solenoid for damage. Test the solenoid's resistance with a multimeter (it should be within manufacturer specs, typically low ohms).
7. If the solenoid and wiring test good, the problem is likely the torque converter itself or a worn valve body.
8. If significant metal or clutch material debris is found in the pan, a torque converter failure is highly likely, and a transmission rebuild or replacement may be necessary.

Parts You'll Likely Need

• Torque Converter Clutch (TCC) Solenoid — This is the most common and least expensive component to fail that causes P0741 on the 6T40/6T45 transmission. It is part of the larger valve body assembly but can sometimes be replaced individually.
  Trusted brands: ACDelco, Rostra
  OEM price range: $60-$90
  Aftermarket price range: $35-$60
• Torque Converter (OEM #24211329) — If the internal clutch fails, the entire torque converter must be replaced. This is the second most common, and most expensive, repair for P0741.
  Trusted brands: ACDelco, Dacco, NuTech
  OEM price range: $400-$1200
  Aftermarket price range: $180-$500
• Transmission Electro-Hydraulic Control Module (TEHCM) (OEM #24256523) — This complete unit includes the TCM, valve body, and all solenoids. It is replaced as an assembly if the TCM fails or if multiple solenoids/valve body issues are present. Requires VIN programming.
  Trusted brands: ACDelco (OEM)
  OEM price range: $400-$650
  Aftermarket price range: N/A
• Automatic Transmission Fluid (DEXRON-VI) (OEM #10-9395) — Any repair involving opening the transmission requires fluid replacement. Only DEXRON-VI should be used.
  Trusted brands: ACDelco, Valvoline, Castrol
  OEM price range: $10-$15 per quart
  Aftermarket price range: $7-$12 per quart

Related Codes That Often Appear With This One

• P0700 — P0700 is a generic code that means the Transmission Control Module (TCM) has stored a fault code. It is an informational code that tells you to check for more specific transmission codes, like P0741.
• P0740 — P0740 indicates an electrical circuit malfunction for the TCC solenoid, whereas P0741 indicates a performance problem (slippage). They often appear together if the electrical fault is causing the performance issue.
• P0872 — As seen in NHTSA ODI #11546983, this code can sometimes appear alongside P0741, indicating a transmission fluid pressure sensor issue.

Technical Service Bulletins (TSBs) & Recalls

• TSB 09-07-30-012F: Addresses a broken 3-5-Reverse wave plate in 6T70/75 transmissions, which are related to the 6T40. While it doesn't directly cause P0741, the resulting debris can lead to various hydraulic and solenoid issues.
• Special Coverage 14404B: Extends warranty coverage for the 3-5-R wave plate issue to 10 years/120,000 miles on some 2008-2009 Malibus.
• PI1393B: A GM bulletin for a different transmission (6L80/90) but with relevant diagnostic insight, noting that debonded torque converter clutch friction material is a direct cause of P0741.
• Bulletin #15111: Notes that P0741 may be set in the TCM and suggests that dealers replace the automatic transmission wiring harness if this condition is found.
• Bulletin #PI1447A: Provides diagnostic tips for P0741, suggesting the condition may be caused by a damaged turbine shaft front bushing or damage to the turbine shaft journal area.

Platform-Specific Known Issues

• Owner Experience: Solenoid vs. Converter: Many owners on forums like chevymalibuforum.com report successfully fixing the P0741 code by replacing only the TCC solenoid. However, others report that this fix is temporary, with the code returning weeks or months later, ultimately requiring a torque converter replacement. This suggests that solenoid failure can be a symptom of a larger problem (like debris from a failing converter).

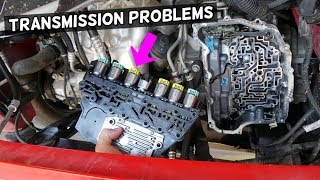

• DIY Repair Story: A YouTube video by 'World Mechanics' demonstrates the location of the TCC solenoid on a similar 6T40 transmission, showing it's next to the main shifter solenoid on the valve body. They confirm it's a common failure point for P0741 and can be replaced by removing the side cover, avoiding a full transmission removal if the converter is not the cause.

Mechanic-Grade Diagnostic Values

• TCC Pressure Control (PC) Solenoid Resistance — expected: 3 to 5 ohms at 70°F (21°C). Failure: A reading outside this range (open circuit or short) indicates a failed solenoid.
• Shift Solenoid Resistance — expected: 16 to 20 ohms at 70°F (21°C). Failure: A reading outside this range indicates a failed shift solenoid, which can sometimes accompany TCC codes.
• TCC Slip Speed (Live Data) — expected: Near 0 RPM when TCC is commanded ON at steady cruise.. Failure: A consistent reading over 200 RPM while lockup is commanded indicates the clutch is slipping and confirms the P0741 fault condition.

Scan Tool Commands That Help

• GM Tech 2 / GDS2: Solenoid Valve State Control / TCC Control — This bidirectional command allows a technician to manually command the TCC solenoid ON and OFF while monitoring TCC Slip Speed. If the slip speed does not change when the solenoid is commanded ON, it confirms a failure in the solenoid, hydraulic circuit, or torque converter.
• GM Tech 2 / GDS2: Service Fast Learn Adapts — This procedure must be performed after replacing the valve body, TEHCM, or rebuilding the transmission. It allows the TCM to relearn the clutch apply pressures and fill times, ensuring smooth shifting. Failure to perform this can lead to harsh shifts or other performance issues.

Wiring & Ground Locations

• G101 — Located at the front of the engine, on the lower block.. This is a primary ground for the Engine Control Module (ECM) and Transmission Control Module (TCM). A poor connection here can cause erratic behavior and communication issues between the modules, potentially leading to incorrect TCC commands or false codes.
• G110 / G114 — Located on the frame rail in the engine compartment, often near the front.. These are major body and engine harness ground points. GM has issued information regarding loose connections at these grounds on various models, which can cause a wide range of electrical issues, including transmission control problems.
• TCM Main Connector — The main 16-pin pass-through connector on the driver's side of the transmission case.. This is the single point of connection for all external wiring to the internal TEHCM. Corrosion or pushed-out pins at this connector can interrupt power, ground, or CAN bus signals to the TCM, directly impacting its ability to control the TCC solenoid.

OEM Part Supersession History

• 24252423, 24253556, 24256254, 24258562, 24260027 → 24256523 (current for Gen 1) — Internal revisions and improvements to the TEHCM (TCM/Solenoid/Valve Body assembly).
  Heads up: The TEHCM part number 24256523 is for the Generation 1 (2008-2011) 6T40/6T45. It is not compatible with Generation 2 (2012+) units. The TEHCM must be programmed with the vehicle's VIN after installation.

Model Year Variations Within This Range

• 2008-2011 vs 2012: GM introduced the 'Gen 2' version of the 6T40 transmission around the 2012 model year. The TEHCM, solenoids, and some valve body components are not interchangeable between Gen 1 and Gen 2. Gen 1 TEHCMs have a barcode where the 8th digit is a number (0-9), while Gen 2 TEHCMs use a letter (A, B, C, D). This is critical when ordering replacement parts like the TEHCM or individual solenoids.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• Electric Power Steering (EPS) Failure 🔴 High — Very common, particularly on 2008-2011 models. Can occur intermittently at first. (Ref: Recall 14V153000 (for some 2008-2009 models) and Special Coverage Adjustment 14329 addressed the torque sensor, but issues persist across the generation.)
• 2.4L Ecotec Timing Chain Tensioner/Guide Failure 🔴 High — Common issue, typically appearing between 70,000 and 120,000 miles. Often preceded by a rattling noise on startup. (Ref: No specific recall, but a well-known engine problem. Failure to address can lead to catastrophic engine damage.)
• 3-5-Reverse Wave Plate Failure (6T70/6T75) 🔴 High — Common on V6 models equipped with the 6T70/75 transmission, typically before 100,000 miles. (Ref: TSB 09-07-30-012F and Special Coverage 14404B were issued. Results in loss of 3rd, 5th, and Reverse gears.)

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: A complete, low-mileage used transmission assembly can be a cost-effective alternative to a full rebuild if the torque converter has failed and sent debris throughout the unit. It is often cheaper than the labor and parts cost of a full teardown and rebuild.

Donor-vehicle mileage cap: roughly under 75000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• Verify the donor vehicle's mileage and check its history for accidents or flood damage.
• Ask the dismantler for a video of the donor car running and driving, if possible.
• Inspect the transmission fluid from the donor unit. It should be reddish and not smell burnt or contain excessive metal.
• Ensure the main electrical connector is not damaged.
• Get a warranty from the salvage yard (typically 30-90 days).

OEM-only on this vehicle (don't cheap out):

• Transmission Electro-Hydraulic Control Module (TEHCM): Aftermarket or improperly remanufactured TEHCMs are a significant source of repeat failures. An OEM ACDelco unit (new or professionally remanufactured) is strongly recommended due to the need for precise calibration and VIN programming.

Aftermarket brands forum-validated for this vehicle:

• Sonnax: For valve body repair kits (oversized valves, Zip Kits) to address known wear issues that cause hydraulic leaks.
• Rostra: For individual replacement solenoids.
• Dacco / NuTech: For remanufactured torque converters.

Brands owners have reported issues with on this vehicle:

• Unbranded, no-name TEHCMs or solenoids from online marketplaces are very high-risk. These often use low-quality components and may not be properly calibrated, leading to immediate or premature failure.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P0700 — A general transmission control system malfunction code that will almost always be present alongside P0741.

Frequently Asked Questions
