P0741 on 2017-2018 Ford F-150: Torque Converter and Valve Body Issues

What's Unique About the 2017-2018 Ford F-150

For the 2017-2018 F-150, particularly those with the 10R80 10-speed automatic transmission co-developed with GM, this code is strongly linked to a known mechanical issue. Ford issued a Technical Service Bulletin (TSB 20-2117) for trucks built on or before November 20, 2017, identifying a sticking Torque Converter Clutch (TCC) valve within the main control valve body as the primary culprit. This makes the 🎬 Watch: A mechanic explains the TSB and valve body issues. problem less of a diagnostic mystery and more of a known pattern failure on this specific platform and its mates like the Mustang and Expedition.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Check Engine Light is on
• Service wrench light may be illuminated
• Transmission may feel like it's slipping or shuddering at highway speeds
• Engine droning or lugging, especially when going uphill in higher gears
• Reduced fuel economy
• Engine RPMs are higher than normal at cruising speeds
• Harsh, delayed, or erratic shifting
• Transmission overheating warning light may illuminate
• Engine/cooling fans run at high speed when the code is active

Most Likely Causes

1. Sticking TCC Valve in Main Control Valve Body 🔴 High Probability → Shop Transmission Valve Body A known issue documented by Ford in TSB 20-2117 for F-150s with the 10R80 transmission built on or before November 20, 2017. The valve responsible for actuating the TCC is prone to sticking inside its bore.
   How to confirm: Check the vehicle's build date. If it's on or before 11/20/2017 and codes P0741 and P1744 are present together, this is the most likely cause. A professional diagnosis would confirm.
   Typical fix: Replace the entire main control valve body assembly. After installation, the adaptive transmission shift strategy must be reset.
   Est. part cost: $700-$900
2. Failed Torque Converter 🟡 Medium Probability → Shop Automatic Transmission Torque Converter The torque converter itself can fail internally, with clutches sticking or failing to engage, preventing lock-up. This was the diagnosis in an owner complaint for a 2017 model. [OWNER COMPLAINT ODI #11514302] This can also happen if debris from a failing valve body contaminates the converter.
   How to confirm: Requires advanced diagnostics, often after ruling out the valve body. A technician may monitor TCC slip data with a scan tool. If the valve body and solenoid are confirmed good, the converter is the likely suspect.

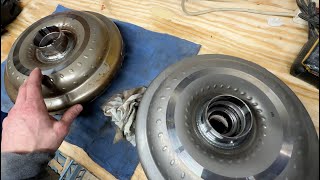

   Typical fix: Replace the torque converter, which requires removing the transmission from the vehicle. 🎬 Watch: Part 1 of a DIY torque converter replacement guide. One owner was quoted $2,900 by a Ford dealer for this repair.
   Est. part cost: $400-$800
3. Low or Dirty Transmission Fluid ⚪ Low Probability → Shop Transmission Assembly While a possible cause for any automatic transmission, it's less likely to be the primary cause on this specific truck given the known TSB. However, fluid that is low, burnt, or contaminated with debris can cause hydraulic components like the TCC valve to malfunction.

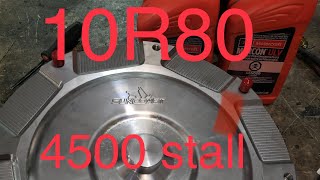

   How to confirm: Check the transmission fluid level and condition. The 10R80 transmission does not have a traditional dipstick, so this must be done by a technician 🎬 See how to properly check the 10R80 transmission fluid level. from under the vehicle.
   Typical fix: Perform a transmission fluid and filter change using the correct MERCON ULV fluid. This is often attempted first but rarely solves the P0741 issue if the valve body is the root cause.
   Est. part cost: $150-$250

Rare But Worth Checking

• Faulty TCC Solenoid: → Shop Transmission Valve Body While the solenoid can fail, the TSB for this F-150 points to the mechanical valve in the valve body being the more common issue. On other vehicles, the solenoid itself is a more frequent cause. One Mustang owner with the 10R80 replaced only the TCC solenoid for codes P0741/P1744, and it did not fix the problem.
• Wiring Harness Issue: Damage to the wiring leading to or inside the transmission can cause a loss of signal to the TCC solenoid, but this is less common than the mechanical valve body failure. A poor connection at the transmission's main electrical connector could also be a cause.

Diagnosis Steps

1. Check for other Diagnostic Trouble Codes (DTCs), paying close attention to P1744.
2. Verify the vehicle's build date. If it was built on or before November 20, 2017, and has both P0741 and P1744, TSB 20-2117 strongly suggests replacing the valve body.
3. If the TSB does not apply, have a professional check the transmission fluid level and condition. This requires lifting the vehicle.
4. Using an advanced scan tool, monitor the live data for Torque Converter Clutch (TCC) slip RPM. A high slip value when lock-up is commanded indicates a problem.
5. Inspect the transmission wiring harness and main connector for any visible damage, corrosion, or fluid intrusion.
6. If other steps are inconclusive, diagnosis will proceed to testing components within the transmission, such as the valve body and torque converter. This may involve hydraulic pressure tests.

Parts You'll Likely Need

• Main Control Valve Body Assembly (OEM #HL3Z-7A100-B (for 2017 F-150), JL3Z-7A100-C (for 2018 F-150 Column Shift)) — This is the specific part identified by Ford in TSB 20-2117 as the fix for P0741/P1744 on 2017-2018 F-150s with the 10R80 transmission.
  Trusted brands: Motorcraft
  OEM price range: $700-$900
  Aftermarket price range: N/A
• Torque Converter — If the valve body is not the cause, or if it failed and sent debris through the system, the torque converter itself may have failed internally.
  Trusted brands: Motorcraft, Brute Power
  OEM price range: $500-$800
  Aftermarket price range: $300-$500
• Automatic Transmission Fluid (MERCON ULV) (OEM #XT-12-QULV) — This specific fluid is required when replacing the valve body or servicing the 10R80 transmission. Using the wrong fluid can cause severe damage.
  Trusted brands: Motorcraft
  OEM price range: $10-$15 per quart
  Aftermarket price range: $8-$12 per quart

Related Codes That Often Appear With This One

• P1744 — This Ford-specific code for 'Torque Converter Clutch System Performance' is explicitly mentioned alongside P0741 in TSB 20-2117. When they appear together, it strongly indicates the valve body issue.

Technical Service Bulletins (TSBs) & Recalls

• TSB 20-2117: Supersedes TSB 18-2160. Addresses DTCs P0741 and P1744 on 10R80 transmissions due to a sticking TCC valve in the main control valve body for vehicles built on or before 20-Nov-2017.
• TSB 18-2160: The original bulletin for this issue, later updated by 20-2117 with a revised parts list.

Platform-Specific Known Issues

• A Technical Service Bulletin (TSB 20-2117, superseding 18-2160) was issued for 2017-2018 F-150s with the 10R80 transmission built on or before November 20, 2017. It states that codes P0741 and P1744 may be caused by a sticking torque converter clutch (TCC) valve in the main control valve body.
• After replacing the valve body, the TSB notes that the vehicle's computer must undergo a relearning process for the adaptive transmission shift strategy, which may result in firmer than normal shifts for several days.

Mechanic-Grade Diagnostic Values

• Resistance of all solenoids in the 10R80 main control valve body, including the TCC solenoid. — expected: 5.0 - 5.4 ohms at 20°C (68°F).. Failure: A reading outside of this range indicates a faulty solenoid coil.
• TCC Solenoid Current (Variable Force Solenoid) — expected: Proportional operation: Low current (approx. 50 mA) results in low pressure; high current (approx. 850 mA) results in high pressure.. Failure: Current that does not respond to commands from the TCM, or a duty cycle stuck at 0% on a scan tool when lock-up is commanded.

Scan Tool Commands That Help

• Ford IDS (Integrated Diagnostic System): Reset TCM KAM (Keep Alive Memory) — This is a critical step after replacing the valve body or torque converter. It must be performed to clear the old adaptive data before starting the relearn process. It is found under Toolbox > Powertrain > TCM > Reset KAM.
• FORScan: Clear Transmission Adaptive Tables — Used after a repair like a valve body replacement to erase the learned shift parameters. This function is located in the 'Service Functions' menu for the TCM.
• Ford IDS or equivalent scan tool: Adaptive Learning Drive Cycle — After clearing the adaptive tables, a specific drive cycle must be performed to allow the TCM to relearn shift pressures and timing. This involves a series of gentle accelerations, braking, and gear changes.

Wiring & Ground Locations

• PCM Grounds — Located on the firewall of the engine bay.. A poor ground for the Powertrain Control Module (PCM) can cause erratic sensor readings and incorrect command signals to the transmission, potentially mimicking internal transmission faults.
• Main Battery Ground — Located in the engine bay, just in front of the washer fluid reservoir.. The primary ground for the entire vehicle's electrical system. Corrosion here can cause widespread issues, including powertrain communication problems.
• Body to Frame Ground — Under the vehicle, connecting the truck body to the frame. One is often found under the driver's door area.. These grounds are susceptible to corrosion and can break, leading to communication and module errors. A bad ground was found to be the cause of a no-start and other electrical issues on F-150s.
• C175T — This is one of the main connectors at the Powertrain Control Module (PCM).. Pin 10 (BN-WH wire) is the control for Shift Solenoid D, and Pin 11 (VT-GY wire) is for Shift Solenoid E. While not the TCC solenoid directly, issues at this connector can point to broader transmission control problems.

Real Owner Repair Stories

• f150forum.com user 'zhuxx355' (2016 Ford F-150 (6-speed, but analogous P0741 issue)) — Check Engine Light with code P0741, occurring on the freeway on an incline. Also engine droning and lugging uphill.
  ❌ Tried (didn't work) A transmission fluid flush performed by the dealer did not fix the problem; the code returned two days later.
  ✅ What actually fixed it The final diagnosis was a bad valve body. An independent shop replaced the valve body, which resolved the issue.

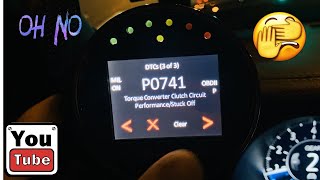

• YouTube user 'Jonny's Garage' (2018 Ford Mustang GT (10R80 Transmission)) — Car started to buck, skip gears, and threw a service wrench and check engine light with codes P0741 and P1744.
  ❌ Tried (didn't work) The user did not report trying other fixes first, as their research pointed directly to the TSB.
  ✅ What actually fixed it The owner ordered and planned to replace the main control valve body, citing the TSB as the reason, even though their vehicle's build date was just outside the TSB's range (Jan 2018 vs. pre-Nov 2017 cutoff). This indicates the problem can still occur on later models.

OEM Part Supersession History

• HL3Z-7A100-A → HL3Z-7A100-B — Part revision or update by the manufacturer. TSB 18-2160 and TSB 20-2117 both specify the -B or later revisions.
  Heads up: The -A version was likely the original part prone to the sticking valve issue and should not be used as a replacement.

Model Year Variations Within This Range

• 2017 vs 2018: The part number for the main control valve body is different. 2017 F-150s use part number HL3Z-7A100-B, while 2018 F-150s with a column shifter use JL3Z-7A100-C. This is critical for ordering the correct replacement part.
• On or before Nov 20, 2017: Vehicles built on or before this date are specifically covered by TSB 20-2117 for the P0741/P1744 codes caused by a sticking TCC valve in the main control body. Vehicles built after this date may have received an updated valve body from the factory, though failures are still possible.
