P0751 on 2001-2005 Chevrolet Silverado: Shift Solenoid 'A' Causes and Fixes

What's Unique About the 2001-2005 Chevrolet SILVERADO

The 2001-2005 Silverado (GMT800 platform) primarily uses the 4L60-E or 4L80-E automatic transmission. Unlike later GM trucks (post-2009) that have all solenoids integrated into a single, expensive control module (TEHCM), these transmissions use individual, accessible solenoids. This makes fixing a P0751 code much more affordable and straightforward, as you can replace just the single faulty solenoid without needing to program a new module.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Transmission is stuck in one gear (limp mode), often 2nd or 3rd.
• Harsh, delayed, or failed shifts, particularly the 1-2 shift.
• Vehicle feels like it has no power or is slipping from a stop.
• Illuminated Check Engine Light.
• Transmission overheating.
• Whining noise from the transmission, as noted by some owners.

Most Likely Causes

1. Failed 1-2 Shift Solenoid 'A' 🔴 High Probability → Shop Transmission Valve Body The solenoids operate under high heat and pressure and can fail mechanically (valve sticks from debris) or electrically (coil burns out) over many shift cycles.
   How to confirm: After dropping the transmission pan, test the solenoid's resistance with a multimeter. For a 4L60-E/4L80-E, it should be 20-30 ohms, with many healthy solenoids testing between 20-25 ohms. An open circuit (infinite resistance) or short (near-zero) confirms failure. You can also apply a 9V or 12V source to the solenoid; a healthy one will make an audible 'click'.
   Typical fix: Replace the 1-2 Shift Solenoid ('A'). It is highly recommended to also replace the 2-3 Shift Solenoid ('B') at the same time, as they are an identical part (ACDelco P/N 24230298) with the same service life and are located next to each other.
   Est. part cost: $25-$50 per solenoid
2. Low, Dirty, or Burnt Transmission Fluid 🟡 Medium Probability → Shop Transmission Assembly Over time, transmission fluid breaks down and becomes contaminated with clutch material and metal shavings. This debris can clog the small passages in the solenoid, causing it to stick.
   How to confirm: Check the transmission fluid dipstick. The fluid should be pink/red and not smell burnt. Dark, brown, or gritty fluid indicates it is contaminated and needs to be changed.
   Typical fix: Perform a transmission fluid and filter change. If the solenoid is already sticking, a fluid change alone may not be enough to fix it permanently, as noted by owners who had the code return after only a fluid service.
   Est. part cost: $50-$100 for fluid and a new filter
3. Clogged Transmission Filter ⚪ Low Probability → Shop Transmission Assembly If the transmission has internal wear, the filter can become saturated with debris, restricting fluid flow and starving the solenoids of the pressure needed to operate. This is especially true if a shallow pan filter is mistakenly used in a deep pan transmission.
   How to confirm: This is usually discovered during a fluid change or solenoid replacement. A filter clogged with excessive metal shavings points to a more serious internal transmission problem.
   Typical fix: Replace the transmission filter. This is always done when replacing the fluid or solenoids. Ensure the correct filter for your specific pan depth (deep vs. shallow) is used.
   Est. part cost: $15-$30
4. Wiring or Connector Issues ⚪ Low Probability The internal transmission wiring harness lives in a harsh environment of hot fluid and can become brittle or damaged over time, causing intermittent shorts or open circuits. The main external connector can also corrode.
   How to confirm: Visually inspect the main transmission connector for corrosion or pushed-out pins. Inspect the internal harness for broken wires or damage when the pan is removed.
   Typical fix: Repair the damaged section of the wiring harness or clean/replace the corroded connector. In some cases, the entire internal harness must be replaced to solve the issue permanently.
   Est. part cost: $20-$100

Rare But Worth Checking

• Faulty Powertrain Control Module (PCM): This is very rare. The PCM is the last thing to suspect after all other possibilities, including solenoids and wiring, have been thoroughly checked.
• Sticking Valve in Valve Body: → Shop Transmission Valve Body Debris in the fluid can cause a shift valve within the valve body (separate from the solenoid itself) to stick. This is less common than a solenoid failure but can produce the same code. In this case, the valve body may need to be removed for cleaning or replacement.

Diagnosis Steps

1. Check the transmission fluid level and condition using the dipstick. Top off if low or note if the fluid is dark, gritty, or smells burnt.
2. Scan for other transmission-related codes to see if P0751 appears with others like P0756 or P0753.
3. Safely raise the vehicle and support it on jack stands.
4. Drain the transmission fluid by loosening the pan bolts.
5. Remove the transmission pan and the filter. Inspect the pan magnet for excessive metal shavings.

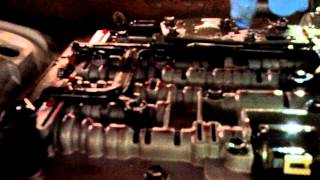

6. Locate the 1-2 Shift Solenoid ('A'). It is typically the forward-most of the two identical solenoids near the manual valve in the 4L60-E.
7. Disconnect the solenoid and test its resistance with a multimeter. It should read between 20 and 30 ohms. A reading outside this range indicates a bad solenoid.
8. If you have a 9V or 12V power source, you can apply it to the solenoid's terminals. A healthy solenoid will produce a distinct 'click'. No click means it's stuck or failed.
9. It is highly recommended to replace the adjacent 2-3 Shift Solenoid ('B') at the same time. They are the same part number.
10. Install the new solenoid(s), a new transmission filter (ensuring the old filter neck seal is removed and the new one is installed), and a new pan gasket.
11. Reinstall the pan, torque the bolts to specification (typically 8-10 ft-lbs for the 4L60-E), and refill with the correct type and amount of transmission fluid (DEXRON-III/VI depending on the exact year/model).
12. Clear the codes with a scanner and test drive to ensure normal shifting.

Parts You'll Likely Need

• 1-2 Shift Solenoid ('A') (OEM #24230298) — This is the component directly identified by the P0751 code and is the most common point of failure.
  Trusted brands: ACDelco, Delphi, Bosch
  OEM price range: $30-$50
  Aftermarket price range: $20-$40
• 2-3 Shift Solenoid ('B') (OEM #24230298) — This is an identical part to the 'A' solenoid, located next to it. It is highly recommended to replace both at the same time to prevent a similar failure in the near future.
  Trusted brands: ACDelco, Delphi, Bosch
  OEM price range: $30-$50
  Aftermarket price range: $20-$40
• Automatic Transmission Filter Kit (Filter and Gasket) (OEM #24208576 (Typical for 4L60E deep pan)) — The filter and pan gasket must be replaced any time the transmission pan is removed for service. Ensure you get the correct kit for your truck's specific pan (deep or shallow).
  Trusted brands: ACDelco, Wix, ATP
  OEM price range: $25-$40
  Aftermarket price range: $15-$30
• DEXRON-VI Transmission Fluid — A pan drop requires replacing several quarts of fluid. DEXRON-VI is the backward-compatible and recommended fluid for all 4L60-E transmissions.
  Trusted brands: ACDelco, Valvoline, Castrol
  OEM price range: $8-$12 per quart
  Aftermarket price range: $6-$10 per quart

Related Codes That Often Appear With This One

• P0700 — This is a generic code indicating the Transmission Control Module (TCM) has stored a fault. It almost always appears alongside any specific transmission code like P0751.
• P0756 — This code is for 'Shift Solenoid 'B' Performance/Stuck Off'. Since the 'A' and 'B' solenoids are identical and wear at similar rates, it's common for them to fail around the same time.
• P0753 — This code indicates an electrical fault in the Shift Solenoid 'A' circuit. Seeing P0751 and P0753 together strongly points to a failed solenoid coil or a wiring problem.

Technical Service Bulletins (TSBs) & Recalls

• PIP4379K: Mentions P0751 as a potential DTC for 2001 models experiencing issues like delayed or no reverse engagement, confirming it is a known issue pattern for this platform. The TSB covers a wide range of codes related to hydraulic/pressure issues.

Platform-Specific Known Issues

• Owner Experience: Fluid Change Not a Permanent Fix: A Reddit user with a similar 4L60-E transmission reported that multiple fluid changes only temporarily resolved the P0751 code, which returned after about 1,000 miles. This highlights that once a solenoid begins to stick mechanically, fresh fluid alone is often not enough to restore long-term function.
• Forum Discussion: Whining Noise and Hesitation: On ChevroletForum.com, a 2000 Silverado owner with P0751 described a whining noise accompanying the shifting problems. The community advised that while the noise could be related, the primary fix should still be replacing both shift solenoids during a fluid and filter service. URL: https://chevroletforum.com/forum/silverado-sierra-fullsize-pick-ups-21/shifting-problem-w-p0751-code-42935/
• Real-World Repair: Internal Harness Failure: In one documented case, after replacing the shift solenoids did not fix the P0751 code, the actual cause was found to be a brittle, failing internal transmission wiring harness causing an intermittent short. This is a key next diagnostic step if new solenoids don't resolve the issue.

Mechanic-Grade Diagnostic Values

• 1-2 Shift Solenoid ('A') Resistance — expected: 20-30 Ohms (a tighter, healthier range is often cited as 20-25 Ohms). Failure: A reading of 0 Ohms (short) or infinite/OL (open circuit).
• Shift Solenoid 'A' Status (Live Data PID) — expected: Should toggle between 'On' and 'Off' as the transmission is commanded through gears (e.g., 'On' for 1st gear, 'Off' for 2nd).. Failure: The status remains 'Off' when the PCM commands a shift that requires the solenoid to be on.
• Solenoid 'A' Voltage at PCM/TCM Connector — expected: Should show close to battery voltage (approx. 12V) with the key on. When commanded on by a scan tool, the voltage should drop to near zero.. Failure: No voltage when there should be, or voltage does not drop when the solenoid is commanded on, indicating a wiring or PCM driver issue.

Scan Tool Commands That Help

• Tech 2 / High-End Bidirectional Scanner: Solenoid Activation Test / Output Control — This command allows a technician to manually energize and de-energize Shift Solenoid 'A' while the vehicle is stationary. It's used to confirm if the solenoid 'clicks' audibly and to observe corresponding pressure changes on a live data stream, directly testing the solenoid and its circuit without a test drive.

Wiring & Ground Locations

• Main Transmission Case Connector (20-pin) — On the passenger side of the transmission case, passing through to the internal harness.. This is the primary connection for all solenoids. Pin 'A' is for the 1-2 Shift Solenoid ('A') control (ground signal from PCM), and Pin 'E' is the 12V+ power feed for all shift solenoids. A poor connection at these specific pins can cause P0751.
• PCM/TCM Grounds (e.g., G103, G104) — Typically located on the engine block or frame near the front of the engine on the driver's side.. A poor ground connection for the Powertrain Control Module can cause erratic behavior and incorrect voltage readings for all sensors and actuators it controls, including the transmission solenoids.

Real Owner Repair Stories

• Reddit user in /r/Cartalk (1998 Chevy Silverado with 4L60E (65,000 miles)) — Intermittent P0751 code.
  ❌ Tried (didn't work) Initial diagnosis suggested replacing the solenoid.
  ✅ What actually fixed it The owner performed three consecutive transmission fluid and filter changes. This resolved the code for at least 1,000 miles, indicating that fine debris or sludge in the old fluid was causing the solenoid to stick intermittently, rather than it being an electrical or hard mechanical failure.

OEM Part Supersession History

• Varies by early production year → 24230298 — Consolidation of part numbers and potential internal improvements over the years.
  Heads up: ACDelco P/N 24230298 is the widely accepted service replacement for both the 1-2 ('A') and 2-3 ('B') shift solenoids for the entire 1993-2005+ 4L60-E range, ensuring compatibility.

Model Year Variations Within This Range

• 2005 (late production): Some late 2005 model year 4L60-E transmissions introduced an Input Shaft Speed (ISS) sensor located in the pump assembly. While the shift solenoids and P0751 diagnosis remain the same, swapping a non-ISS transmission (pre-2005) into a truck that requires one will cause shifting problems and additional codes. Conversely, installing a later ISS-equipped transmission into an older truck is generally fine, as the extra sensor is simply ignored by the older PCM.
• 2001-2005: The case design for the 4L60-E changed around the year 2000 to feature a deeper bellhousing to accommodate a larger 300mm torque converter for V8 applications. This does not affect the P0751 diagnosis but is a critical factor when swapping entire transmission assemblies.
