P0751 on 2008-2023 Dodge Challenger: Shift Solenoid 'A' Performance Fixes

What's Unique About the 2008-2023 Dodge Challenger

The 2008-2023 Dodge Challenger spans two different primary automatic transmissions. Early models (approx. 2008-2014) often used the Mercedes-designed 5-speed NAG1 (W5A580) transmission. On these, the shift solenoids are part of a replaceable conductor plate/solenoid pack. Later models (approx. 2015-2023) use the more advanced ZF 8-speed (like the 8HP70), where the solenoids are integrated into the valve body, often called a mechatronic unit. While the P0751 code means the same thing for both, the specific parts and repair complexity differ significantly between the two generations. For the NAG1, the conductor plate is a very common failure point, whereas for the ZF 8-speed, the entire valve body assembly is typically replaced.

Generation note: The 2008-2023 range covers two main automatic transmissions: - 2008-2014 (approx.): Primarily equipped with the 5-speed NAG1 (W5A580) automatic transmission. The fix often involves replacing the solenoid pack/conductor plate. - 2015-2023 (approx.): Equipped with the 8-speed ZF 8HP series automatic transmission. The solenoids are part of the mechatronic (valve body) unit, which is typically replaced as a whole assembly.

Symptoms You May Notice

• Check Engine Light is illuminated
• Transmission is stuck in one gear (limp mode)
• Harsh, delayed, or erratic shifting
• Transmission slipping (engine revs but car doesn't accelerate properly)
• Transmission overheating
• Reduced fuel economy
• Inability to shift into certain gears

Most Likely Causes

1. Low or Dirty Transmission Fluid 🔴 High Probability → Shop Transmission Assembly Many of these transmissions are marketed as 'filled for life,' which can discourage owners from performing regular fluid services. Over time, transmission fluid degrades and collects clutch material and metal shavings. This contaminated fluid can clog the small passages within the shift solenoids, causing them to stick.
   How to confirm: Check the transmission fluid level and condition. The NAG1 transmission does not have a dipstick and requires a special tool (like Dorman 917-327) to check the level. The ZF 8-speed has a specific procedure involving getting the fluid to a certain temperature. If the fluid is dark, has a burnt smell, or is below the recommended level, this is a likely cause.
   Typical fix: Perform a transmission fluid and filter change. This is often the first and most cost-effective step.
   Est. part cost: $75-$150 for fluid and filter kit
2. Failed Shift Solenoid / Solenoid Pack 🟡 Medium Probability → Shop Transmission Valve Body On the 5-speed NAG1 transmission, the entire solenoid pack (also called a conductor plate) is a common failure point after 100,000 miles due to heat and vibration causing electrical faults within its thin plastic circuitry. On the 8-speed ZF, individual solenoids are less likely to fail than the integrated control unit within the mechatronic assembly.
   How to confirm: After confirming fluid is good, a mechanic can test the solenoid's electrical resistance with a multimeter or use a high-end scan tool to command the solenoid and watch for a response.
   Typical fix: For 5-speed models, replace the entire transmission solenoid pack/conductor plate. 🎬 Watch: Step-by-step NAG1 conductor plate replacement guide For 8-speed models, the entire valve body/mechatronic unit is typically replaced. 🎬 Watch: How to swap an 8HP70 valve body
   Est. part cost: $200-$450 for a 5-speed solenoid pack; $800-$1500+ for an 8-speed mechatronic unit.
3. Clogged Transmission Filter 🟡 Medium Probability → Shop Transmission Assembly The filter is designed to trap debris. If it becomes clogged, it restricts fluid flow, starving the solenoids of the hydraulic pressure needed to operate correctly. This is especially true if previous fluid services have been neglected.
   How to confirm: This is typically discovered during a fluid change. A filter clogged with excessive metallic debris points to more serious internal transmission wear.
   Typical fix: Replace the transmission filter and fluid. This is standard procedure when dropping the transmission pan.
   Est. part cost: $20-$50 (usually part of a kit)

Rare But Worth Checking

• Damaged Wiring or Connectors: The wiring harness leading to the transmission can be damaged by road debris or heat, causing a poor connection to the solenoid. On the NAG1 (5-speed), the 13-pin electrical connector's O-ring is a known failure point, allowing fluid to leak and wick up the harness, 🎬 See: How to identify and fix the NAG1 plug leak potentially shorting connections. Always inspect the external connector at the transmission for corrosion or fluid intrusion before dropping the pan.
• Faulty Transmission Control Module (TCM): → Shop Transmission Assembly While rare, the TCM itself can fail, preventing it from sending the correct signal to the solenoid. This should only be considered after all other possibilities (fluid, solenoid, wiring) have been thoroughly ruled out by a professional.

Diagnosis Steps

1. Check the transmission fluid level and condition. This is the most crucial first step. If low, top it off and check for leaks. If dark or burnt-smelling, a fluid and filter change is the first repair attempt.
2. Use a scanner to check for other transmission-related codes. Note if codes for other solenoids are present.
3. Visually inspect the transmission's main electrical connector for damage, corrosion, or fluid intrusion. For the 5-speed NAG1, this 13-pin connector is a common leak point.
4. If the fluid and wiring are okay, the next step is to drop the transmission pan.
5. Inspect the pan magnet for excessive metal shavings. A fine metallic paste is normal, but large chunks indicate a serious internal problem requiring a rebuild.
6. With access to the valve body, a technician can test the resistance of Shift Solenoid 'A' with a multimeter to confirm if it's electrically faulty.
7. If the solenoid tests bad, replace the solenoid pack/conductor plate (5-speed) or mechatronic unit (8-speed).
8. If the solenoid tests good, the issue may be a blockage within the valve body itself, requiring a replacement of the unit.

Parts You'll Likely Need

• Transmission Solenoid Pack / Conductor Plate (5-Speed NAG1) (OEM #52108308AC) — This is the most common hardware failure for the P0751 code on 2008-2014 models with the 5-speed automatic transmission. It contains the electrical circuits for the solenoids.
  Trusted brands: Mopar, Dorman, Standard Motor Products, SKP
  OEM price range: $350-$500
  Aftermarket price range: $130-$325

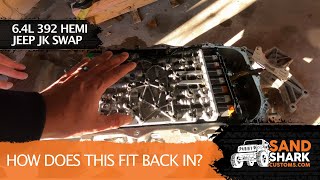

• Mechatronic Unit / Valve Body (8-Speed ZF) — For 2015+ models with the 8-speed transmission, the solenoids are integrated into this unit, which is replaced as an assembly. Part numbers are often VIN-specific.
  Trusted brands: Mopar, ZF
  OEM price range: $1000-$1800
  Aftermarket price range: $800-$1200
• Automatic Transmission Fluid and Filter Kit — This is required for any repair that involves opening the transmission pan. It is also the first step in diagnosis, as dirty fluid is a primary cause of the code. Ensure correct fluid is used: ATF+4 for the 5-speed NAG1, and Mopar 8&9 Speed ATF or ZF Lifeguard 8 for the 8-speed.
  Trusted brands: Mopar, Pentosin, Liqui Moly, Vaico
  OEM price range: $120-$200
  Aftermarket price range: $75-$150

Related Codes That Often Appear With This One

• P0700 — P0700 is a generic code that simply means the Transmission Control Module (TCM) has stored a fault code. It acts as a 'check engine light' for the transmission and will almost always appear alongside a specific code like P0751.
• P0756 — This code indicates a performance issue with Shift Solenoid 'B'. Seeing codes for multiple solenoids together strongly suggests a systemic issue like contaminated fluid or low system pressure affecting the entire valve body, rather than just one faulty solenoid.

Technical Service Bulletins (TSBs) & Recalls

• TSB 21-012-23 (NHTSA ID 10236949): Involves a software flash for the Transmission Control Module (TCM) to address potential MIL illumination for various DTCs. While not specific to P0751, it's worth checking if a vehicle's software is up to date before performing major repairs.

Platform-Specific Known Issues

• NAG1 Conductor Plate Failures: On the earlier 5-speed (W5A580/NAG1) transmissions, the conductor plate is a well-documented, high-failure item. Owners on forums like ChallengerTalk and LXForums frequently report P0751 and other solenoid codes that are ultimately traced back to a cracked or faulty conductor plate, rather than an individual solenoid. The repair almost always involves replacing this entire electronic plate which houses the speed sensors and provides the electrical connections for the solenoids.

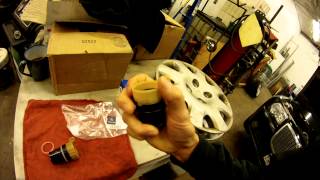

• Leaking 13-Pin Connector (NAG1): A very common issue on the 5-speed NAG1 is the failure of the O-rings on the 13-pin electrical connector at the transmission case. This allows transmission fluid to leak out and, more critically, wick up the wiring harness into the Transmission Control Module (TCM). This fluid contamination can cause short circuits and a wide range of erratic transmission behavior, including setting solenoid codes like P0751. It is standard practice to replace this connector sleeve whenever the conductor plate is serviced.

Mechanic-Grade Diagnostic Values

• Shift Solenoid Resistance (5-Speed NAG1/W5A580) — expected: 12-28 Ohms for on/off shift solenoids.. Failure: A reading of 0 ohms indicates a short, while an infinite (OL) reading indicates an open circuit in the solenoid coil.
• Shift Solenoid Resistance (8-Speed ZF 8HP series) — expected: Approximately 5.0 Ohms at 68°F (20°C) for EPRS (Electronic Pressure Regulating Solenoids).. Failure: A significant deviation from the 5.0 Ohm specification suggests a faulty solenoid coil.
• Solenoid Supply Voltage at TCM (5-Speed NAG1) — expected: Between 4.8 to 7.2 volts.. Failure: Voltage reading outside of this range can set a DTC and indicates a potential issue with the TCM or the supply circuit.

Scan Tool Commands That Help

• wiTECH (or equivalent professional scanner): Active Test / Solenoid Actuation — This function allows a technician to command Shift Solenoid 'A' on and off while the vehicle is stationary. If the solenoid clicks and can be heard operating, it suggests the electrical circuit and solenoid coil are likely functional, pointing the diagnosis towards a hydraulic or mechanical issue (like a blockage or stuck valve).
• wiTECH (or equivalent professional scanner): Reset Adaptives / Quick Learn — After replacing a conductor plate, valve body, or solenoids, the TCM's learned shift adaptations must be cleared. This forces the TCM to relearn the clutch fill times and pressure characteristics with the new components, which is critical for smooth shifting and preventing future codes.

Wiring & Ground Locations

• 13-Pin Transmission Connector (NAG1) — On the front right side of the 5-speed NAG1 transmission case.. This is the main electrical connection to the conductor plate and solenoids. Its O-rings are a notorious failure point, allowing fluid to leak and travel up the wiring harness to the TCM, causing short circuits that can trigger P0751 and other transmission codes. Inspection for fluid contamination here is a critical early diagnostic step.

Real Owner Repair Stories

• Forum user reports (2009 Dodge Challenger with NAG1 5-speed transmission) — Car went into limp mode, stuck in second gear, especially when hot.
  ❌ Tried (didn't work) Initial fluid and filter change did not resolve the issue permanently.
  ✅ What actually fixed it Replacing the transmission conductor plate and the 13-pin connector sleeve resolved the limp mode and shifting problems.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• HEMI Tick (Camshaft/Lifter Failure) 🔴 High — Common, especially on 5.7L and 6.4L HEMI engines, often appearing after 80,000 miles. A persistent ticking noise when the engine is warm is a key symptom.
• Uconnect Screen Delamination 🟠 Medium — Widespread on vehicles with the 8.4-inch Uconnect screen (approx. 2017+). The screen bubbles and separates, causing 'ghost touches' and loss of functionality.
• Active Exhaust Valve Failure/Rattle 🟡 Low — Common on V8 models (2015+). The actuator motor or internal spring can fail, causing a rattle from the exhaust tips or setting codes like P1217 or U1140.
• Broken Exhaust Manifold Bolts 🟠 Medium — Very common on HEMI engines. The bolts, especially on the passenger side, snap due to heat cycles, causing an exhaust leak that sounds like a tick when the engine is cold.
• Totally Integrated Power Module (TIPM) Failure 🔴 High — More common on earlier models (approx. 2008-2014). Can cause a wide range of bizarre electrical issues, from fuel pump problems to random horn activation and no-start conditions.

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: For this specific repair, using a used electronic component like a conductor plate or mechatronic unit is strongly discouraged. The failure rate of these parts is high due to heat and vibration, and a used part has an unknown history and may fail shortly after installation.

What to inspect on the donor part:

• Not applicable, as used electronic transmission components are not recommended.

OEM-only on this vehicle (don't cheap out):

• Mechatronic Unit / Valve Body (8-Speed ZF): While aftermarket units exist, the OEM ZF or Mopar part is recommended for best compatibility and to avoid potential software and programming issues.

Aftermarket brands forum-validated for this vehicle:

• Conductor Plate (5-Speed NAG1): Dorman and Standard Motor Products (Standard Ignition) are well-regarded aftermarket brands that offer reliable replacements, sometimes with design improvements over the original.

Brands owners have reported issues with on this vehicle:

• Unbranded or 'white-box' conductor plates have mixed reviews, with some owners reporting premature failures. It is generally better to stick with a reputable brand with a warranty.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P0700 — A general transmission control system malfunction code that often accompanies specific solenoid codes like P0751.
• P0752 — Another shift solenoid performance code that may trigger if contaminated fluid or a faulty conductor plate affects multiple solenoid circuits.
• U0101 — Lost Communication with TCM; can occur if transmission fluid wicks through the 13-pin connector into the control module.
• P1731 — Incorrect Gear Ratio; often seen alongside P0751 when the transmission is slipping or unable to engage the commanded gear due to solenoid failure.

Frequently Asked Questions
