P0751 on 2009-2014 Ford E-250: Shift Solenoid 'A' Causes and Fixes

What's Unique About the 2009-2014 Ford E-250

For this specific vehicle range with the TorqShift® 5R110W automatic transmission, P0751 is rarely a simple electrical or solenoid issue. Ford has issued a specific Technical Service Bulletin (TSB 16-0057) that directly links this code (along with P0730 and P2700) to a mechanical failure deep inside the transmission. The problem is a faulty coast clutch cylinder and the coast one-way clutch (OWC), which is a mechanical diode. The weld on the coast clutch cylinder can fail, causing it to separate and preventing the transmission from transmitting torque. Failure of these parts prevents the transmission from holding the gear commanded by the PCM, which sets the P0751 code as a symptom of the mechanical failure. This means that unlike on many other vehicles, replacing the external solenoid or valve body is unlikely to fix the root cause.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Malfunction Indicator Lamp (MIL) or Check Engine Light is on
• Transmission gets stuck in one gear (limp mode)
• Harsh, erratic, or delayed gear shifts
• Transmission slipping between gears
• Failure to shift into or loss of specific gears (e.g., no first gear)
• Reduced fuel economy
• Transmission overheating
• Vehicle may not move when a gear is selected
• A 'clunk' sound may be heard when shifting into gear, followed by a loss of engagement

Most Likely Causes

1. Internal Coast Clutch Assembly Failure 🔴 High Probability A known issue documented in Ford TSB 16-0057 for TorqShift® transmissions built on or before 12/15/2015. The code is a symptom of this mechanical failure. Forum discussions and YouTube repair videos confirm this is a common failure point where the coast clutch drum weld separates or the one-way mechanical diode fails. The issue was significant enough to become Safety Recall 19S20 for certain E-Series ambulance/school bus applications due to the risk of losing all motive power.
   How to confirm: Confirm the vehicle has a TorqShift® transmission built on or before 12/15/2015 and has DTCs P0751, P0730, and/or P2700. The ultimate confirmation is transmission disassembly and inspection of the coast clutch assembly for separation or damage.
   Typical fix: Remove and disassemble the transmission to replace the coast clutch cylinder and the coast one-way clutch (OWC) mechanical diode assembly. Ford later specified replacing the single-engaging OWC with an updated dual-engaging OWC as part of recall 19S20.
   Est. part cost: $200-$400 for the clutch components
2. Low or Dirty Transmission Fluid 🟡 Medium Probability → Shop Transmission Assembly While the TSB is the most likely cause, all automatic transmissions are sensitive to fluid level and condition. Burnt or debris-filled fluid can indicate internal damage and cause erratic solenoid operation.
   How to confirm: Check the transmission fluid level and condition using the dipstick. Fluid should be at the correct level, red in color, and not smell burnt. Inspecting the pan magnet for excessive metal shavings is a key diagnostic step.
   Typical fix: Perform a transmission fluid and filter change using the correct Motorcraft MERCON SP fluid. This is often a first step but is unlikely to solve the P0751 code if the mechanical coast clutch failure has occurred.
   Est. part cost: $100-$200
3. Failed Shift Solenoid 'A' ⚪ Low Probability → Shop Transmission Valve Body While the code directly points to the solenoid, on this platform it is more often a symptom of the internal mechanical failure described in TSB 16-0057. An owner on Ford-Trucks.com replaced the solenoid for this code only to discover the root cause was a failed transmission pump, which prevented the solenoid from getting the necessary hydraulic pressure.
   How to confirm: After dropping the transmission pan, test the solenoid's resistance with a multimeter (expect ~4.5-5.8 ohms) and check for an audible click when applying 12V power. A more thorough test involves checking hydraulic pressure at the transmission test port with a 300+ PSI gauge.
   Typical fix: Replace the individual shift solenoid 'A' (SSPC-A). This is done by dropping the transmission pan.
   Est. part cost: $50-$100
4. Wiring or Connector Issue ⚪ Low Probability
   How to confirm: Visually inspect the wiring harness leading to the transmission for any signs of damage, corrosion, or loose connections at the main connector. Test for continuity and proper voltage (approx. 12.6V) at the solenoid connector.
   Typical fix: Repair or replace the damaged section of the wiring harness or the connector.
   Est. part cost: $20-$150

Rare But Worth Checking

• Faulty Powertrain Control Module (PCM) or Transmission Control Module (TCM): → Shop Transmission Assembly This is very uncommon. All other possibilities, especially the TSB-documented mechanical failure, should be exhausted before considering the control module.
• Failed Transmission Front Pump: → Shop Transmission Assembly In at least one documented case, a failed front pump caused a lack of hydraulic pressure, which in turn triggered codes P0751 and P2700 because the coast clutch could not be actuated. This is a catastrophic failure requiring a full rebuild or replacement.

Diagnosis Steps

1. Scan the PCM for all stored trouble codes. Note if P0730 or P2700 are present with P0751, as this strongly suggests the TSB applies.
2. Check the transmission build date. This can be found on a tag on the transmission case. If it is on or before 12/15/2015, the issue is highly likely to be the internal failure described in TSB 16-0057.
3. Check the transmission fluid level and condition. Dark, burnt fluid or significant metal debris on the pan magnet points to severe internal wear.
4. If the build date is after 12/15/2015 or you want to rule out other issues, inspect the transmission wiring harness and main connector for damage or corrosion.
5. For advanced diagnosis, a technician can tap into the pressure test port on the driver's side of the transmission to check line pressure with a gauge. Expected idle pressure in Drive is at least 70 PSI.
6. If electrical tests pass and the build date aligns with the TSB, the next step is to follow the service procedure to remove the transmission and inspect and replace the coast clutch assembly.

Parts You'll Likely Need

• Coast Clutch Cylinder (OEM #7C3Z-7G387-B) — This is one of the two primary components Ford identifies in TSB 16-0057 to fix the root cause of P0751 on these transmissions. Multiple online Ford parts dealers confirm this part number.
  Trusted brands: Motorcraft
  OEM price range: $95-$115
  Aftermarket price range: $70-$120
• Coast One-Way Clutch (OWC) (OEM #7C3Z-7A089-A) — This is the second primary component, also called a mechanical diode or sprag assembly, that Ford identifies in TSB 16-0057 as necessary to replace. Failures of this part are a known weak point.
  Trusted brands: Motorcraft
  OEM price range: $100-$150
  Aftermarket price range: $80-$160
• Transmission Filter & Seal Assembly (OEM #8C3Z-7A098-D) — This should be replaced any time the transmission is serviced, especially during a major repair like this one. A clogged filter is a potential cause of shifting issues.
  Trusted brands: Motorcraft
  OEM price range: $30-$50
  Aftermarket price range: $20-$40
• Automatic Transmission Fluid (MERCON LV) — The transmission must be refilled with the correct fluid after the repair. The 5R110W uses MERCON SP, not LV as stated in Pass 2.
  Trusted brands: Motorcraft
  OEM price range: $8-$12 per quart
  Aftermarket price range: $6-$10 per quart

Related Codes That Often Appear With This One

• P0730 — Stands for 'Incorrect Gear Ratio'. This code is often triggered alongside P0751 because the failure of the coast clutch prevents the transmission from achieving or holding the gear ratio commanded by the PCM. It is explicitly mentioned in TSB 16-0057.
• P2700 — Stands for 'Transmission Friction Element 'A' Apply Time Range/Performance'. This code is also related to clutch engagement timing and is listed in TSB 16-0057 as a common companion code to P0751, pointing to the same internal mechanical fault.

Technical Service Bulletins (TSBs) & Recalls

• TSB 16-0057: Addresses MIL illumination with DTCs P0751, P0730, and/or P2700 on TorqShift® transmissions, recommending replacement of the coast clutch cylinder and coast one-way clutch.
• Recall 19S20: A safety recall for certain E-Series ambulance/school bus applications that implements the fix from TSB 16-0057 to prevent a loss of motive power from coast clutch failure.

Platform-Specific Known Issues

• Ford TSB 16-0057 documents that 2009-2014 E-Series vehicles with the TorqShift® transmission may exhibit codes P0751, P0730, and/or P2700 due to a failure in the coast clutch cylinder and coast one-way clutch. This is the most significant known issue related to this code on this platform.
• Safety Recall 19S20 was issued for certain E-Series vehicles configured as ambulances or school buses with the 5.4L engine for this exact coast clutch issue, indicating a risk of sudden loss of motive power. The fix involves replacing the coast clutch cylinder and upgrading the one-way clutch.

Mechanic-Grade Diagnostic Values

• Shift Solenoid 'A' (SSPC-A) Resistance — expected: 4.5 - 5.8 ohms. Failure: A reading outside this range indicates a faulty solenoid coil.
• Transmission Line Pressure at Idle (Warm) — expected: Park/Neutral: ~60 PSI, Drive: ~70-100 PSI, Reverse: 85-130 PSI. Failure: Significantly lower pressure can indicate a worn pump, internal leaks, or low fluid level.
• Voltage at Solenoid Connector — expected: Approximately 12.6V (battery voltage) on the supply wire with key on.. Failure: Voltage below 12V or an unstable reading points to a wiring or PCM driver issue.

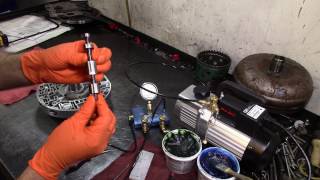

• Vacuum Test on Pump Pressure Regulator Valve — expected: Above 15 inHg; a good valve bore should be closer to 25 inHg.. Failure: Readings below 15 inHg indicate significant wear in the pump valve body, causing pressure loss.

Scan Tool Commands That Help

• Ford IDS (or equivalent): Clear Transmission Adaptive Tables — After any major transmission repair, such as replacing the coast clutch assembly or valve body, this function must be performed to reset the transmission's learned shift strategy. Failure to do so can result in harsh or erratic shifting as the PCM attempts to use old, incorrect data.

Wiring & Ground Locations

• Transmission Line Pressure Test Port — On the driver's side of the 5R110W transmission case, just above the pan level. The plug is typically a 7/16-inch (11mm) bolt.. This port allows a technician to connect a pressure gauge to directly measure the hydraulic line pressure. Low pressure confirms that the solenoid's command is not being carried out due to a hydraulic issue (like a failed pump or major leak) rather than an electrical one.
• C175T — This is the main 52-pin connector at the Powertrain Control Module (PCM) for vehicles with the 5.4L engine.. This is the source of the command signals for all transmission solenoids. Technicians can test for proper voltage and continuity for the Shift Solenoid 'A' circuit here to isolate a problem between the PCM, wiring, and the transmission itself.

Real Owner Repair Stories

• Reddit user in r/FordTransmissionTech (2016 F-450 (Note: While newer, it uses the same 5R110W and faced the same TSB/Recall issue)) — MIL on with codes P2700 and P0751. Vehicle drove fine initially.
  ❌ Tried (didn't work) The initial TSB repair (replacing coast clutch housing and one-way clutch) was performed.
  ✅ What actually fixed it The repair initially failed. After reassembly, the transmission would engage hard, then clunk and lose the gear. The user suspected an issue during reassembly, possibly a dislodged pump washer or bearing, and planned to perform a line pressure test before tearing the transmission down again for inspection. The final resolution was not posted, but the story highlights the complexity and potential for error even when performing the correct TSB procedure.

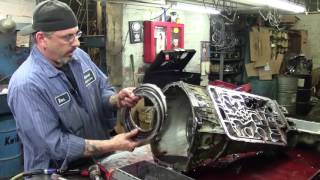

• YouTube channel Meenan Transmissions (Ford F-250 with 5.4L gas engine (year not specified, but has 5R110W)) — Not specified, but vehicle was in for transmission repair.
  ✅ What actually fixed it The coast clutch cylinder weld had failed, causing the outer portion of the drum to spin separately from the inner portion. This is the exact failure described in TSB 16-0057 and Recall 19S20. The video shows the broken part and explains how the failure allows the drum to contact the pump's return spring, causing damage. The fix was to replace the failed coast clutch cylinder and other worn internal components.

OEM Part Supersession History

• 5C3Z-7A089-BA, 5C3Z-7A089-CA → 7C3Z-7A089-A — These are earlier revisions of the Coast One-Way Clutch (OWC) assembly.
  Heads up: The updated part 7C3Z-7A089-A is the recommended replacement. Furthermore, Safety Recall 19S20 specifies replacing the original single-engaging OWC with a more robust dual-engaging OWC, which may be a different part number provided under the recall service.
