P0751 on 2002-2007 Saturn Vue: Shift Solenoid 'A' Causes and Fixes

What's Unique About the 2002-2007 Saturn Vue

The first-generation Saturn Vue is a special case because GM used several different automatic transmissions during its 2002-2007 production run. The cause and repair for P0751 depend entirely on which engine 🎬 Watch this guide to diagnosing P0751 performance and stuck-off codes. and transmission your Vue has. V6 models from 2002-2003 used a 5-speed Aisin AF33 transmission. 2004-2007 V6 models used a 5-speed Honda transmission (MDRA/MDPA). Four-cylinder models started with a problematic VTi CVT (VT25-E), which was later replaced by a conventional 4-speed GM 4T45-E automatic from 2005 to 2008. Using the correct transmission fluid (Honda ATF-Z1/DW-1 for the 3.5L V6, Dexron VI or JWS-3309/T-IV for others) is critical and a common source of issues.

Generation note: While this is all the first generation of the Saturn Vue, the powertrains changed significantly, which is critical for this code. The fix depends on whether you have the 3.0L V6 (2002-03 Aisin AF33 trans), 3.5L V6 (2004-07 Honda MDRA/MDPA trans), or 2.2L/2.4L I4 (VTi CVT or 4T45-E trans). The P0751 code on a VTi CVT model is particularly severe and often indicates a failing transmission belt or pulley system, which is usually not economically repairable.

Symptoms You May Notice

• Check Engine Light is on
• Harsh, abrupt, or delayed shifting
• Transmission slipping between gears
• Vehicle stuck in one gear (usually 2nd or 3rd), also known as 'limp mode'
• Failure to shift into higher or lower gears
• Reduced fuel economy
• Transmission overheating
• Engine RPMs flare up between shifts

Most Likely Causes

1. Low or Dirty Transmission Fluid 🔴 High Probability → Shop Transmission Assembly Different transmissions require specific, incompatible fluids (Honda ATF-Z1/DW-1 for 3.5L V6, Dexron VI for 4T45-E, JWS-3309 for Aisin AF33). Using the wrong fluid or running low can cause sludge, poor hydraulic pressure, and solenoid malfunction. Contaminated fluid can clog the small passages and screens on the solenoids themselves.
   How to confirm: Check the transmission fluid level and condition via the dipstick (if equipped) or check-plug. The fluid should be at the correct level, bright red (or honey-colored for Honda ATF), and not smell burnt or contain debris.
   Typical fix: Perform a transmission fluid and filter change with the OEM-specified fluid for your exact model. A simple drain-and-fill may not be enough if the fluid is very dirty; a full fluid exchange might be necessary.
   Est. part cost: $50-$150

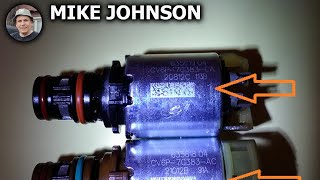

2. Failed Shift Solenoid 'A' 🔴 High Probability → Shop Transmission Valve Body Solenoids are wear items that can fail electrically (coil burns out) or mechanically (valve gets stuck from debris). This is a common failure point across all conventional automatic transmissions used in the Vue.
   How to confirm: After ruling out fluid issues, a mechanic can test the solenoid's resistance with a multimeter (typically 12-25 ohms is a general guide, but check specific specs). A bi-directional scan tool can be used to command the solenoid on and off to check for a response. For external solenoids (like on the Honda transmission), you can sometimes hear an audible 'click' when applying 12V power directly.
   Typical fix: Replace the faulty shift solenoid. This may require removing the transmission pan and 🎬 See this walkthrough for replacing solenoids on the 4T45-E transmission. valve body (4T45-E, Aisin AF33) or can be done externally (Honda 3.5L).
   Est. part cost: $40-$120
3. Damaged Wiring or Connectors 🟡 Medium Probability
   How to confirm: Visually inspect the wiring harness going to the transmission for any signs of corrosion, chafing, or loose pins at the main connector. Test for continuity and voltage from the TCM connector to the solenoid connector to rule out an open or shorted wire.
   Typical fix: Repair the damaged section of the wiring harness or clean/replace the corroded connector. Apply dielectric grease to protect the connection.
   Est. part cost: $10-$50
4. Faulty Transmission Control Module (TCM) ⚪ Low Probability → Shop Transmission Assembly On some 2.2L models, particularly those around the 2003-2005 transition from CVT to the 4T45-E, a failing TCM has been cited as a cause for solenoid performance codes. Later Vue models with the 6T70 transmission (post-2007) had known TCM issues, indicating a potential pattern for GM transmissions of the era.
   How to confirm: This is typically a diagnosis of exclusion. If the fluid, solenoid, and wiring are all confirmed to be good, the TCM is the likely culprit. A professional shop may need to verify this, as it requires advanced diagnostics.
   Typical fix: Replace the TCM. The new module must be programmed to the vehicle's VIN.
   Est. part cost: $150-$400

Rare But Worth Checking

• Clogged Internal Transmission Passages: → Shop Transmission Assembly If the transmission fluid is extremely dirty or contains metal shavings, it can clog the small passages within the valve body, preventing the solenoid from functioning even if the solenoid itself is good. This often indicates a more serious internal transmission problem requiring a rebuild or replacement.

Diagnosis Steps

1. Check the transmission fluid level and condition. Ensure it is full and clean. If it is low, top it off and check for leaks. If it is dark, burnt, or contains debris, perform a fluid and filter change using the correct fluid type for your transmission.
2. Scan for other transmission-related codes to get a complete picture of the issue.
3. Inspect the transmission wiring harness and connectors for any visible damage, corrosion, or loose connections.
4. If fluid and wiring are good, test the Shift Solenoid 'A' circuit. For the 4T45-E and Aisin transmissions, this involves dropping the pan to access the solenoid. For the Honda transmission, the solenoid is external. Use a multimeter to check the 🎬 Watch: How to test a shift solenoid using a multimeter. solenoid's resistance. (e.g., 13.8-17.1 ohms for Honda, 12-28 ohms for GM 4T45-E).
5. If accessible, apply a 12V power source directly to the solenoid terminals and listen for an audible 'click' to confirm mechanical operation.
6. If the solenoid and wiring test good, the issue may be with the valve body (clogged passages) or the Transmission Control Module (TCM). This step often requires professional diagnosis.

Parts You'll Likely Need

• Shift Solenoid 'A' (OEM #Varies by transmission: GM 4T45-E: 24207236 (1-2 Shift Solenoid); Honda 3.5L: 28400-RDK-003; Aisin AF33: (Varies, check by VIN)) — This is the solenoid that the code directly points to as malfunctioning. It's a common failure point.
  Trusted brands: ACDelco, Standard Motor Products (SMP), Delphi, Honda OEM
  OEM price range: $70-$120
  Aftermarket price range: $40-$80
• Transmission Fluid — Low or incorrect fluid is a primary cause of solenoid issues. Use Honda ATF-Z1/DW-1 for 3.5L V6 models (2004-07). Use a fluid meeting Dexron VI for 4T45-E models. Use a fluid meeting JWS-3309/T-IV specs for 3.0L V6 Aisin models. Always check your owner's manual.
  Trusted brands: ACDelco, Valvoline MaxLife, Idemitsu, Honda
  OEM price range: $12-$20 per quart
  Aftermarket price range: $8-$15 per quart
• Transmission Filter Kit (OEM #Varies by transmission) — Should always be replaced when changing the fluid or replacing internal components to remove contaminants that can clog solenoids.
  Trusted brands: ACDelco, Wix, ATP
  OEM price range: $30-$60
  Aftermarket price range: $15-$40

Related Codes That Often Appear With This One

• P0700 — P0700 is a generic code indicating the Transmission Control Module (TCM) has stored a fault. It almost always appears alongside a more specific transmission code like P0751 to signal the driver via the Check Engine Light.
• P0756 — This code points to an issue with Shift Solenoid 'B'. It's common to see multiple solenoid codes together if the root cause is widespread, such as contaminated fluid or a failing TCM affecting multiple driver circuits.

Technical Service Bulletins (TSBs) & Recalls

• While no specific TSB for P0751 on the Vue was found, GM Special Coverage Bulletin 14404 covers a broken 3-5-R wave plate in the later 6T70/6T75 transmissions used in 2008-2009 Vues, which causes similar shifting symptoms and codes like P0776. This highlights a history of internal component failure in transmissions used by Saturn.

Platform-Specific Known Issues

• For 2004-2007 V6 models with the Honda transmission, using any fluid other than genuine Honda ATF is a known cause of shifting problems and solenoid failure. The solenoids are external and can be replaced without dropping the transmission pan, making the repair somewhat easier than on other versions.
• For 2002-2005 4-cylinder models, it is crucial to identify if you have the unreliable VTi CVT or the conventional 4-speed automatic (4T45-E), as the diagnostics and parts are completely different.

Mechanic-Grade Diagnostic Values

• Shift Solenoid 'A'/'B' Resistance (GM 4T45-E) — expected: 12 - 28 Ohms. Failure: A reading of 0 Ohms (short) or infinite/OL (open circuit) indicates a failed solenoid.
• Shift Solenoid 'A' Resistance (Honda 3.5L V6 / MDRA) — expected: 13.8 - 17.1 Ohms. Failure: A reading outside this specific range indicates a faulty solenoid.
• Shift Solenoid Resistance (Aisin AF33) — expected: The SLT (Linear) solenoid is ~5.3 Ohms. The on/off shift solenoids (S1/S2) should be higher, typically in the 11-15 Ohm range for this transmission family.. Failure: A reading of 0 Ohms (short) or infinite/OL (open circuit) indicates a failed solenoid.
• Voltage at Solenoid Connector — expected: Approximately 12.6V (Battery Voltage). Failure: A reading of 0V or significantly less than battery voltage points to a wiring issue, a bad ground, or a problem with the TCM driver circuit.

Scan Tool Commands That Help

• GM Tech2 / Professional Bidirectional Scan Tool: Transmission Output Controls / Solenoid Active Test — After verifying fluid and wiring, this command allows a technician to manually energize and de-energize Shift Solenoid 'A'. A functional solenoid will produce an audible 'click' from the transmission case. This confirms the solenoid's mechanical and electrical function without removal, helping to isolate the fault to the solenoid itself versus a wiring or TCM issue.

Wiring & Ground Locations

• G103 / G105 — On the left side of the rear of the engine compartment.. These are primary engine and transmission-related ground points. Corrosion or a loose connection here can cause intermittent and difficult-to-diagnose electrical faults for all transmission sensors and solenoids, leading to performance codes like P0751.
• G106 — On the engine, at the top left front corner.. Another critical ground point for the engine and powertrain controls. A poor ground here can affect the TCM's ability to properly control the solenoids.
• Harness Below Battery Box — The wiring harness routed under the battery tray in the engine compartment.. This area is a known chafe point and is susceptible to damage from battery acid leaks. Forum users have reported finding broken ground wires here that caused shifting problems, which were resolved by repairing the wires.
• TCM Connector (2.4L) — At the Transmission Control Module.. On 2.4L models with the 4T45-E, the 1-2 Shift Solenoid control wire is a Light Green wire at pin 2 of the TCM connector. This is the specific pin to test for voltage/continuity when diagnosing a circuit fault between the TCM and the solenoid.

Real Owner Repair Stories

• Saturn Forum user 'confuzzled' (2005 Saturn Vue with 2.2L engine and 4T45-E transmission) — No shift into 3rd or 4th gear after an engine swap from a 2006 Cobalt.
  ❌ Tried (didn't work) Replacing both shift solenoids (A and B).
  ✅ What actually fixed it The user discovered two broken black and white ground wires that attached to a bolt below the battery box. Re-attaching these ground wires resolved the shifting issue. This indicates a wiring problem was the root cause, not the solenoids themselves.

When the Usual Fixes Don't Work

• In at least one documented case for a 2005 Vue with the 4T45-E transmission, replacing the shift solenoids did not fix the shifting problem. The actual cause was found to be broken ground wires located under the battery tray. This highlights the importance of thoroughly checking the wiring harness and ground connections for damage or corrosion before condemning internal transmission components, especially after other engine work has been performed.

OEM Part Supersession History

• Varies → 24207236 (ACDelco) — This is the correct and widely available part number for the 1-2 Shift Solenoid ('A') in the GM 4T45-E transmission used in the Vue.
  Heads up: Do not confuse with part number 24227792. While it may appear in searches for GM solenoids, 24227792 is typically a TCC PWM solenoid for RWD transmissions like the 4L60E/4L65E and is not correct for this FWD application.

Model Year Variations Within This Range

• 2005-2008: The 4-cylinder Saturn Vue switched from the problematic VTi CVT to the more reliable conventional 4-speed GM 4T45-E automatic starting in the 2005 model year. This is a critical distinction, as P0751 on a CVT often means catastrophic failure, while on a 4T45-E it is usually a repairable solenoid or wiring issue.

Diagnostic Flowchart

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: For the GM 4T45-E transmission, a complete used assembly from a low-mileage donor vehicle can be a cost-effective solution. These transmissions are generally considered reliable, and forum users report they are inexpensive to source from salvage yards. For the Honda 3.5L V6, a used external solenoid pack could be considered if from a verified low-mileage vehicle.

Donor-vehicle mileage cap: roughly under 120000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• Check the donor vehicle's VIN to confirm the engine (2.2L vs 2.4L for 4T45-E) to ensure valve body compatibility.
• Ask for maintenance records if possible, specifically looking for regular fluid changes.
• Inspect the transmission fluid from the donor car. It should not be black, smell burnt, or contain excessive metal particles.
• Check all electrical connectors on the used part for corrosion, bent pins, or cracked plastic.

OEM-only on this vehicle (don't cheap out):

• Transmission Control Module (TCM) - Must be programmed to the vehicle's VIN.
• Transmission Fluid - Using the exact specified fluid (Honda ATF-DW1, Dexron VI, etc.) is critical and non-negotiable.

Aftermarket brands forum-validated for this vehicle:

• Solenoids: ACDelco (for GM), Rostra, Standard Motor Products (SMP), Delphi
• Filters/Gaskets: Wix, ATP, ACDelco

Brands owners have reported issues with on this vehicle:

• Unbranded, no-name solenoids from online marketplaces can have high failure rates and are best avoided for a component that requires significant labor to access.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P0700 — Transmission Control System Malfunction. This is a generic code indicating the TCM has detected a fault. It almost always appears alongside a more specific code like P0751 to signal that a transmission-related problem exists.
• P0752 — Shift Solenoid 'B' Stuck On. This code was reported by an owner with similar symptoms. A fault in the wiring harness, contaminated fluid, or a failing TCM that causes P0751 could easily affect other solenoids in the same valve body, leading to this code.
• P0756 — Shift Solenoid 'B' Performance/Stuck Off. This code points to a fault with the companion solenoid to 'A'. Since both solenoids operate in the same hydraulic and electrical environment, they are susceptible to the same failures from dirty fluid or a clogged valve body.
• P0776 — Pressure Control Solenoid 'B' Performance. Mentioned in a GM TSB for a later Vue model, this code is related because it can be caused by an internal mechanical failure (broken wave plate) that produces shifting symptoms similar to those seen with P0751.

Frequently Asked Questions
